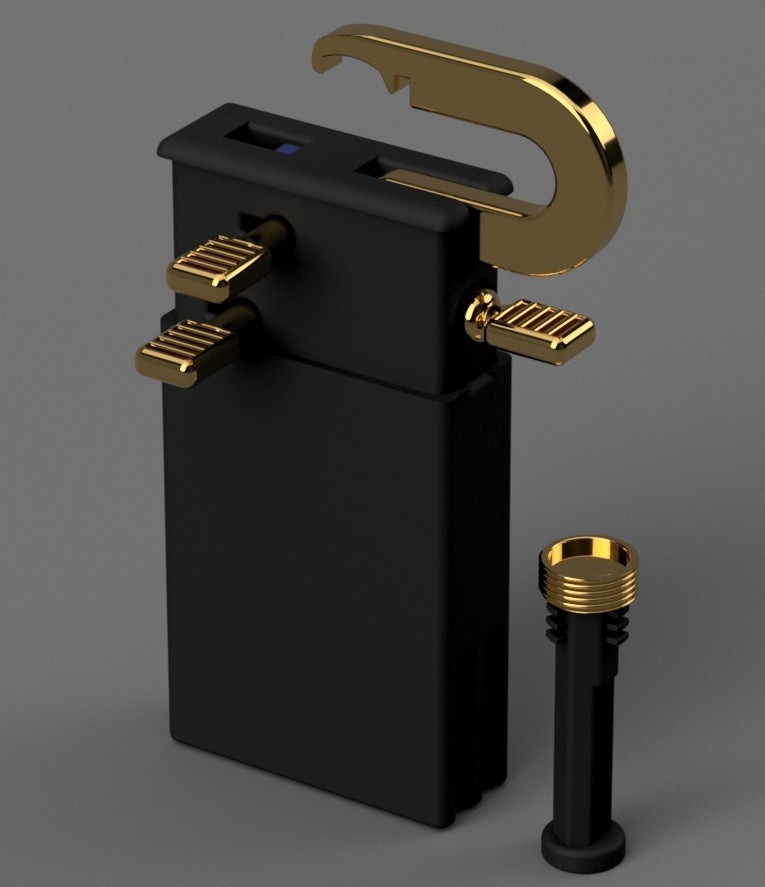

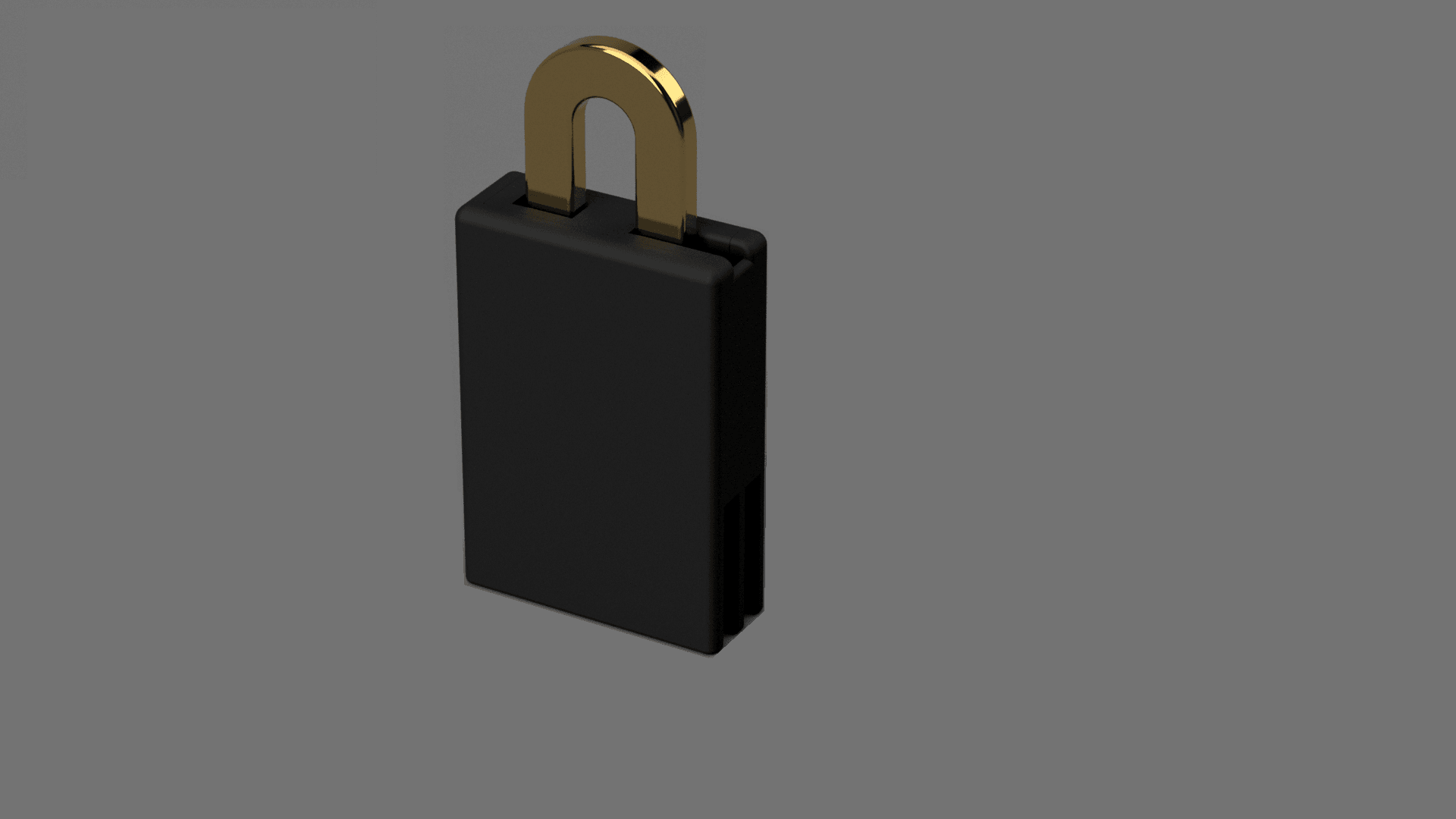

World's first 3D printable 4 key puzzle lock Inspired by a userJinx1385 on Reddit. This intricate puzzle lock features 3 keys a key holder and the lock itself. Challenge your friends family and co-workers to this one of a kind puzzle today.

Besides for a 3D printer and filament, the only other materials required are 16 M3x8mm screws That can be easily obtained here - https://www.amazon.com/uxcell-M3x8mm-Thread-Stainless-Socket/dp/B01M5DWCOW/ref=sr_1_13?s=hi&ie=UTF8&qid=1520890276&sr=1-13&keywords=M3x8mm

Detailed photographic assembly instructions can be found here - https://imgur.com/gallery/4YKJT

For the adventurous type, you can follow the following instructions down below.
Good luck!
Step 1: Add Pin 1,Pin 2 ,Key block slide,Shackle to Main body. Then fasten Side bolt to main body with 1 M3x8mm Hex Socket Screw
Step 2: push Spring A,B and C on to assigned pins
Step 3: attach bottom bolt to main body with 1 M3x8mm Hex Socket Screw
Step 4: attach sub body two main body with 4 M3x8mm Hex Socket Screw.
Step 5: Slide lock assembly into the top cover. fasten to lock assembly with 2 M3x8mm Hex Socket Screw into the holes located on the bottom.
Step 6: Slide on the Slide cover onto the Top cover.
Step 7: Fasten bottom nut onto bottom bolt till barely hand tight
Step 8: Attach bottom nut plate to slide cover with 4 M3x8mm Hex Socket Screw
Step 9: Attach bottom cover to slide cover with 4 M3x8mm Hex Socket Screw
Step 10: Screw in Bottom bolt cap
