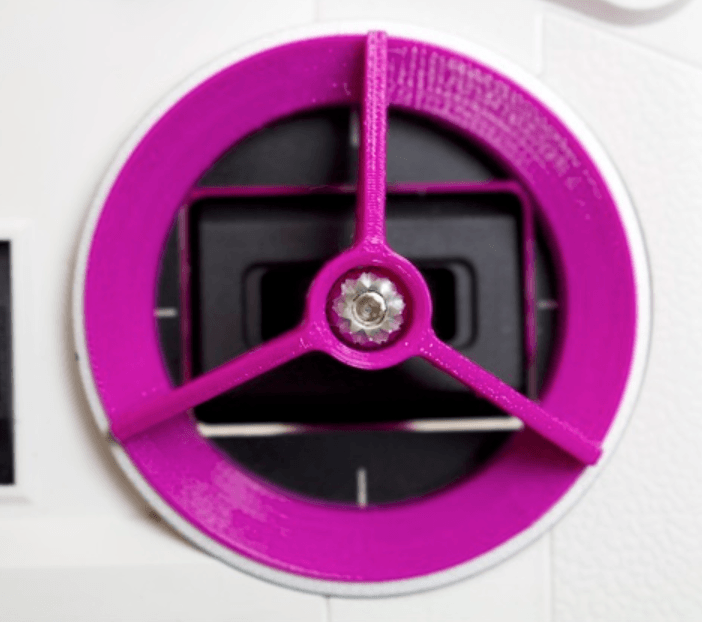

Taranis Q X7, Q X7S Gimbal Protectors/Guards

3D model description

The Taranis Q X7 requires a smaller diameter gimbal guard than it's popular partner, the X9D. Unlike some other gimbal guards, these are not designed to be a substitute for a transmitter case as that would still leave your switches unprotected. Instead, they:
-Protect gimbals from crushing within the transmitter case
-Keep your transmitter case and foam in good condition by preventing sharp sticks from rubbing
-Preserve gimbal springs by maintaining a neutral stick position during transport

V2 is ideal for a Taranis with stock gimbals while V1 fits both stock and upgraded M7 hall gimbals.

If you're looking for an easy remix, simply make a copy of my public Onshape document.

If you don't own a 3D printer, I also have listed these on eBay.

Update: Added custom M7 hall gimbal protectors optimized to fit upgraded M7 hall gimbals and the Q X7S transmitter.

3D printing settings

Printer:

FlashForge Creator Pro

Rafts:

No

Supports:

Yes

Resolution:

Use your defaults

Infill:

10-100%

Notes:
V1 doesn't require supports, but V2 and M7 hall gimbal protectors do. For easy removal of support, set the support to model spacing to .4mm.

  • 3D model format: STL

Tags

Creator

Followers Followings 0
Downloads 1452

We're a team of young makers who like cool (and sometimes dangerous) weekend projects. Make sure to check out our youtube channel!

YouTube Channel

License

CC BY NC
