STEAM POWERED FERRIS WHEEL

20201218_180919.jpg Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 20201218_180908.jpg Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 20201218_180931.jpg Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 20201218_180756.jpg Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 20201218_180846.jpg Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 20201213_170822.jpg Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84
BASE.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 CART.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 CASE COVER.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 CENTRE.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 DRIVE PULLEY.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 LEFT WHEEL.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 MAIN CASE.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 MID PULLEY.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 PARTS TEST FIT.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 RIGHT CAP.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 RIGHT WHEEL.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 SHAFT LOCK.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 TOP PULLEY.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84 WHEEL SUPPORT.stl Download STL file STEAM POWERED FERRIS WHEEL • 3D print model, Boxermad84
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 286 views
  • 5 likes

3D model description

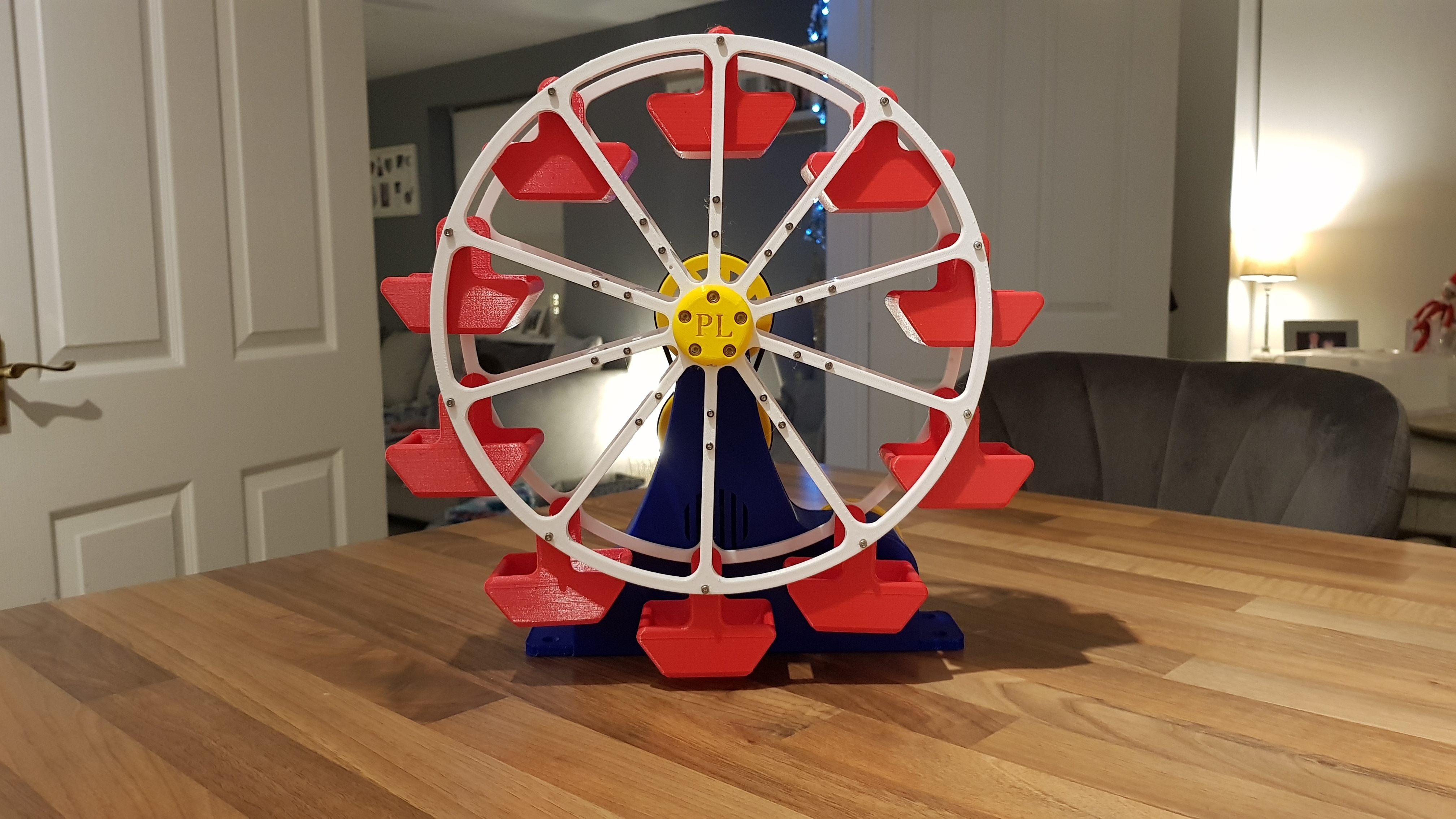

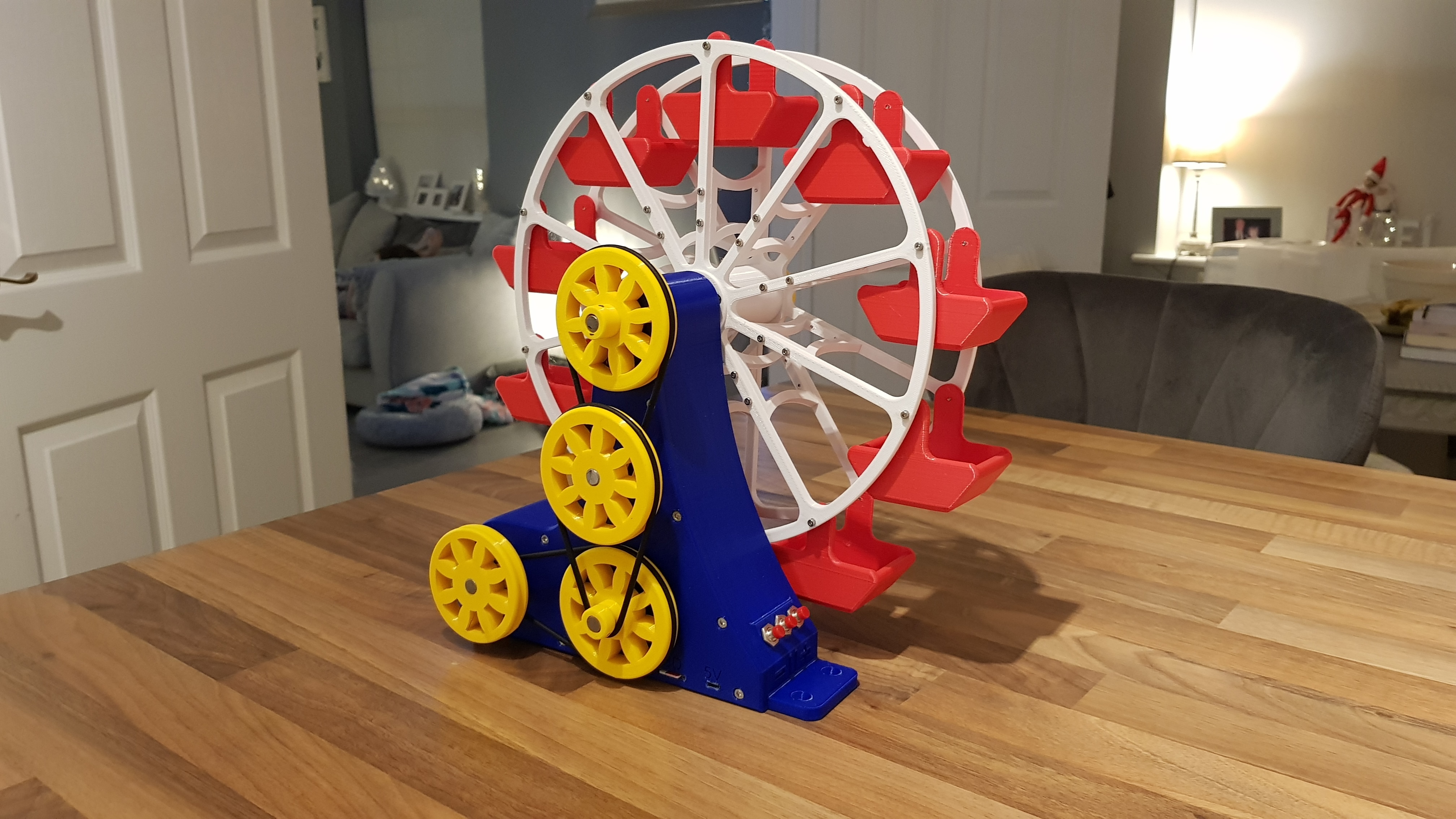

Model Ferris wheel to be powered by a steam engine like a Mamod SE3 or similar.

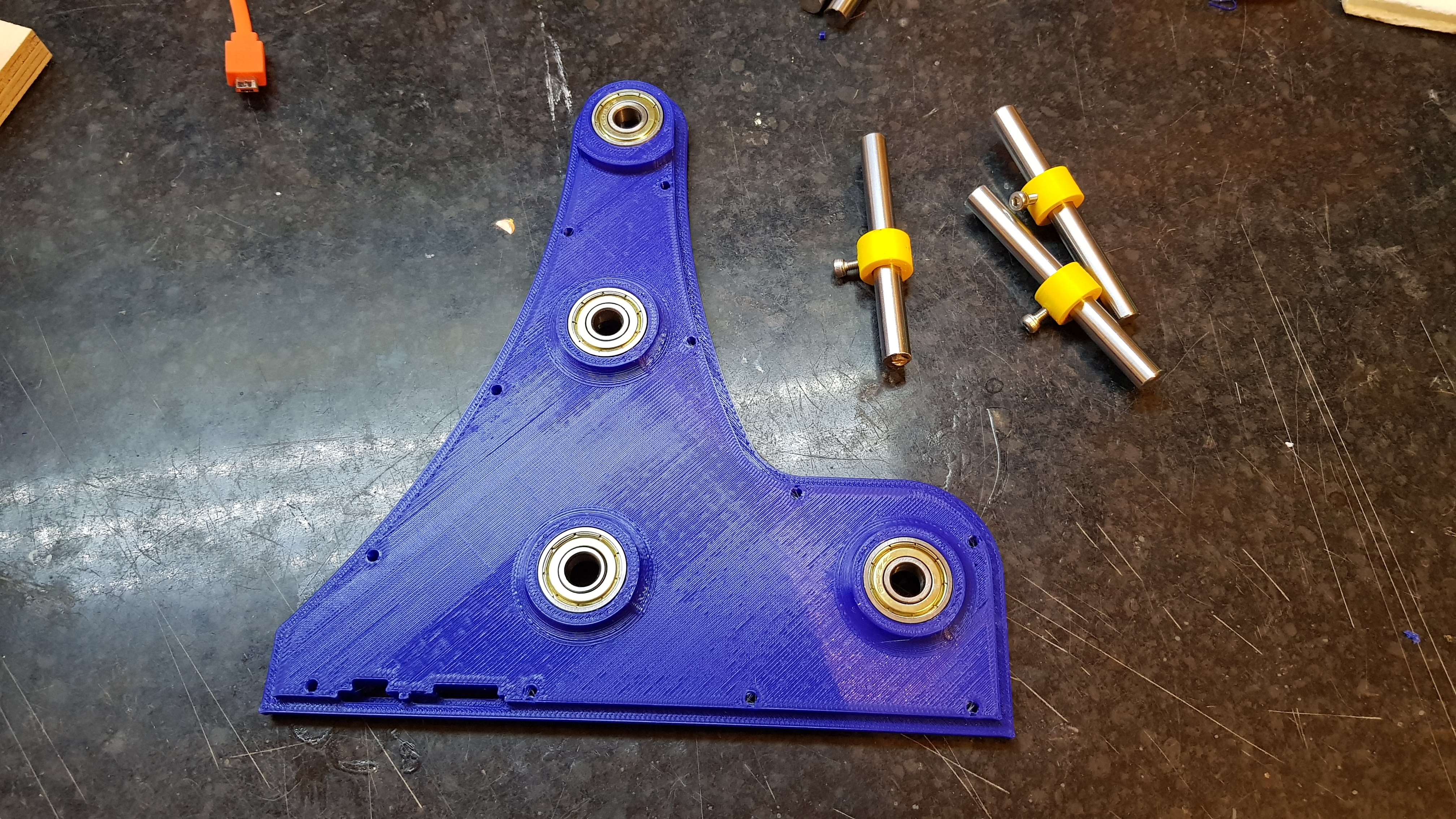

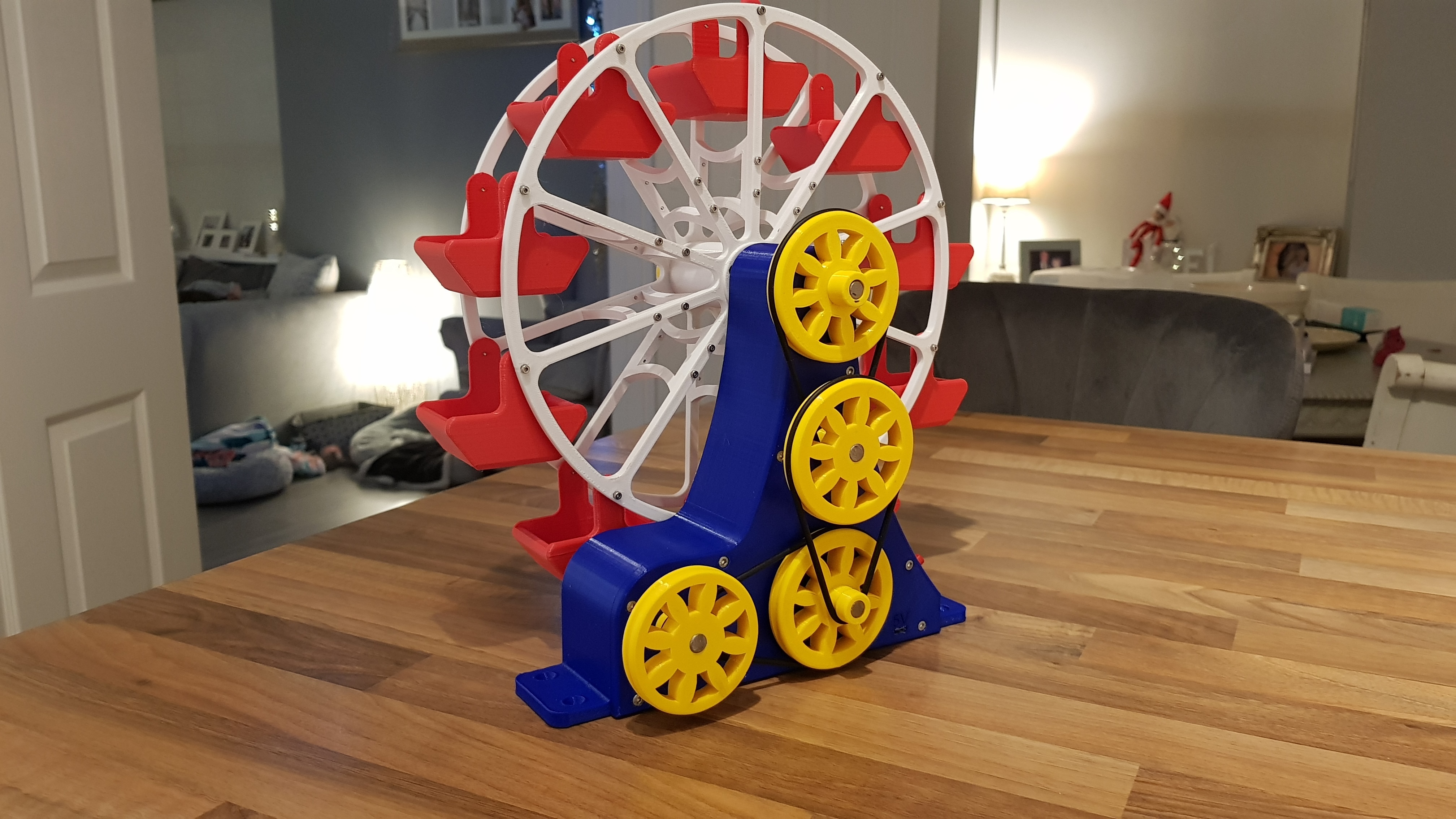

The gear ratio takes the steam engine from 1500-2500rpm to 2-5rpm for a realistic speed. Oil the bearings even if the are sealed, this will give less friction for the engine to drive. Music is supplied by a micro sd decoder board. power is from either a 5v micro usb phone charger or a 3x aa 4.5v power box.

PRINT THE PARTS TEST FIT FILE FIRST TO SEE IF YOU NEED TO SCALE THE MODEL.

https://youtu.be/QWrFVt_mYeA

Print two of the mid pulleys.

22 x M3X20
60 X M2X10
8X M3X3MM GRUB SCREWS
8 X 22X8X7 BEARINGS
2 METRES OF 3MM NITRILE CORD MAKES 2 SETS OF DRIVE BELTS
3MM OD X 2MM ID TUBE
400MM OF 8MM SHAFT

8MM SHAFT
https://www.amazon.co.uk/gp/product/B07MV83GXB/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

BEARINGS
https://www.amazon.co.uk/gp/product/B07FF1RBPV/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

SWITCHES
https://www.amazon.co.uk/gp/product/B087V5VKKY/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1

USB BREAKOUT BOARD
https://www.amazon.co.uk/gp/product/B07RDHNL9H/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

SPEAKER
https://www.amazon.co.uk/gp/product/B073TSC7RW/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

MP3 MICRO SD BOARD
https://www.amazon.co.uk/gp/product/B07YDFSZJ4/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

AA 4.5V POWER SUPPLY (WILL NEED TO ADD A MICRO USB CONECTOR)
https://www.amazon.co.uk/gp/product/B087NMQX4V/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

  • 3D file format: STL
  • Publication date: 2020/12/28 at 18:28
