Skeleton Waveguide Subwoofer - (Old version)

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

**Please use the new version here:

https://www.thingiverse.com/thing:5077425 **

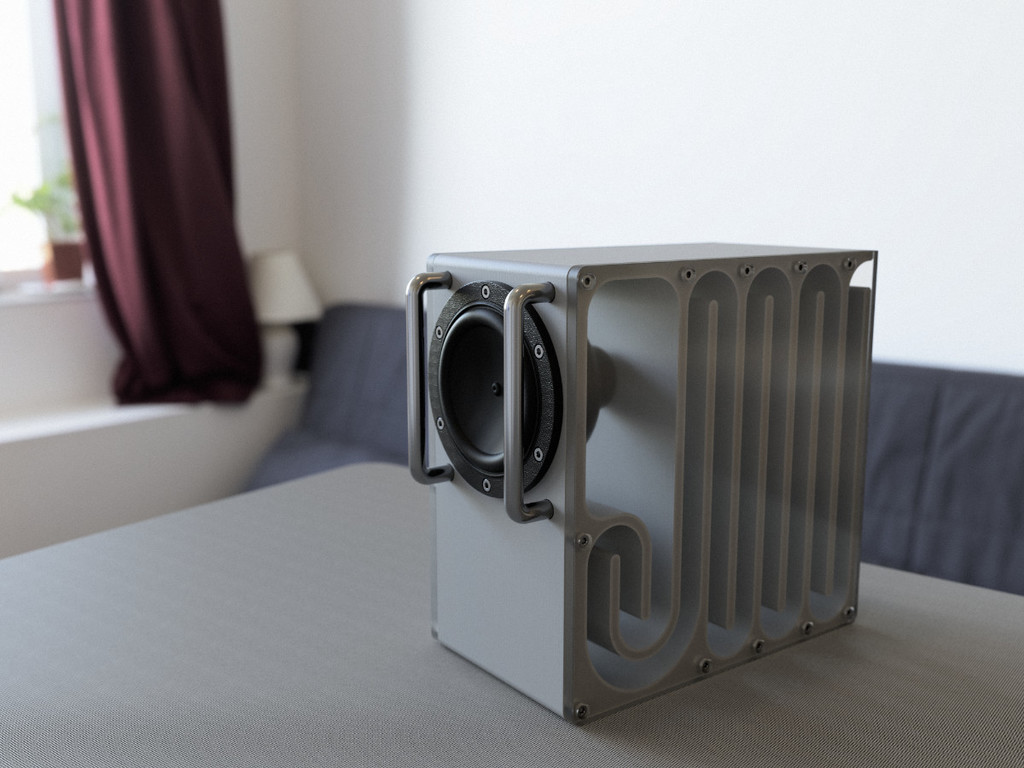

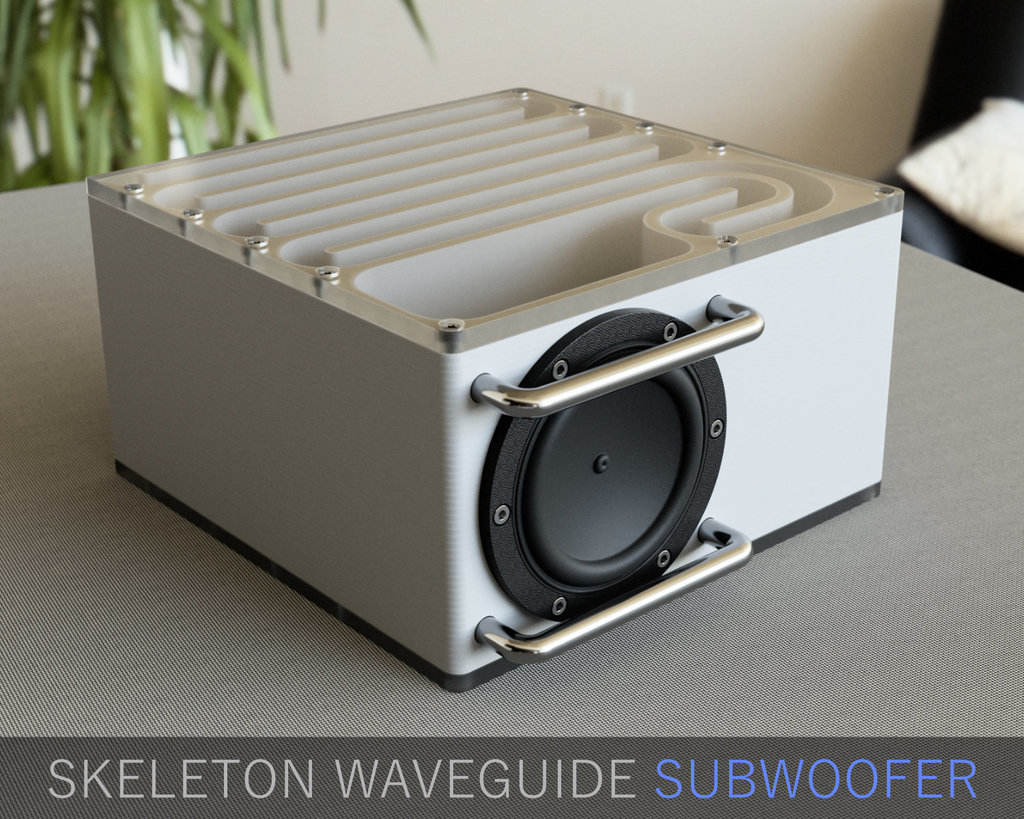

A remix of Hexibase's subwoofer designed for clear side panels, so the cool waveguide is visible. It would also suit wooden sides. It's smaller than the Hexibase version, so it will print on a 19cm x 19cm print bed. I kept exactly the same tuning as the original by changing the aspect ratio of the port. (The port cross-section, port length, and the chamber volume all match the original.) Frequency response 40Hz - 150Hz.

Fusion 360 Archive and STEP file included for your modding pleasure.

This uses the renowned Tang Band W3 1876S 3" subwoofer driver which is available worldwide (links below). The subwoofer will work with just about any low cost 2.1 channel amplifier or home theatre amplifier, but if you are looking for a DIY amp project with Bluetooth and DSP, check out this one:
https://www.thingiverse.com/thing:4761687

I hope you like it, if you do, please hit like.

Also check out my other projects for some cool satellite speakers which work well with this:
P-CUBE Satellites:
https://www.thingiverse.com/thing:4706916
Desktop Obelisks:
https://www.thingiverse.com/thing:4762555
zx82net Bookshelf Speakers:
https://www.thingiverse.com/thing:4128781


3D printing settings

-

3D printer file information

  • 3D design format: F3D, STEP, STL, and ZIP Folder details Close
    • 3_5-16ths_wire_pull.zip
    • 3_inch_wire_pull_guard.zip
    • 92mm_Fan_guard.zip
    • Skeleton_Waveguide_1_-_no_guard_Skeleton_Waveguide_1_v1_Skeleton_-_screws_.stl
    • Skeleton_Waveguide_1_v1.f3d
    • Skeleton_Waveguide_1_v1.step

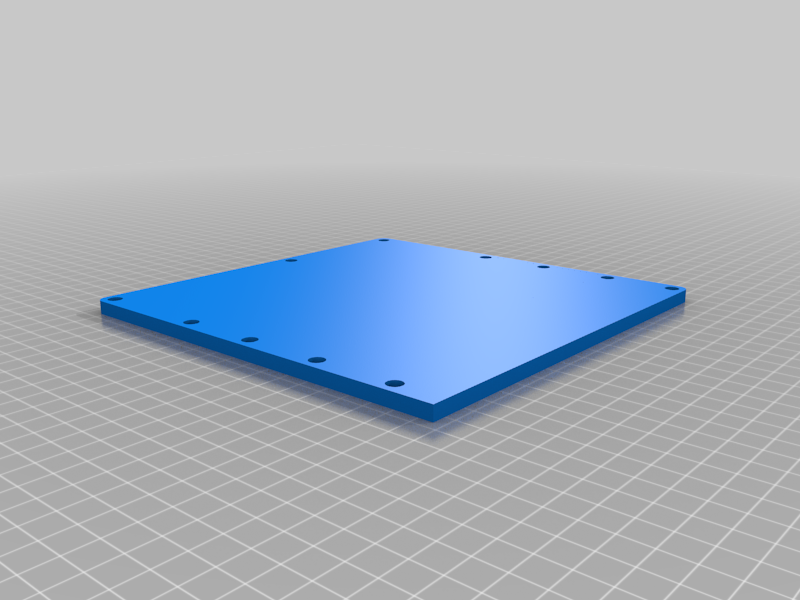

    • Skeleton_Waveguide_v1_Side_-_L_.stl
