Sinar rail clamp (camera/tripod support) & F1 repairs

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.1k views
  • 1 like

3D model description

replacement support for Sinar camera rail..

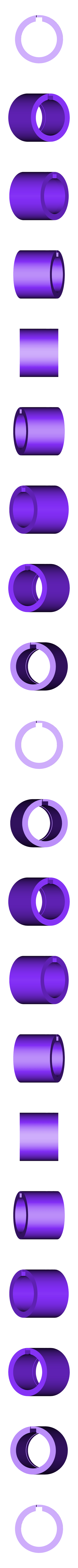

The sleeve will also fit the original Sinar pillar.

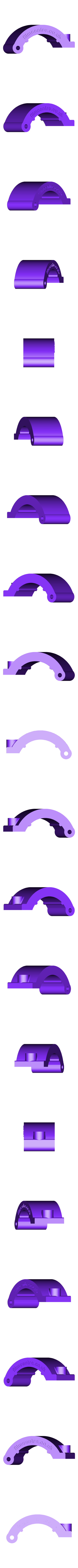

requires: M5 x 50mm bolt for the hinge. M6 x 30mm+ bolt/nut for the clamp (or 1/4" UNC).

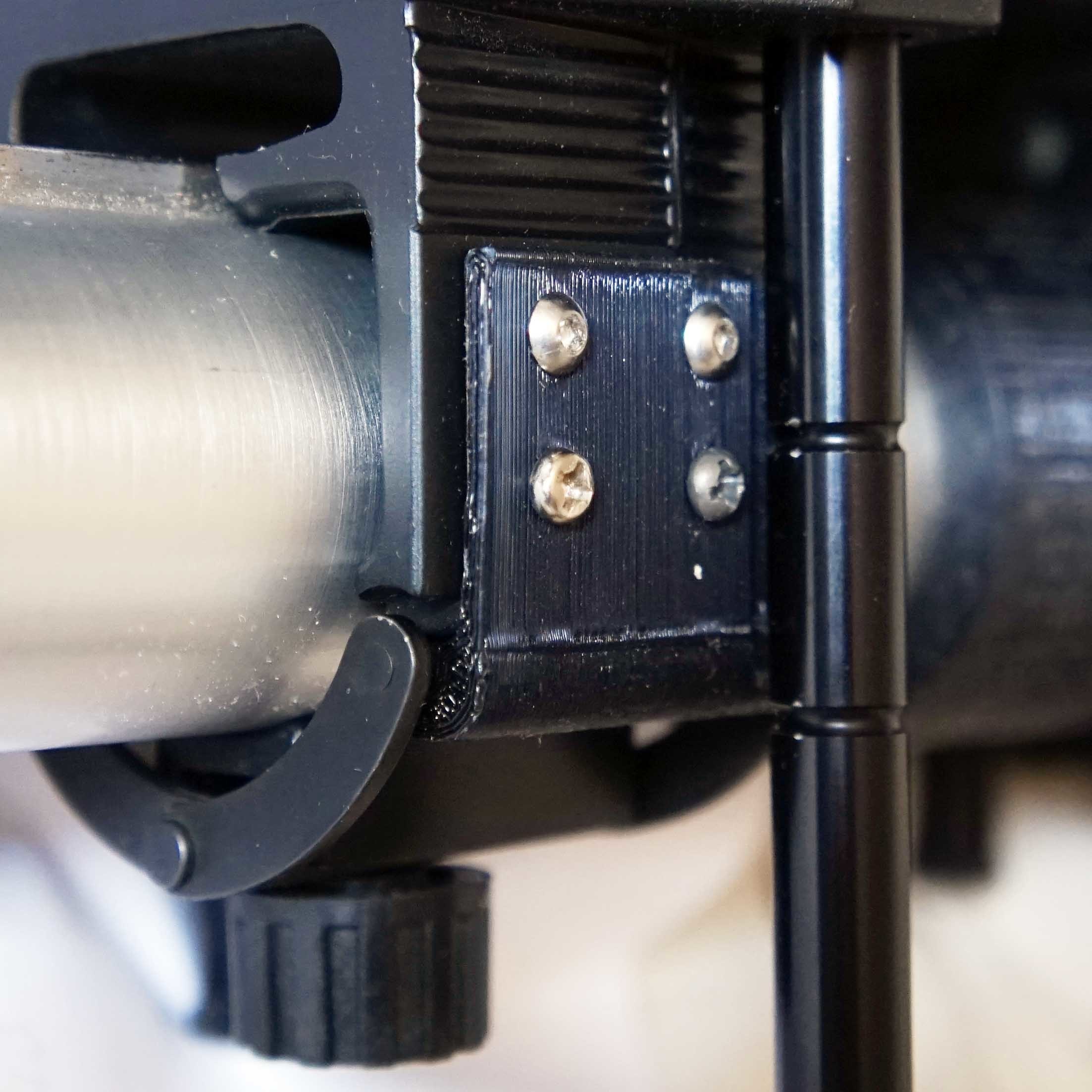

Also included, a repair part for the often broken F1 rail clamp. This is a DIY fix, requiring the broken part to be prepared with 4 holes drilled and tapped (I recommend using M3 screws).

3D printing settings

FDM: the pillar and clamp should be printed on it's side, for maximum strength around the hinge bolt. The base is best printed on it's base(!).

  • 3D file format: STL
  • Last update: 2018/06/06 at 23:41
  • Publication date: 2018/06/03 at 12:33

Tags

Creator

Designs 65
Downloads 264
Sales US$163
Followers 19

DP/Lighting cameraman, working in drama and models VFX. Background in electronic and mechanical design, including photographic adapters and accessories.
