Simple 35 mm Films Scanner for iPhone 11

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

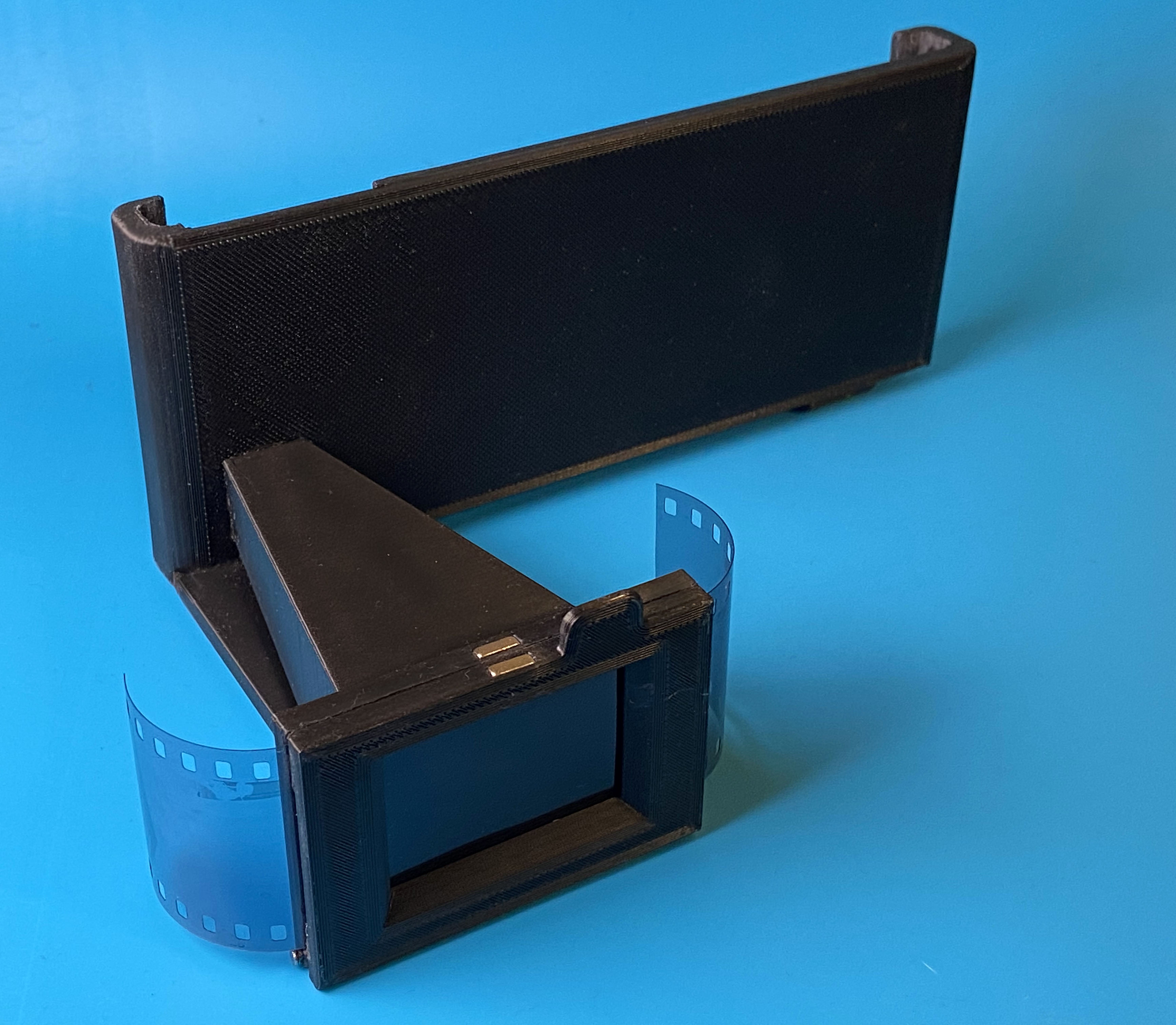

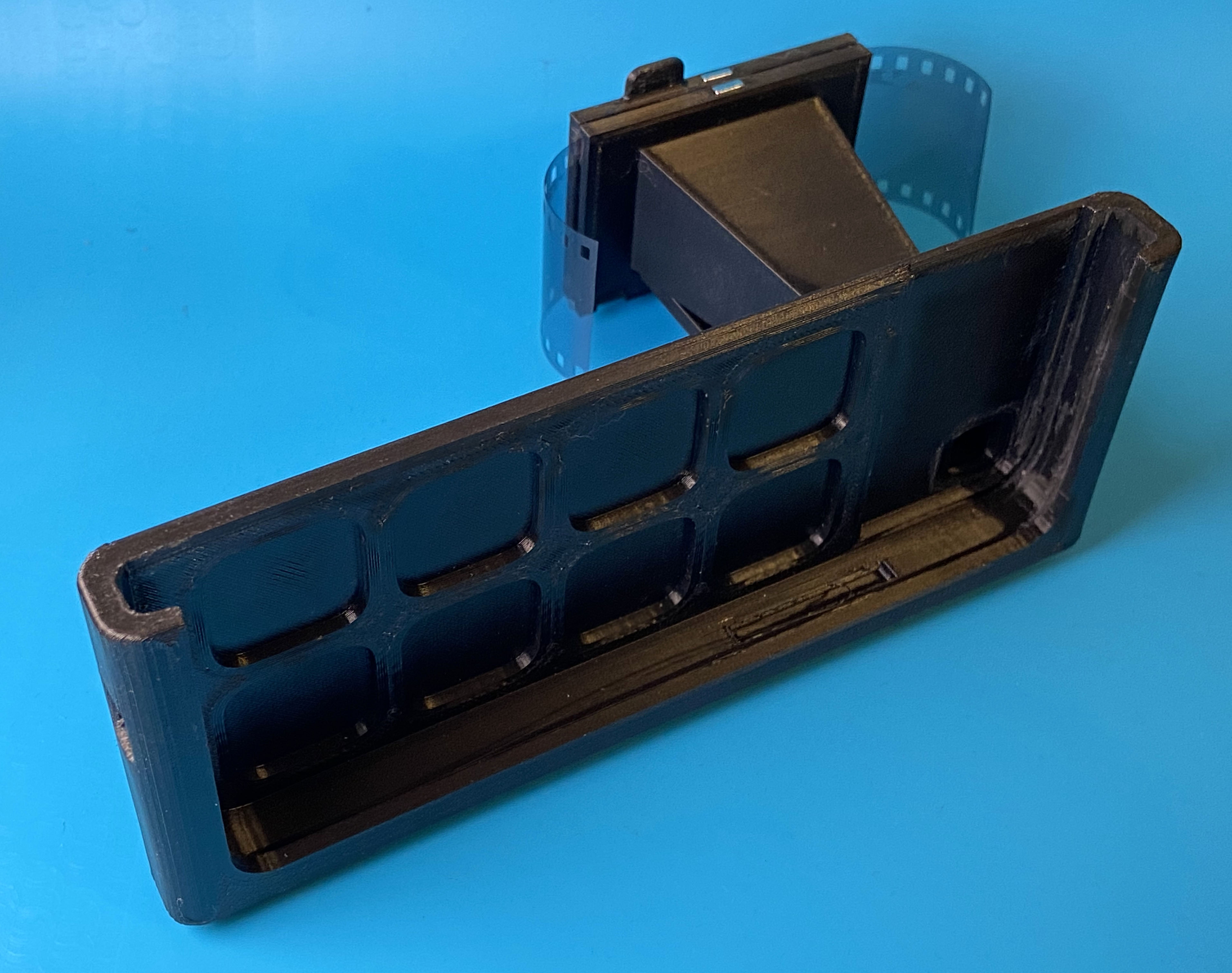

3D model of the cradle for scanning 35 mm film (frame 36x24 mm) with iPhone 11 (not PRO).

This technology allows obtaining images for subsequent processing with an optical resolution of at least 2200x3300 px in comparison with a non-professional flatbed scanner ~ 560x820 px (600 ppi).

Model Notes:
- magnetic lock,
- formats - STL, OBJ, DAE, PLY, 3DS.
- the model requires gluing.
- it is recommended to matte the inner surface of the tube to eliminate glare.
- illumination - an external light source with a diffuser.

Additional elements:
- neodymium magnet 6x4x2 mm - 2 pcs.
- metal axis D = 1.2 ... 1.5 mm, L = 12 mm - 2 pcs.

If you do not have the required magnets, print and use the clip ("Clip.*") to lock the lid.

Parts:
1. Case
2. Tube
3. Cover
4. Clip (optional)

PLEASE indicate in the comments that you are interested in supporting other phone models.


3D printing settings

  • nozzle - 0.4 mm,
  • filament - lightproof ABS +,
  • infill - 20%
  • layer thickness - 0.16mm or less

3D printer file information

  • 3D design format: ZIP Folder details Close
    • 35mm_to_iPhone11_3DS.zip
      • Tube.3ds
      • Case.3ds
      • Clip.3ds
      • Cover.3ds
      • readme.txt
    • 35mm_to_iPhone11_DAE.zip
      • Tube.dae
      • Case.dae
      • Clip.dae
      • Cover.dae
      • readme.txt
    • 35mm_to_iPhone11_OBJ.zip
      • Cover.obj
      • Case.obj
      • Clip.obj
      • Tube.obj
      • readme.txt
    • 35mm_to_iPhone11_PLY.zip
      • Tube.ply
      • Case.ply
      • Clip.ply
      • Cover.ply
      • readme.txt
    • 35mm_to_iPhone11_STL.zip
      • cover.stl
      • case.stl
      • clip.stl
      • tube.stl
      • readme.txt

    Learn more about the formats

  • Publication date: 2022-01-11 at 11:42
