SCX24 Lil' Ram Chassis

?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Comp chassis for the Axial SCX24.

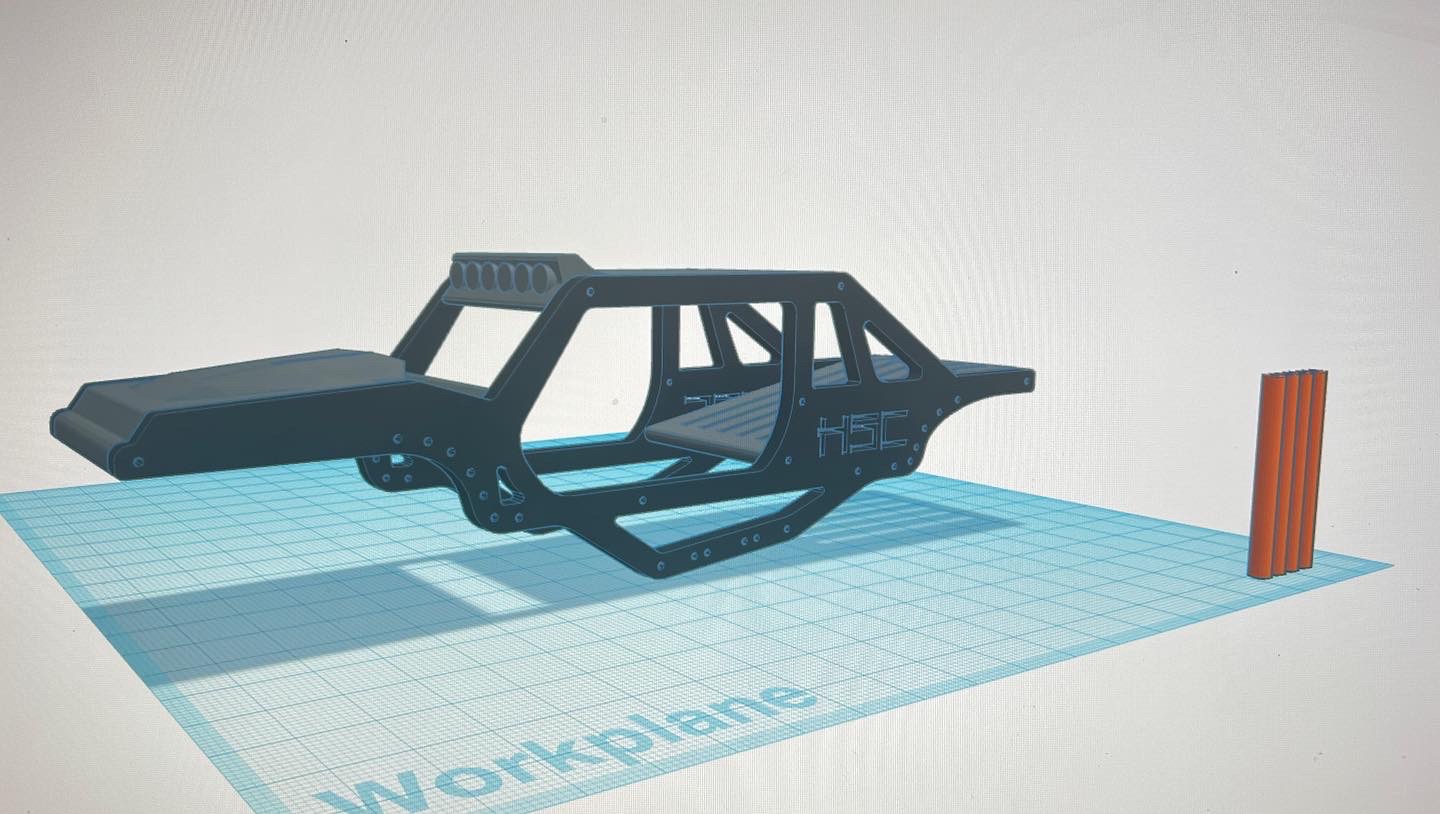

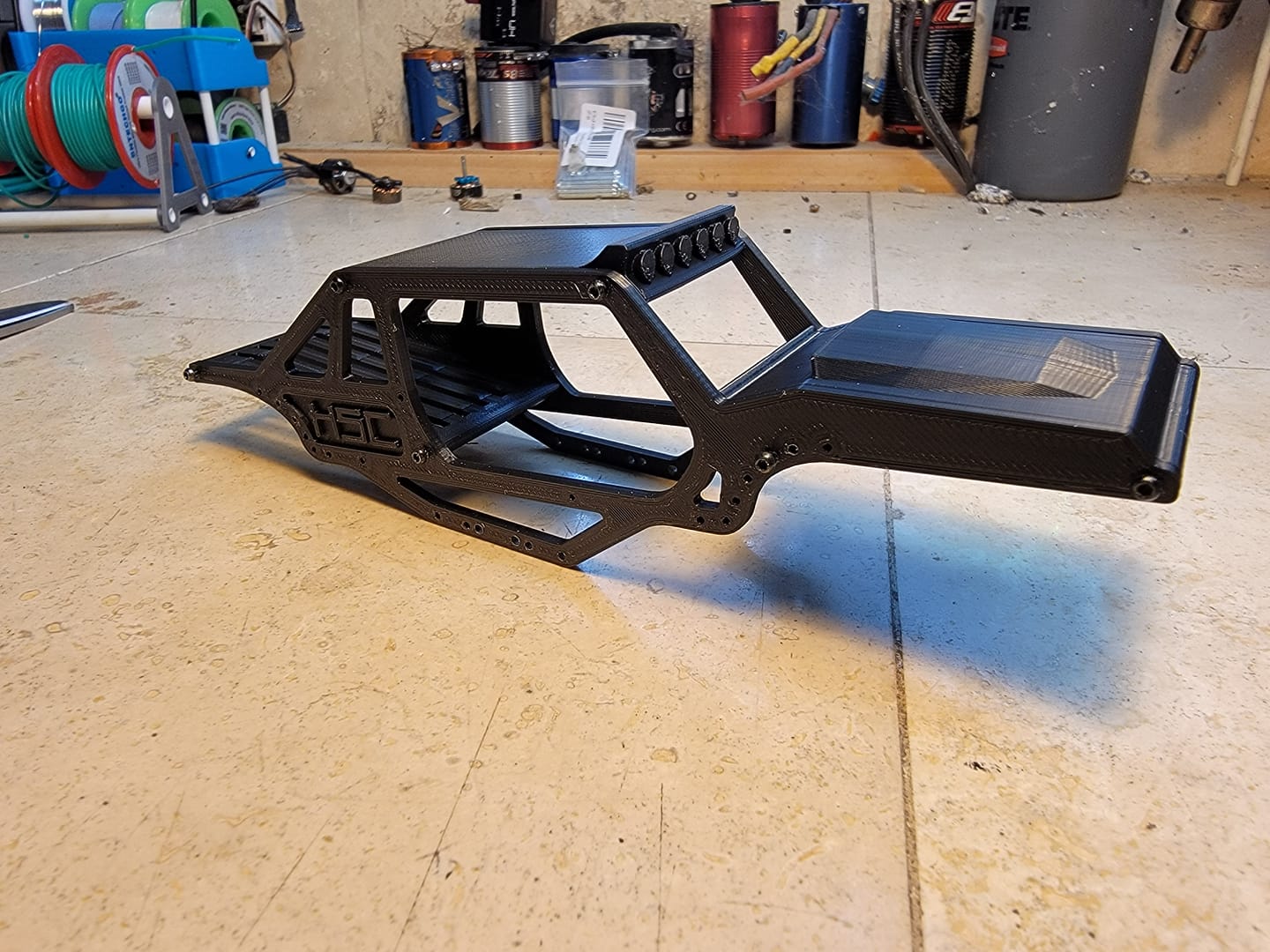

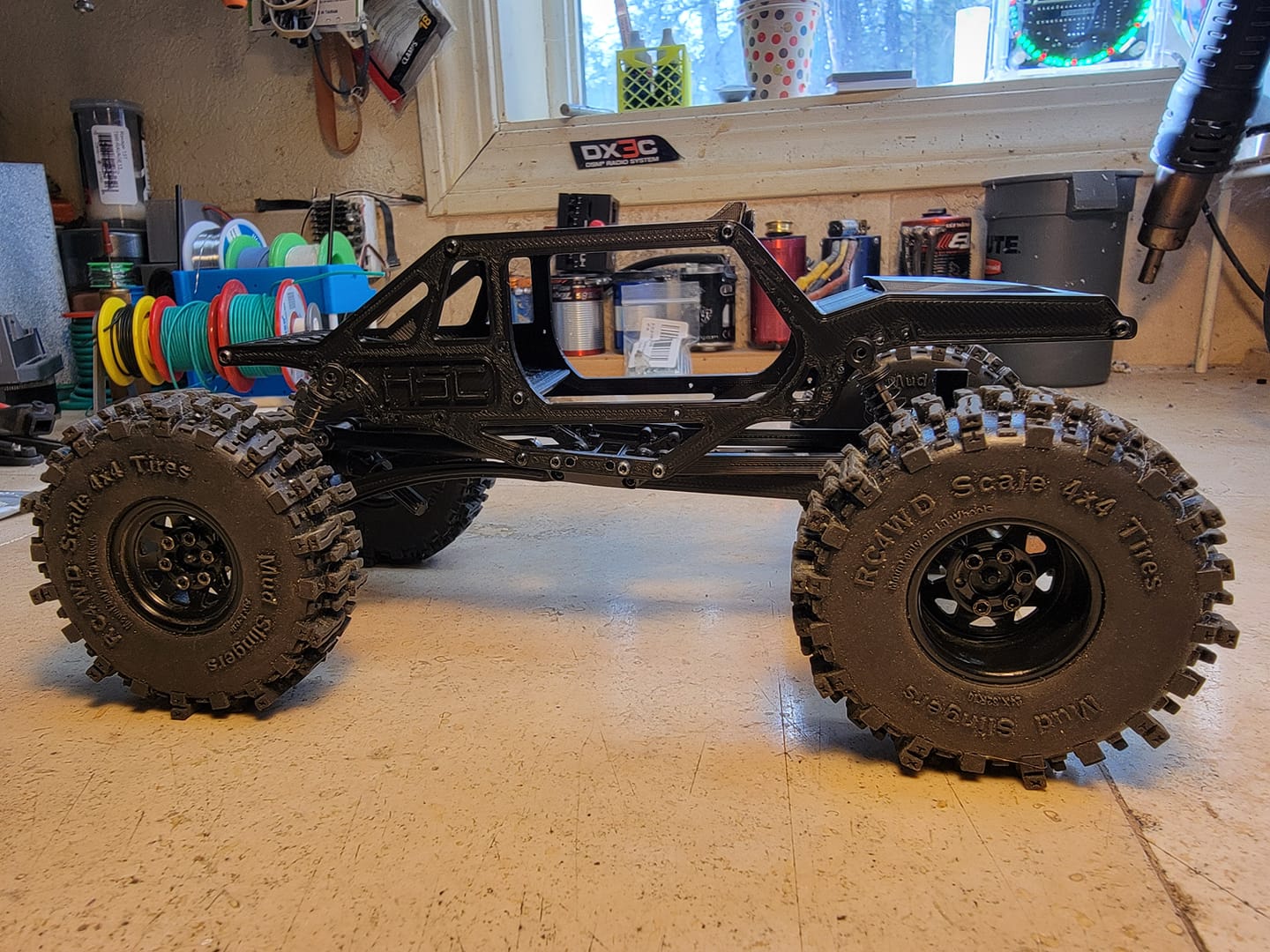

Includes files for the 2 side plates, Roof, Hood, spacers and battery tray.

Important - The setup shown in the photos uses 60mm lower links front and rear. Other combos may work but was designed for 58-60mm lower link lengths0

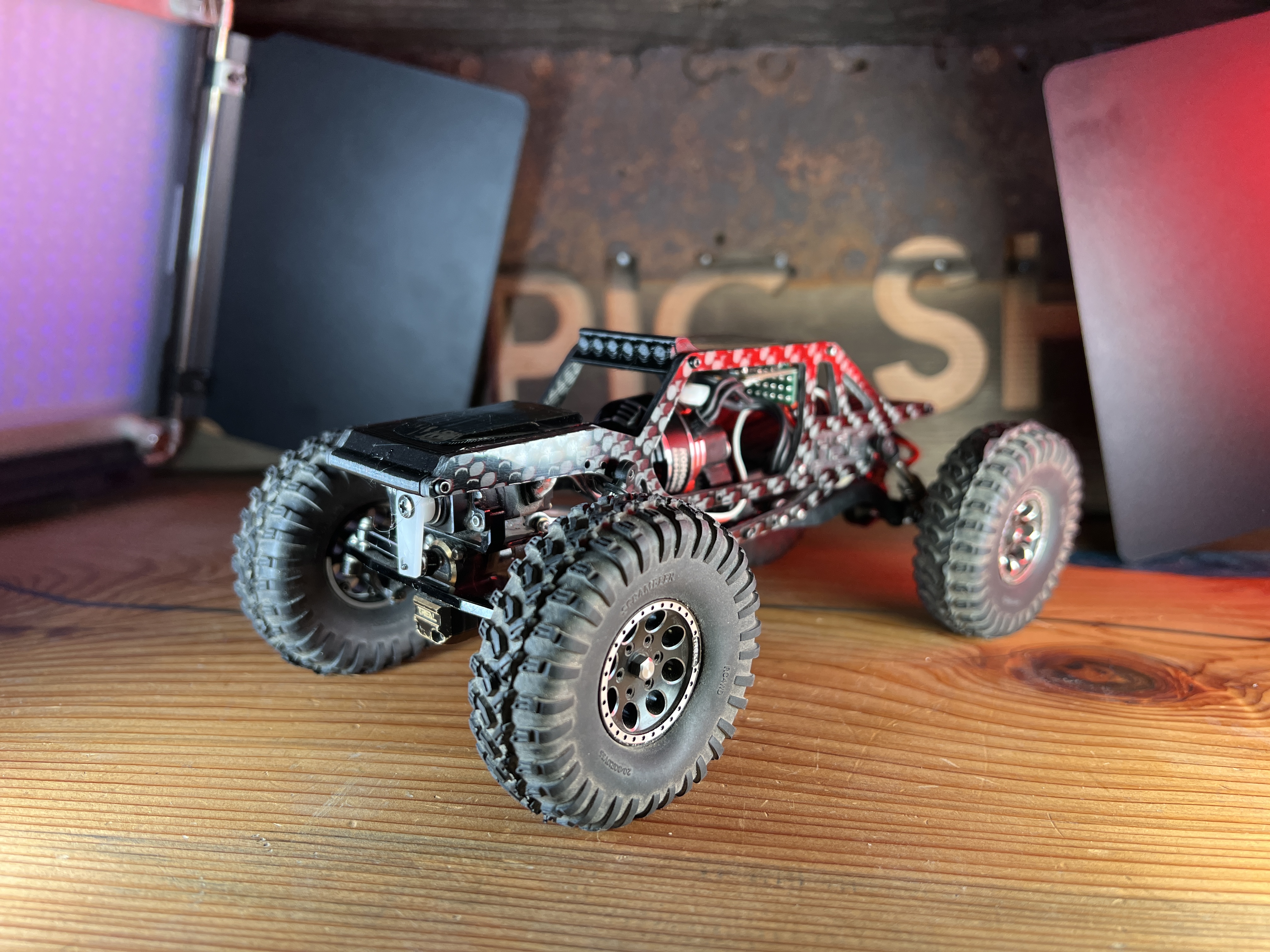

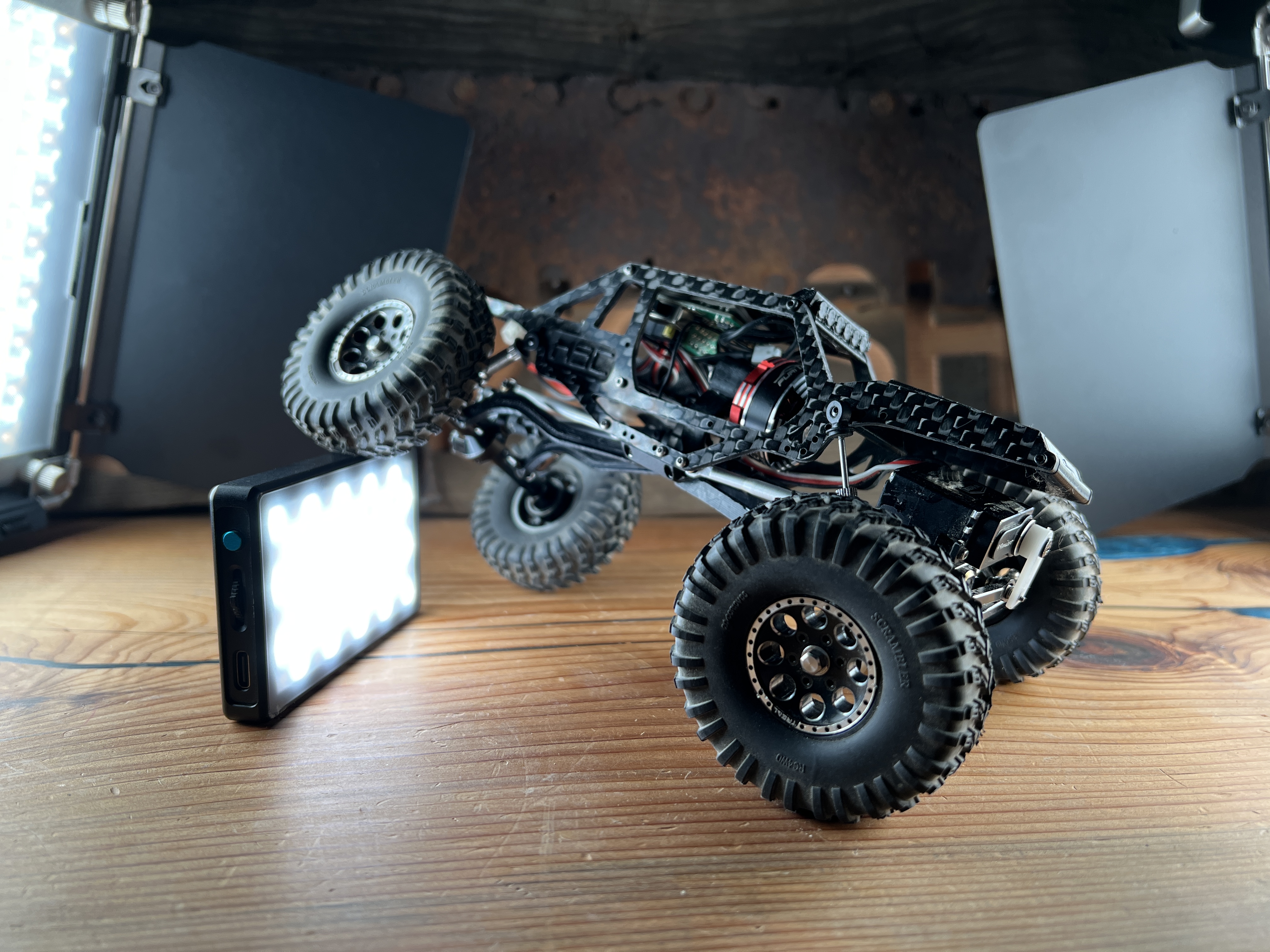

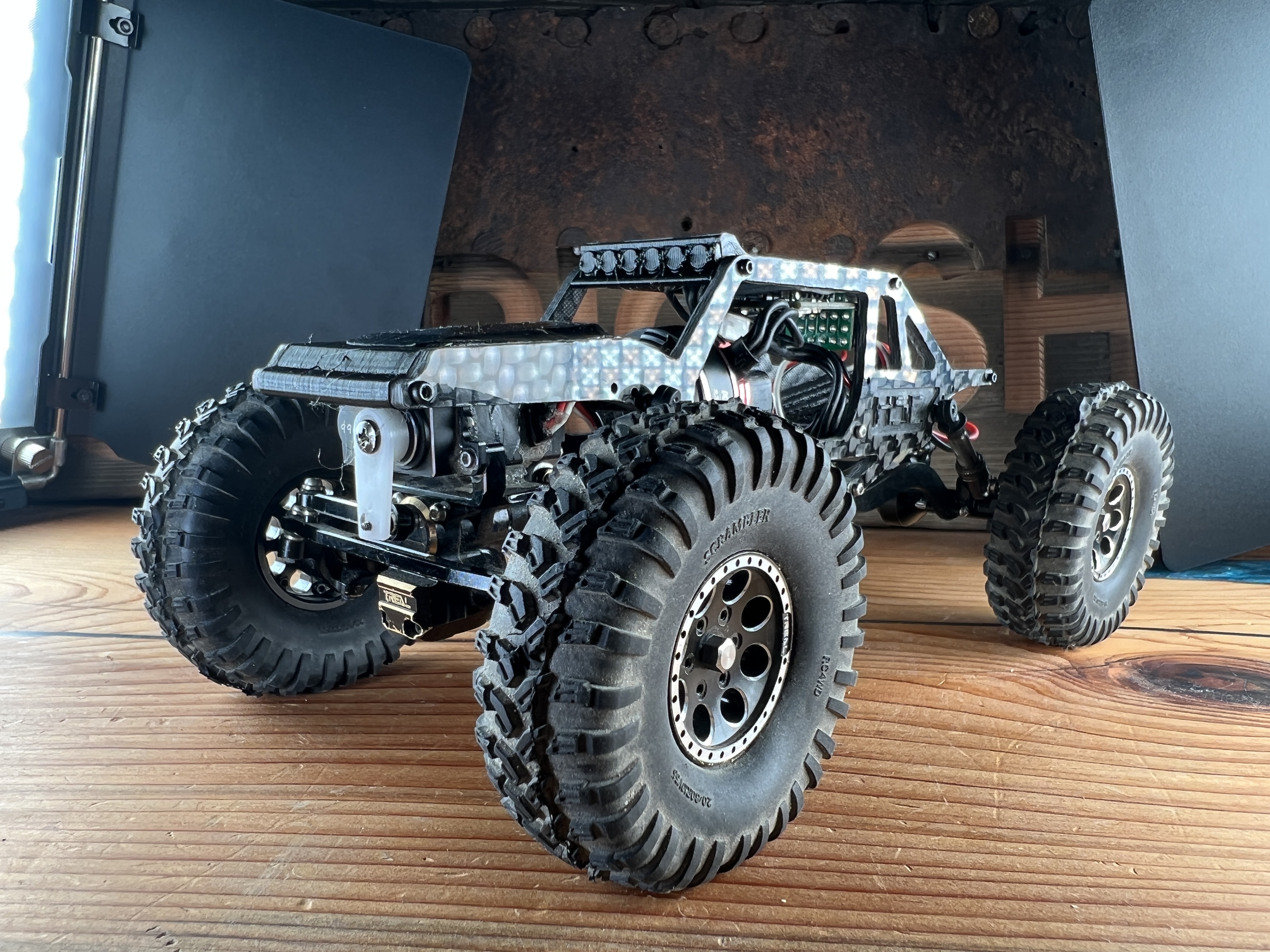

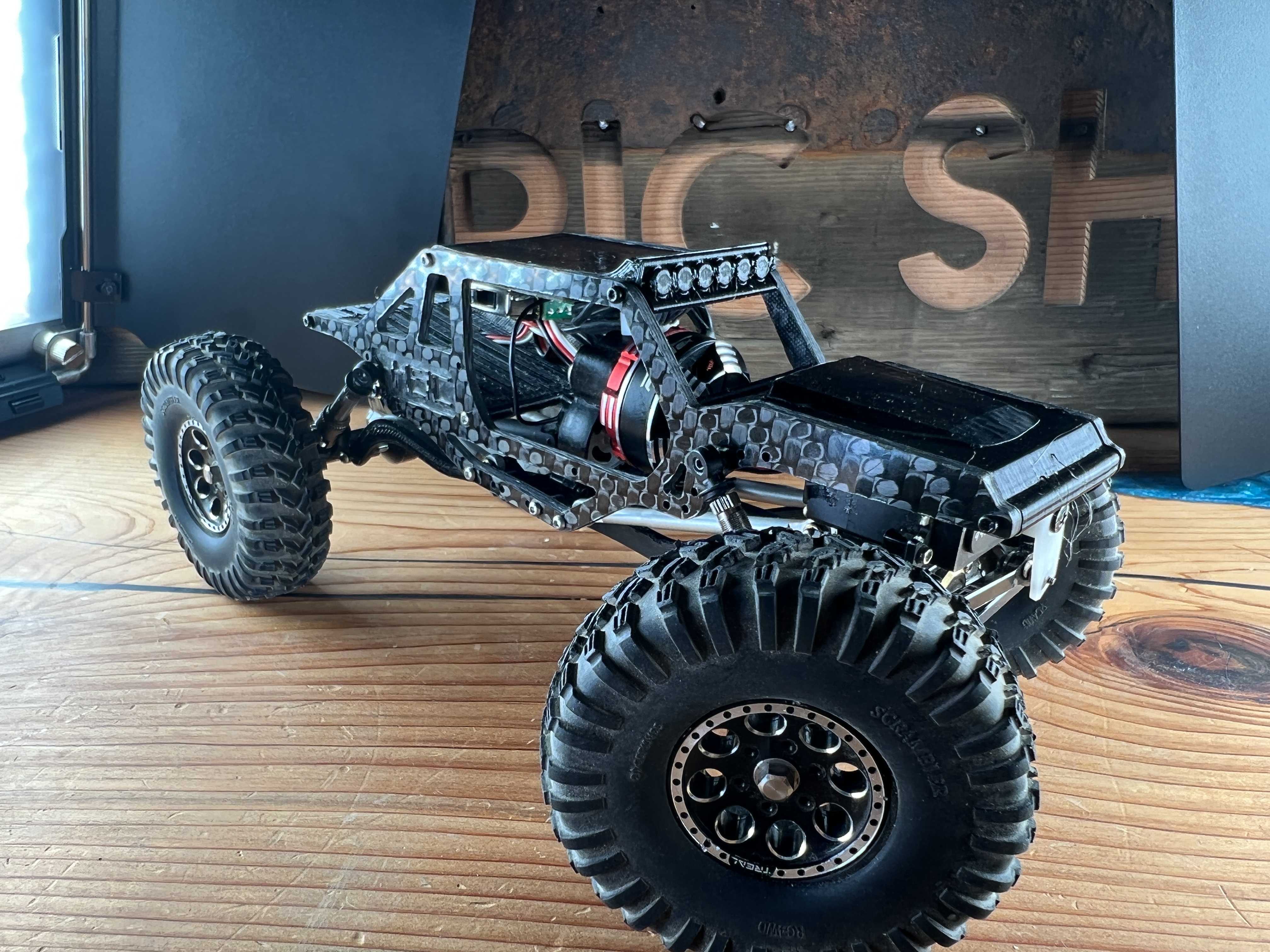

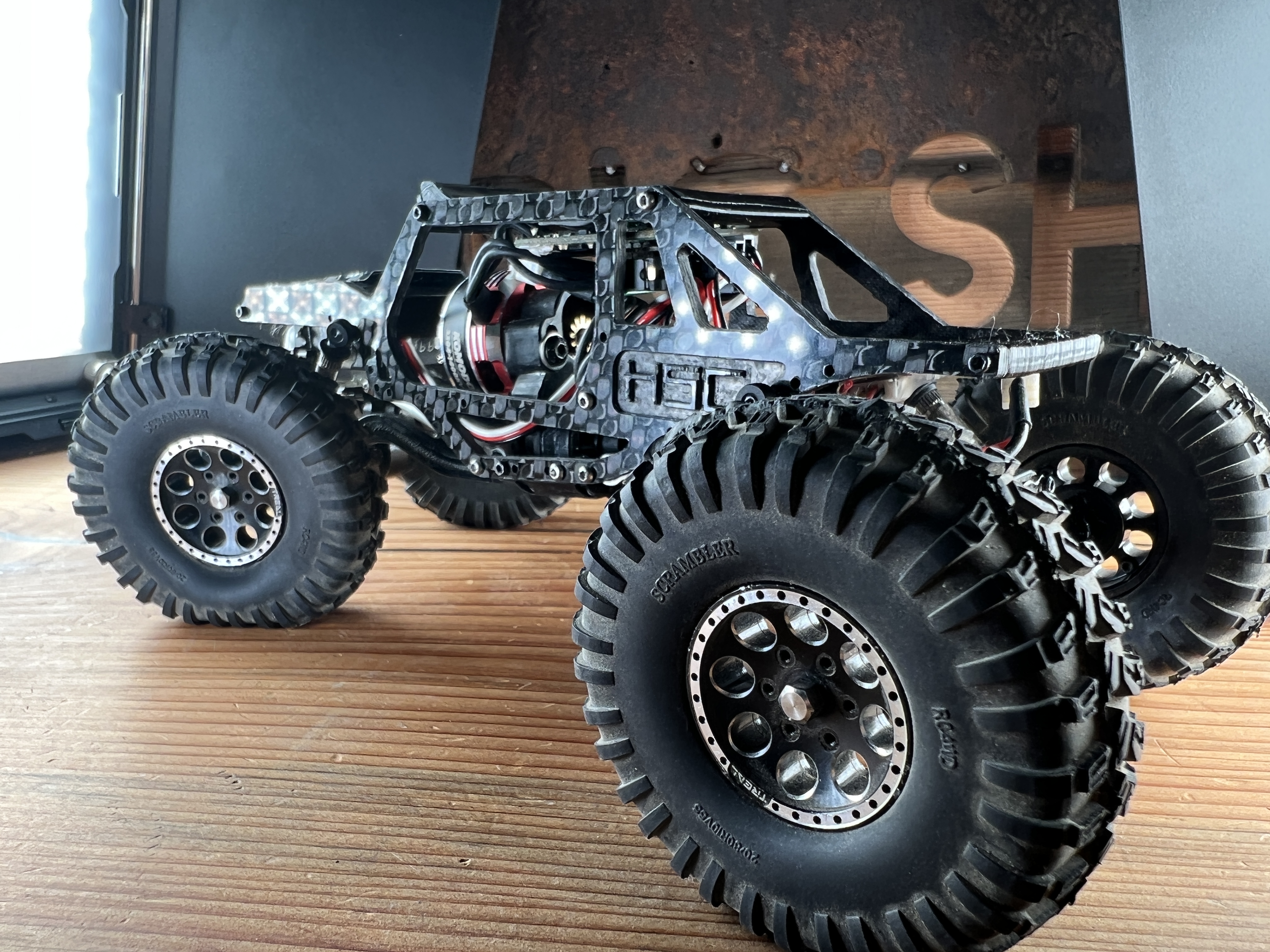

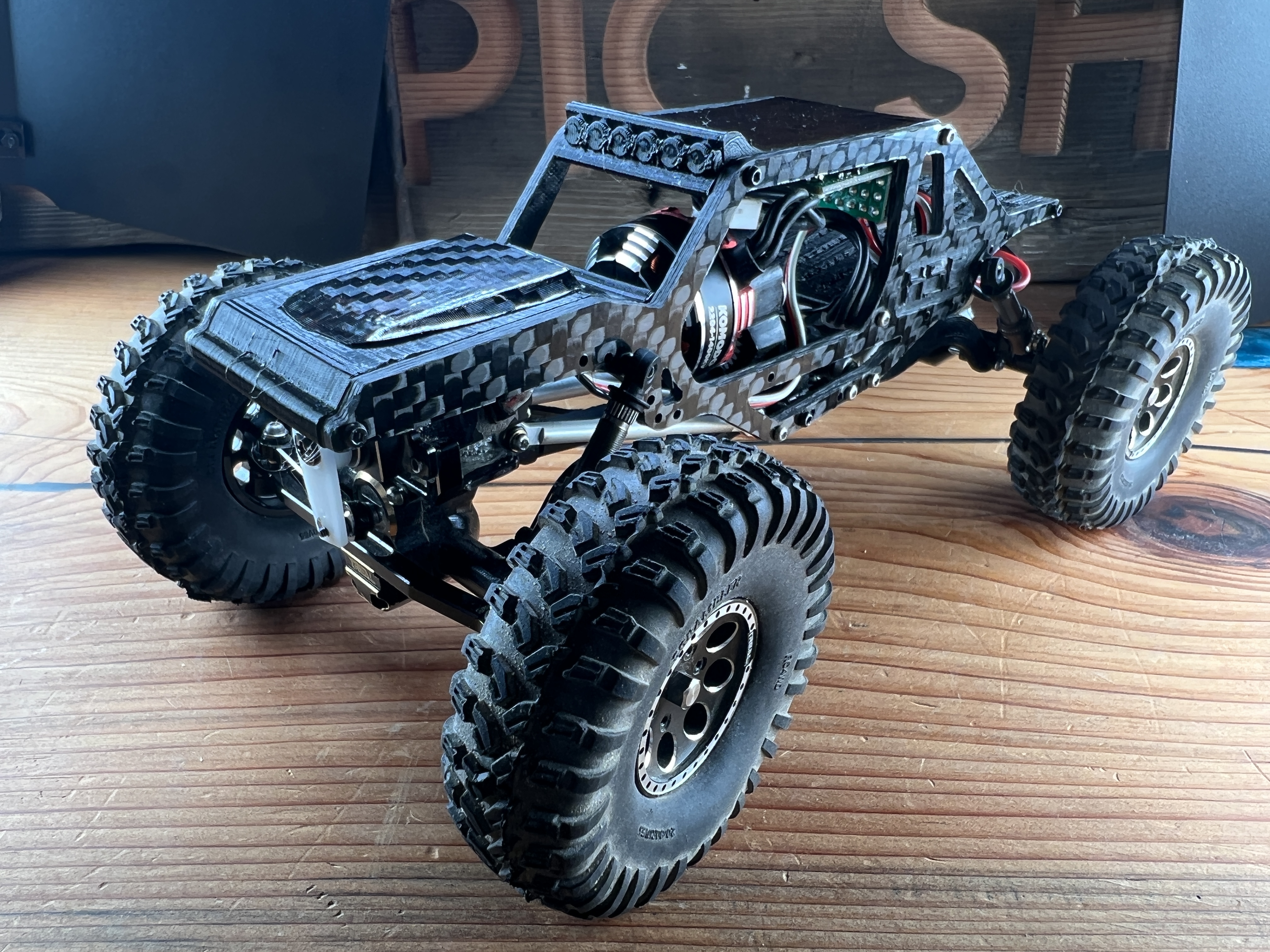

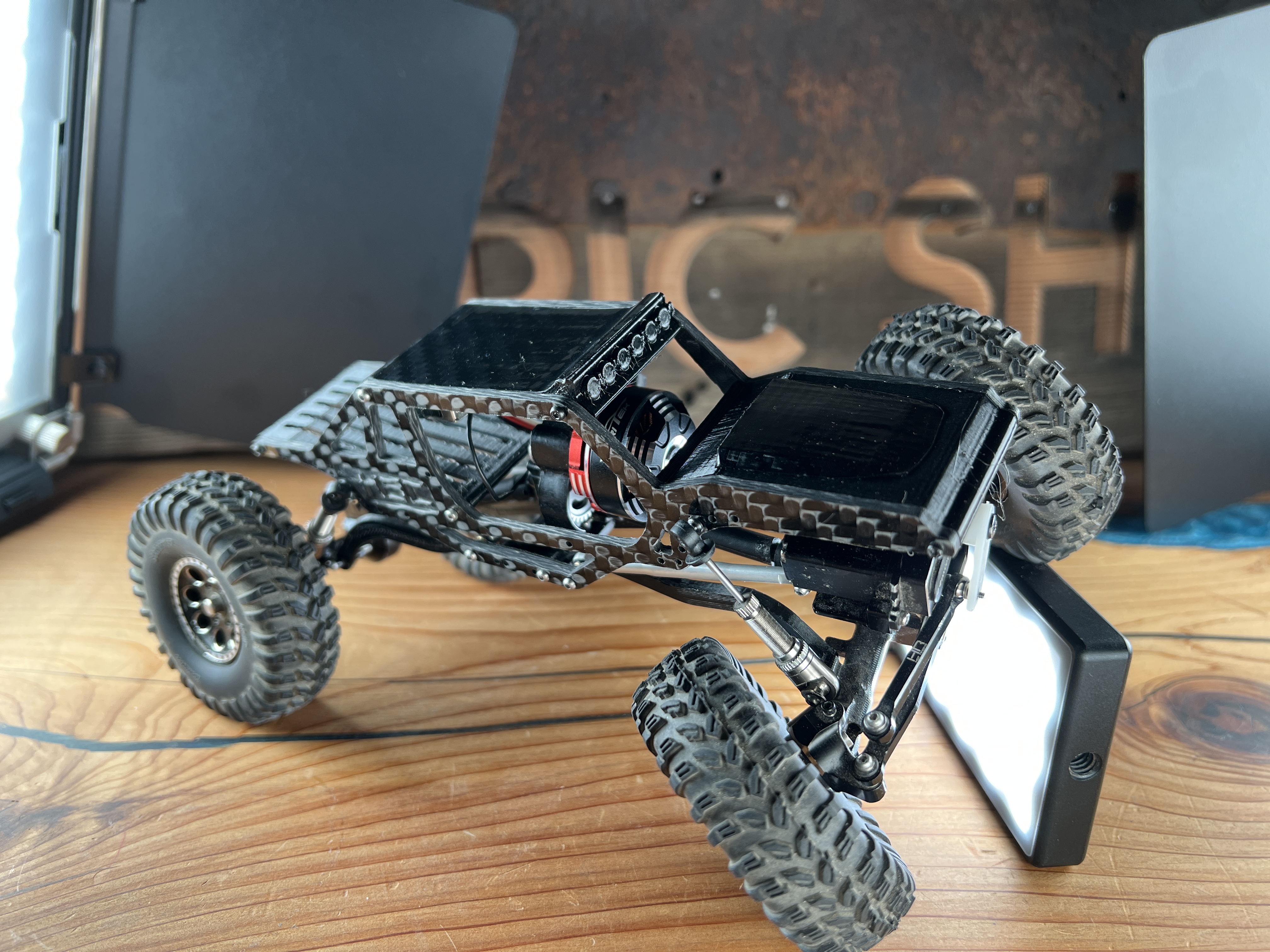

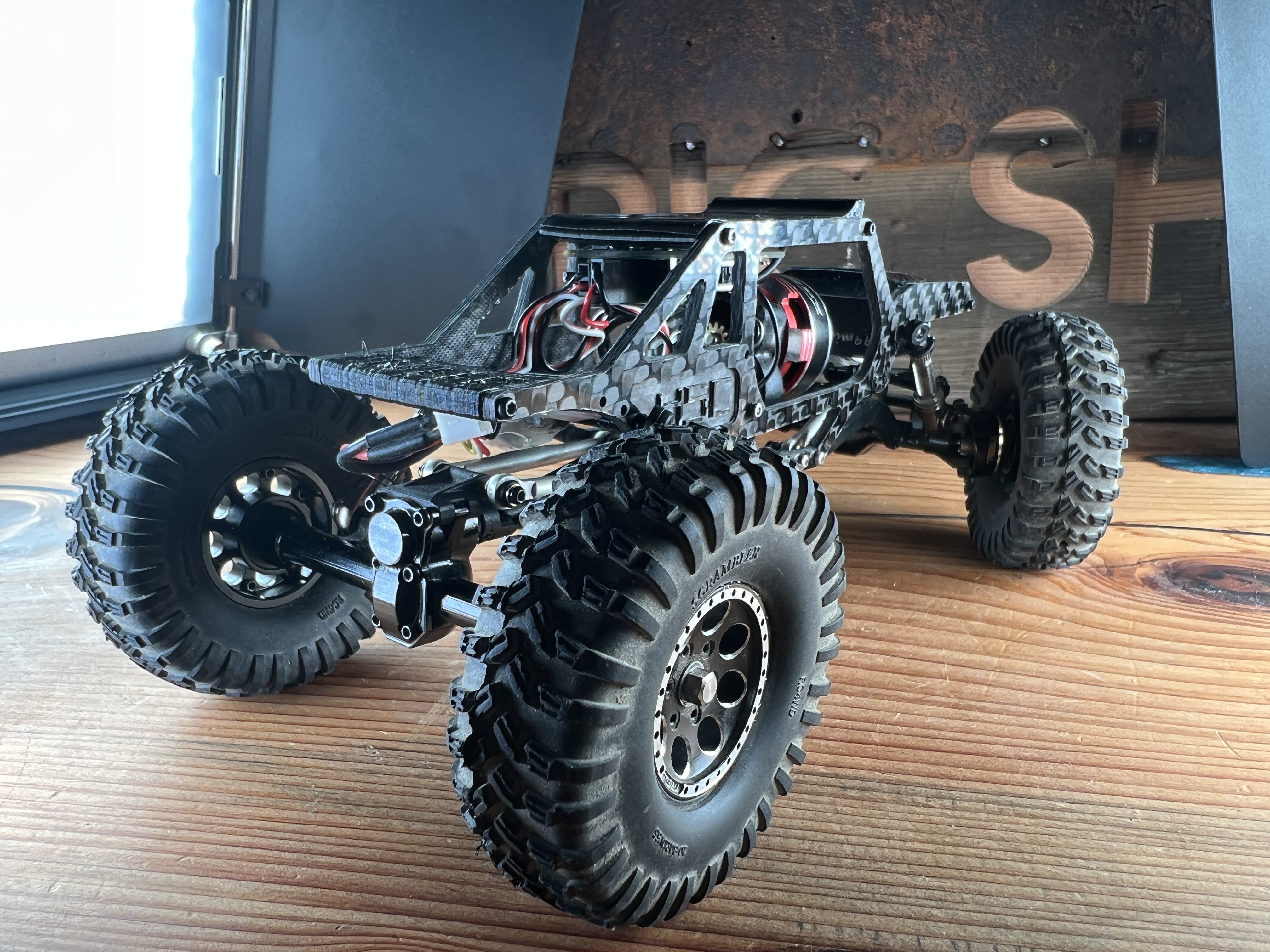

Please note the photos will show the frame cut in carbon fiber. the 3d files are the same. Carbon frame for sale in near future
Follow my IG @high_sierra_customs for updates.

***Important note I’m using a furitek lizard and brushless combo and the stock ESC has no case to fit the frame.

The ESC is taped above the motor and the lizard is taped under the battery tray. I do not know if other electronic setups will fit.


3D printing settings

PETG 30% infill
For scale reference, the side panel should be 176.834mm x 49.048mm x 2.54mm

3D printer file information

  • 3D design format: STL Folder details Close
    • DriverSide.stl
    • Hood.stl
    • PassengerSide.stl
    • Roof.stl
    • backtray.stl
    • spacer.stl

    Learn more about the formats

  • Publication date: 2021-11-25 at 08:23
