Sci-Fi Computer Phone Holder

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 7.7k views
  • 45 likes
  • 266 downloads

3D model description

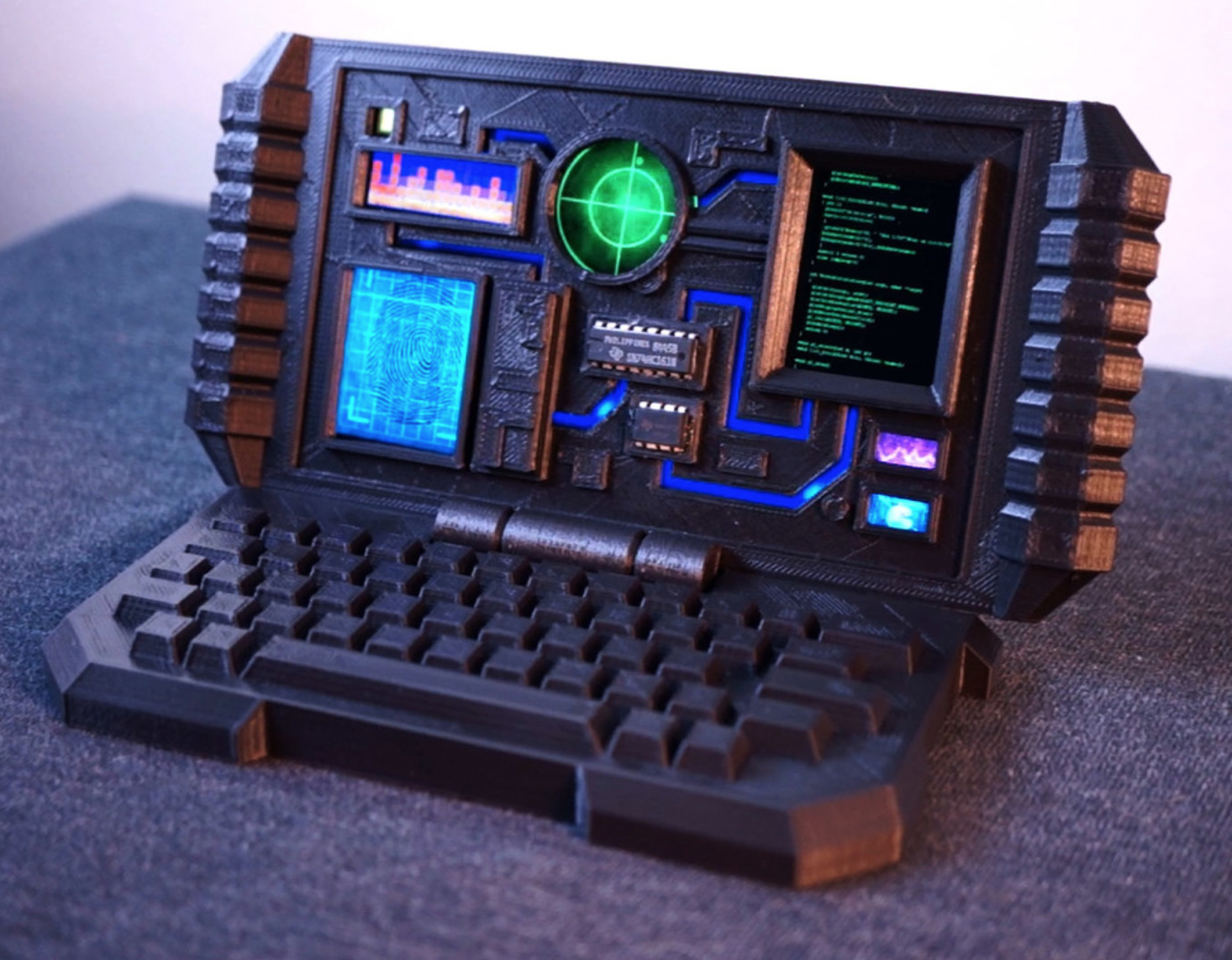

So you want a cool cell phone holder but don't want to use programming or a raspberry pi.
Never fear, the Sci-Fi Computer Phone Holder is here!

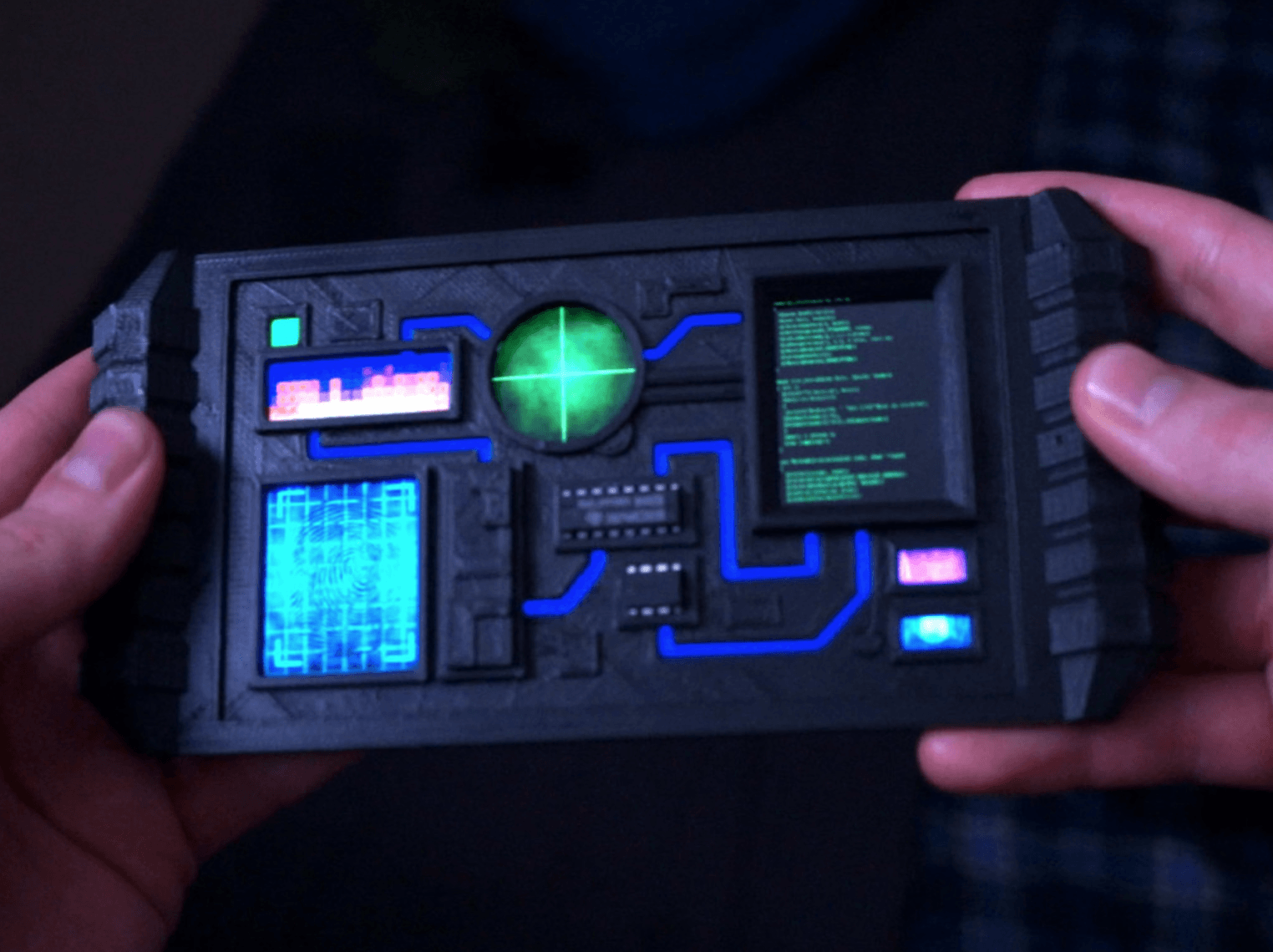

I created the animations and aligned the 3D print to match it.

Watch the video to learn more!

You might be thinking, will this fit my phone? It can! If your phone's screen is 5.3in then simply print and assemble. If your phone size is different, I created a very fast printing template so you can test different size scaling. For example, if you scale the template to 105.3% and that fits perfect, then print just the control panel to that same scale and it should fit your screen. Then comment below with your phone model and scaling to help others please!

I think this would work great as a movie prop or a good conversation piece at work.
And please someone remix this as a cosplay arm band and post a picture!

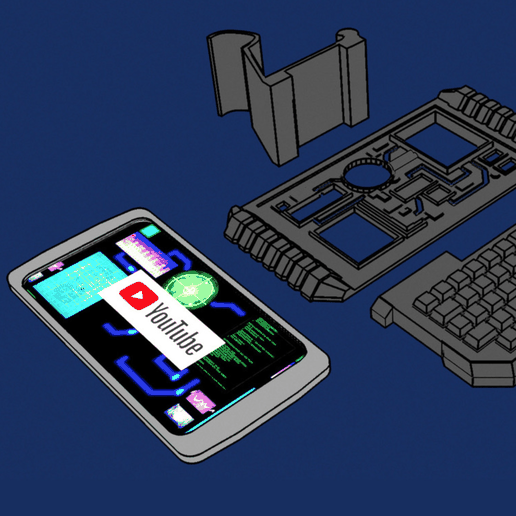

Assembly: https://www.youtube.com/watch?v=neFI0S6djuo&feature=youtu.be

Screen Graphics 1 Hour: https://www.youtube.com/watch?v=KCHv8Mu28JA&feature=youtu.be

Some additional notes from the video:

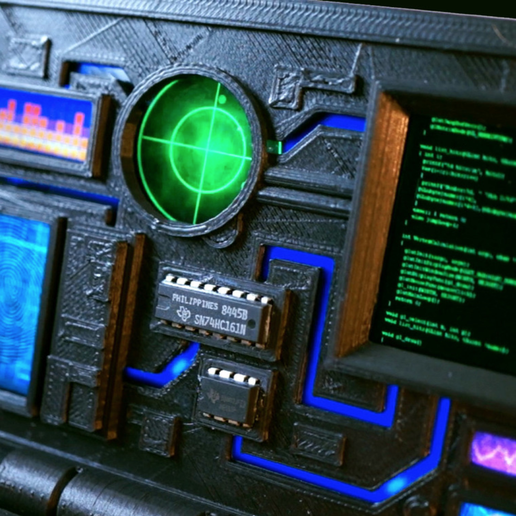

00:26 The type of chips doesn't matter. They are for decoration so any standard 8 and 4 pin chips will do.
00:36 Super glue was kind of thin. Maybe a thicker craft glue or double sided tape would be better.
00:50 I turned the brightness up but keep in mind that may make the phone warmer and battery drain faster.
The black filament was kind of shiny so I sprayed it with a Matte Clear spray to make that dull plastic look.

3D printing settings

Printer Brand:

Duplicator 4

Printer:

Wanhao

Rafts:

No

Supports:

No

Resolution:

0.2mm

Infill:

20%

  • 3D file format: STL
  • Publication date: 2018/04/10 at 16:16

Tags

Creator

Designs 30
Downloads 4.5k
Followers 68

License

CC BY NC

Collection associated with this 3D model


Best sellers of the category Gadget


Add a comment

One comment

X 103.72
Y 105.07
fit my LG V35 just right. (which should work for v30 and v40s as well)
Awesome idea! Plus I have a few spare android phones (and at least one iphone) which nobody wanted anymore that could do something like this.
Did you ever make any other animations? (Though honestly I'm temped to just boot up the Android SDK and build something with actual data.)
Thanks!
