Rollei QAL-40 Camera Mounting Plate (C4i, C5i, C40i, C50i, Compact Traveler No 1, Compact Traveler No 10, CT-4A, CT-5A, CT-5C, M5 Mini, PGA-584, PGA-484, TT-1, T2S)

Download free STL file Rollei QAL-40 Camera Mounting Plate (C4i, C5i, C40i, C50i, Compact Traveler No 1, Compact Traveler No 10, CT-4A, CT-5A, CT-5C, M5 Mini, PGA-584, PGA-484, TT-1, T2S) • 3D printing object, MightyNozzleDownload free STL file Rollei QAL-40 Camera Mounting Plate (C4i, C5i, C40i, C50i, Compact Traveler No 1, Compact Traveler No 10, CT-4A, CT-5A, CT-5C, M5 Mini, PGA-584, PGA-484, TT-1, T2S) • 3D printing object, MightyNozzleDownload free STL file Rollei QAL-40 Camera Mounting Plate (C4i, C5i, C40i, C50i, Compact Traveler No 1, Compact Traveler No 10, CT-4A, CT-5A, CT-5C, M5 Mini, PGA-584, PGA-484, TT-1, T2S) • 3D printing object, MightyNozzleDownload free STL file Rollei QAL-40 Camera Mounting Plate (C4i, C5i, C40i, C50i, Compact Traveler No 1, Compact Traveler No 10, CT-4A, CT-5A, CT-5C, M5 Mini, PGA-584, PGA-484, TT-1, T2S) • 3D printing object, MightyNozzle
Download free STL file Rollei QAL-40 Camera Mounting Plate (C4i, C5i, C40i, C50i, Compact Traveler No 1, Compact Traveler No 10, CT-4A, CT-5A, CT-5C, M5 Mini, PGA-584, PGA-484, TT-1, T2S) • 3D printing object, MightyNozzle

Did you 3D print this model?

3D model description

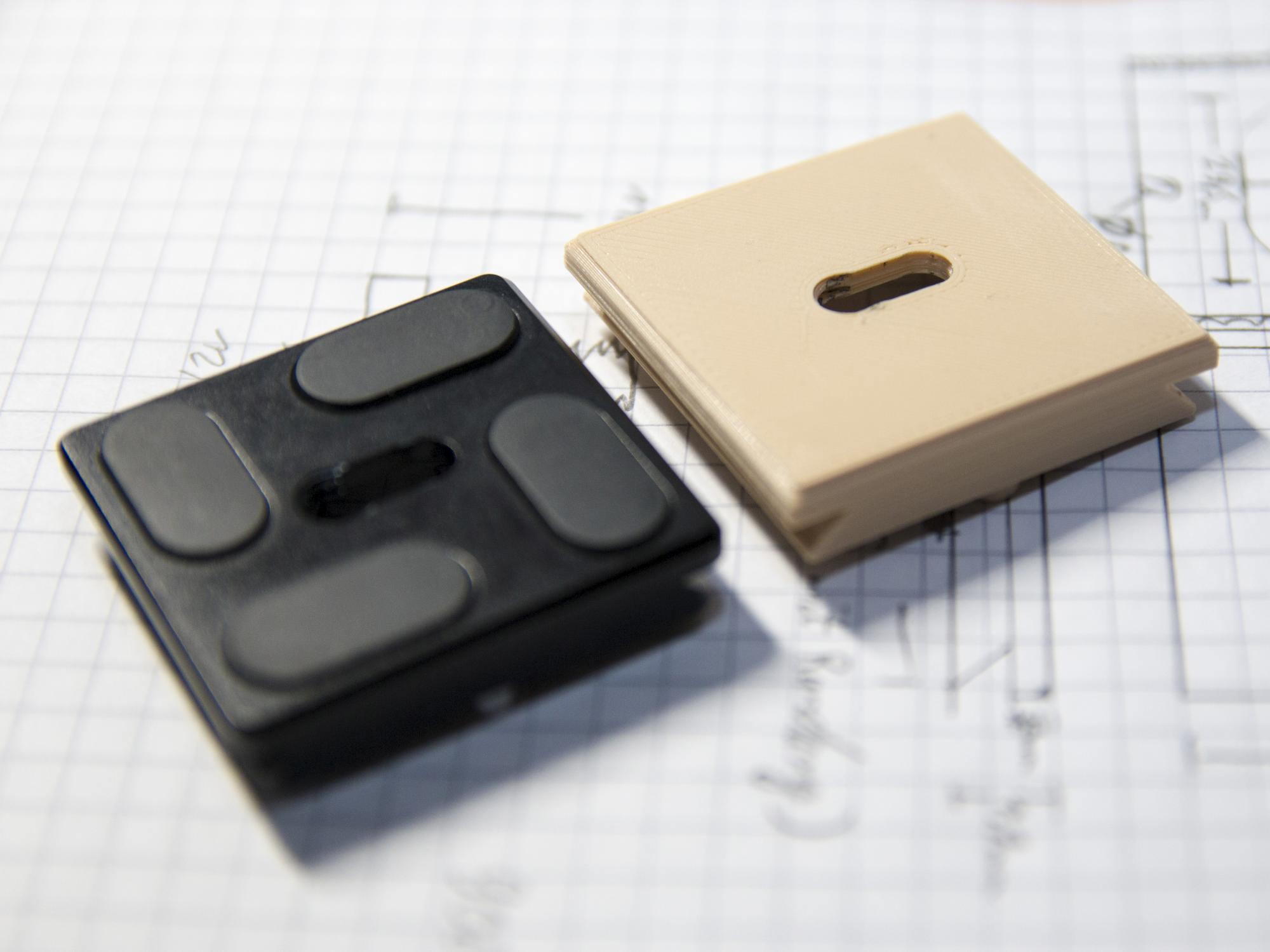

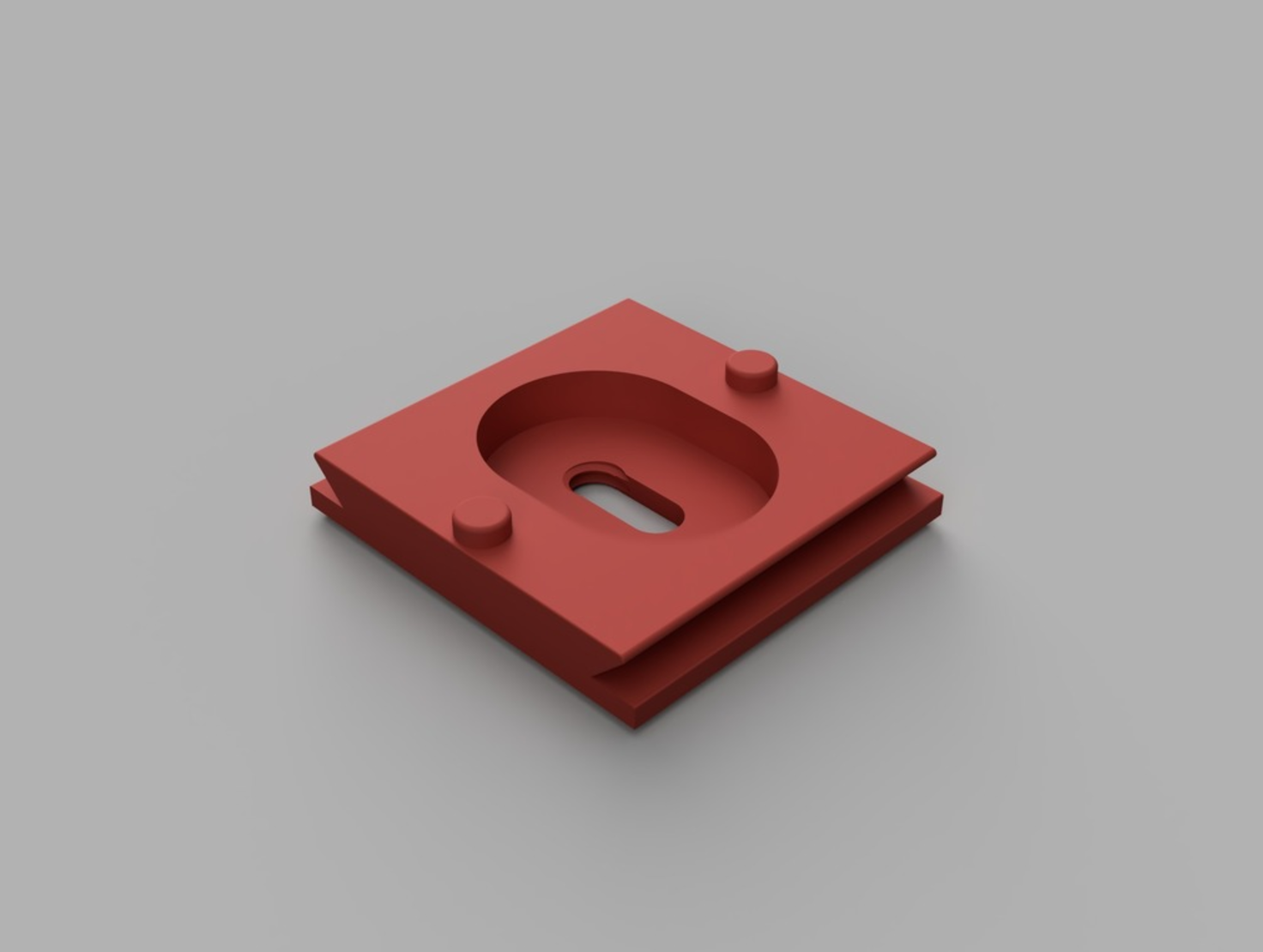

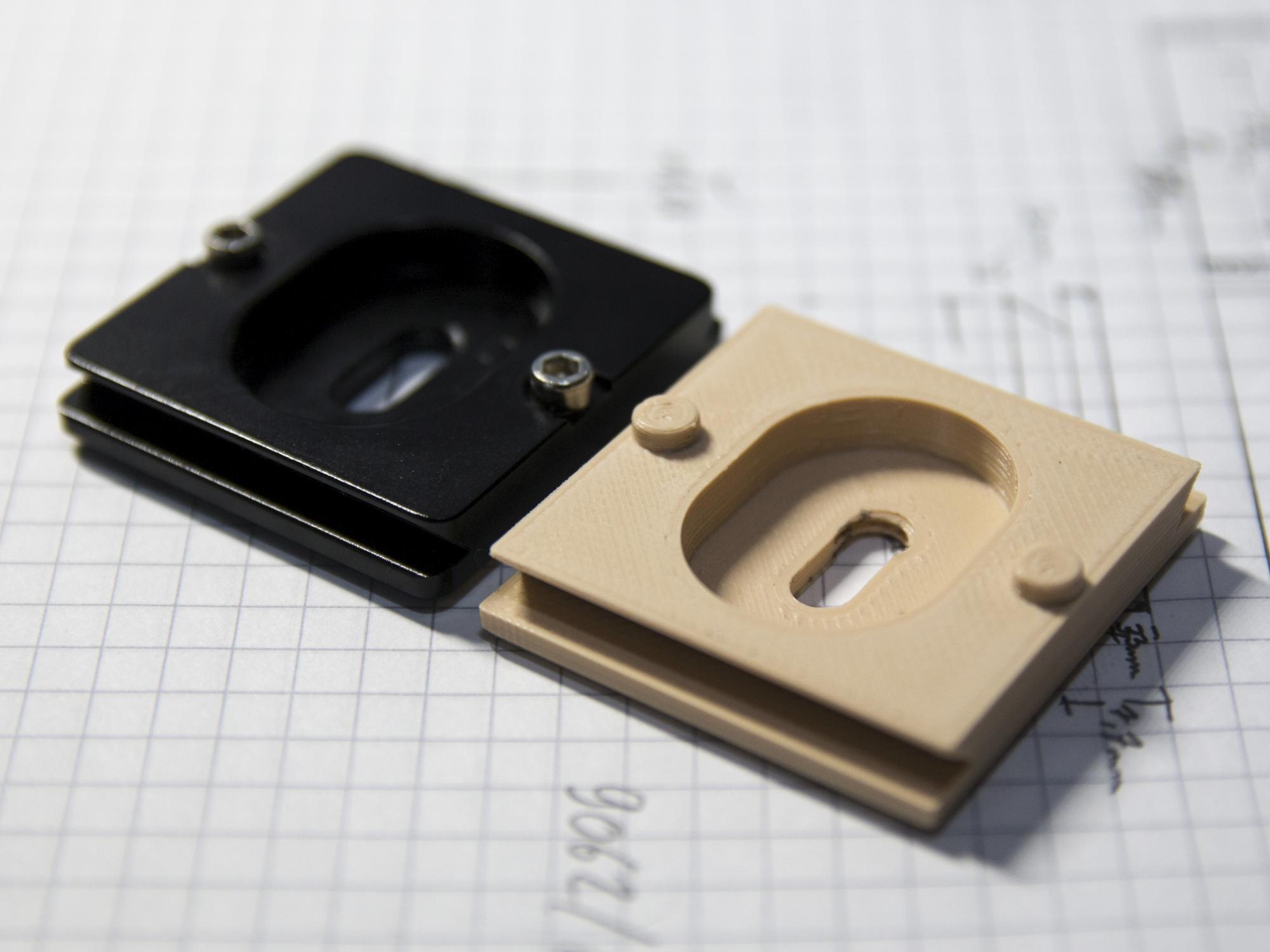

I needed another mounting plate for my Rollei Compact Traveler No. 1 tripod and measured the dimensions and hacked it into Fusion360. The Model also includes the 1/4" thread for the camera mounting screw.

I use this screw (the short one) for this plate: http://s.click.aliexpress.com/e/AEybE2B
It is a few mm longer than the stock screw of the plate, but it works with my equipment.

Please don't use the printed plate with heavy gear. I will use it only for action cams, flashes and mobile recorder. I tested the plate successfully with an EOS 70D + Canon 60mm macro lens + Flash (about 2kg).

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Printer:
Anet A8

Rafts:
No

Supports:
No

Resolution:
0.12

Infill:
85

  • 3D file format: STL

Tags

Creator

Designs 136
Downloads 26158
Followers

I like to create things to save money and time. Wherever possible, I try to use aspects of ecological design. As a full-time software developer and pragmatic solution designer my focus is on the creation of customizable things.

License

CC BY NC
