Quadruped Quadrina robot for servo MG90S

3D model description

Quadrina is a quadripod in kit, printable in 3D, equipped with legs with 2 degrees of freedom, it uses 8 servomotors.

With few servomotors, Quadrina is an ideal companion for learning programming and servomotors.

This kit is available for various actuators (http://www.aranacorp.com/en/product/robot-en-kit-quadrina-2/).

Leave a comment if you want to see this robot for another actuator.

Included

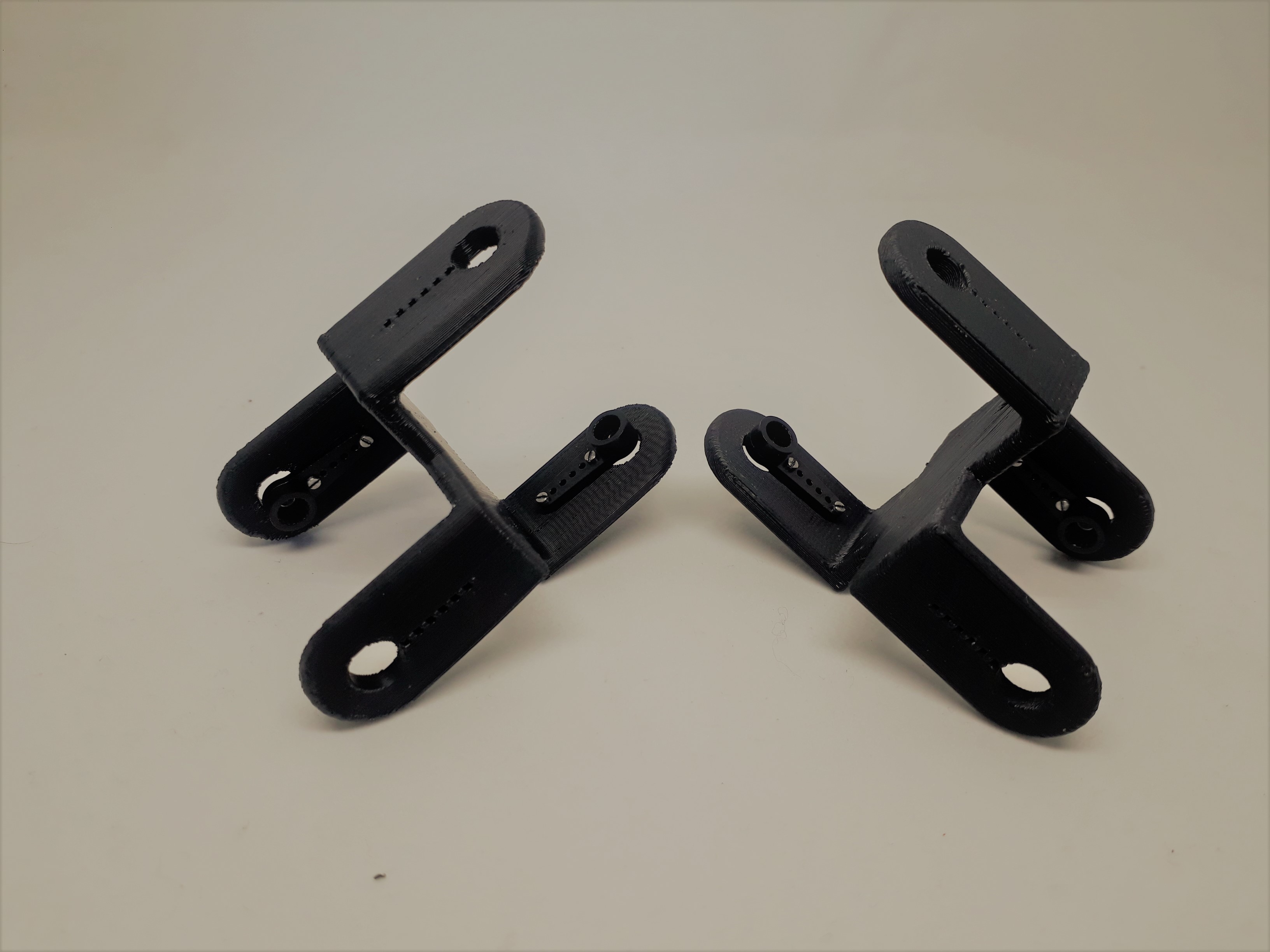

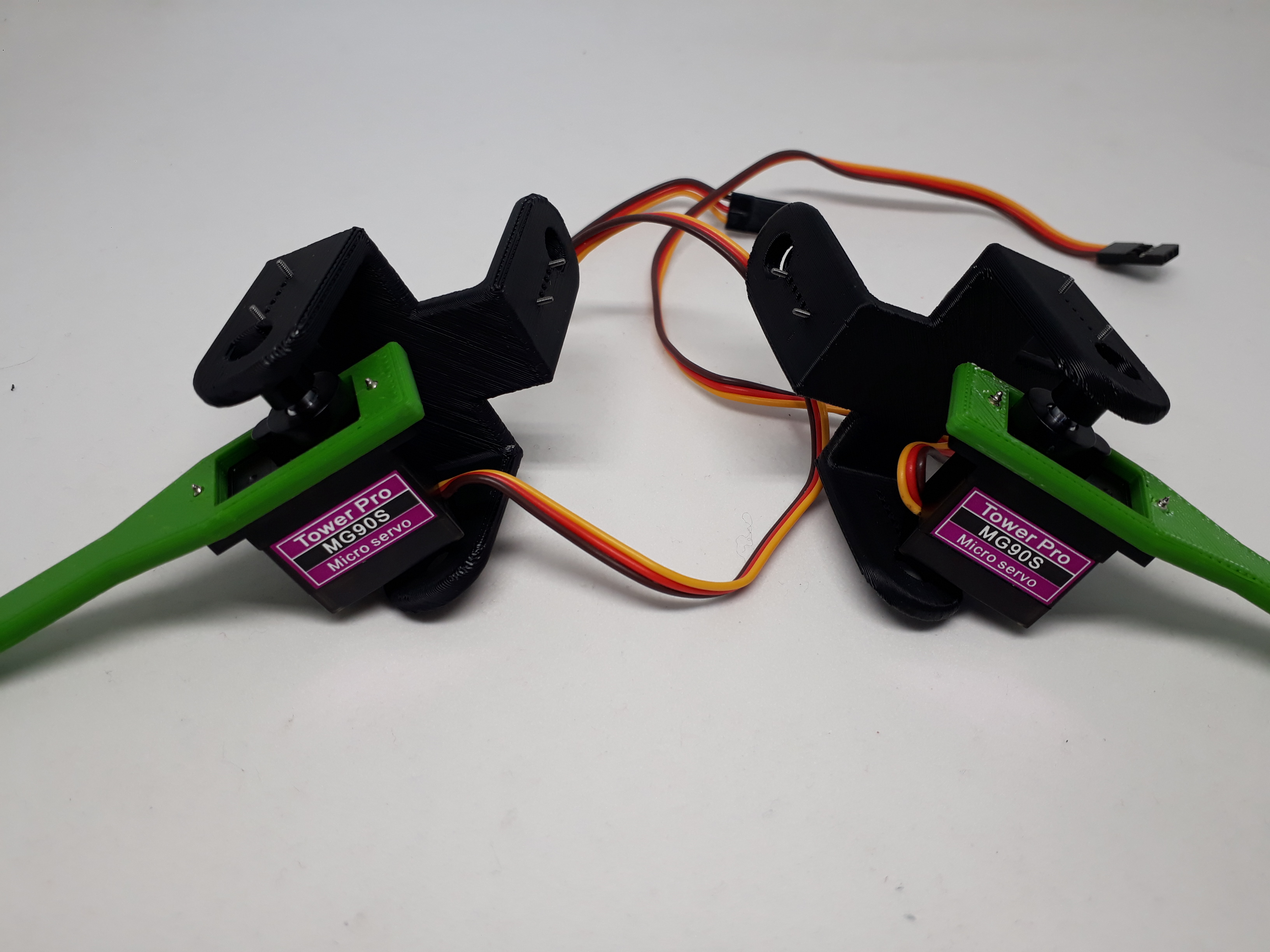

4x 2DOF Legs

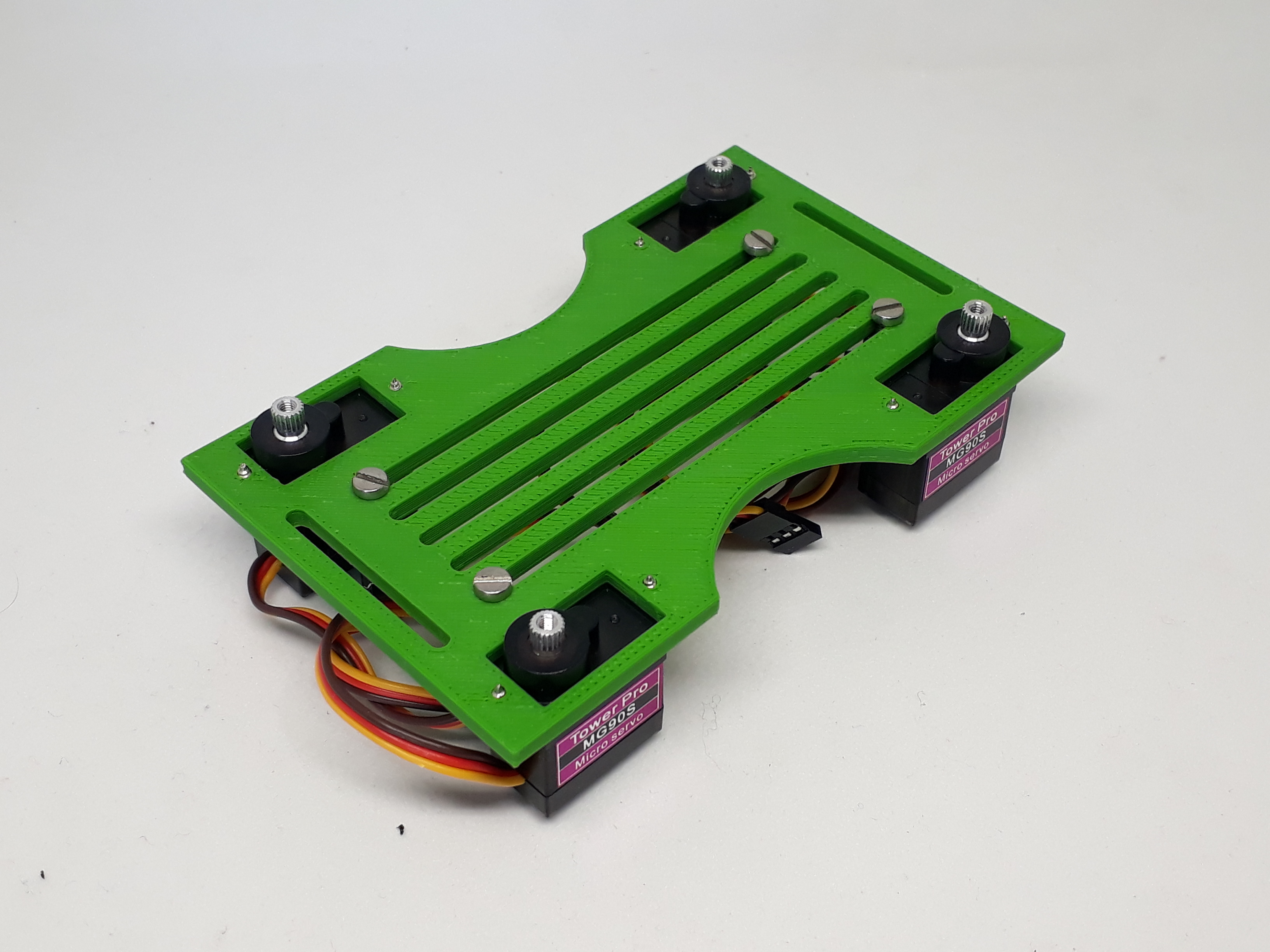

2x chassis plates

4x spacers

Required

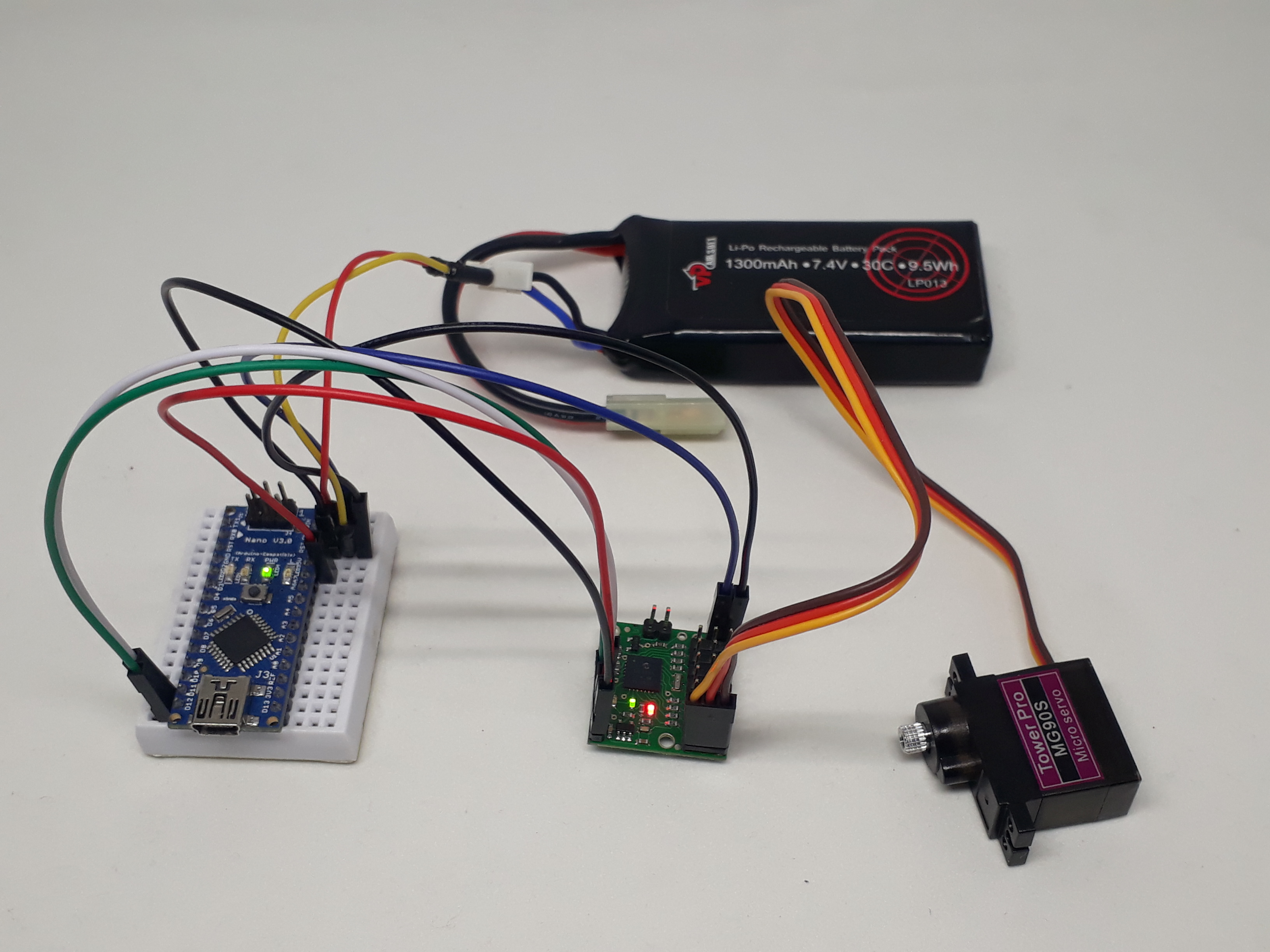

8x TowerPro MG90S actuators

1x Arduino Nano microcontroller or equivalent

1x mini breadboard

1x Servo Serial Controller 8-Channels

1x Battery

Dupont cables

Suggestions

Distance sensor to avoid obstacles

Bluetooth module for Smartphone control

Video: https://www.youtube.com/watch?v=ndn6Ok6RdXQ

3D printing settings

Print in ABS or PLA

Layer thickness: 0.2mm

Filling : 65%

Recommended print volume: 117.0×73.0x44.0mm

Designed with FreeCAD

Come to discover all our models and robots on the site www.aranacorp.com and do not hesitate to contact us if you want advice to program your robots (contact@aranacorp.com).

  • 3D model format: STL
