Retro Air Cooler - Retro Air Cooler

3D model description

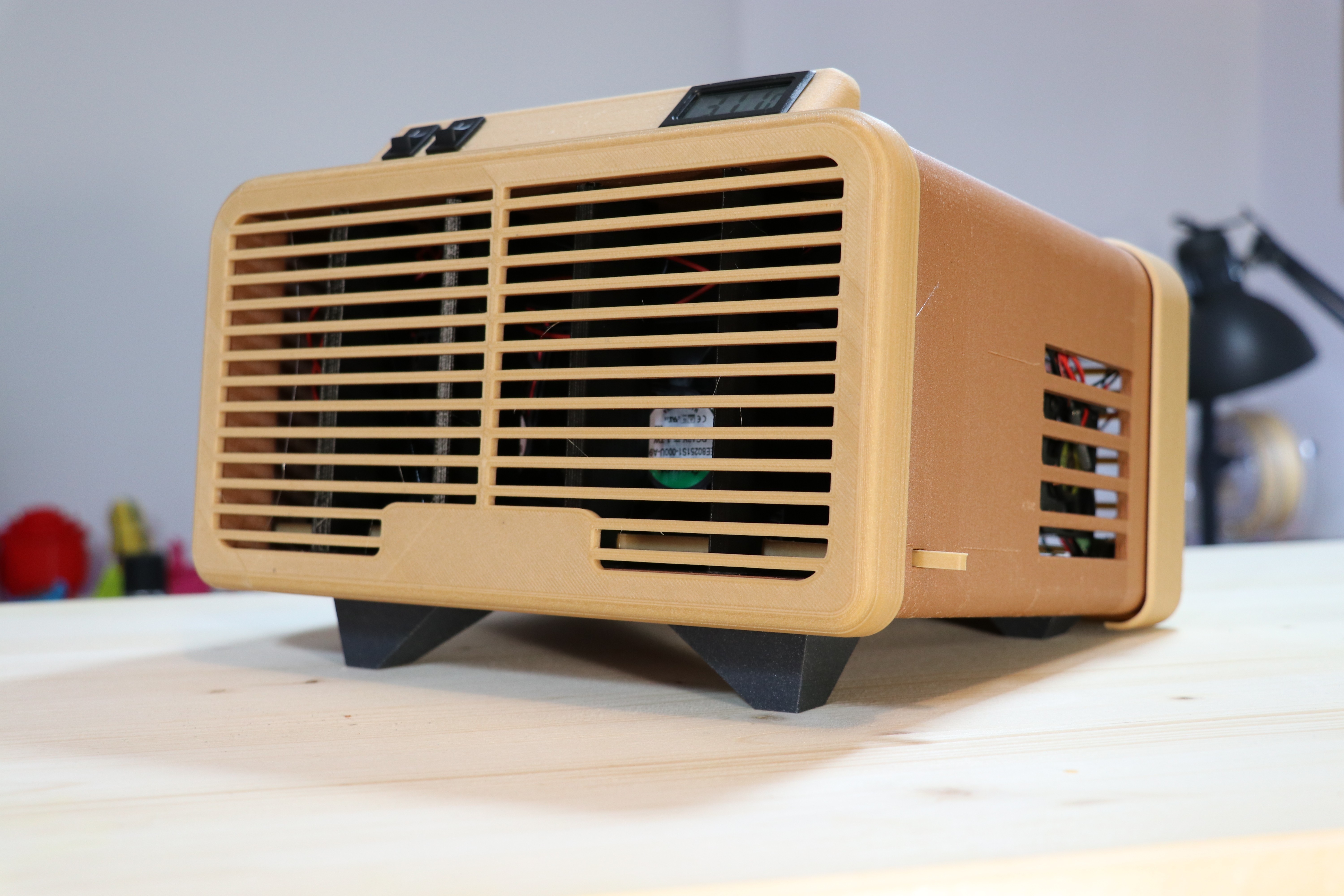

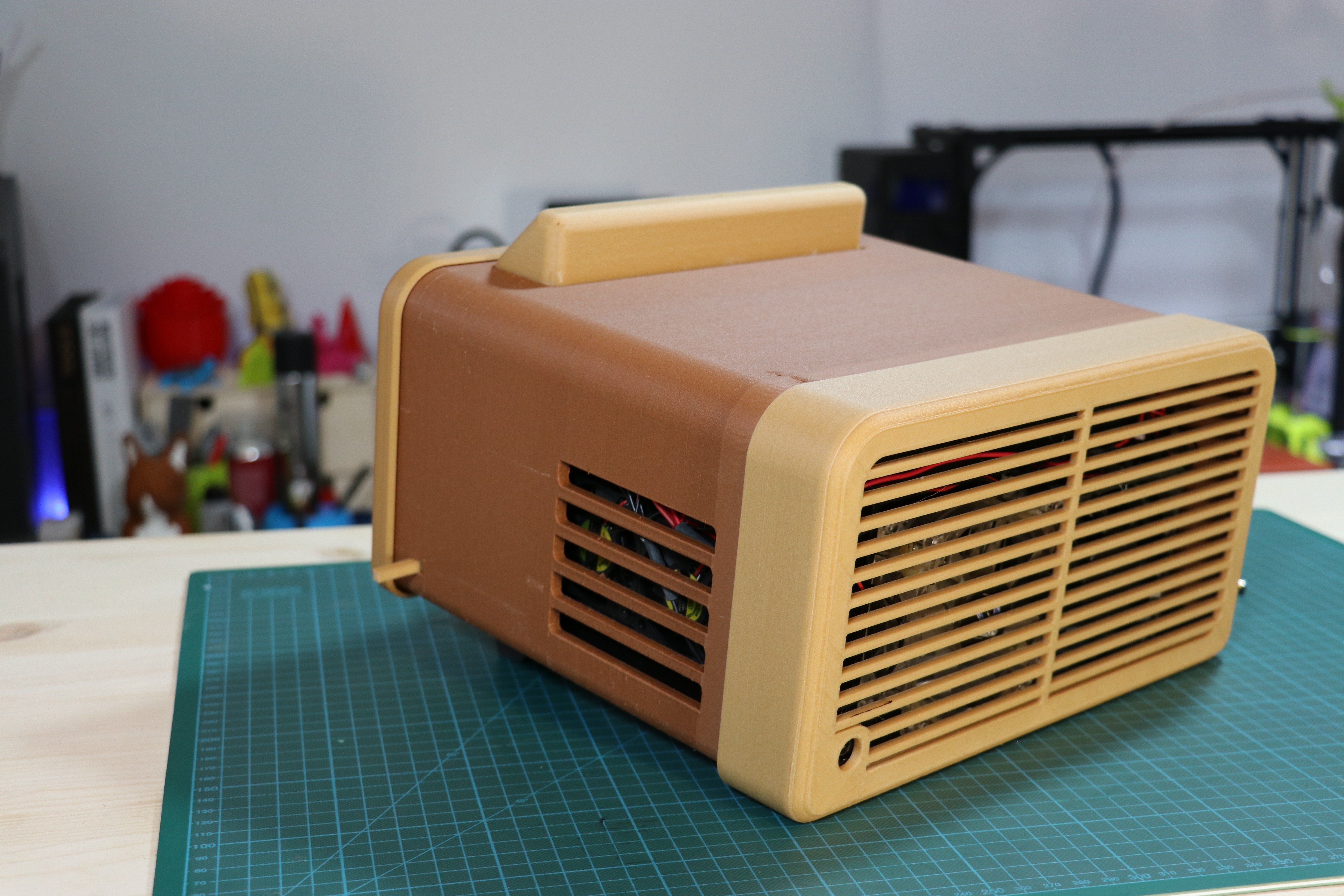

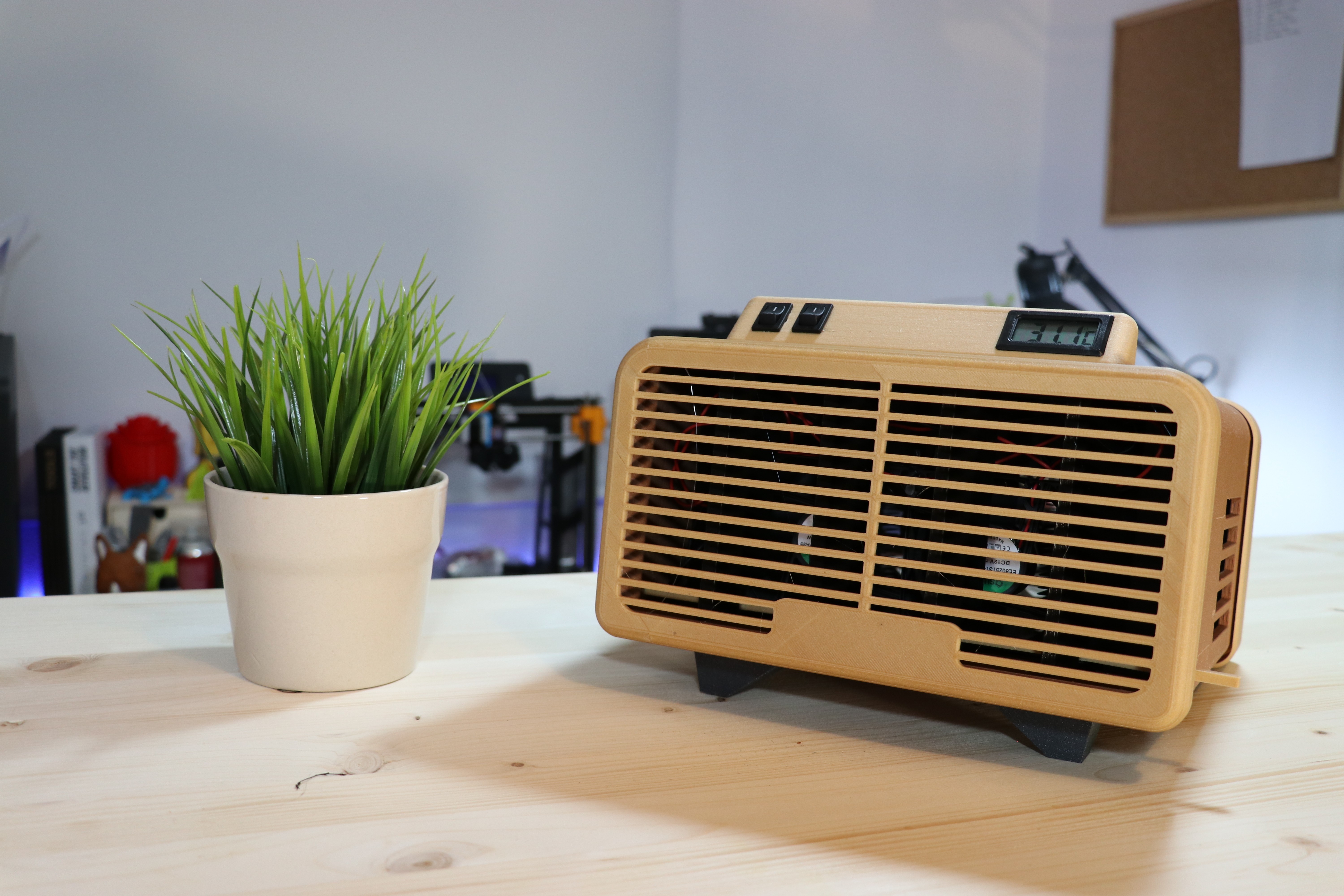

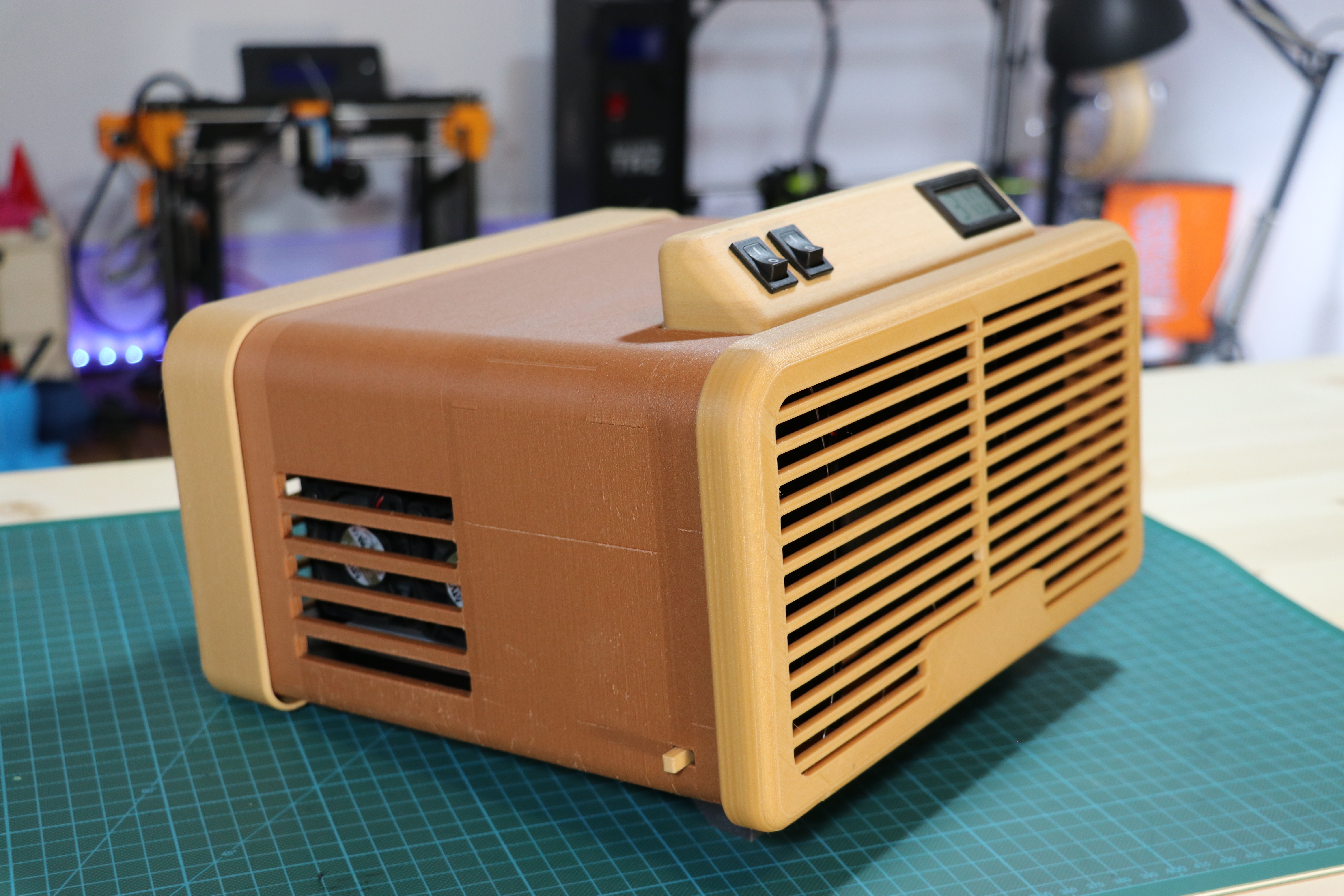

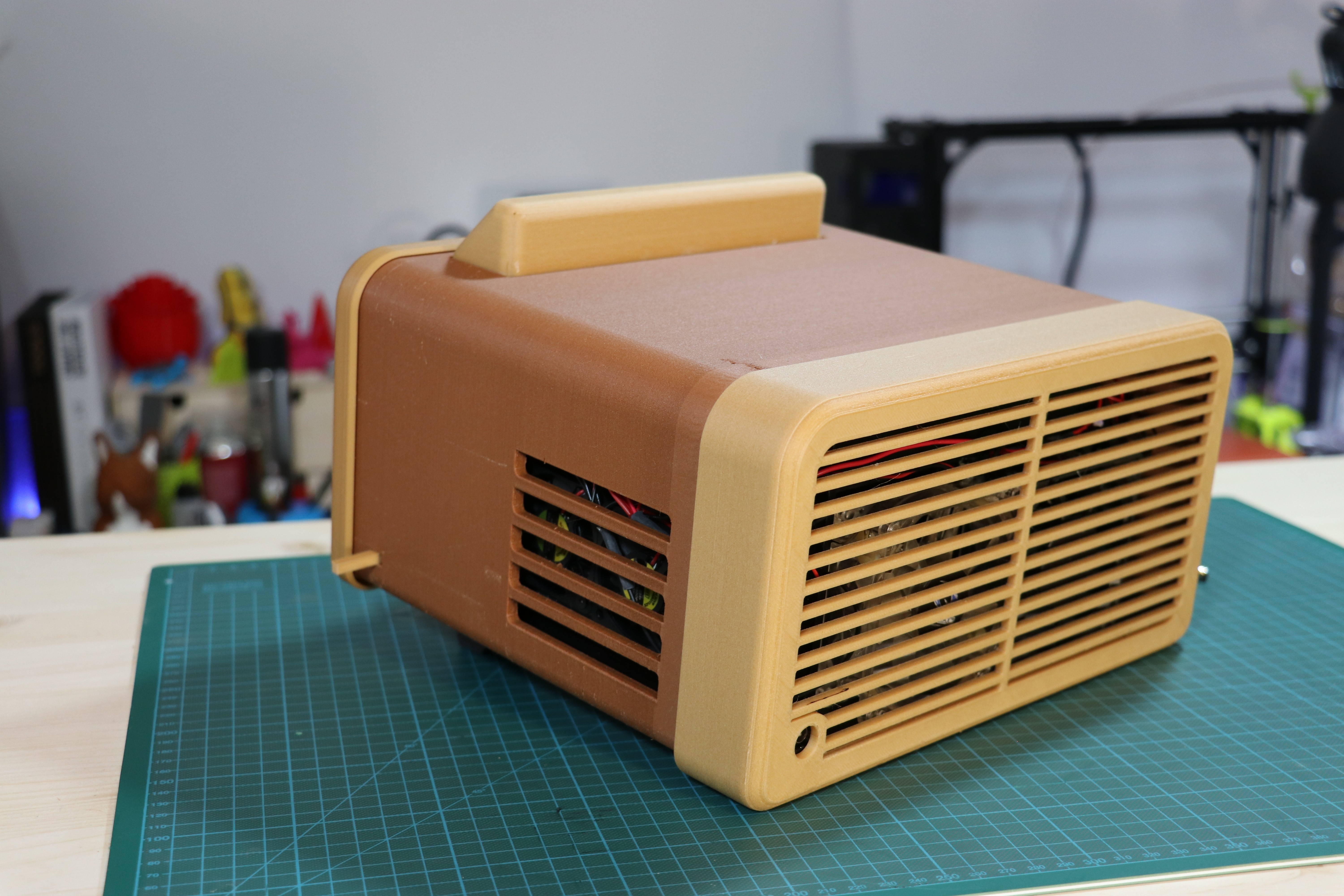

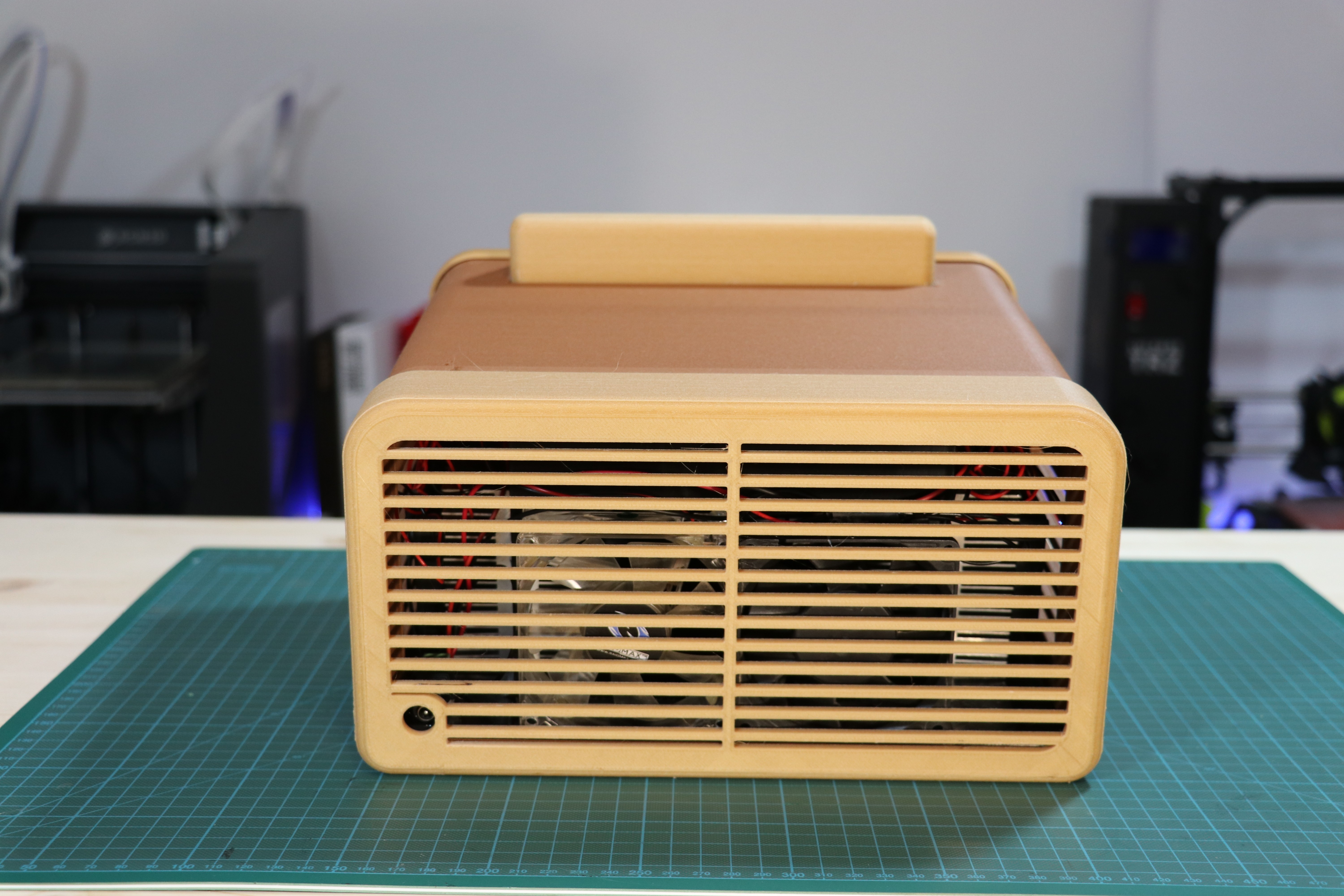

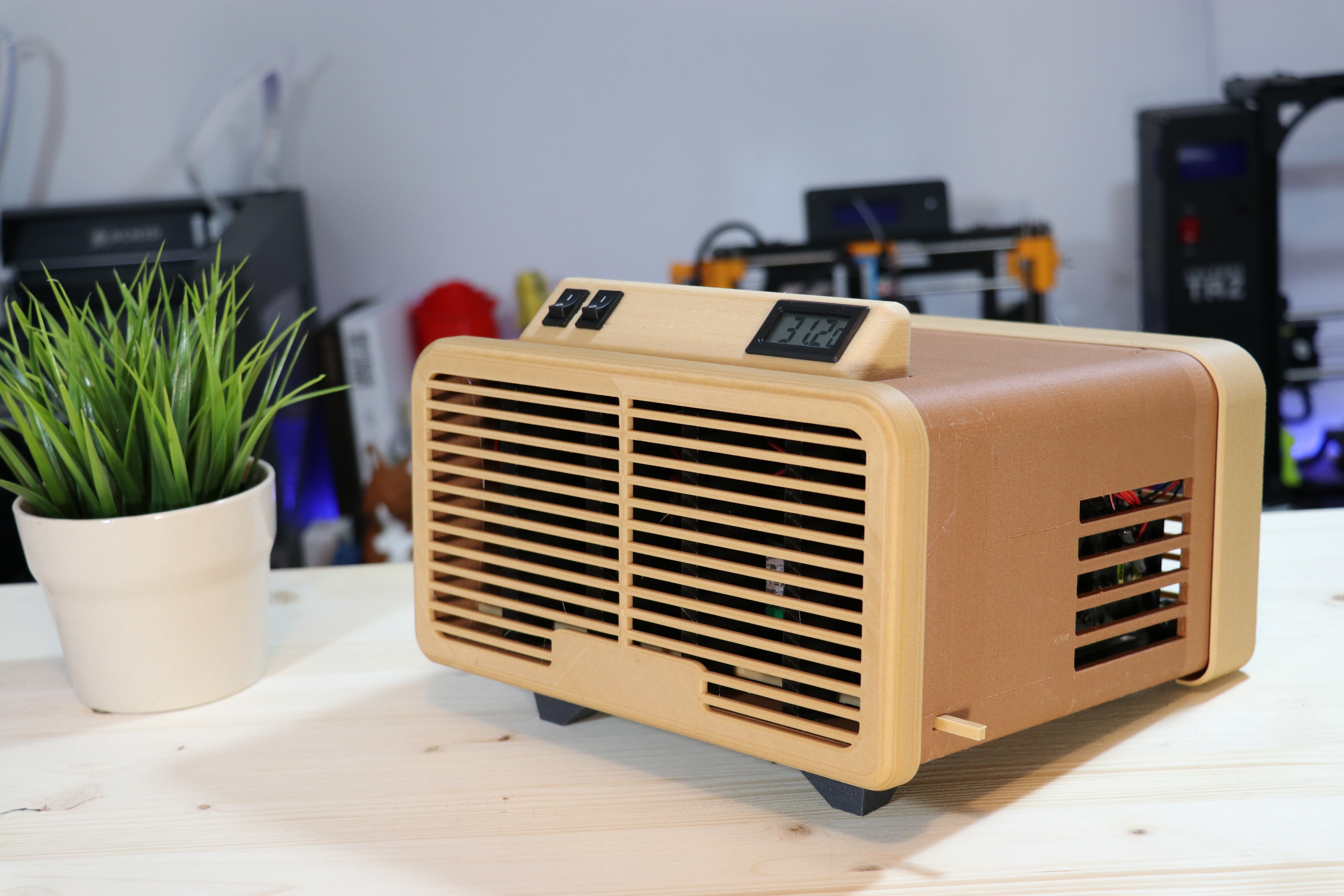

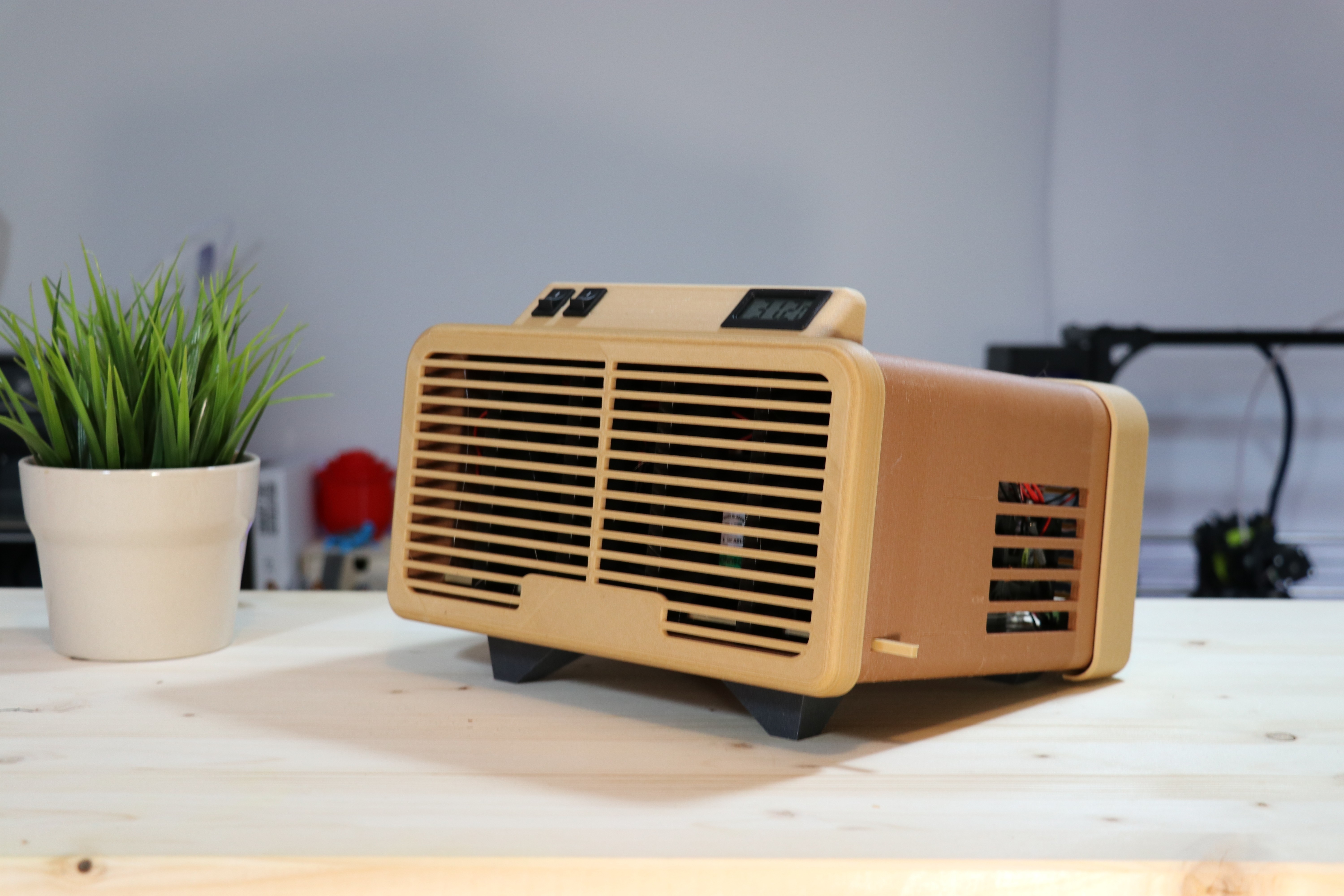

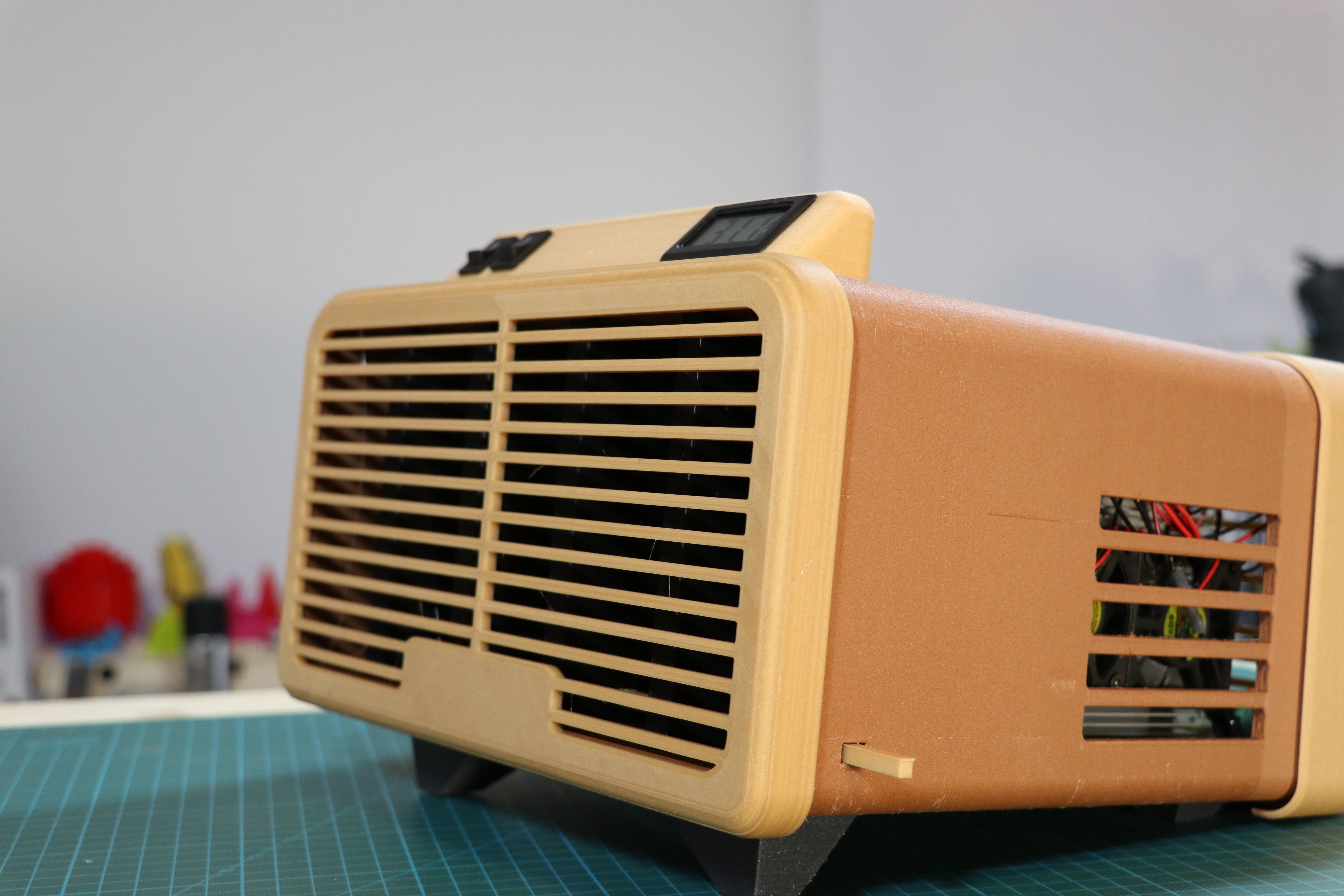

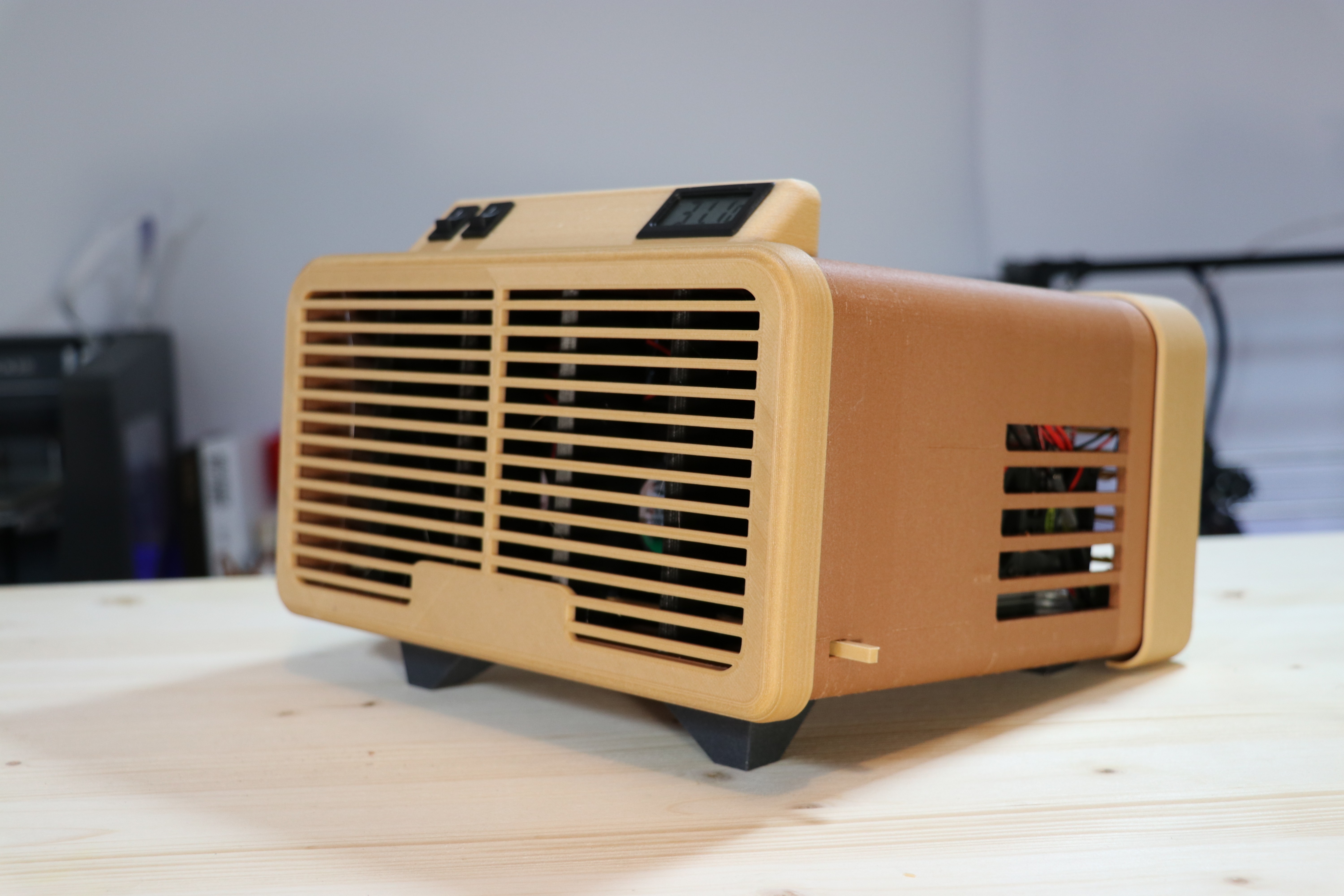

RETRO AIR COOLER

Subscribe to my channel: https://goo.gl/TE22vT

To improve it, the ideal thing is to get the hot air out (from the sides) somehow, but that will be left for v2 someday. Remember that this is a "fun project" design, do not expect to cool your house with it! :)

Materials: ▶

  • 4 x 100 X 80 mm Heatsink

  • 4 x Fan 40 x 10 mm

  • 4 x 80 mm Fan

  • 1 x 12V charger

  • 1 x Charger connector

  • 2 x Switch

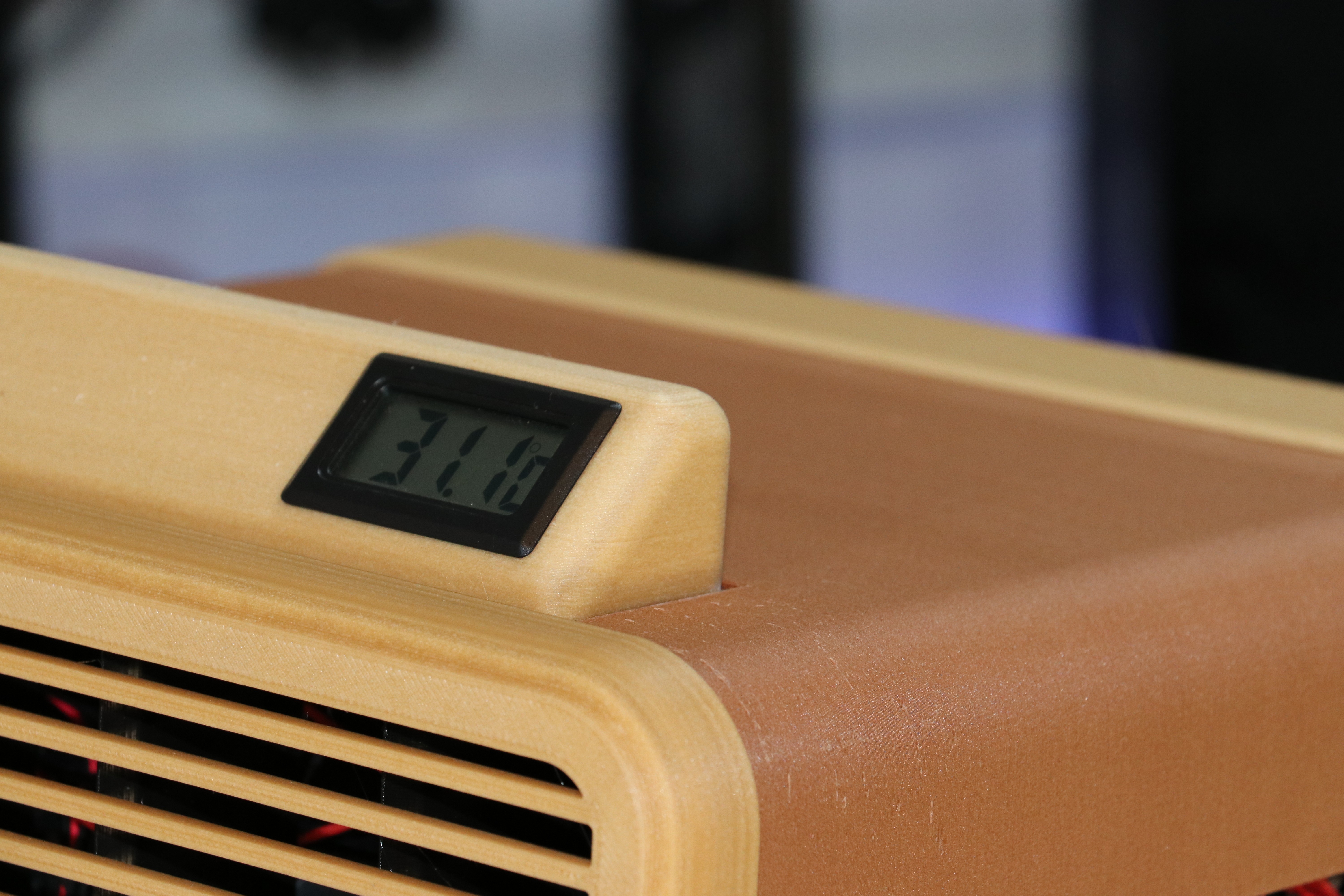

  • 1 x Digital thermometer

  • 2 or 4 x Peltier cells 40 x 40 mm (remember that every peltier cells consumes 5A, you will need an adapted power supply)

Filaments: ▶

SmartFil Wood: https://goo.gl/CTg8bX

Black PLA: https://goo.gl/Qr69J6

Assembly video: https://youtu.be/c1Sk256_WY4

YouTube: https://goo.gl/TE22vT

Instagram: https://www.instagram.com/govaju3d

Facebook: https://www.facebook.com/govaju

Google +: https://goo.gl/7t1wQH

Twitter: https://twitter.com/Govaju_3D

3D printing settings

Printer Brand:

LulzBot

Printer:

Lulzbot TAZ 6

Rafts:

No No

Supports:

Yes Yes

Resolution:

0.2

Infill:

20

Filament: SmartFil Wood and PLA Brown and wood

  • 3D model format: STL
