Retro clock PACMAN 8 bits

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 364 views

3D model description

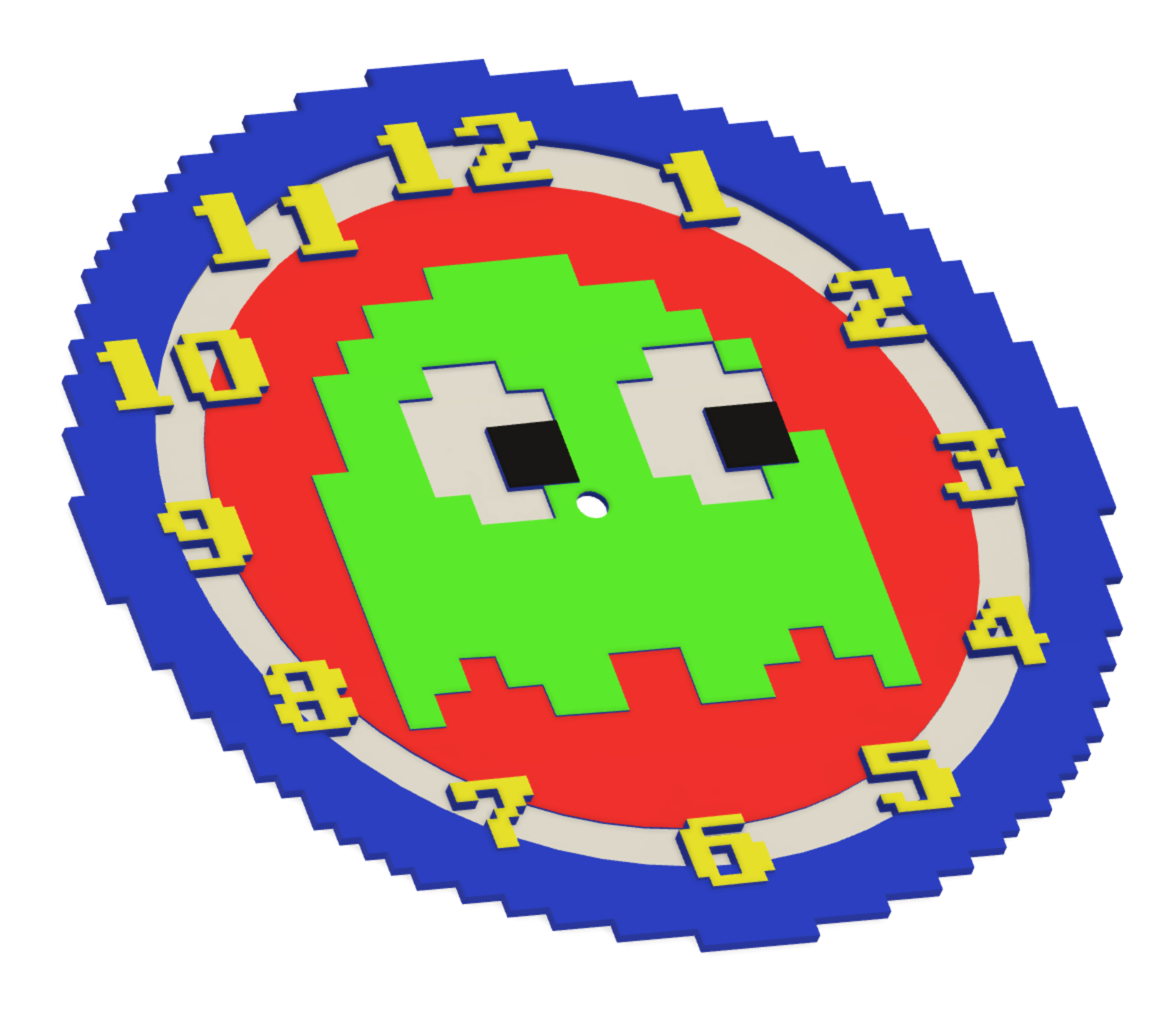

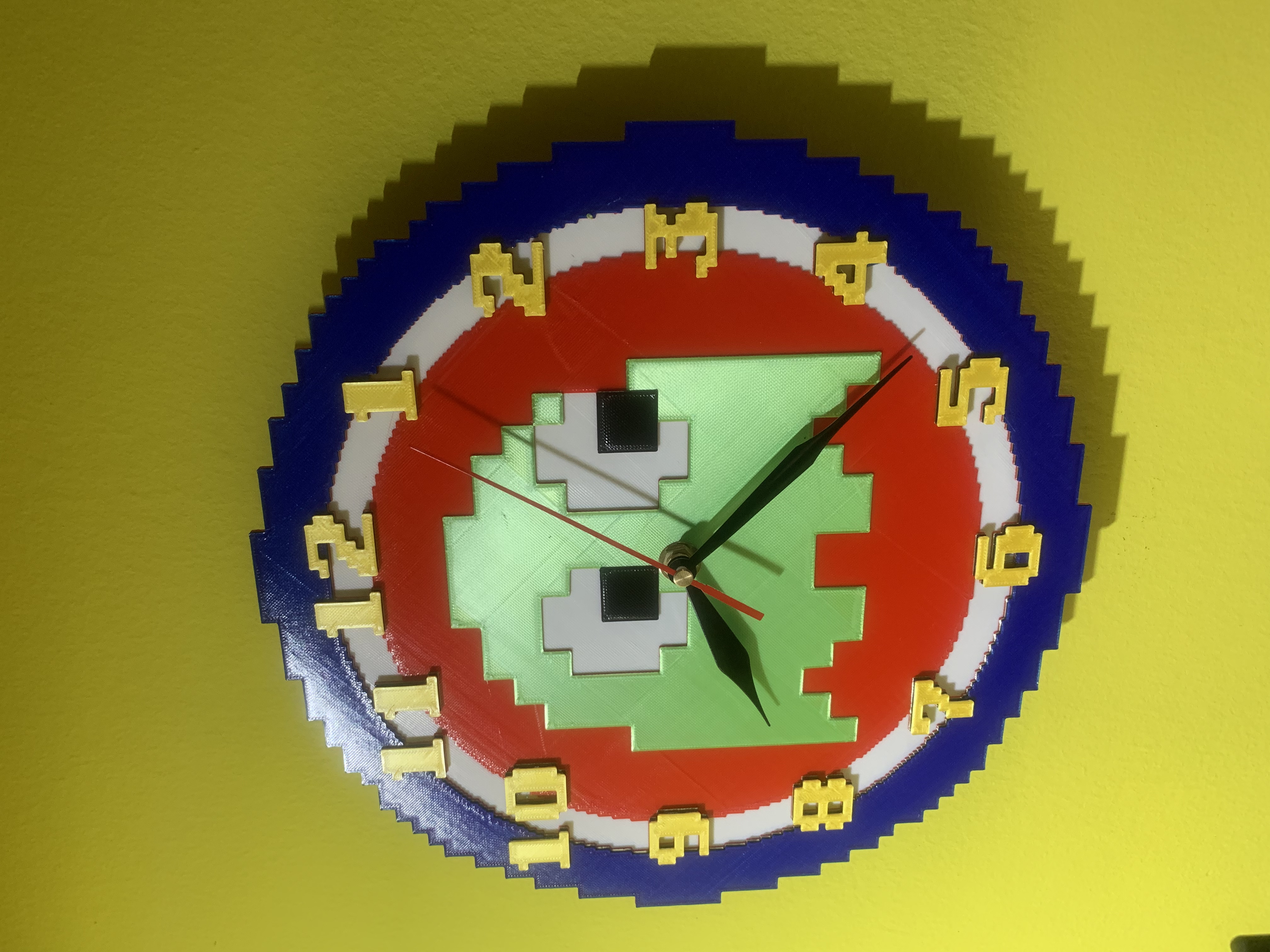

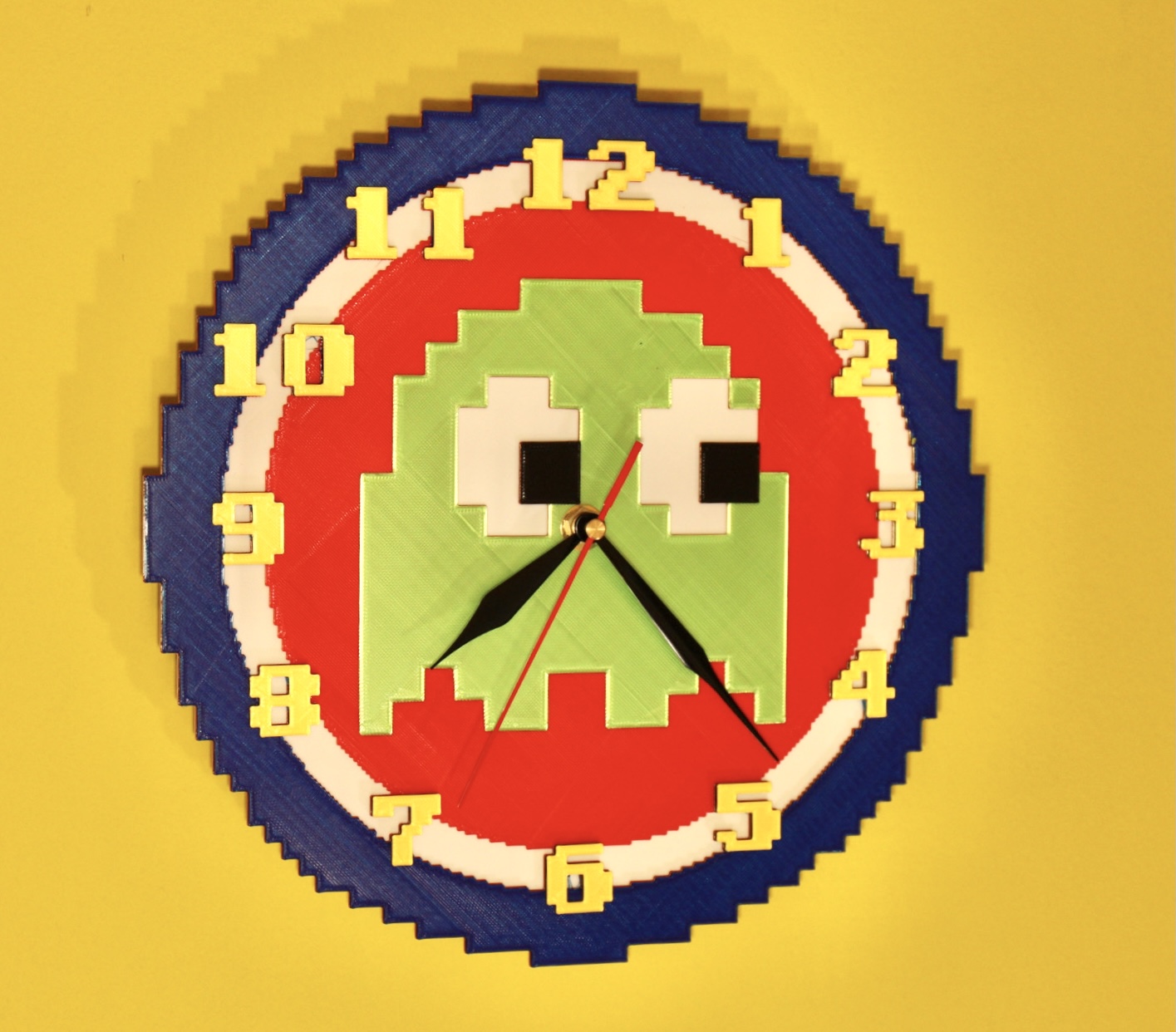

Wall clock based on the classic arcade video game PACMAN and with one of his ghosts as the protagonist, to print with color change in CR10/s or any other printer that has a large bed due to its size of 260x260x4mm.

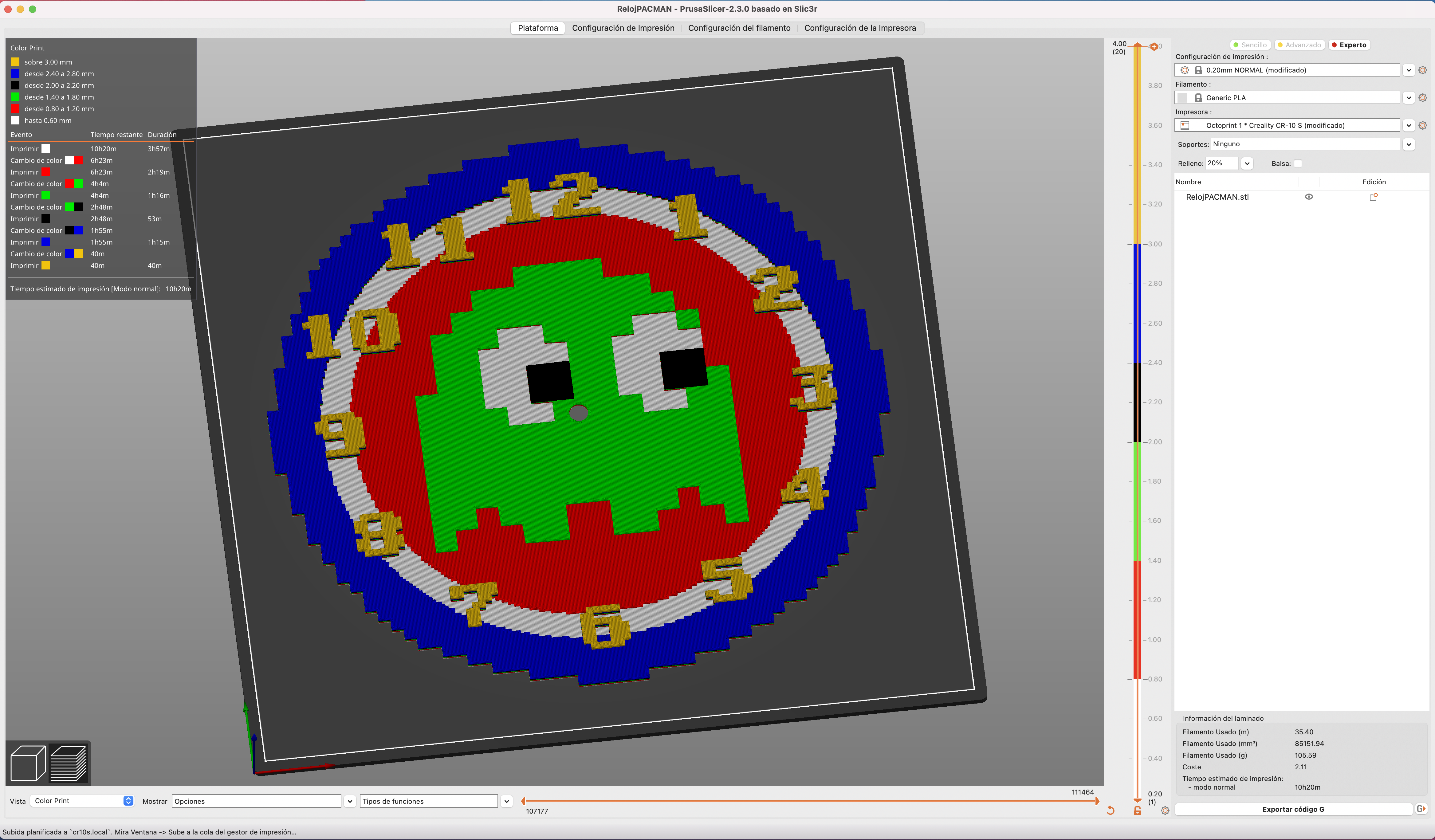

Designed with Fusion360, I used Prusa Slicer to laminate and set up the filament changes (see attached photo).

For the mechanism I used the classic kitchen clock type:

https://www.amazon.es/gp/product/B012F8ATWI/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1


3D printing settings

Printed in PLA, with a layer height of 0.2 and 20% infill.

Using 0.2 layer height, you will need to program filament changes in the layers as follows:

White: 0 to 0.80 (filament change)

Red: 0.80 to 1.40 (filament change)

Green (or whatever color you want for your ghost) 1.40 to 2.00 (filament change)

Black: 2.00 to 2.40 (filament change)

Blue: 2.40 to 3.00 (filament change)

Yellow: 3.00 to 4.00 (end of print)

3D printer file information

  • 3D design format: STL Folder details Close
    • RelojPACMAN.stl
  • 3D model size: X 260 × Y 260 × Z 4 mm
  • Publication date: 2021/05/04 at 11:10
