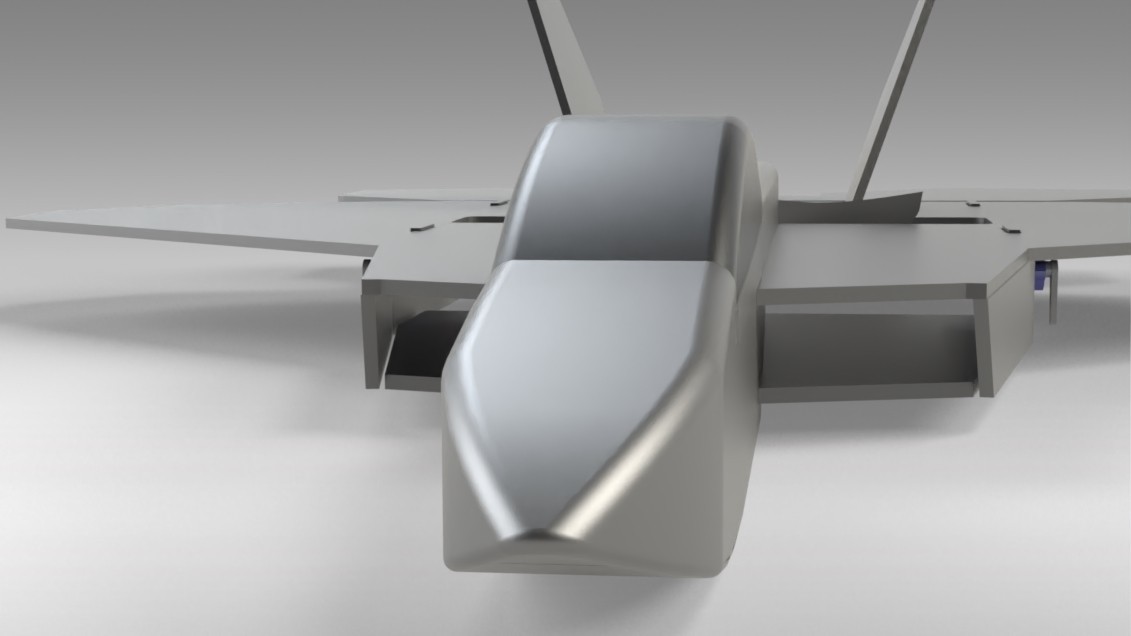

RC F22 Jet - Hybrid Build Concept using FliteTest Mighty Mini F-22 Raptor

CHECK OUT MORE GREAT 3D PRINTS HERE: https://cults3d.com/en/users/Trikonics/creations

For advanced flyers with experience.

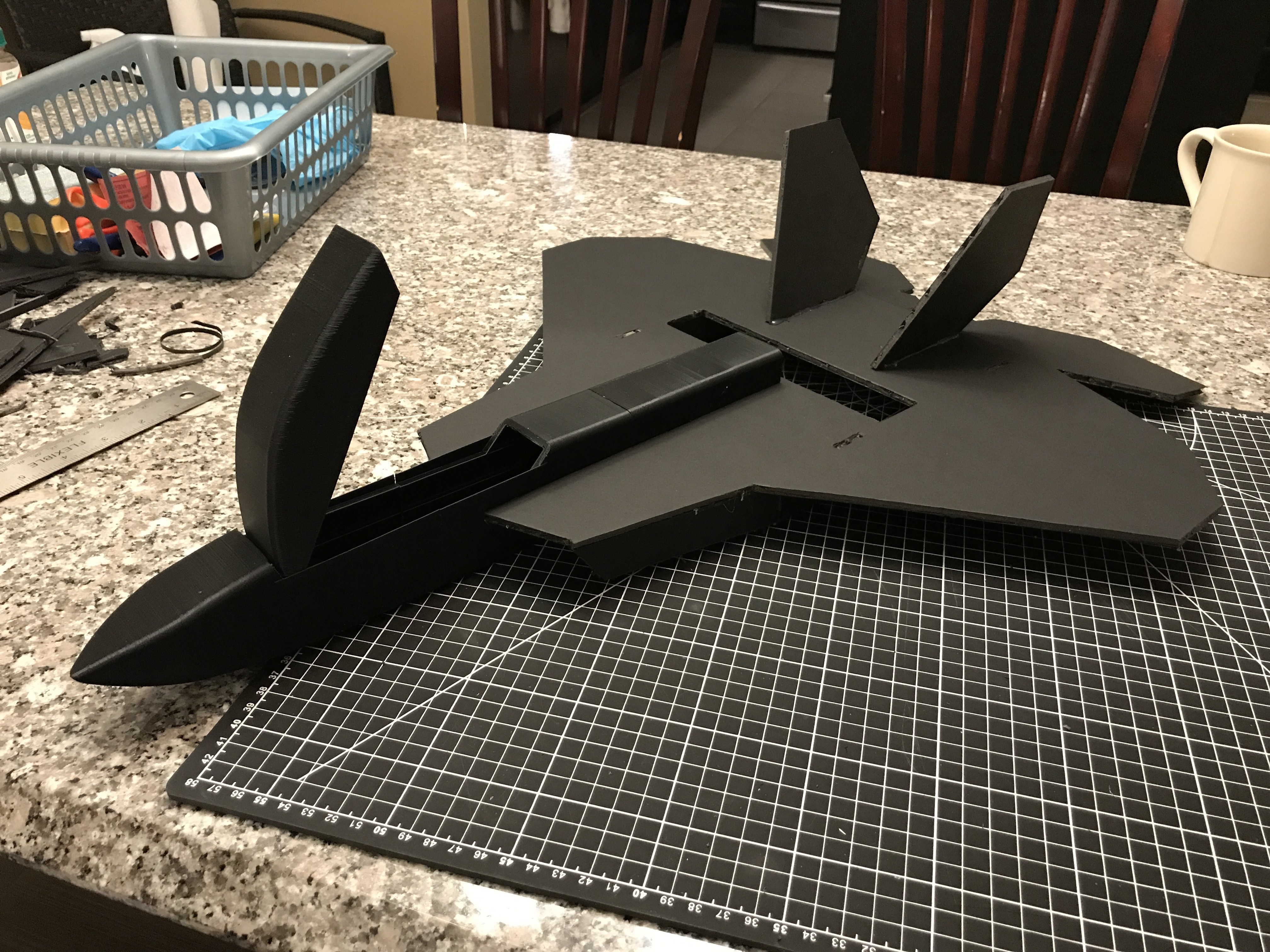

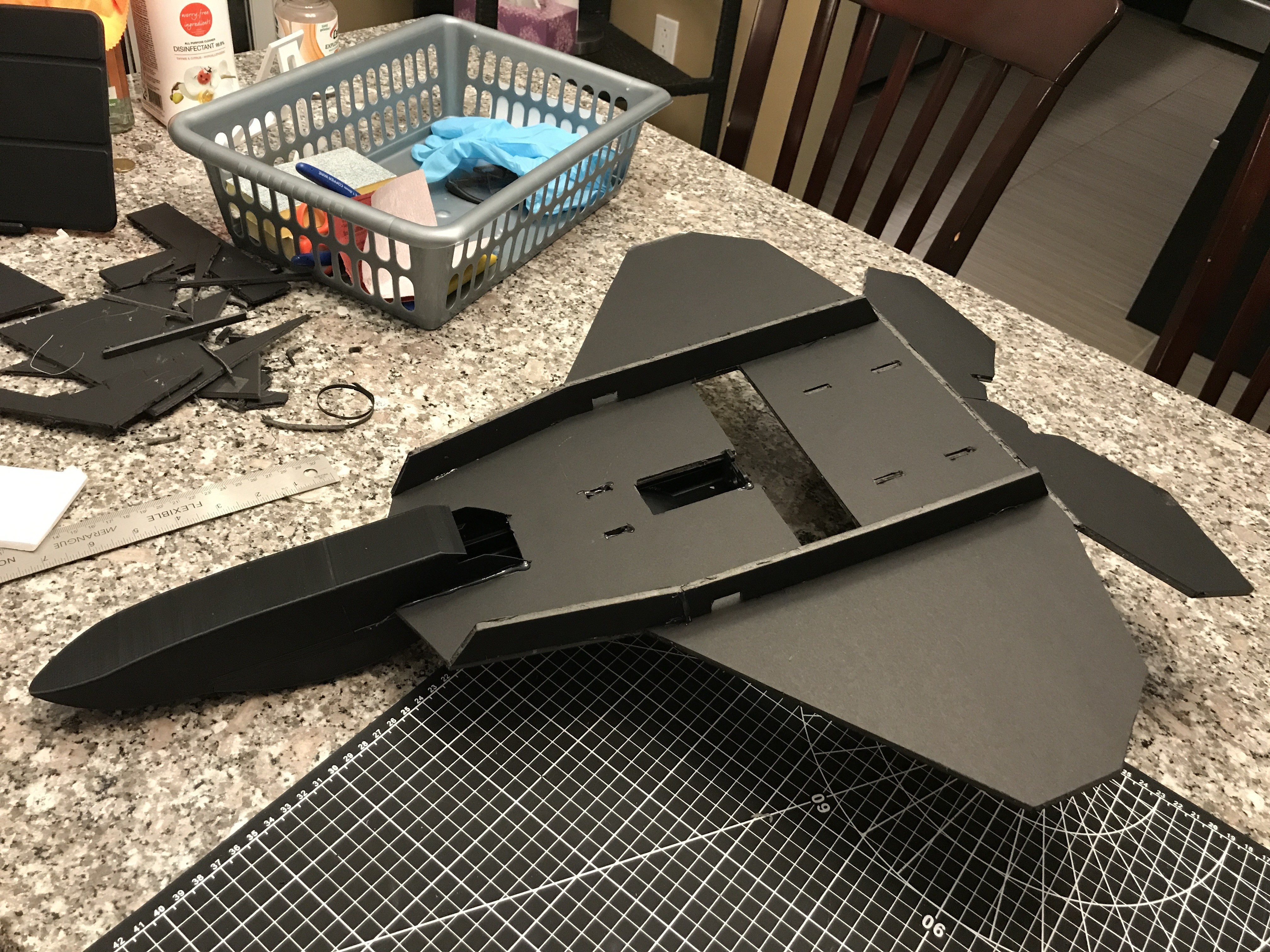

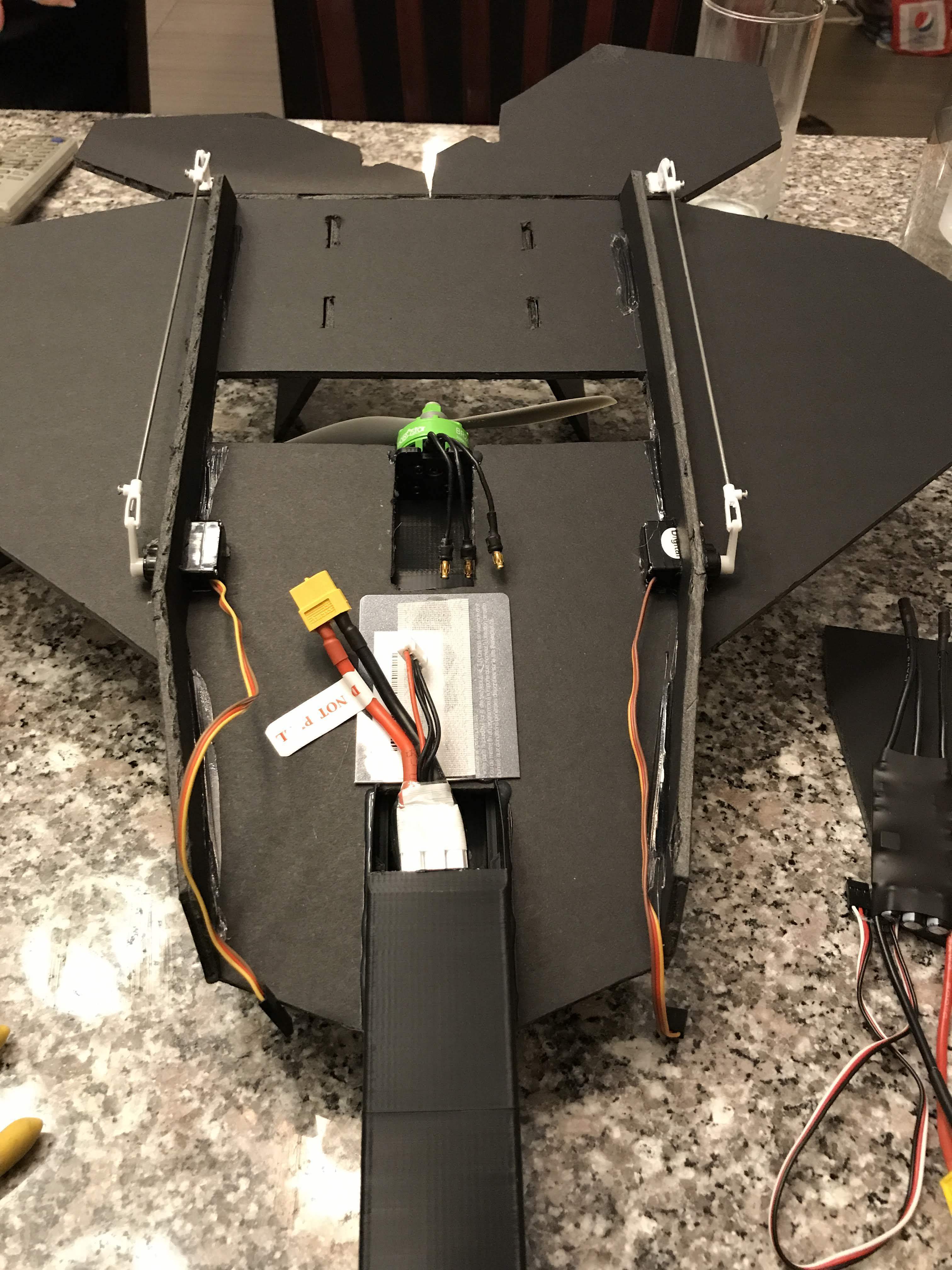

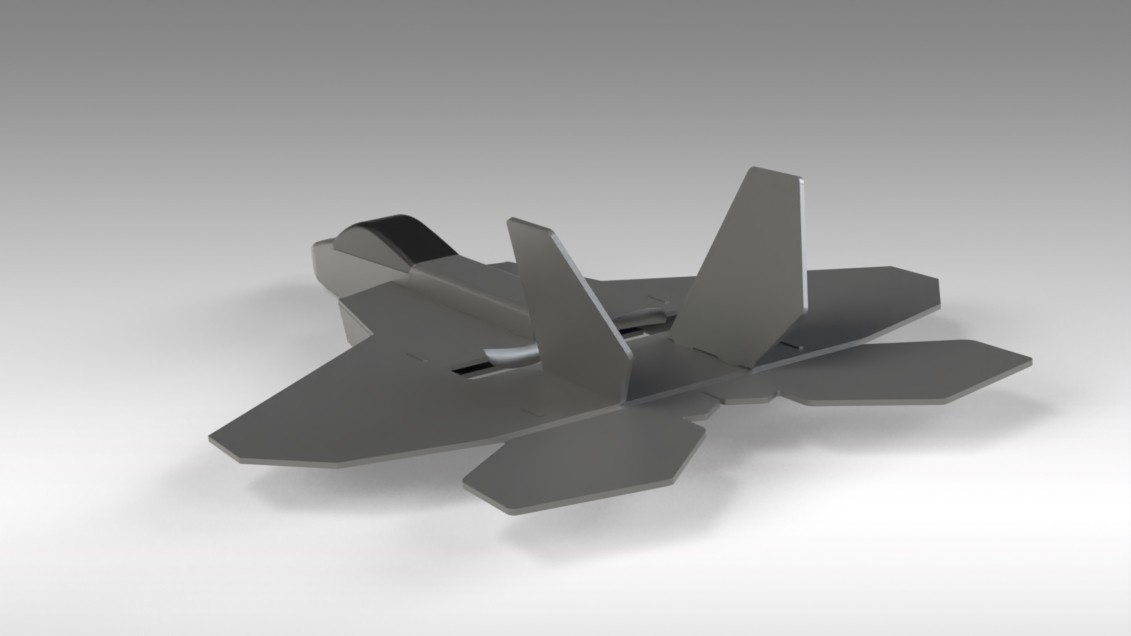

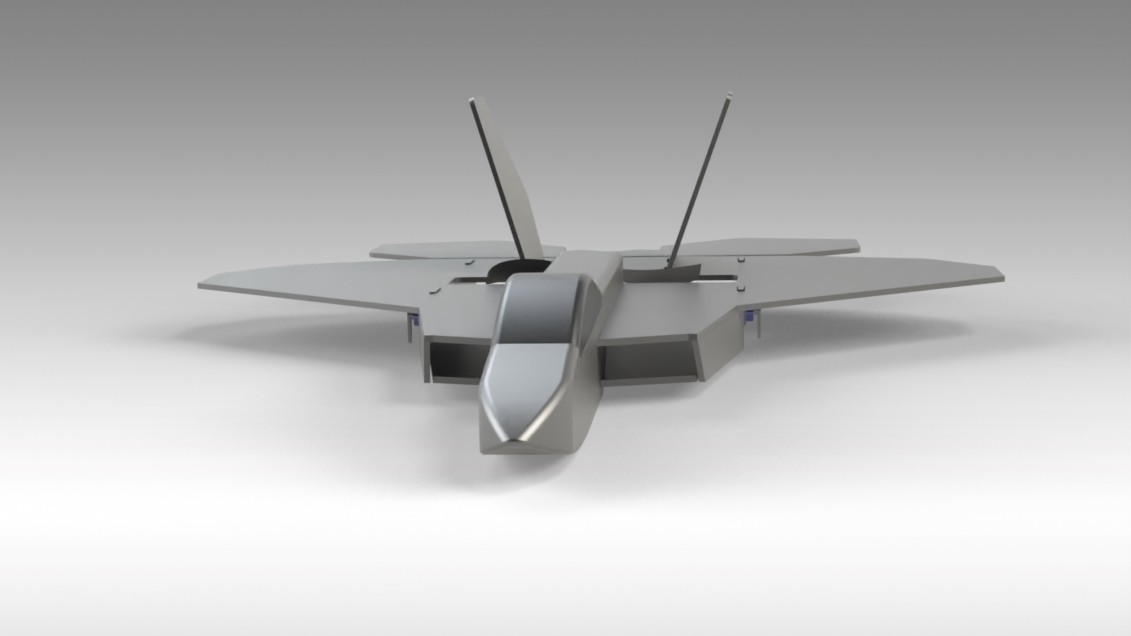

The idea is to print the "fuselage section", which can be daunting to cut out, and create the remaining parts out of 3mm foam, making the entire build process easier.

This project is still experimental and evolving.

Plan for foam parts:
https://s3.amazonaws.com/plans.flitetest.com/stonekap/FT-22-TILED-PLANS.pdf

https://s3.amazonaws.com/plans.flitetest.com/stonekap/FT-22-plans.pdf

https://images.amain.com/images/resources/shared/PowerPack%20Chart%20Compatibility.pdf

Racerstar 2406 BR2406S Green Edition 2600KV 2-4S Brushless Motor: https://www.banggood.com/Racerstar-2406-BR2406S-Green-Edition-2600KV-2-4S-Brushless-Motor-For-X220-250-280-300-Racing-Drone-p-1216819.html?rmmds=myorder&cur_warehouse=CN

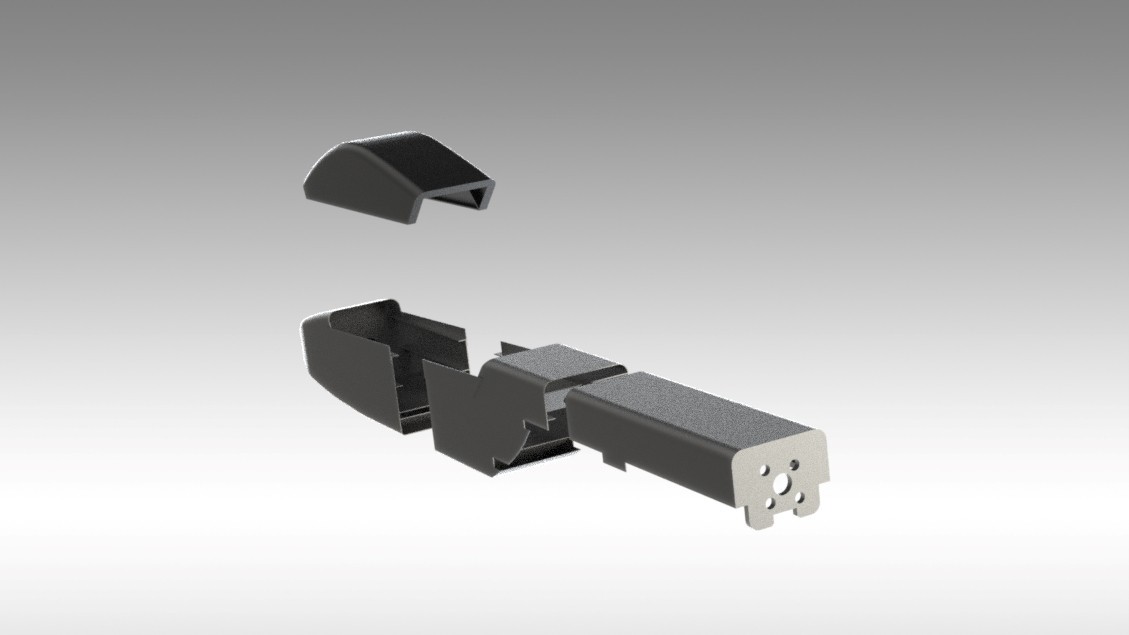

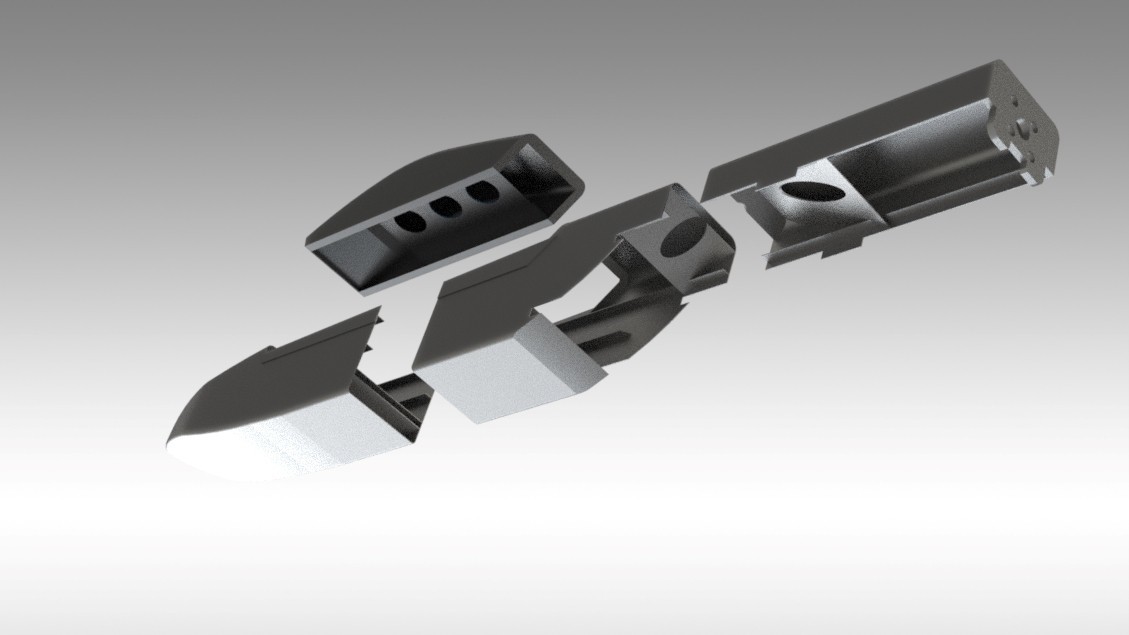

STL files needed: See images for print orientation.

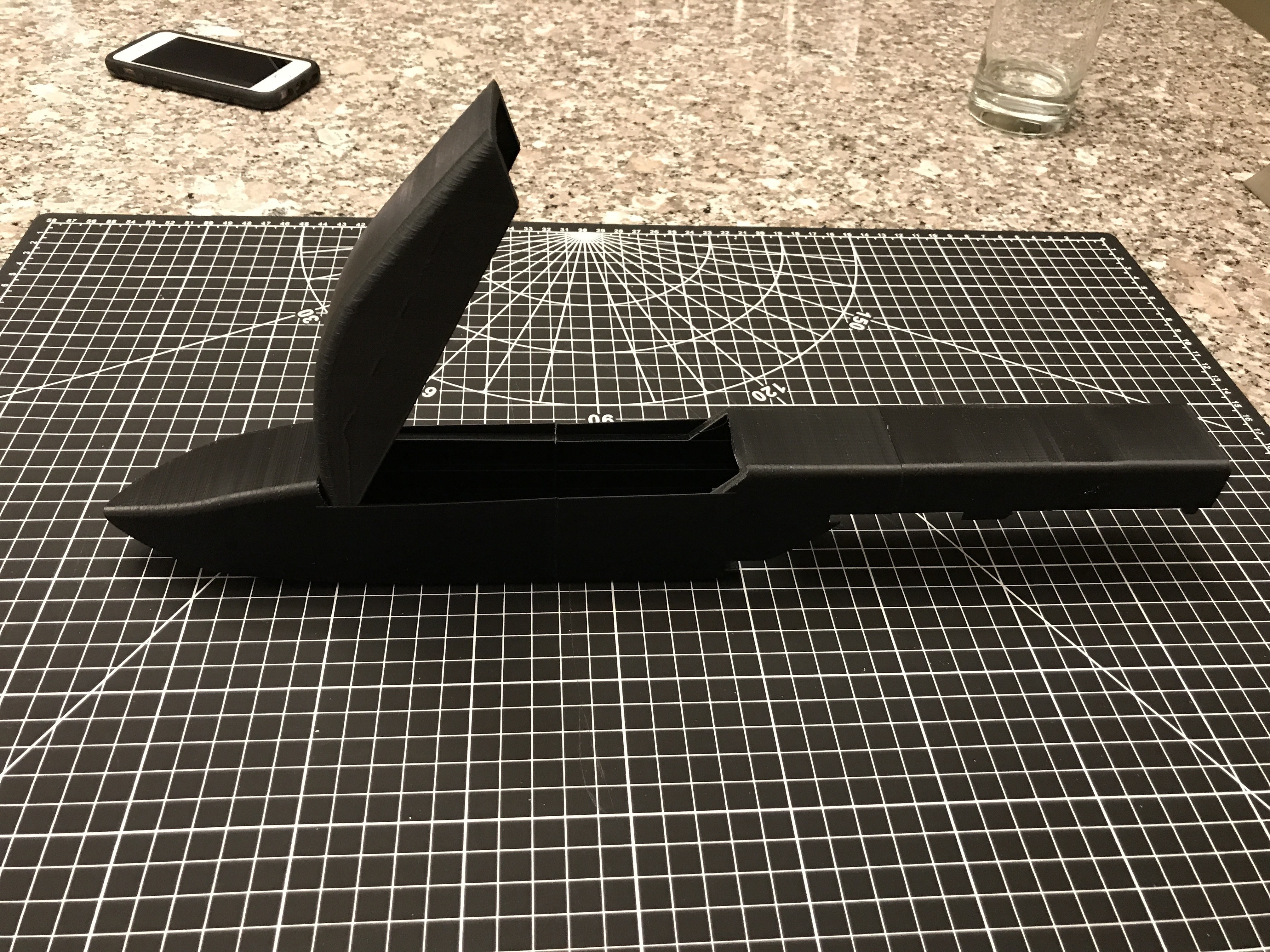

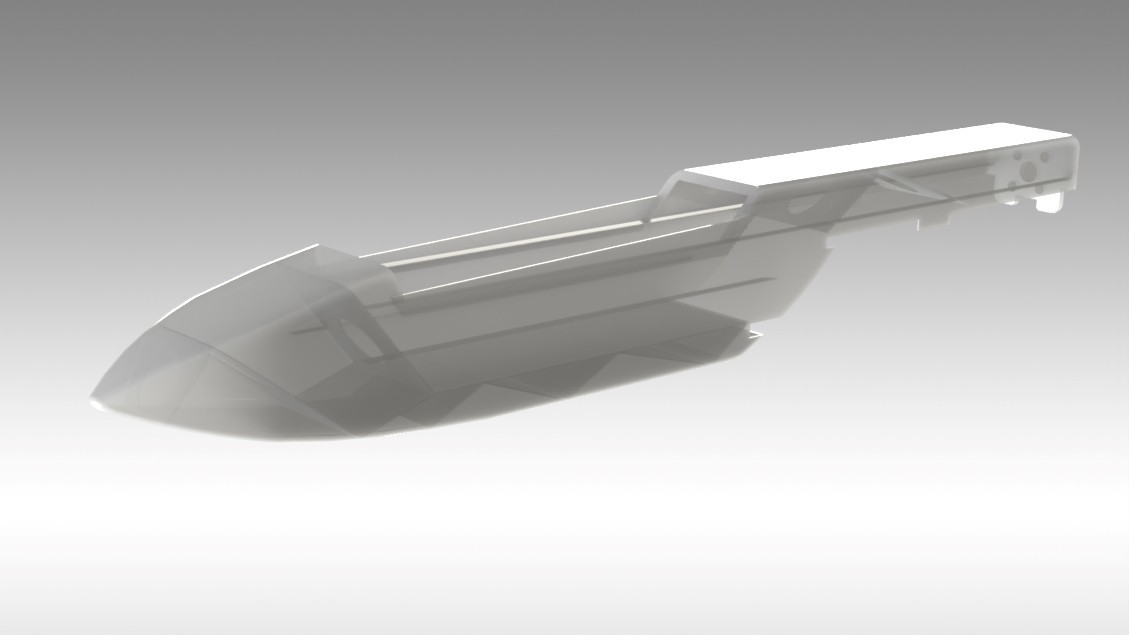

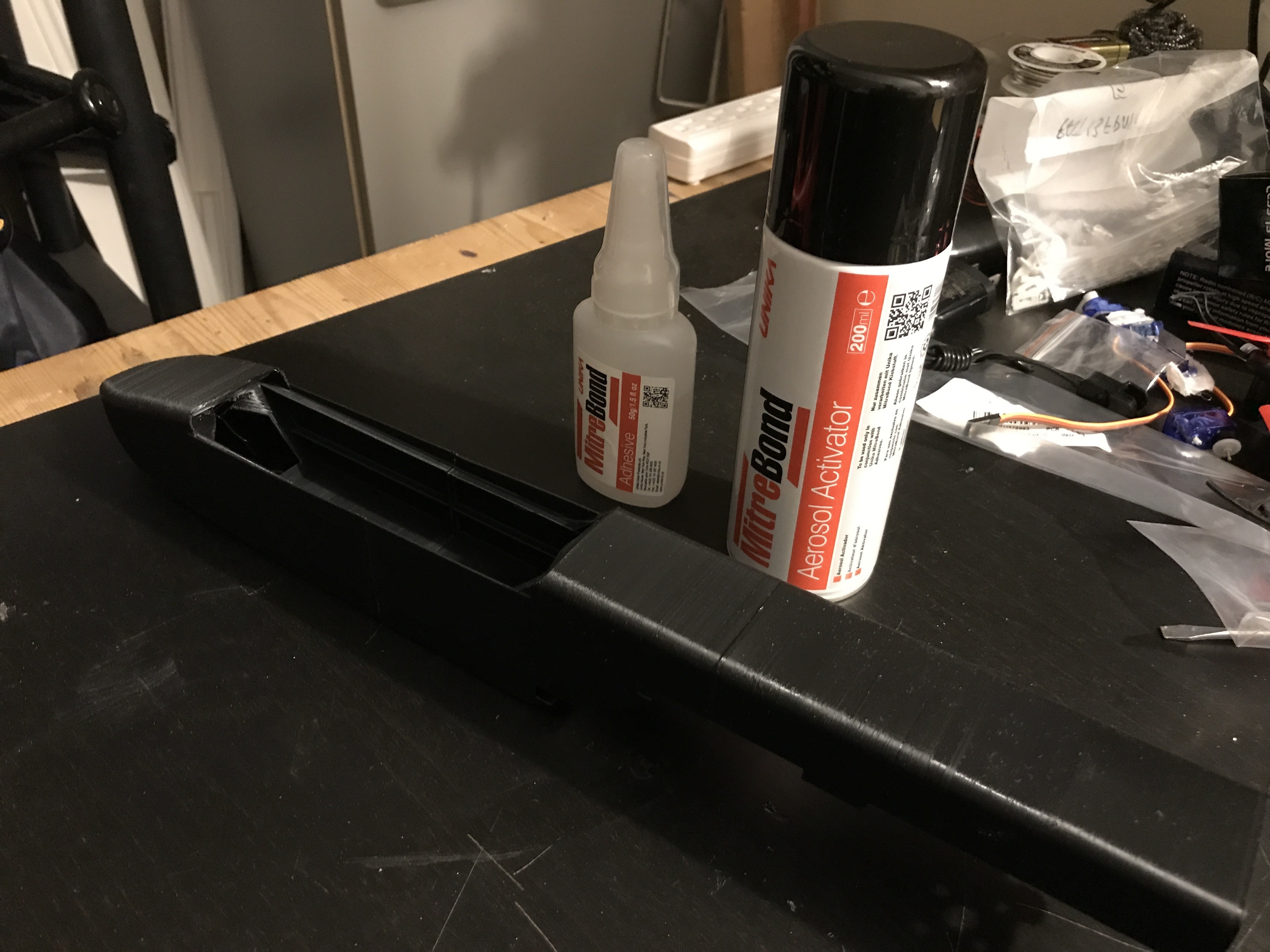

F22 Fuselage FRONT Rev03 - approx weight 22g
F22 Fuselage MID Rev05 - approx weight 10g
F22 Fuselage Rear Rev04 - approx weight 10g

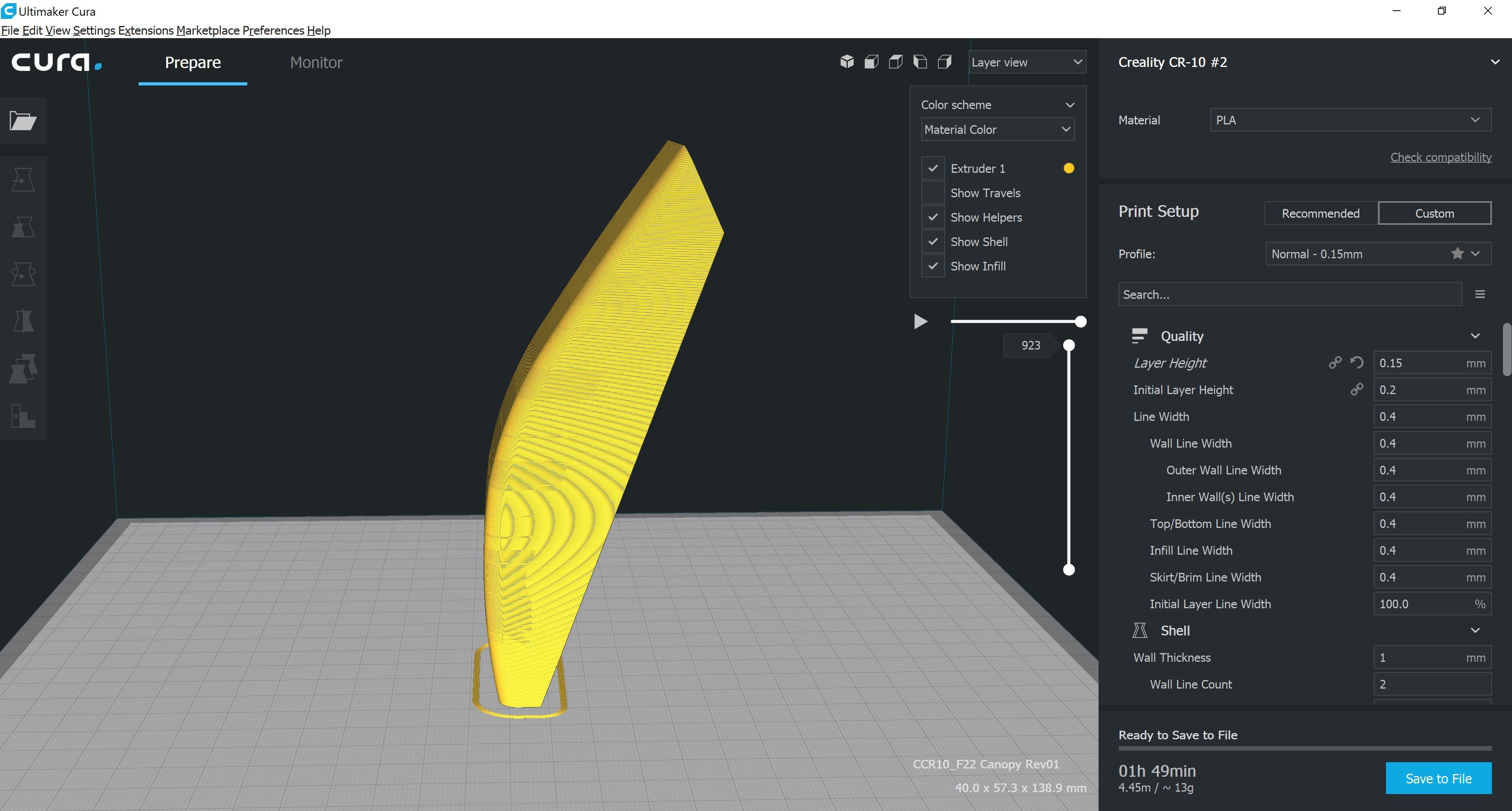

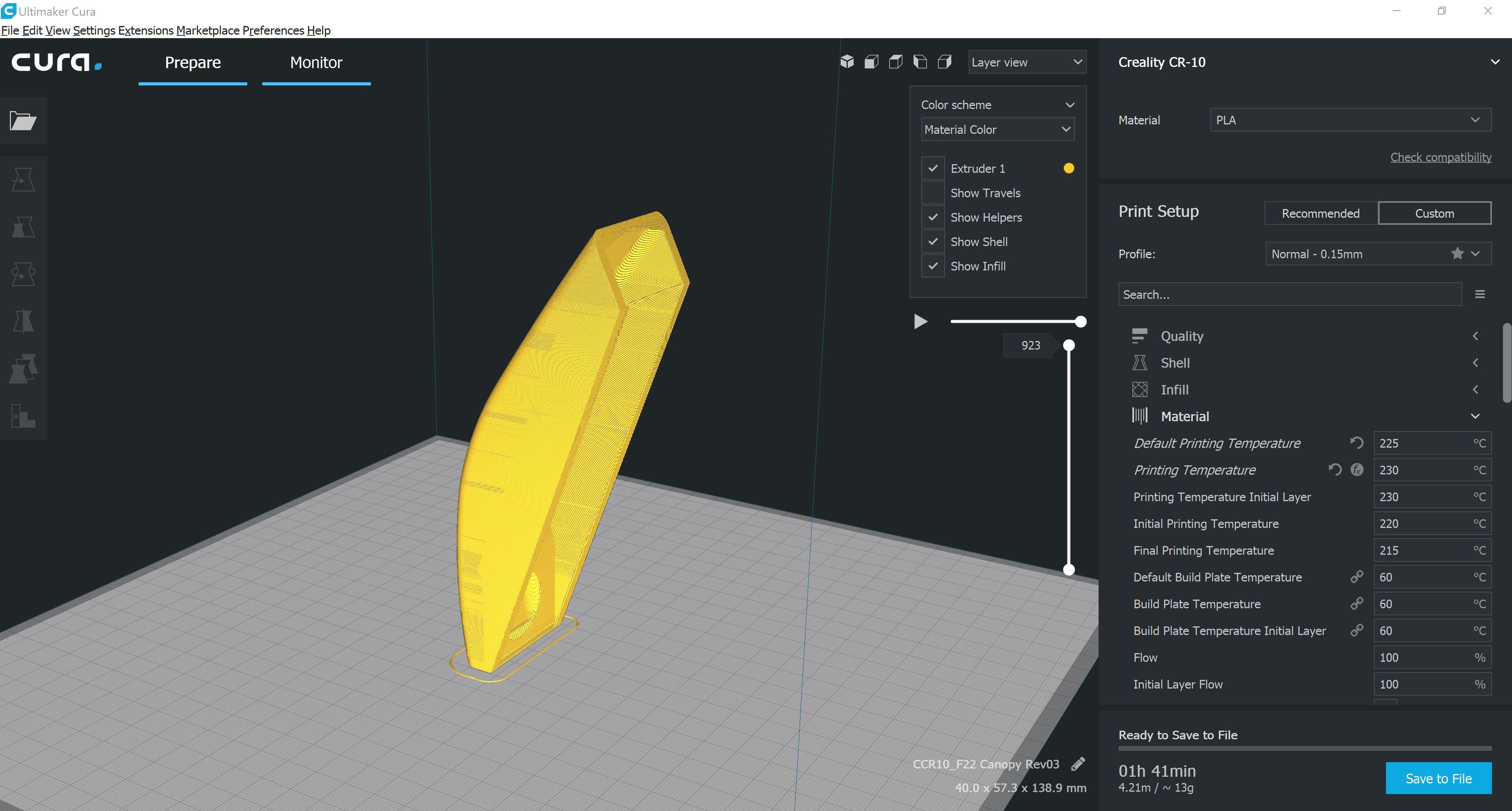

F22 Canopy Rev03 - approx weight 10g

CHECK OUT MORE GREAT 3D PRINTS HERE: https://cults3d.com/en/users/Trikonics/creations

Have fun printing!

Regards,

Trikonics

3D printing settings

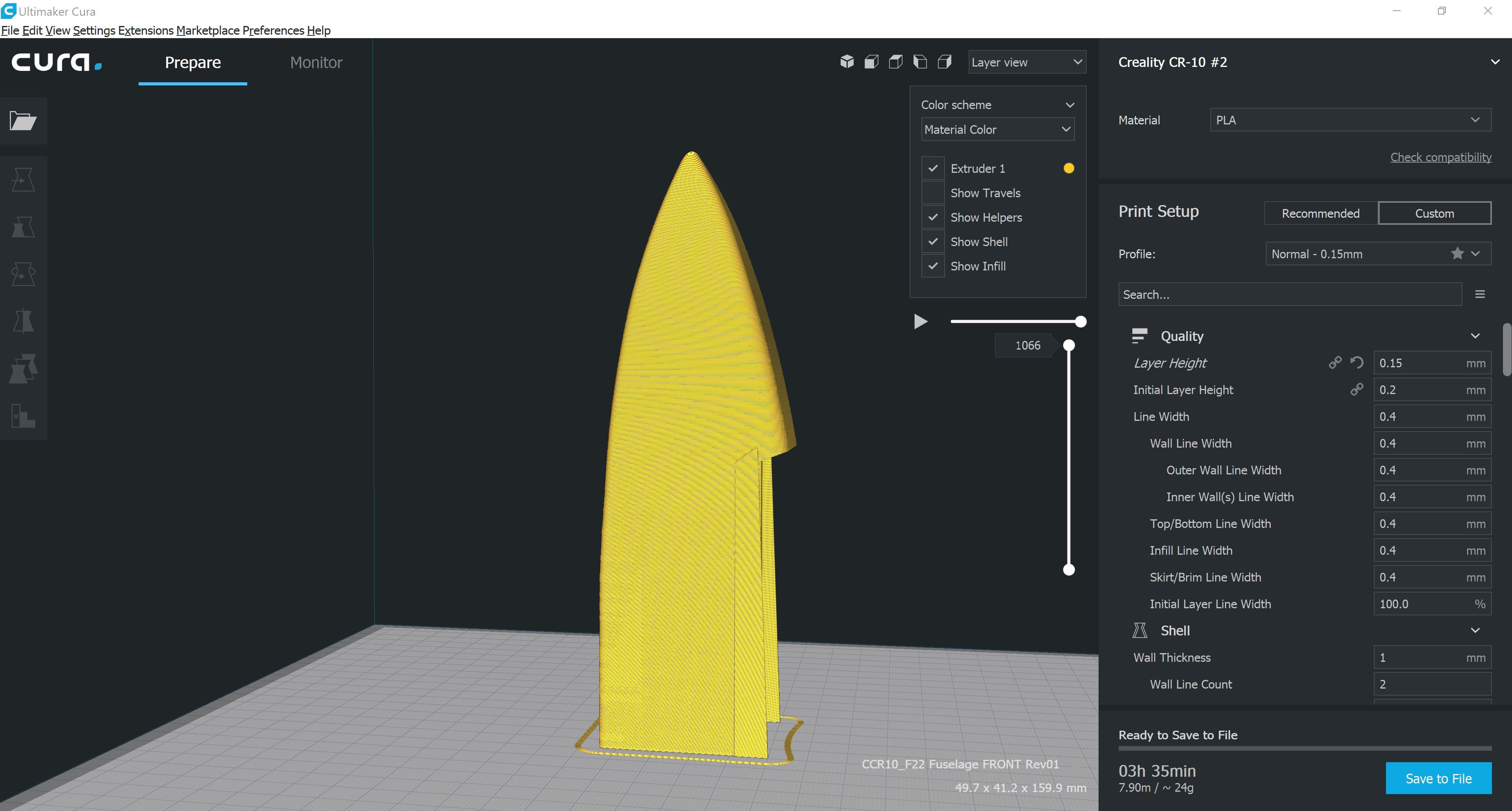

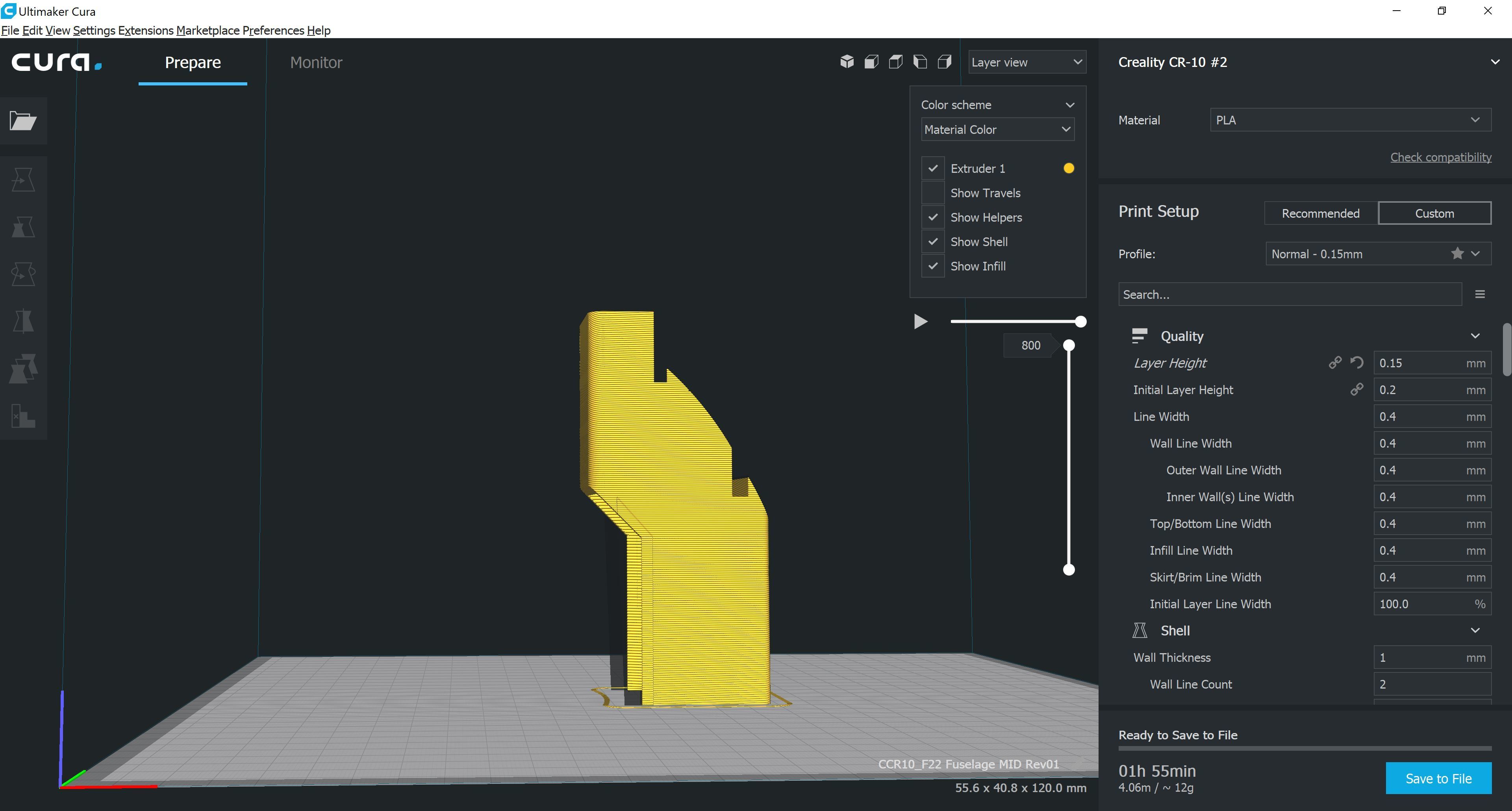

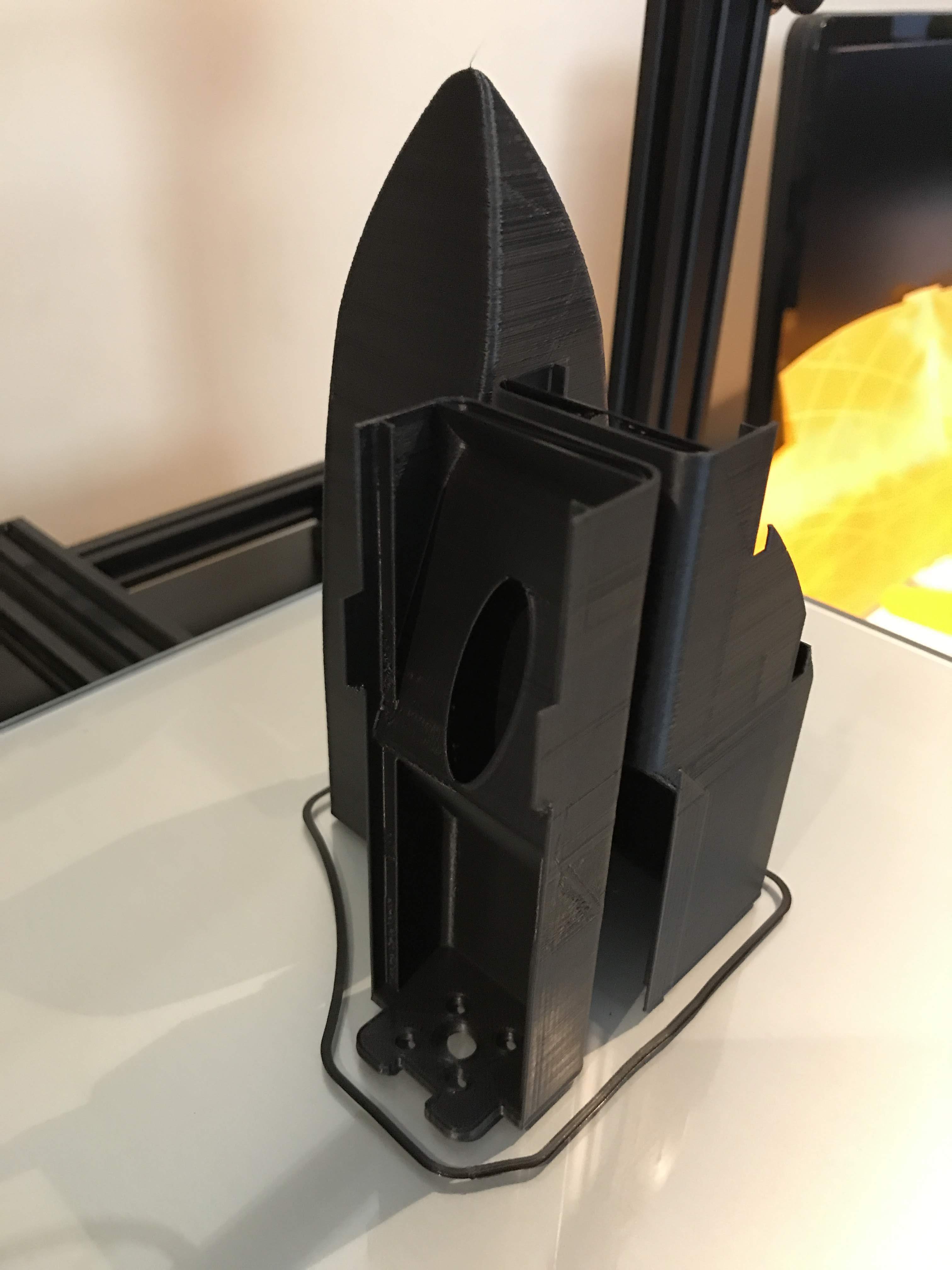

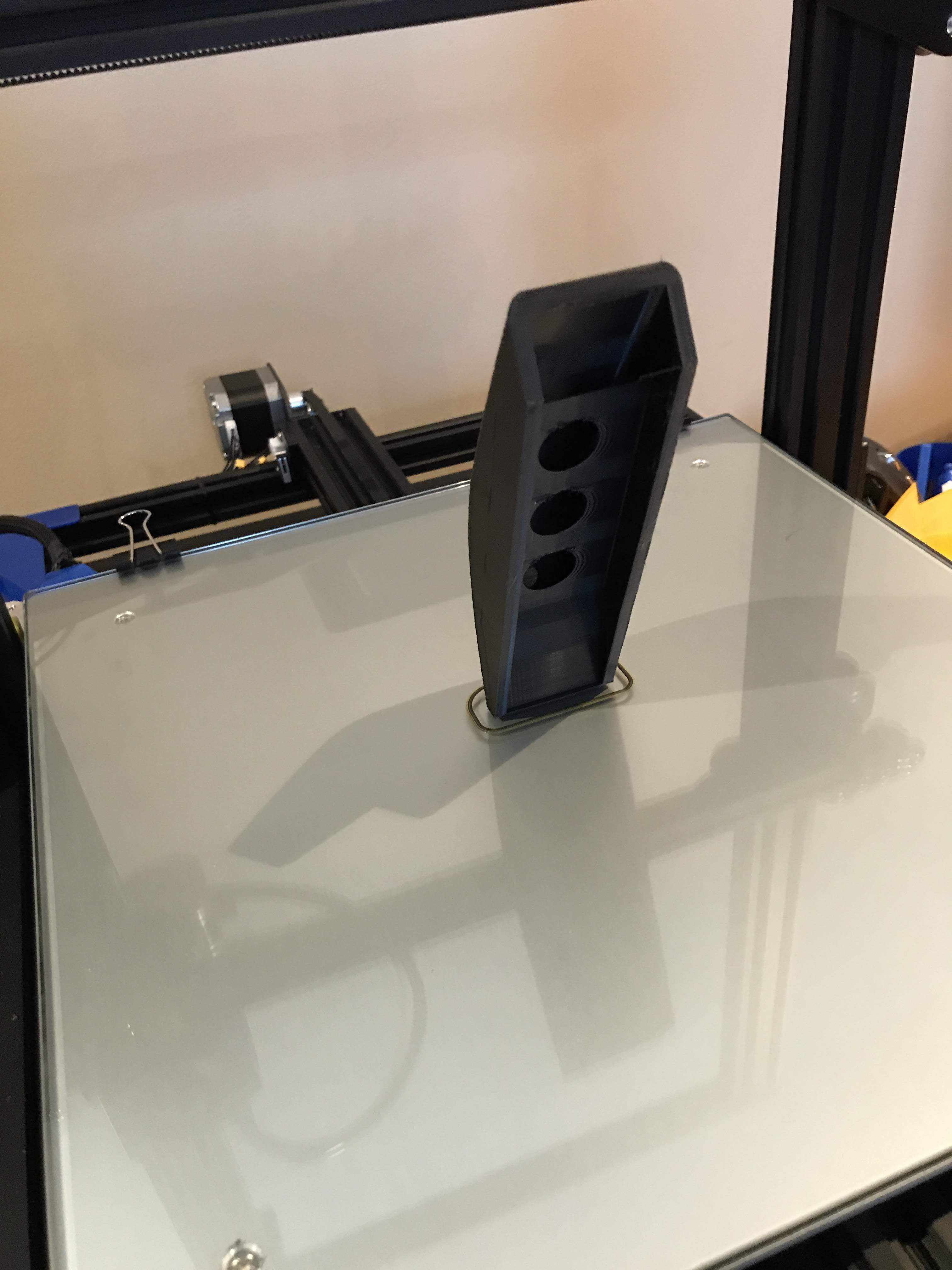

See images for print orientation.
Layer height .15
Material PLA
225-230 Nozzle temp
No fan cooling

  • 3D file format: STL
