Raspi Printercam

Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1 like

3D model description

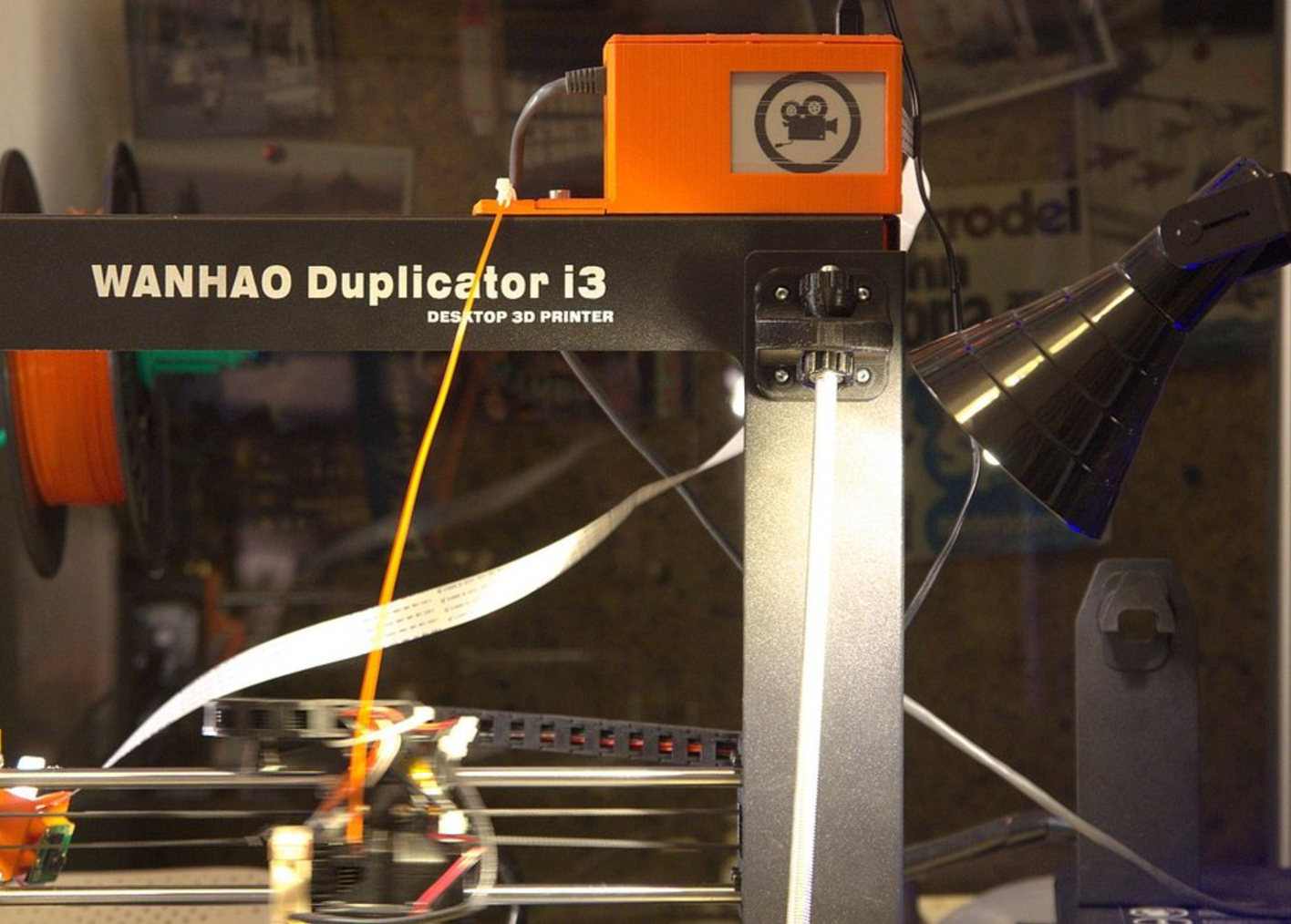

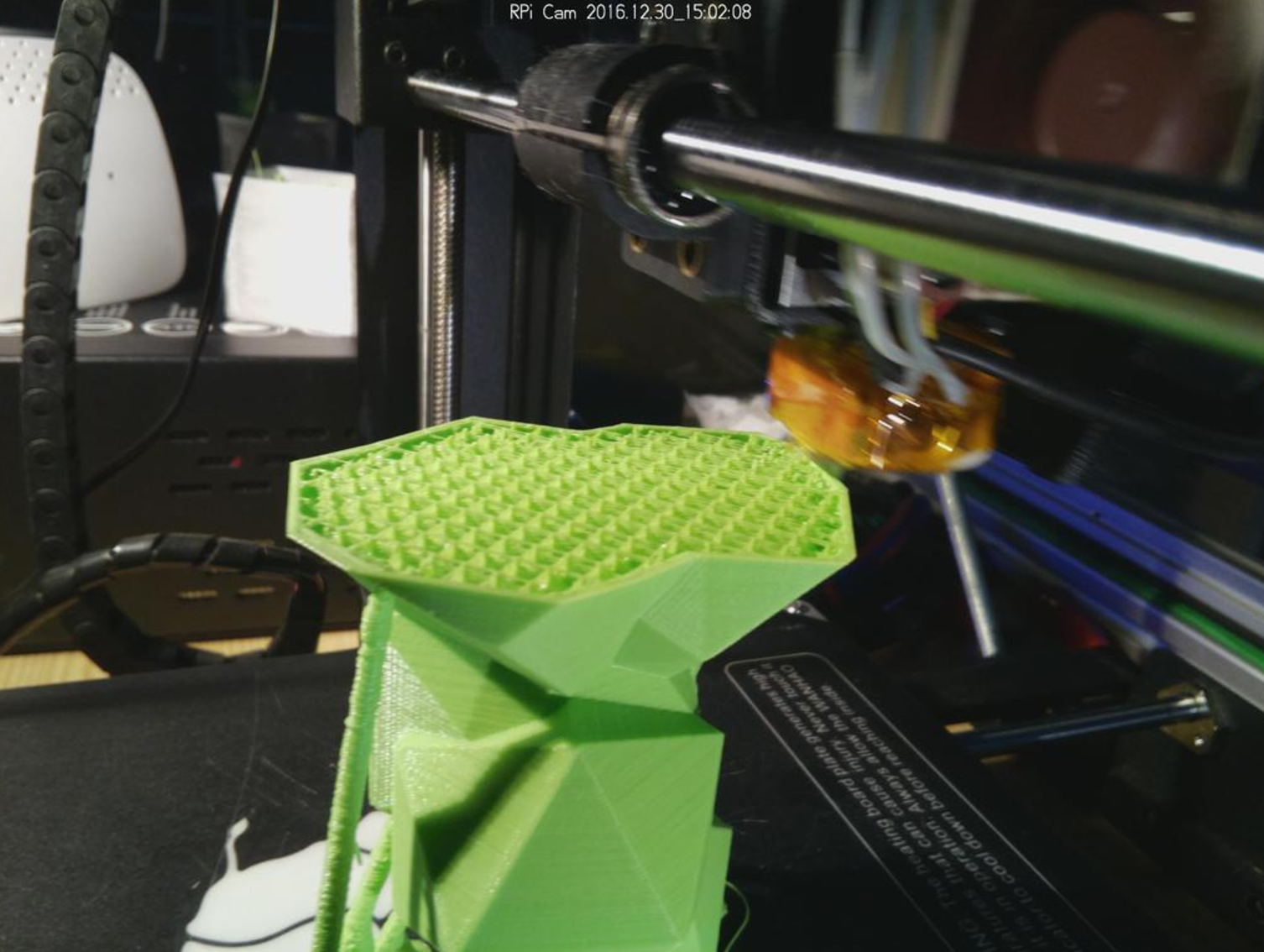

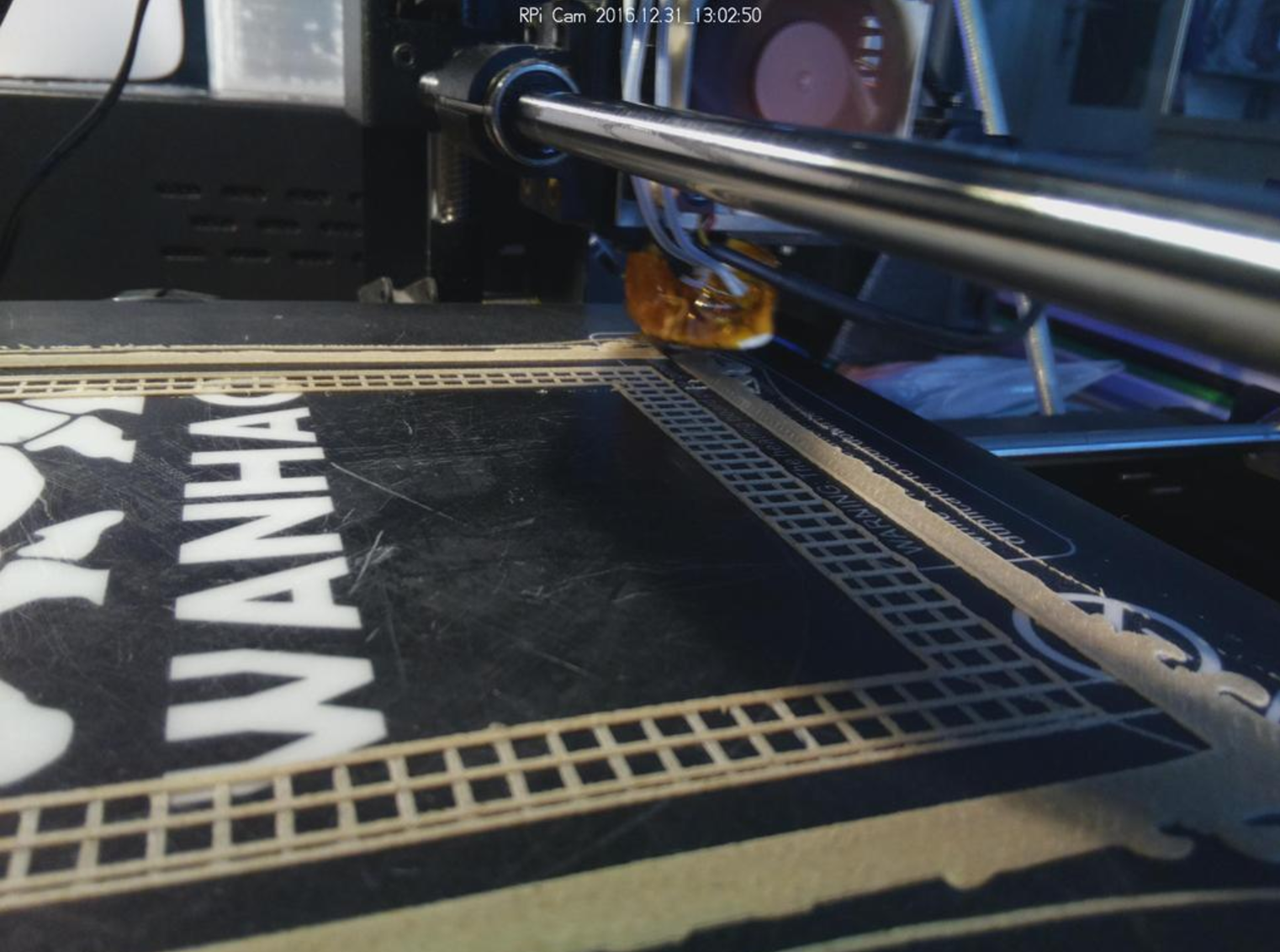

It's a case for the raspberry pi with papiruspi e-ink display and camera board to mount ontop of a wanhao duplicator i3 printer. The future plan is to install octoprint on it and show some stats on the display.

) Raspberry-case with lid: it's actually two parts. Print it with lots of support (everywhere, about 20% density) and be aware to spend some time with carefully removing it later on. 0.2mm layer height is enough for that part. A fat brim is recommended. Two walls and a 40% infill work out quite well, however 100% would make the flimsy lid sturdier.

) Camera-board-holder: due to the nasty angle you'll need Will be hard / impossible to remove. You'll also need 4pc of M2.5 x 6mm screws for the camera board and 4pc of M3 x 8mm screws for the camera-board-holder. Due to the steep angle I recommend using a layer height of 0,1mm here.

That's where this plate comes into play. It also features some holes for inserting zip-ties to a filament-guidance-tube. Layer height does not matter for this part but make sure there is a little support below the zip-tie-holes.

3D printer file information

  • 3D design format: STL Folder details Close
    • printercam_gehaeuse35.stl
    • printercam_kamerahalter35.stl
    • printercam_pladde35.stl
  • Publication date: 2017/05/23 at 17:29
