Raspberry Pi and picam front holder

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 253 views
  • 1 like

3D model description

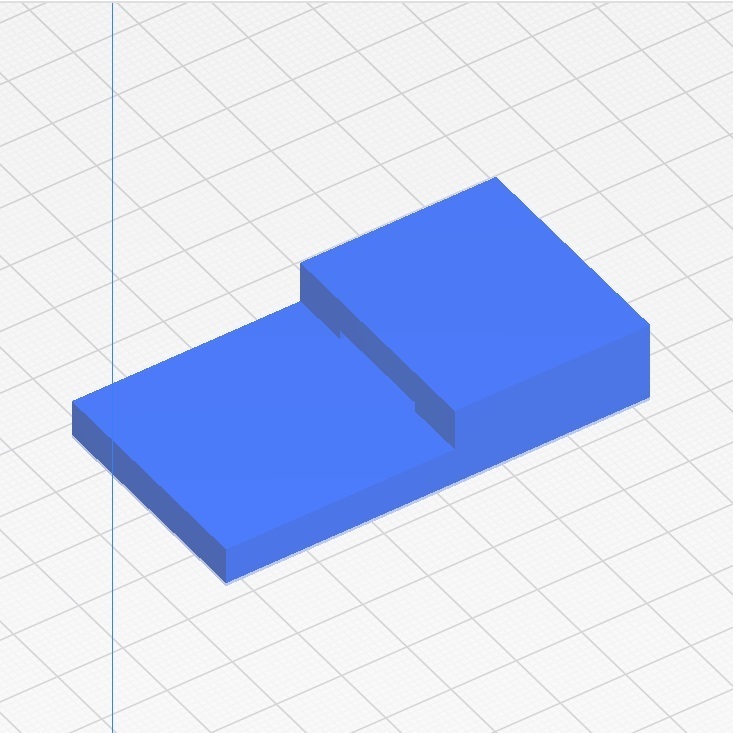

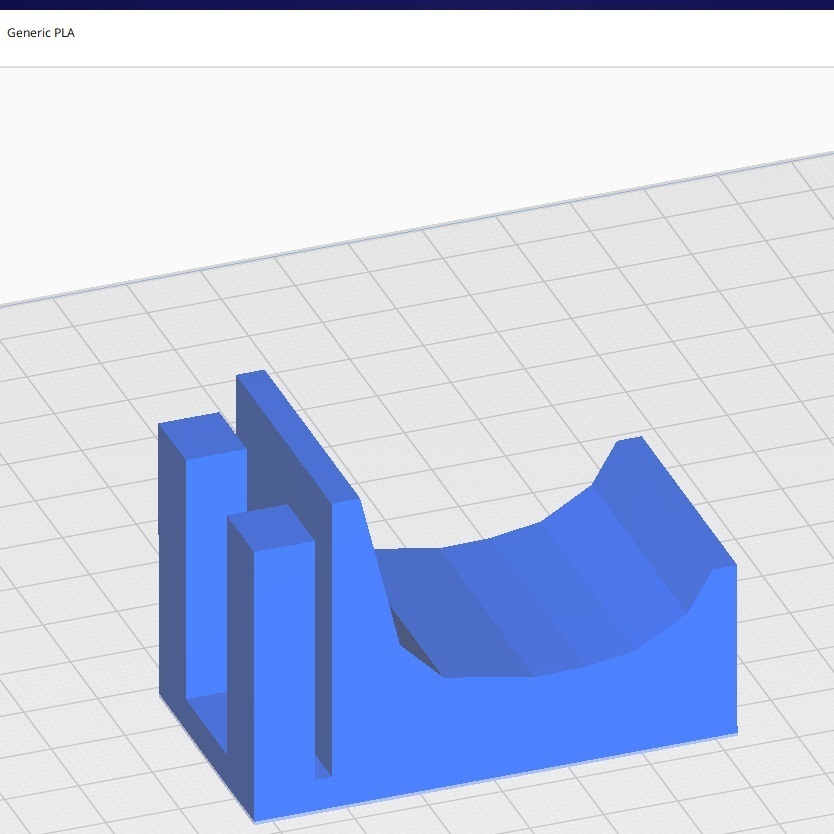

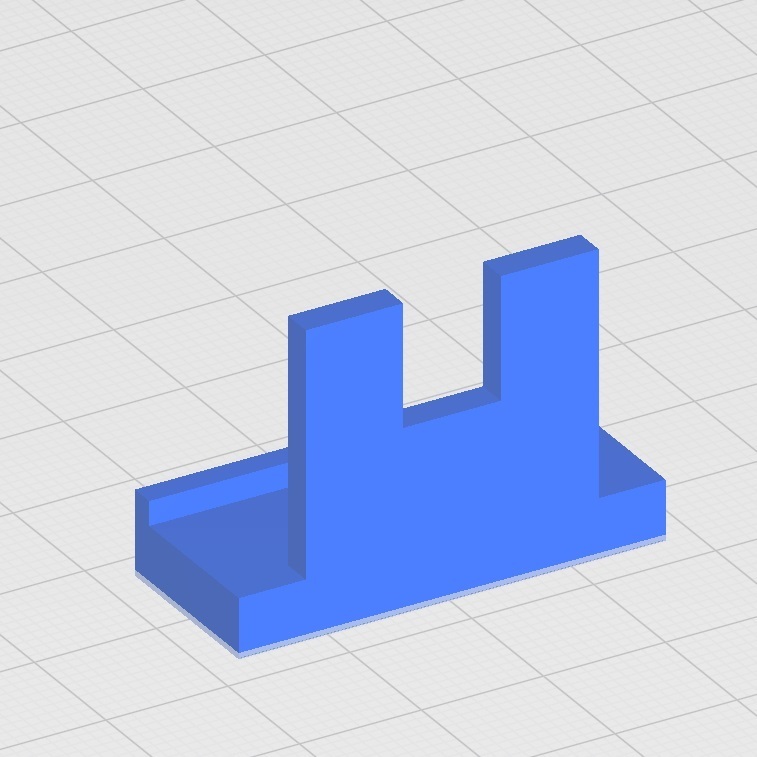

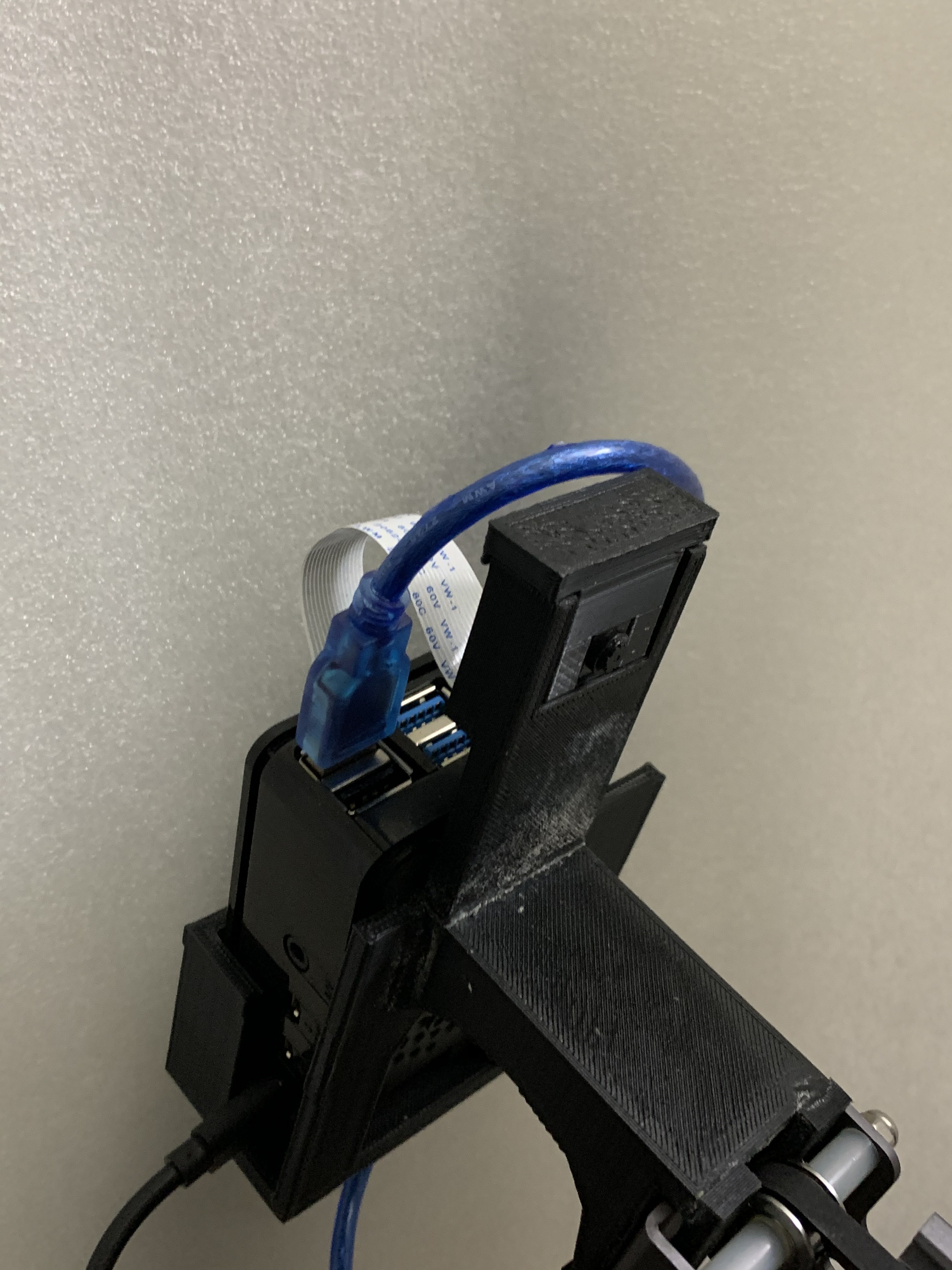

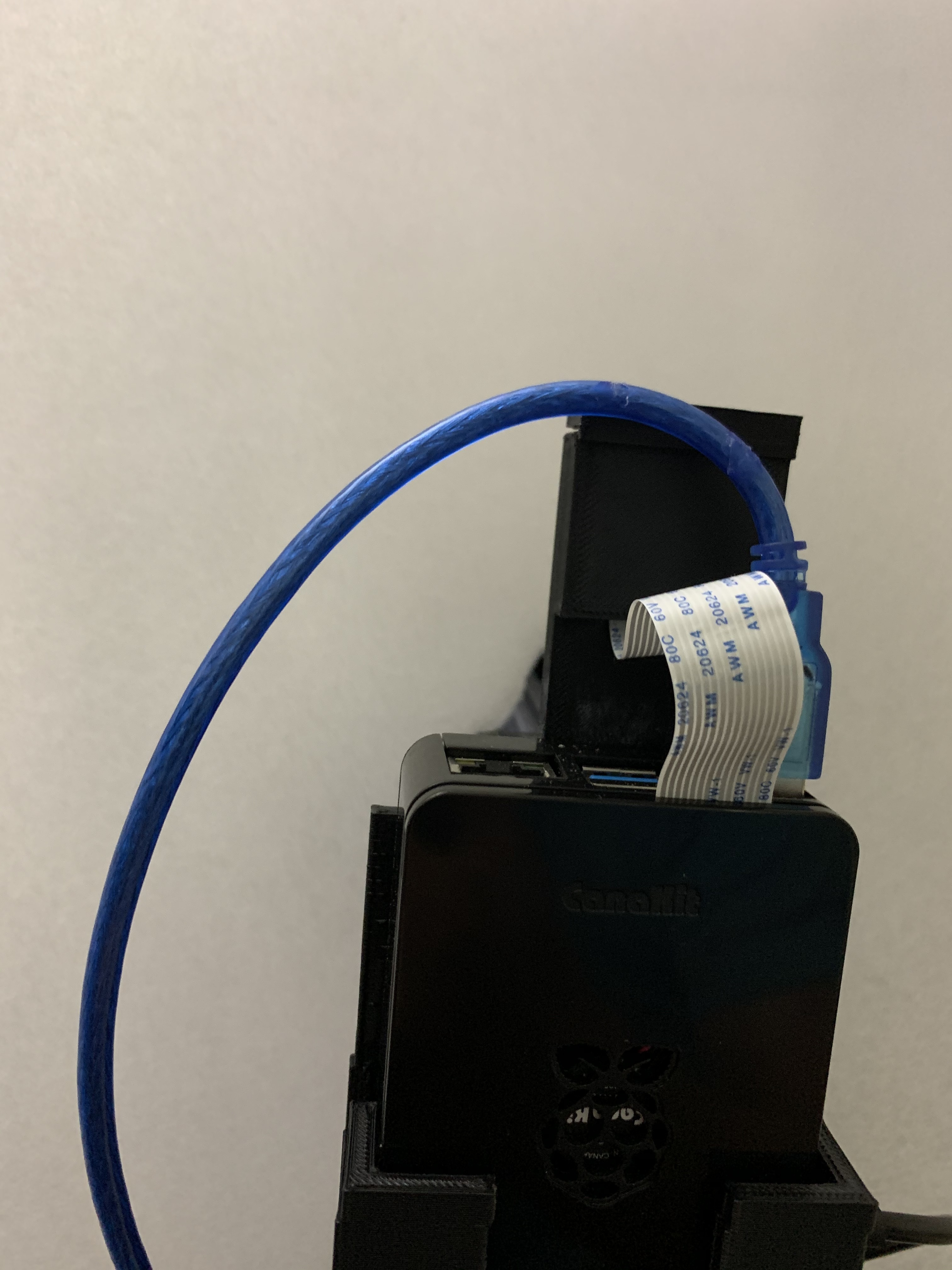

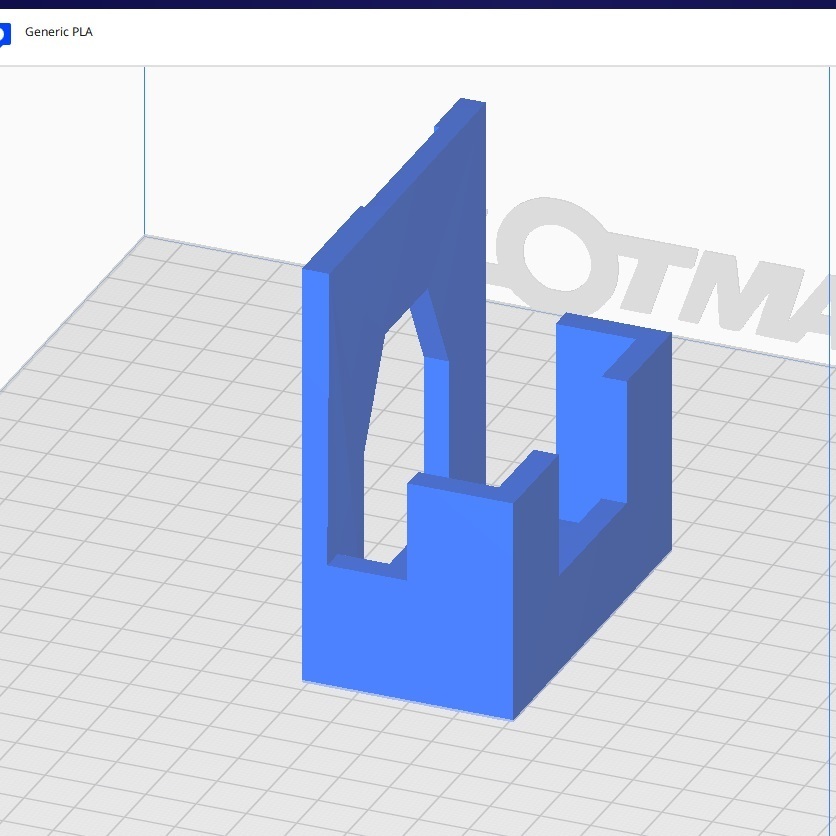

A place to hold your Pi (with case) and the camera at the front of your printer for better video monitoring and timelapse. The model comes in 3 parts: one that hang on the gantry, one that hold the Pi case, and one for the camera. You need to hot-glue or super-glue them together.
Fit with picam v1 and v2 only
Fit with most case of the Raspberry Pi (CanaKit, AstroBox, or your own printed case)
All 3 parts took about 2hrs to print.
PS: I use this and edit the gcode a bit to get magic timelapse
Added the cam cap, to secure it in place


3D printing settings

Filament: PLA
Layer Height: 0.2mm
Infill: 25%
Print Speed: 90mm/s
Use retraction
NO raft/brim
NO support except for the cam part
Might need to scale 1000%
Rotate to your liking

3D printer file information

  • 3D design format: STL Folder details Close
    • RaspPiHolderCamPart.stl
    • RaspPiHolderCamPartCap.stl
    • RaspPiHolderPiPart.stl
    • RaspPiHolderPrinterPart.stl

    Learn more about the formats

  • Publication date: 2020/10/18 at 21:36
