Rack & Pinion Linear Actuator Servo Joint Module *Tiny_CNC_Collection

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 977 views
  • 1 like
  • 42 downloads

3D model description

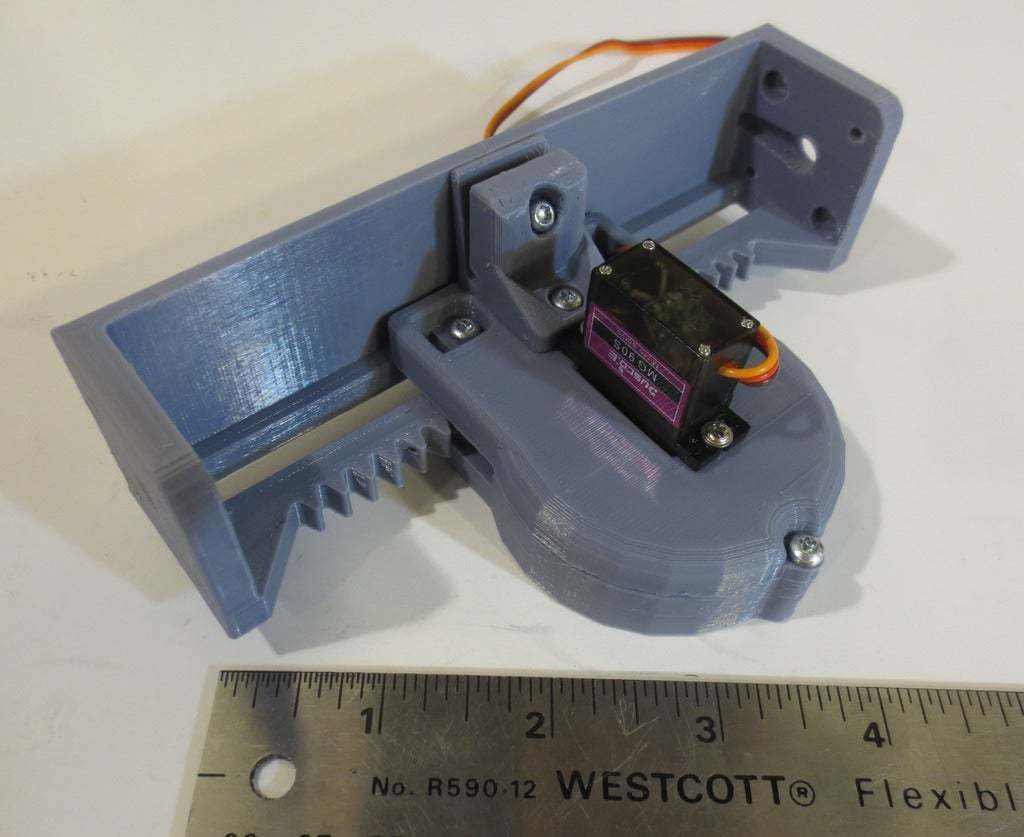

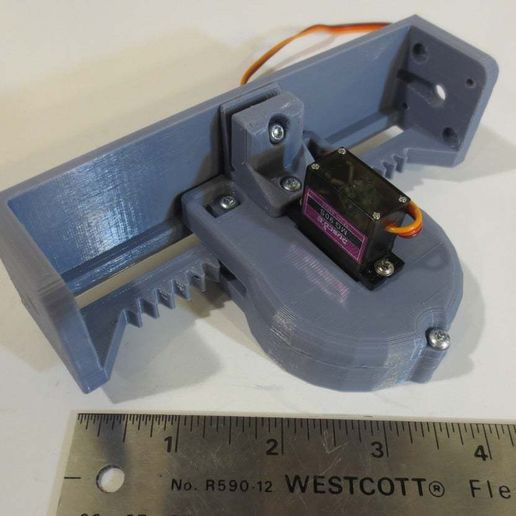

This is a modular hobby servo Linear Actuator joint assembly. It is part of the Tiny_CNC_Collection of parts designed to facilitate entry into robot building fun!

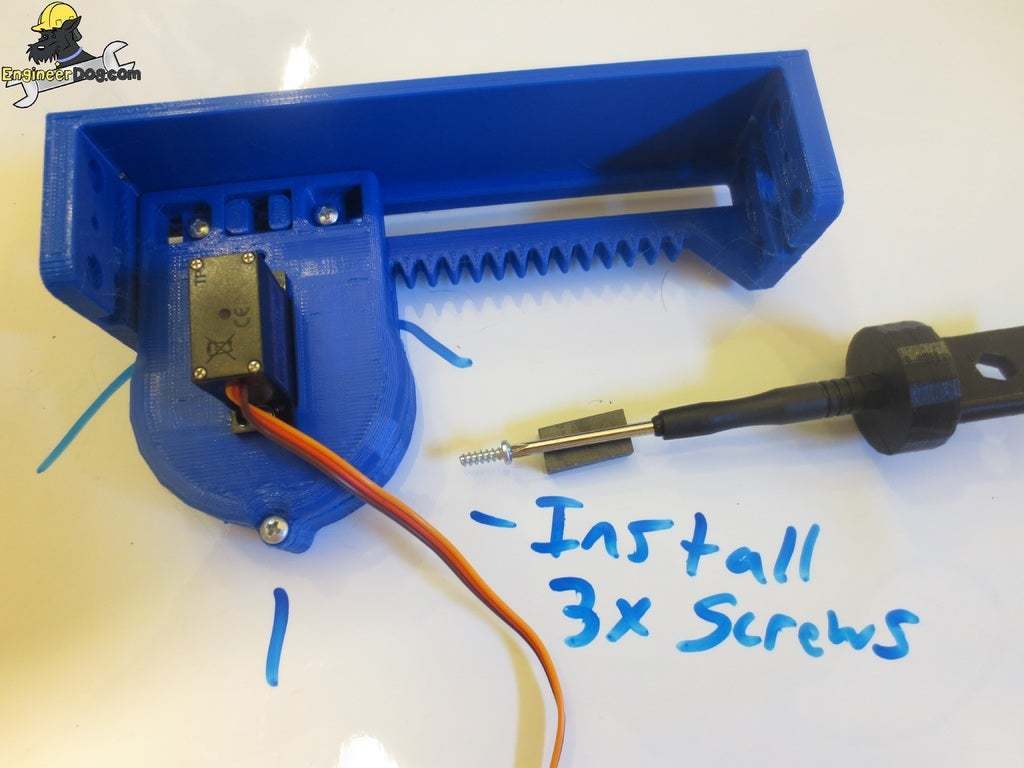

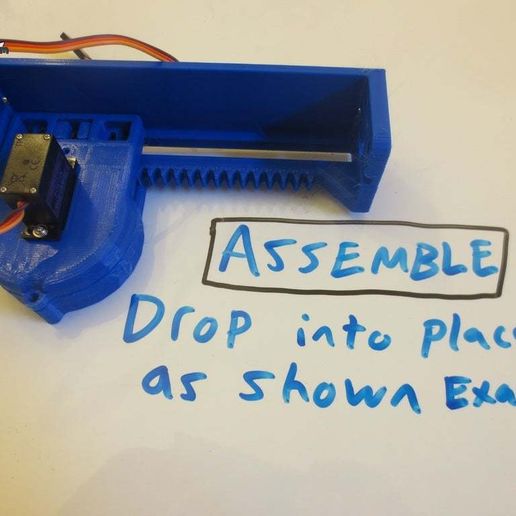

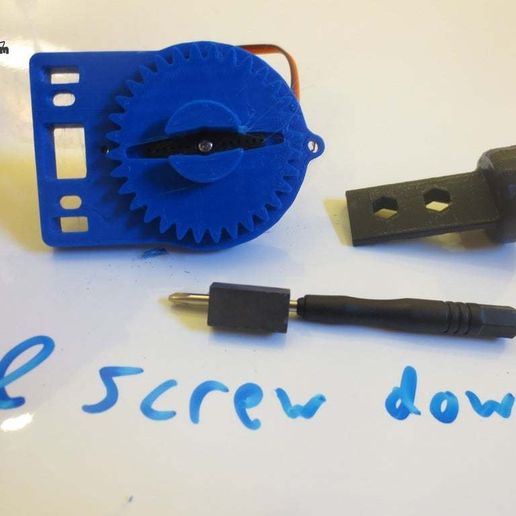

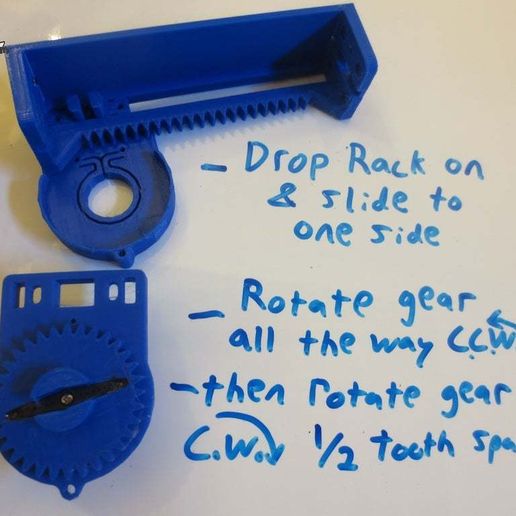

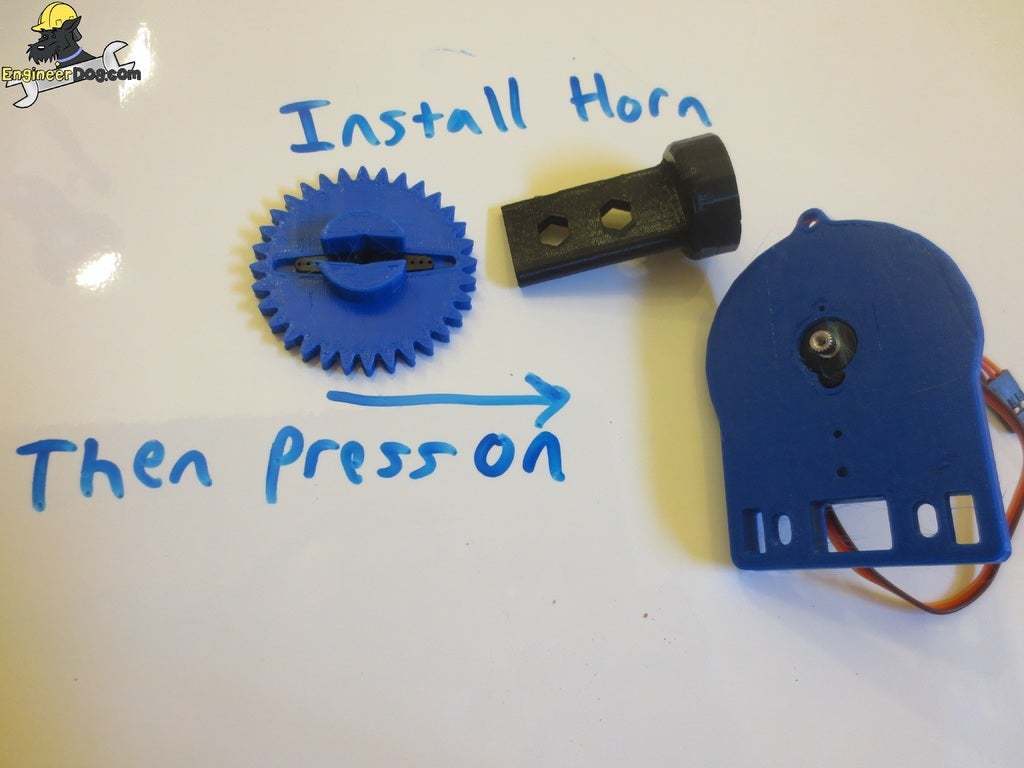

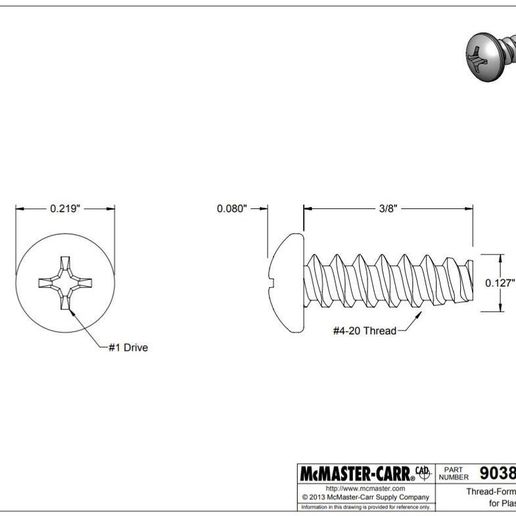

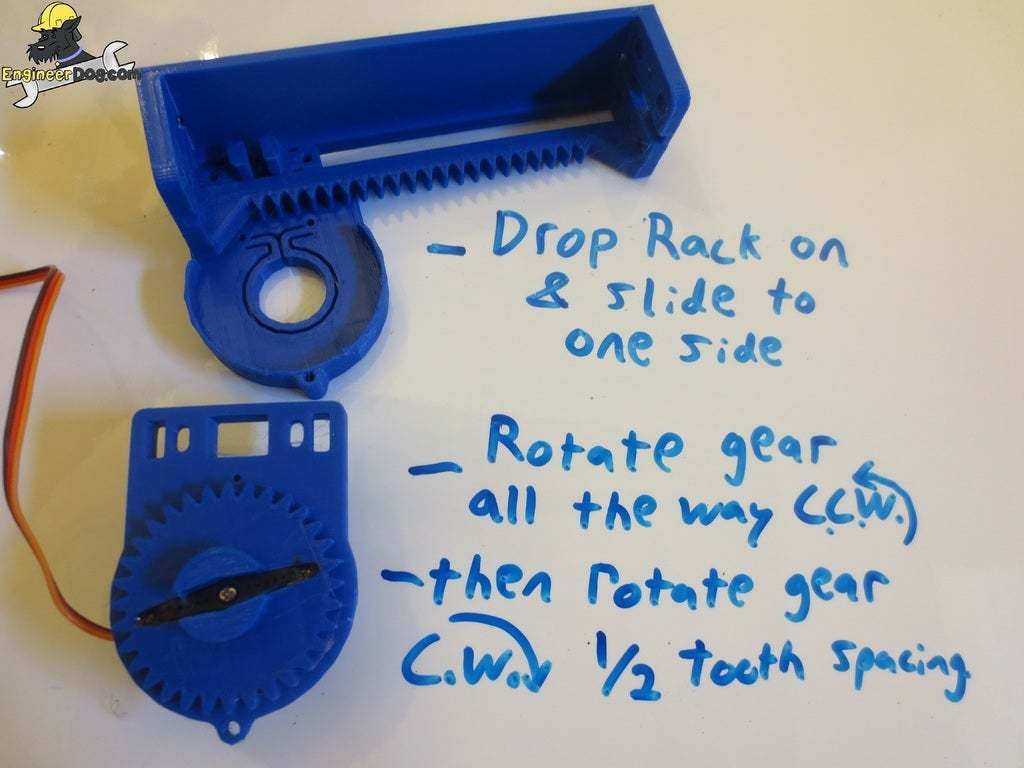

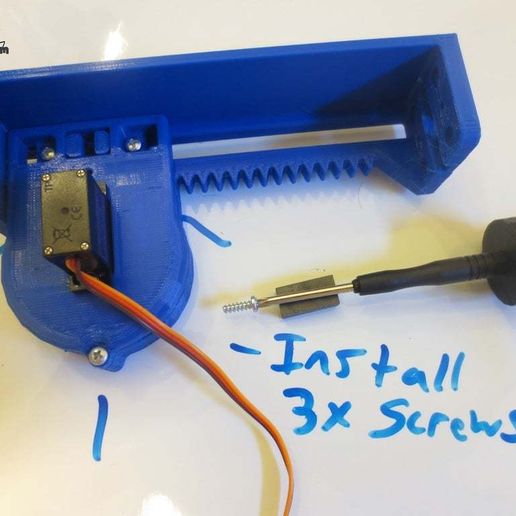

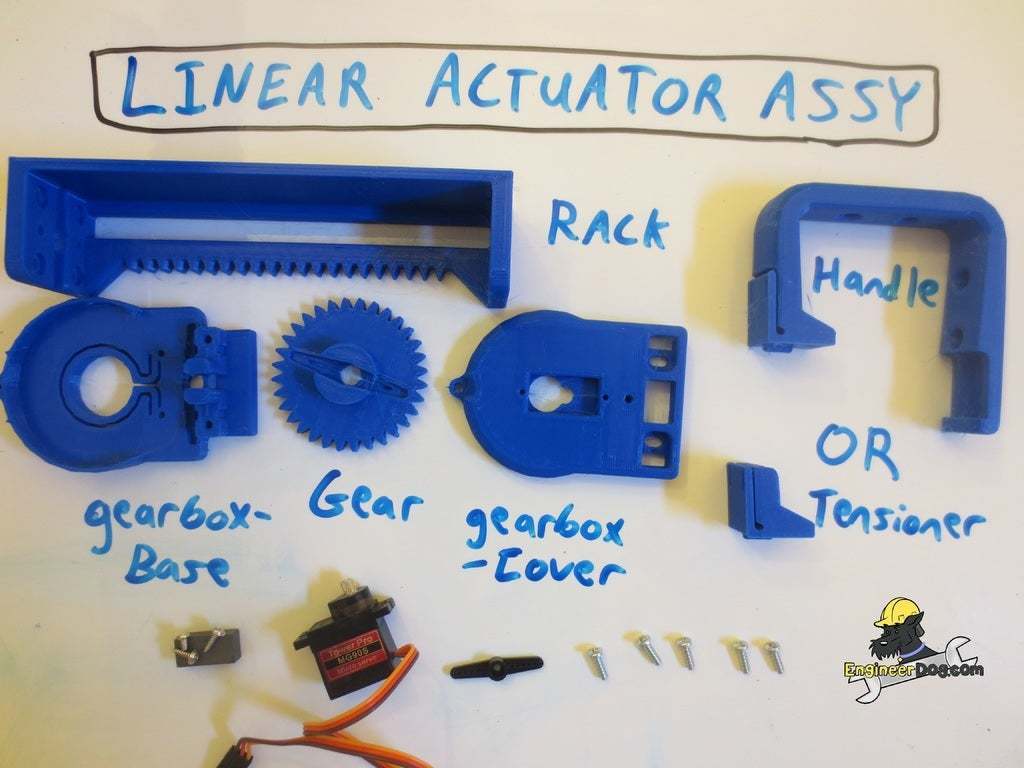

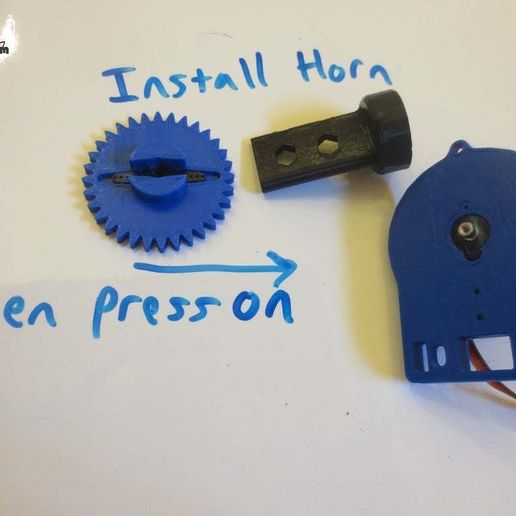

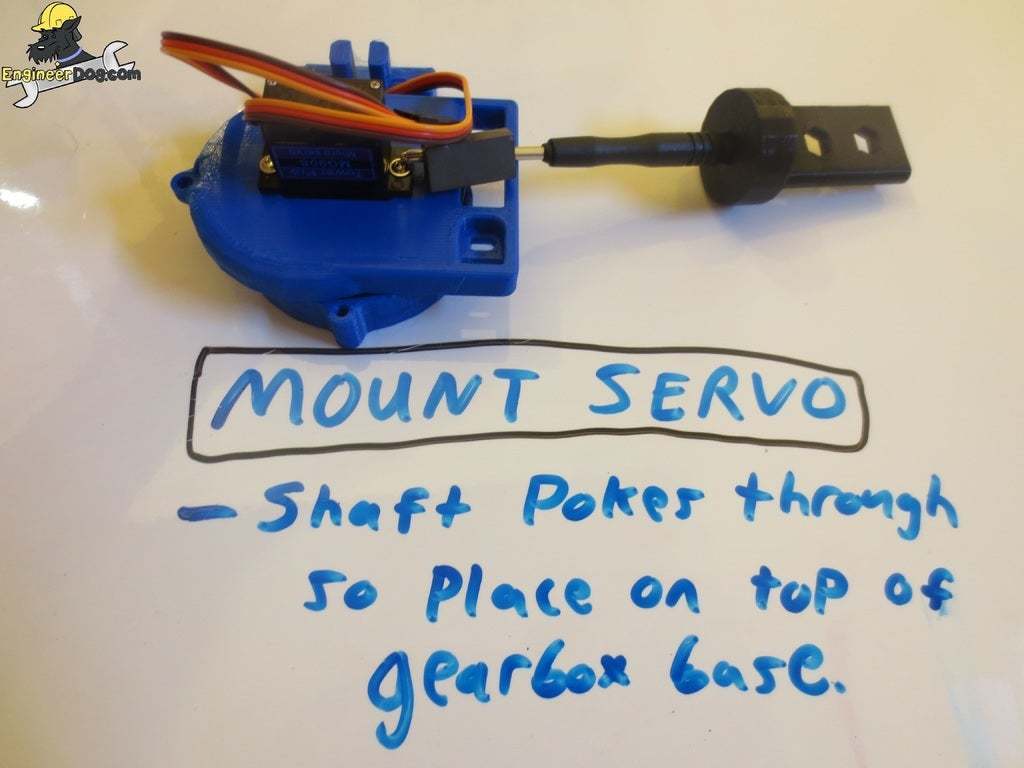

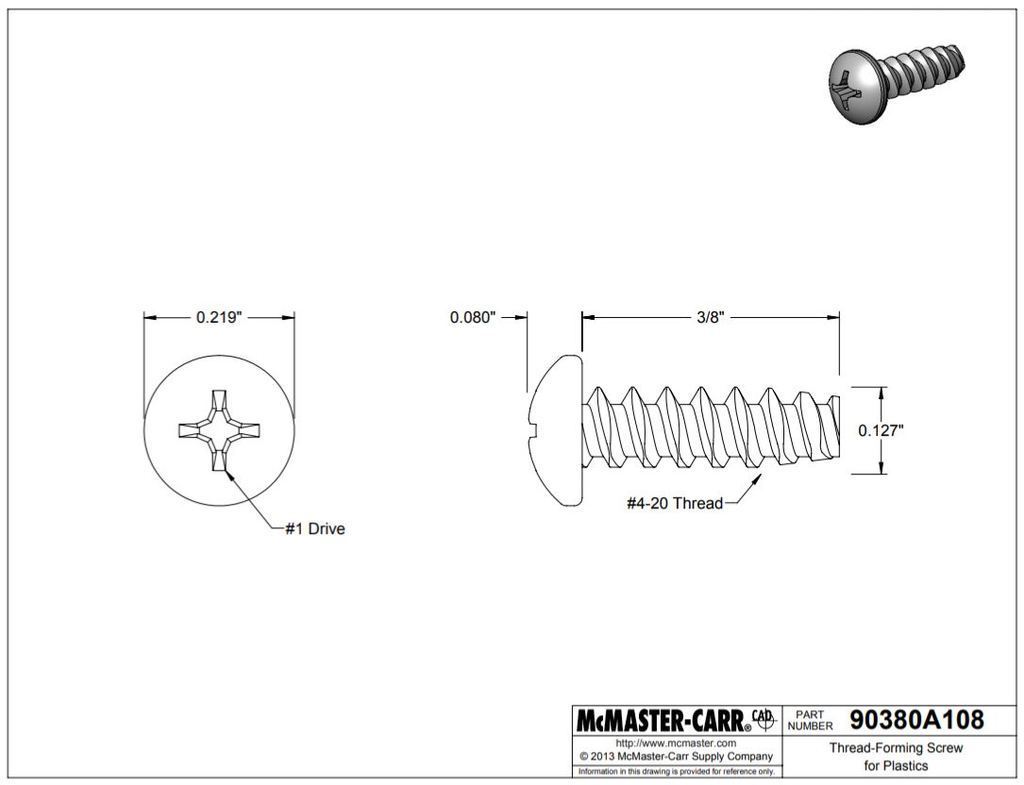

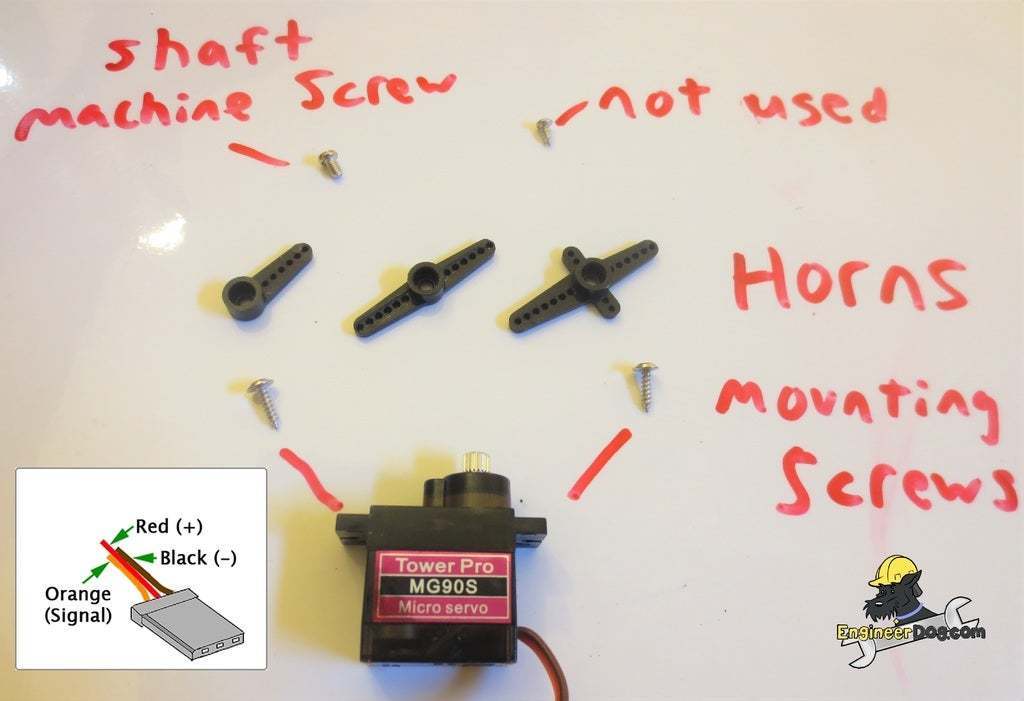

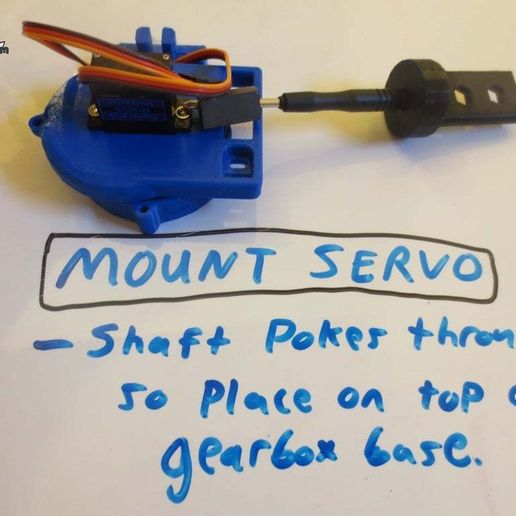

All parts print without supports or post processing! Everything can be assembled with a screwdriver and single type of screw. See photos for assembly directions.

Specs: Repeatable no load motion control = +/- 0.076mm (.003") up to 100g before position control affected. Travel limit is 80mm (3.14").

**All information regarding this project is on this page:
http://engineerdog.com/tinycnc

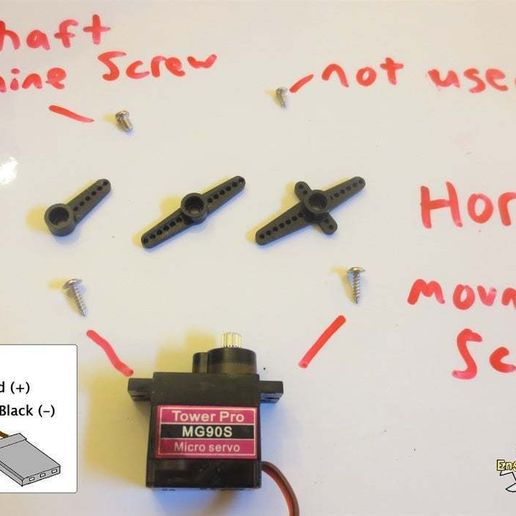

Required Hardware Servo: https://amzn.to/2ndSaVB
Recommended Material: https://amzn.to/2MmNOGA
*Can be printed in any material as long as all parts are the same material.
.
.
Also a blog article about how to design parts for assembly: https://engineerdog.com/2018/05/08/design-for-assembly-tips-building-a-better-3d-printed-linear-actuator/
.
.
.
.

*Note 1: Included are STEP files so you can further modify these to your needs. Please enjoy these files and use them as you wish while respecting the sharing license.
.
**Note 2: If you do print these out snap a pic and share your make! I'd love to see how these designs are being put to use.
.

https://www.youtube.com/watch?v=ONyozF7GVAA

  • 3D file format: STL
  • Publication date: 2020/10/14 at 17:36

License

CC BY SA
