Here is a protection in TPU for the different camera eachine TX01, TX02, TX03
camera eachine TX01 / 25mW:
http://www.banggood.com/Eachine-TX01-Super-Mini-AIO-5_8G-40CH-25MW-VTX-600TVL-14-Cmos-FPV-Transmitter-p-1088374.html?p=LD020411878172015024
Camera eachine TX02 / 200mw:
http://www.banggood.com/Eachine-TX02-Super-Mini-AIO-5_8G-40CH-200mW-VTX-600TVL-14-Cmos-FPV-Camera-p-1088368.html?rmmds=myorder?p=LD020411878172015024
Camera eachine TX03 25mw/50mw / 200mw:
It is very easy to adjust the tilt of the camera and it can fall back in case of shock.

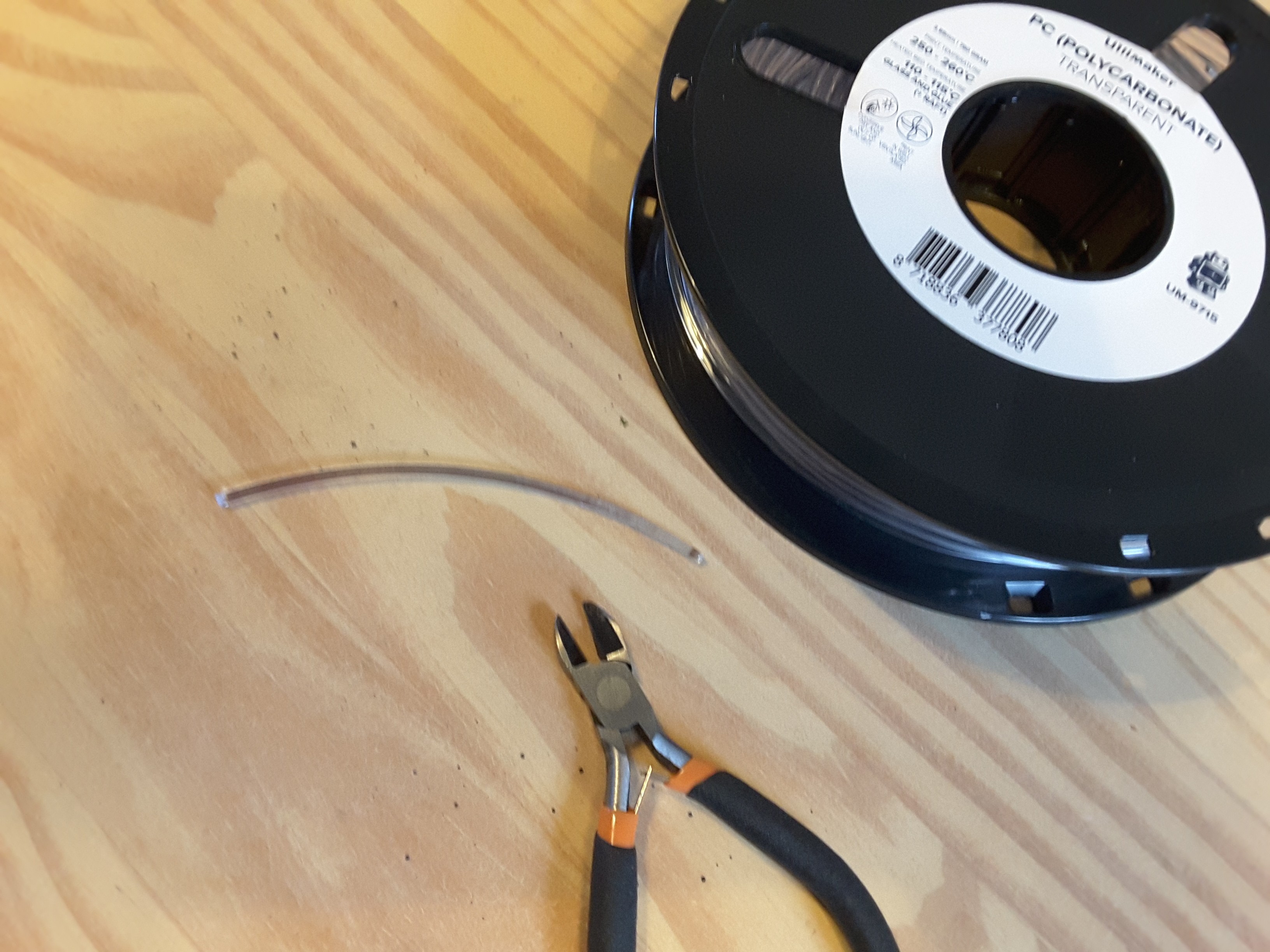

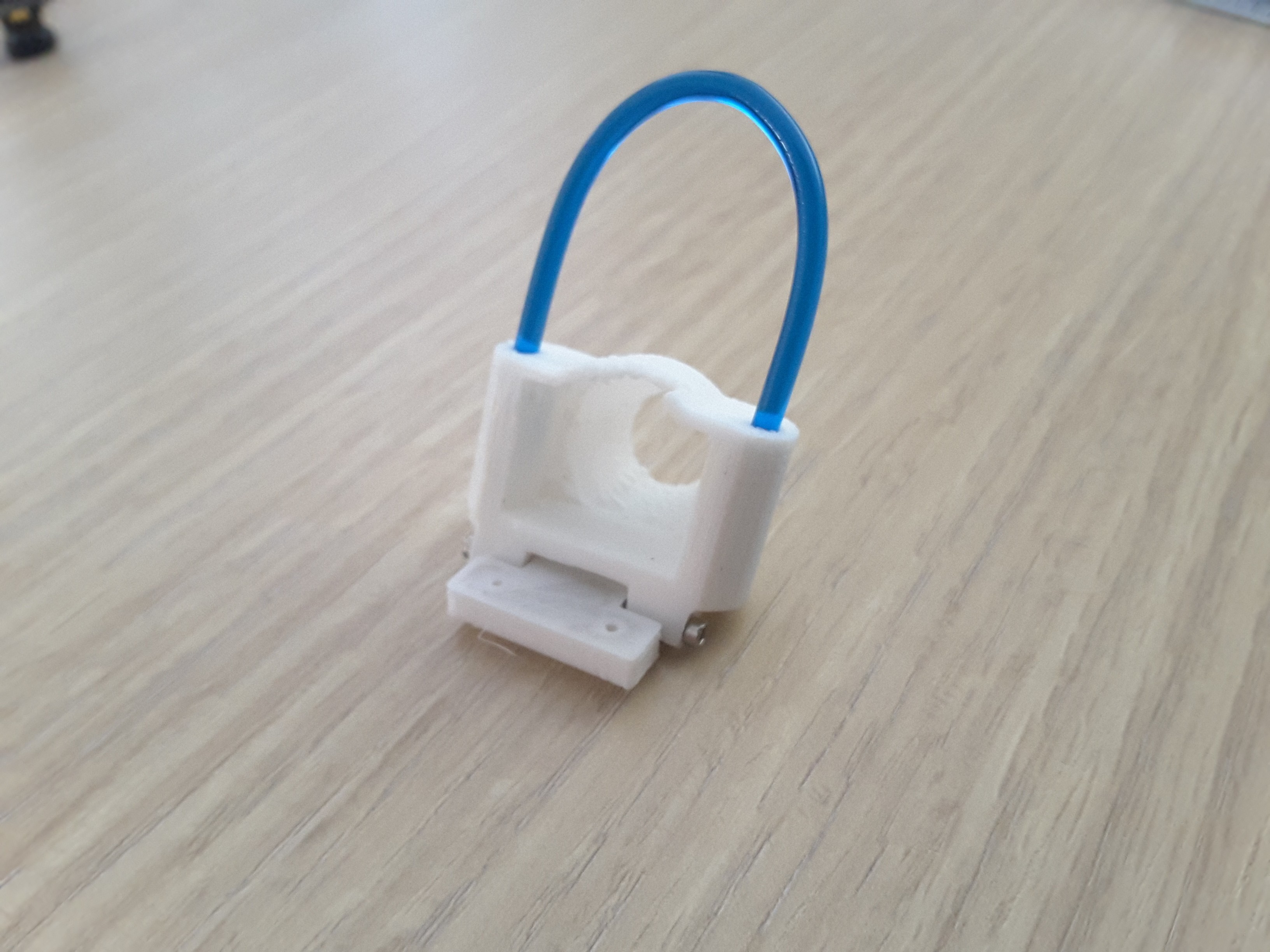

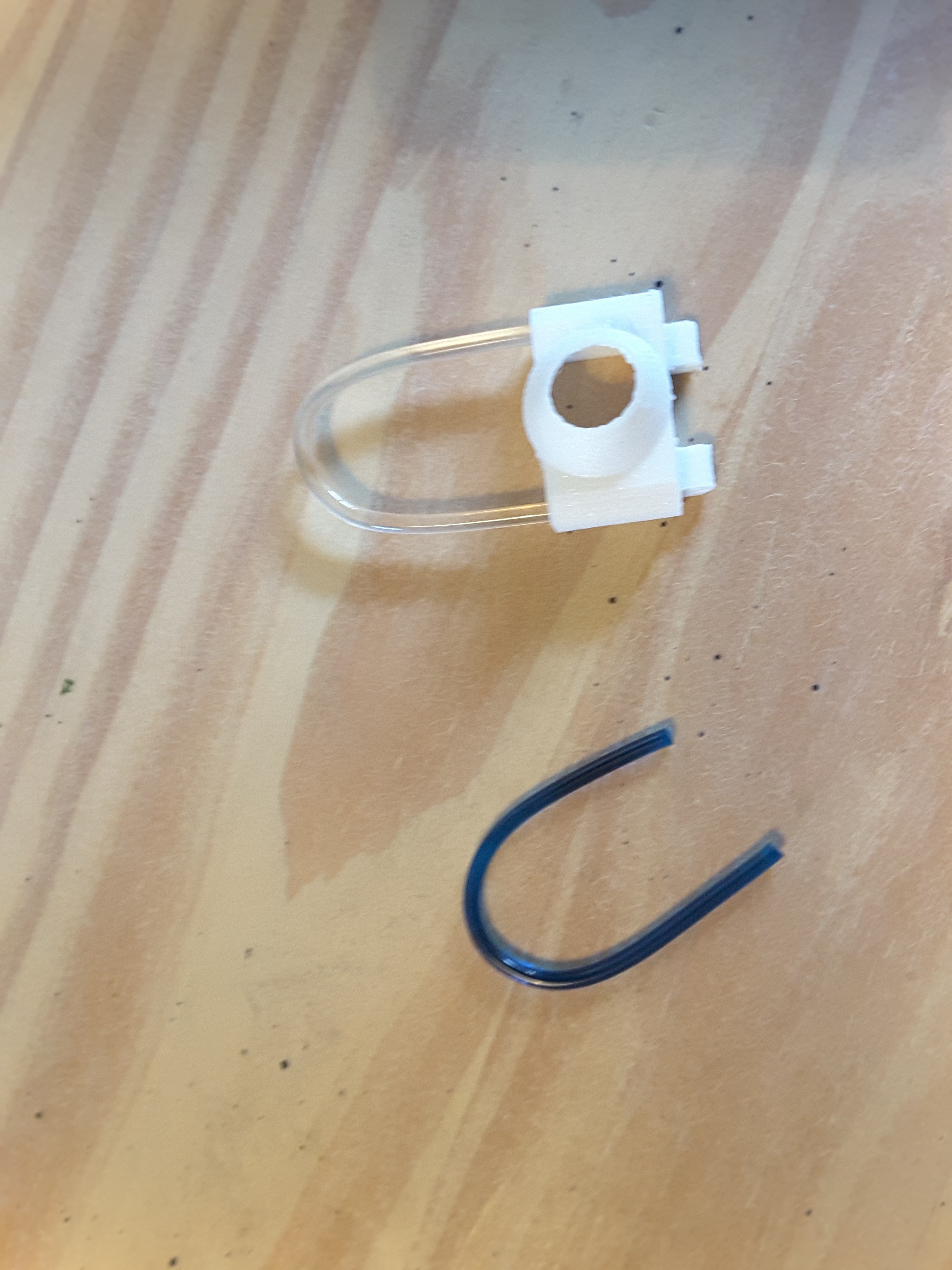

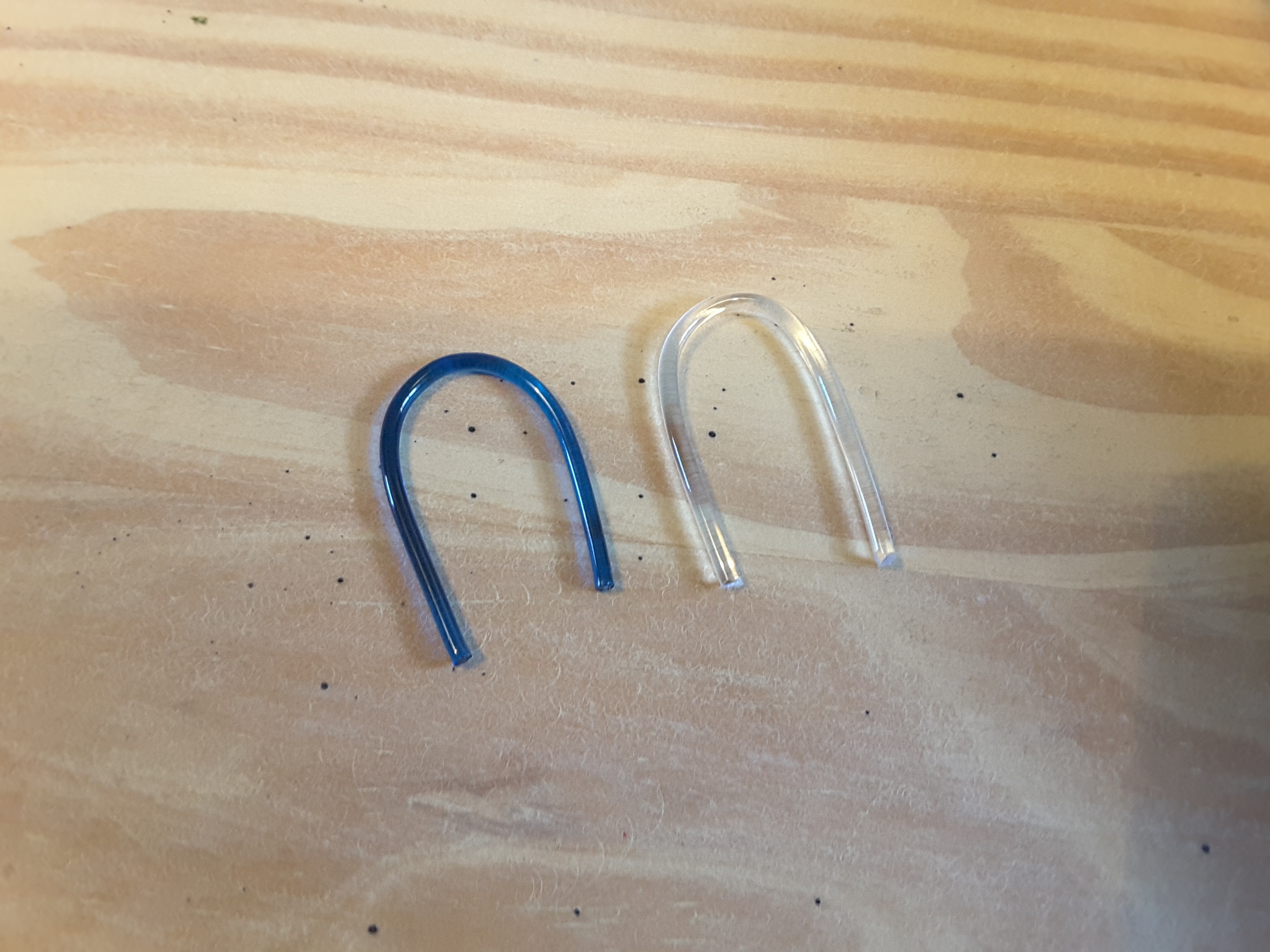

The ABS base preferably + the TPU camera envelope + the headband made directly from the 3D coil wire
There are versions in wire of 2.75 mm and in wire of 1.75mm
There are several versions for the TX01 and 02 and for the TX03 which is larger
It takes just two screws M1.6 10mm to secure the two parts
3D printing settings
TPU ultimaker: 235 ° / 70 ° max: 50mm / s
3D printer file information
- Design number: 10000
-
3D design format: STL Folder details Close
- Base Protection camera TX01,02,03.stl
- Protection pod Camera TX01and TX02 for 1.75mm.stl
- Protection pod Camera TX01and TX02 for 3mm.stl
- Protection pod Camera tx03 for 1,75mm.stl
- Protection pod Camera tx03 for 3mm.stl
- Last update: 2017-03-13 at 12:51
- Publication date: 2017-03-12 at 09:23
