3D model description

Czech -

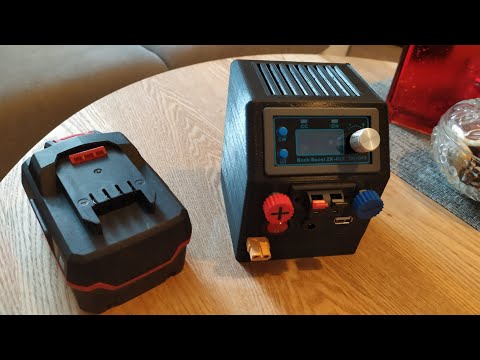

Model laboratorniho zdroje s moznosti externiho napajeni a parkside akumulatorem
Menic je DC-DC Back-Boost z Aliexpressu
Vsechny konektory jsou tez z Ali -Odkazy dole
V modelu neni ochrana proti podbiti ani prepolovani, ale muzete si ji tam pridat, tez dam odkaz.

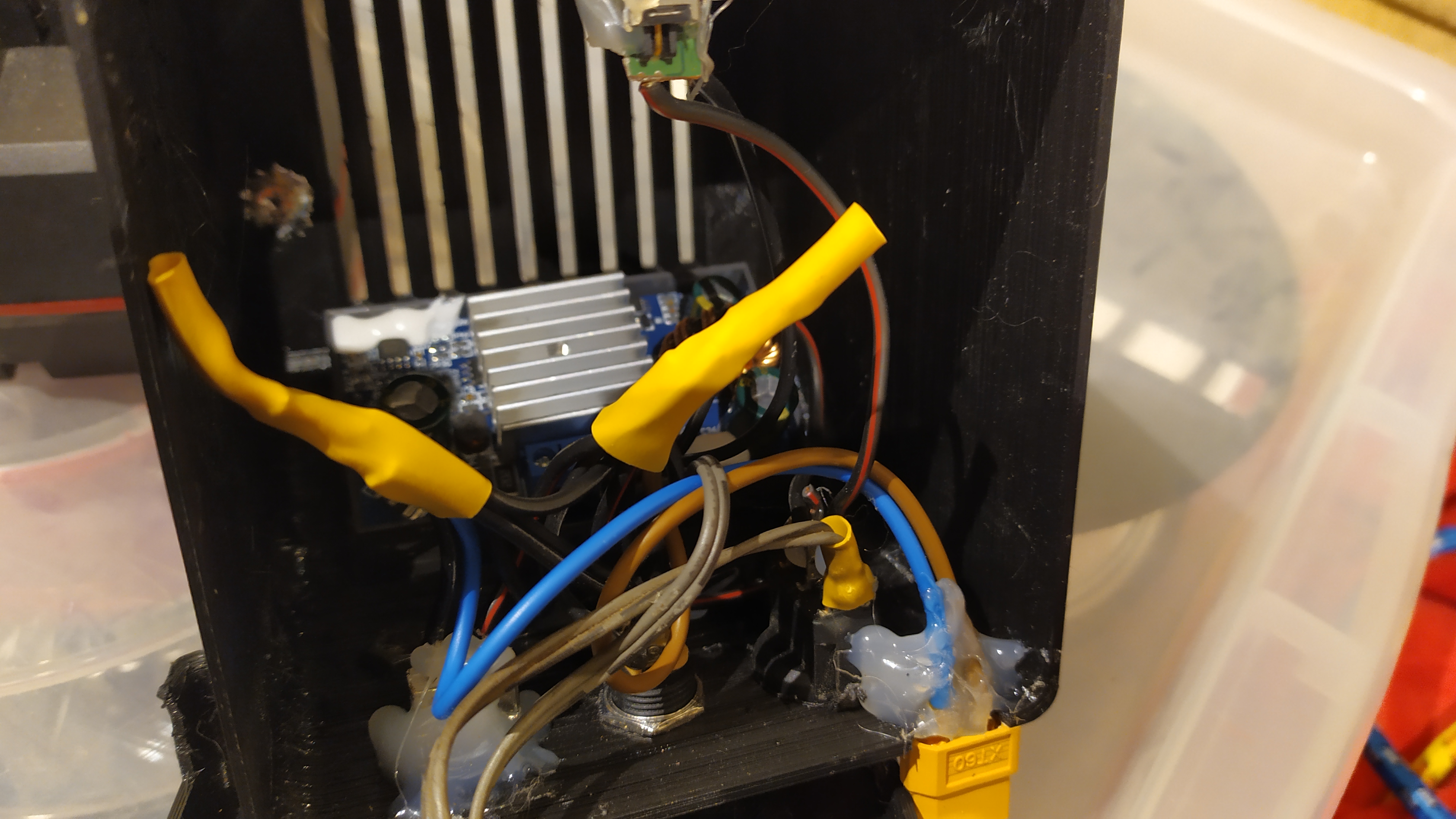

Slozeni modelu neni komplikovane. Nasadite konektory, pripajite vodice a spojite je vsechny na vystup.
Na konektory baterie jsem pouzil autokonektor(rozmacknout)

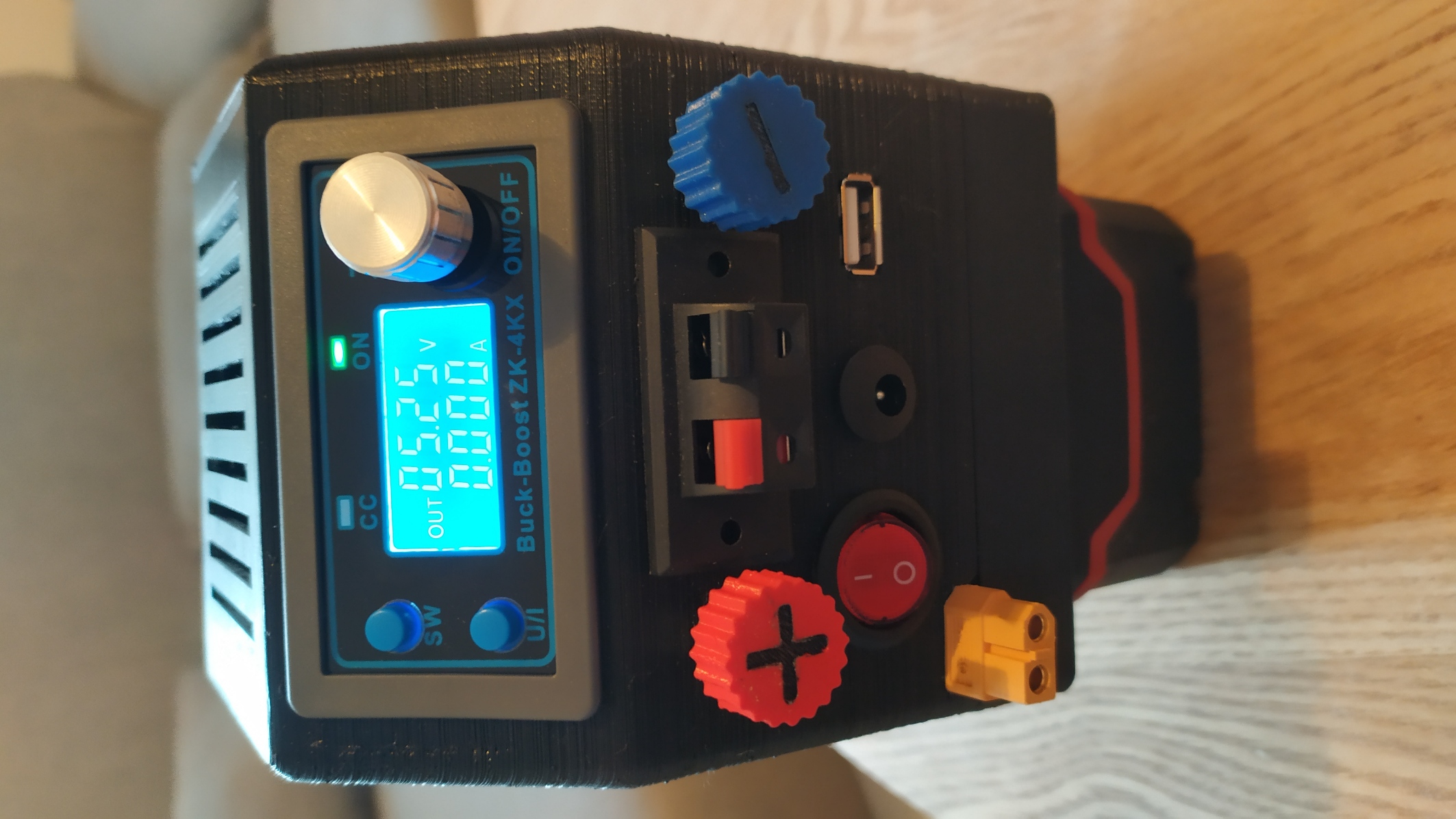

Pozor v modelu nemam dva menice a tak USB ma napeti dane menicem. Kdo chce prida si dovnitr druhy menic nastaveny na 5V.
Kladny pol z baterie je veden prez prepinac. Externi napajeni je naprudko.
Dalo by se to upravit a dat zboku prepinac a pak pri spravnem nastaveni menice i naopak baterie nabijet.
Srouby na sroubove spoje jsou M6(prumer zavitu 6mm) delka sroubu 10mm a hlava 10mm. Na sroub proste jednoduse pripajet kabel a zadna velka veda.
VIDEO PRIKLADAM(Nejsem youtuber je to hrozny)

EN -
dc-dc back bost power supply.
Use to external dc input or parkside aumulator
all components is in link.
USB is not 5V! Usb voltage set DC-DC zk-4kx
connector to battery is distinguished car connector
screw is 10mm head, 10mm long, 6mm thread

Amaterske VIDEO
https://youtu.be/0qOotDoT4_8

Pouzite dily

Use parts

3D printing settings

3 perimeter 0,4
Layer height 0,2-0,28
infill 20%
