Pivoting Servo Joint Module *Tiny_CNC_Collection
- 489 views
- 0 likes
- 11 downloads
3D model description

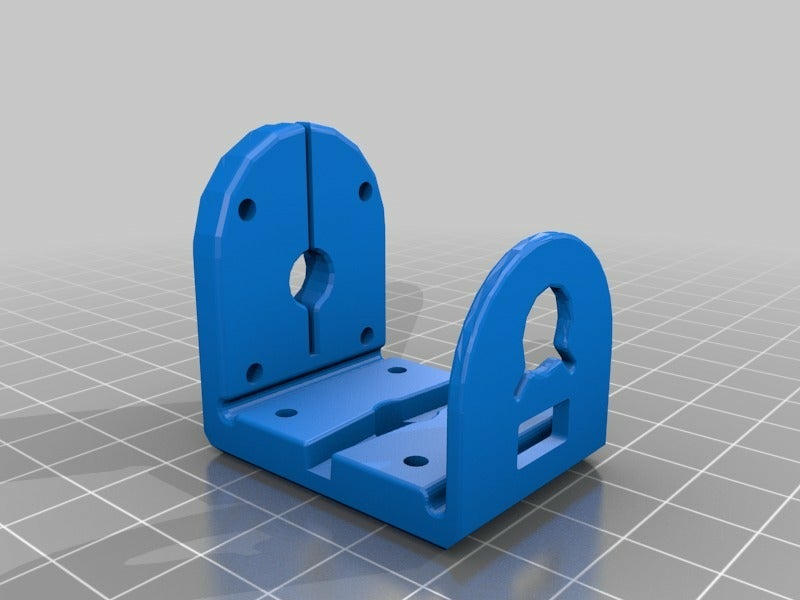

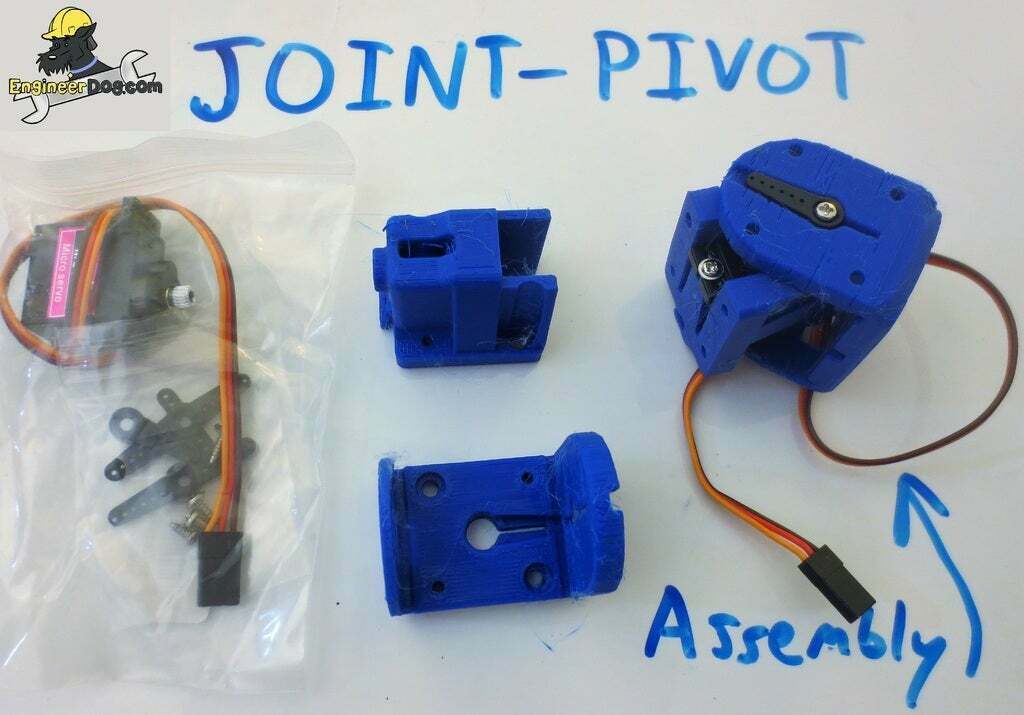

This is a modular hobby servo pivoting joint assembly. It is part of the Tiny_CNC_Collection of parts designed to facilitate entry into robot building fun!

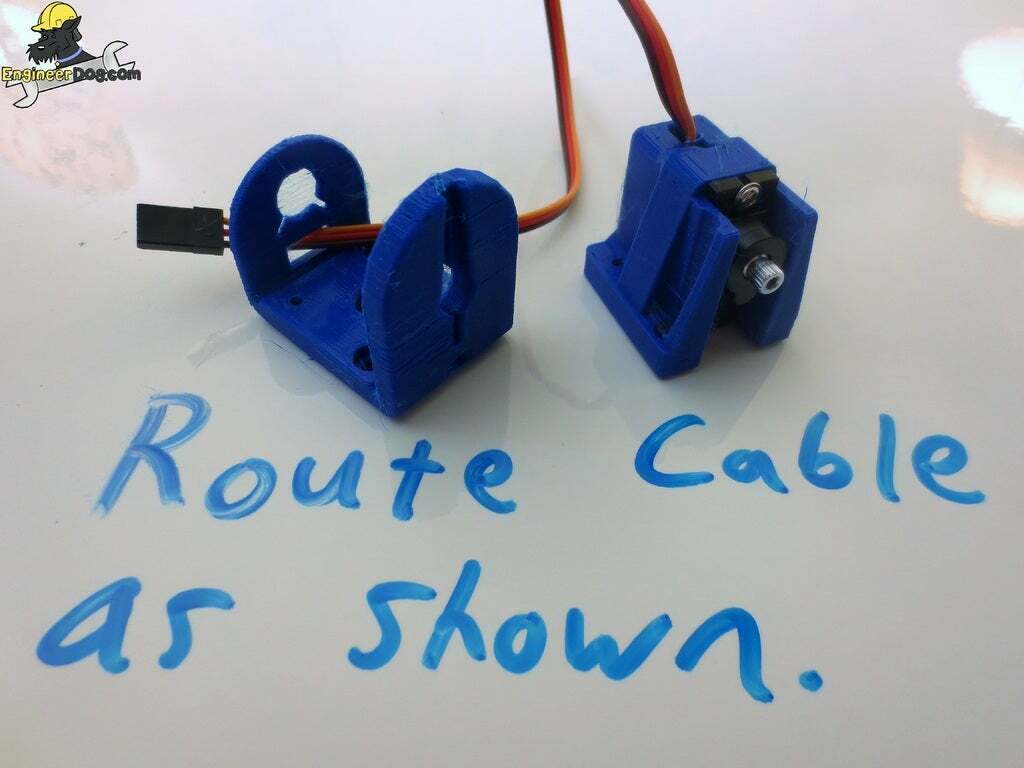

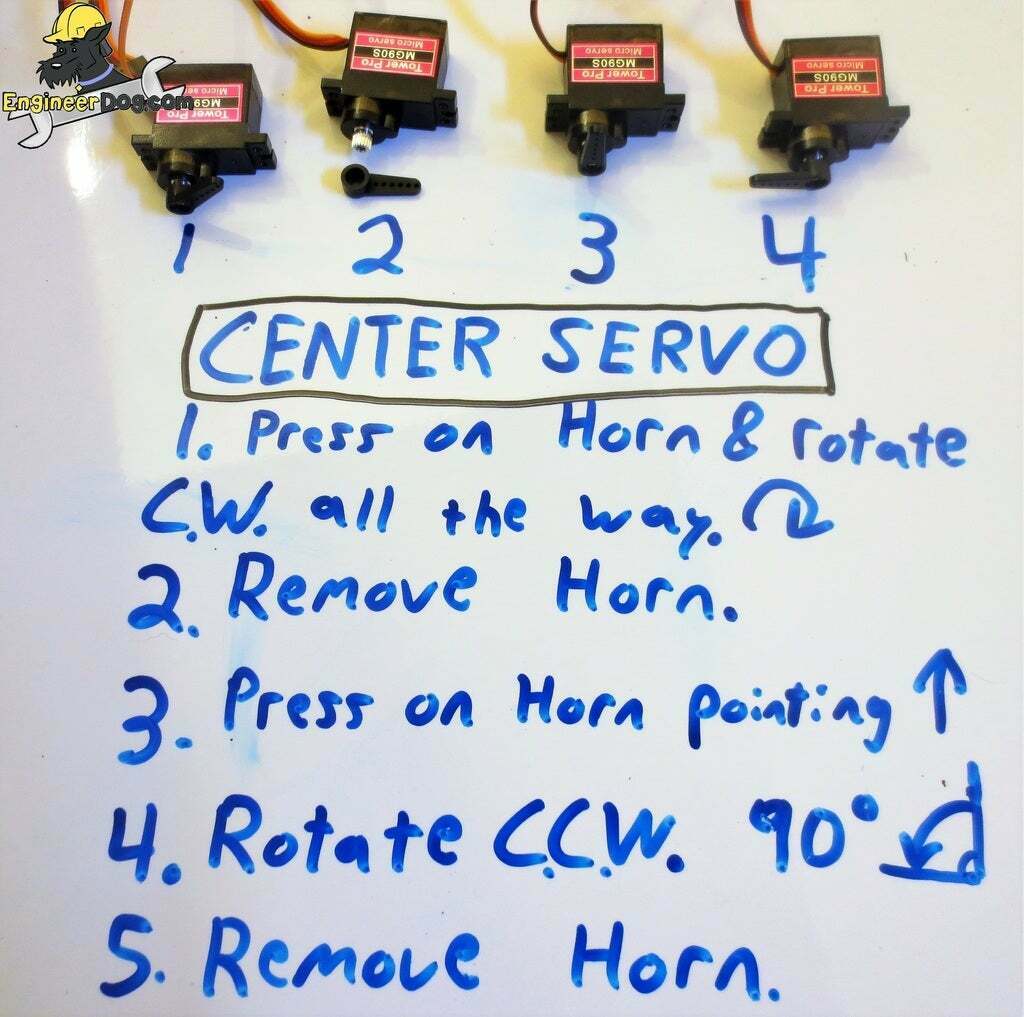

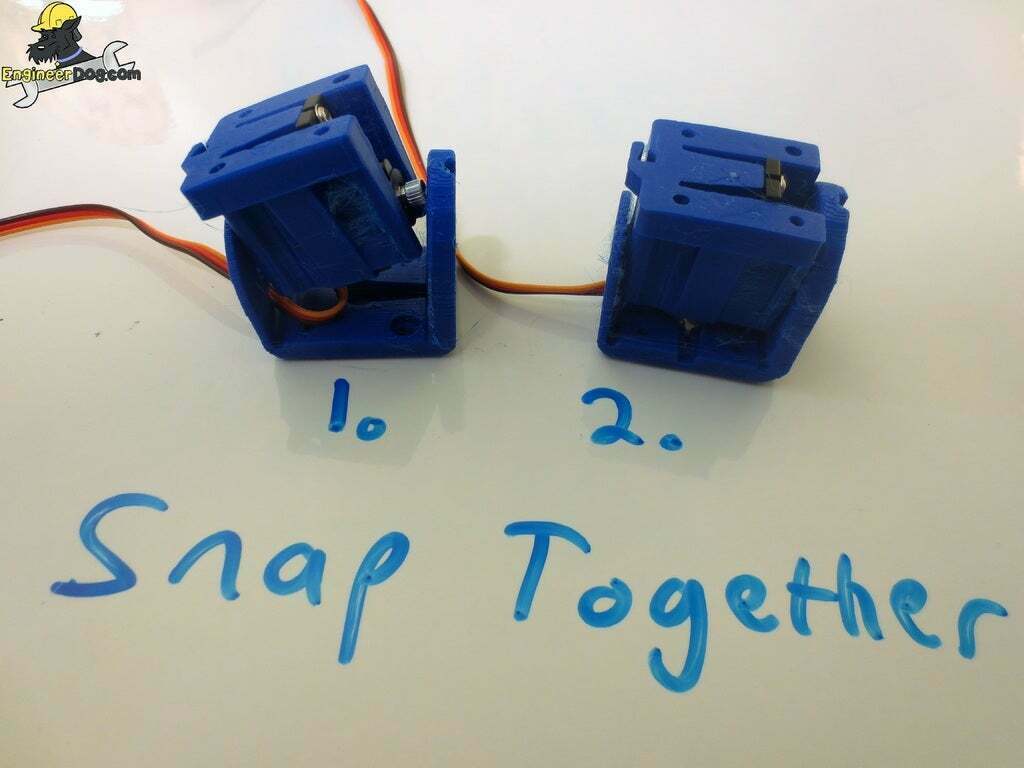

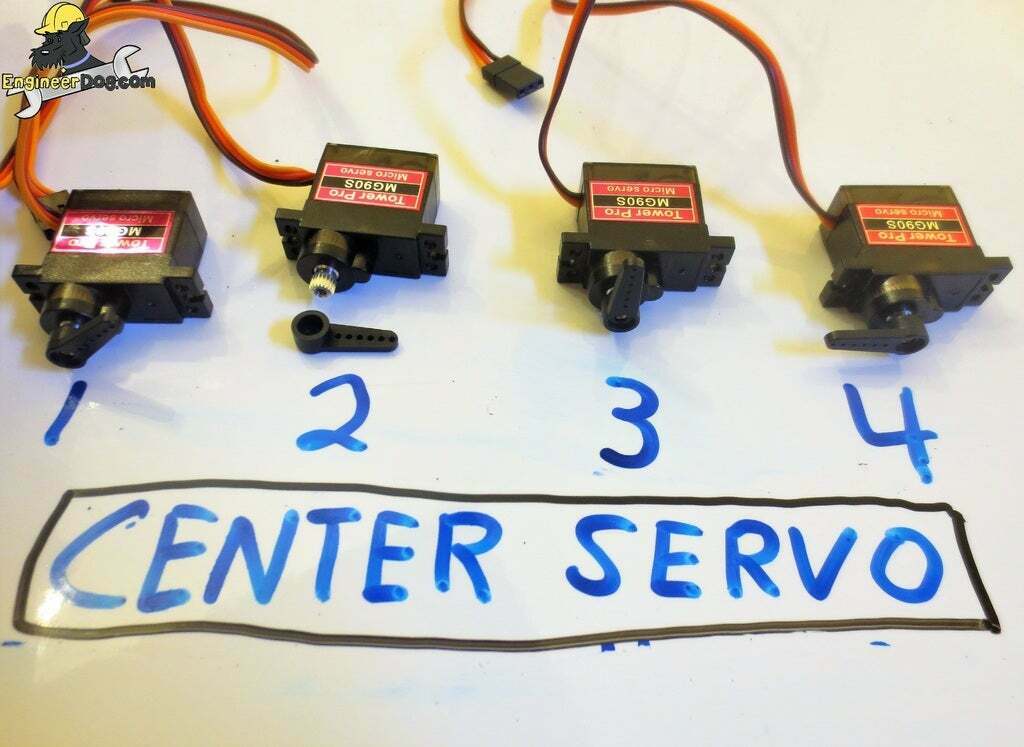

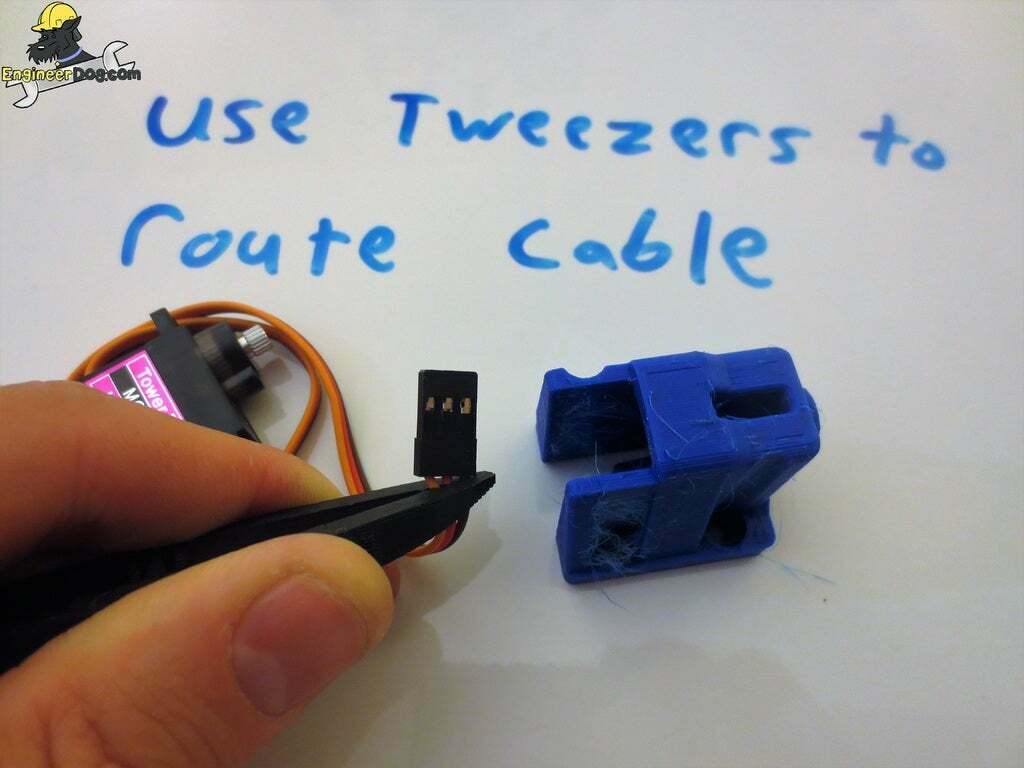

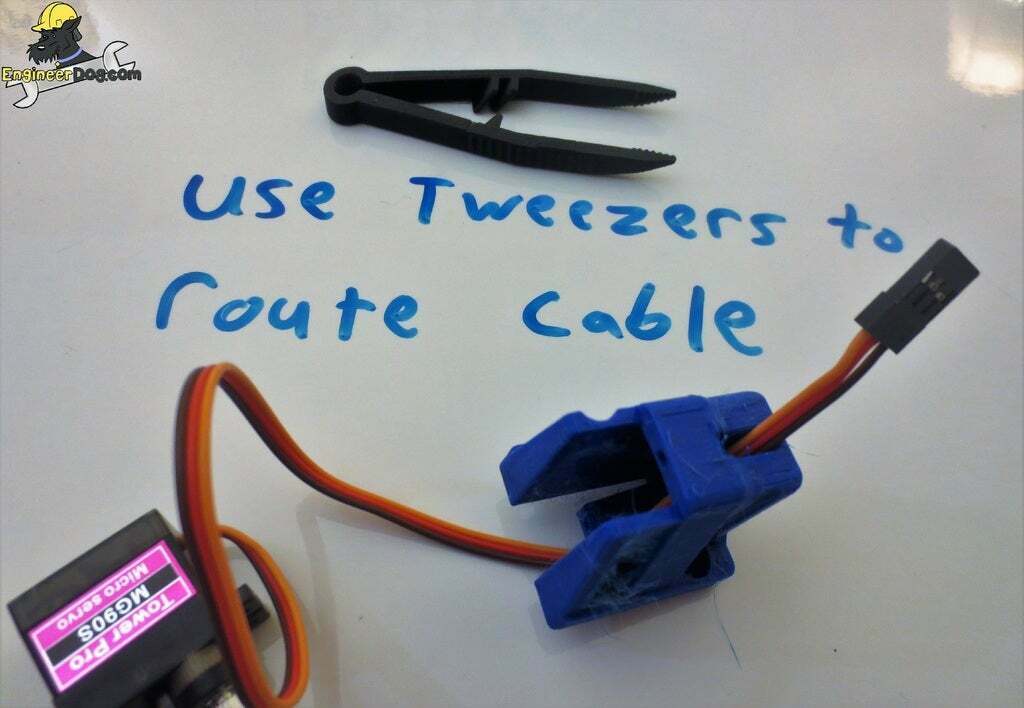

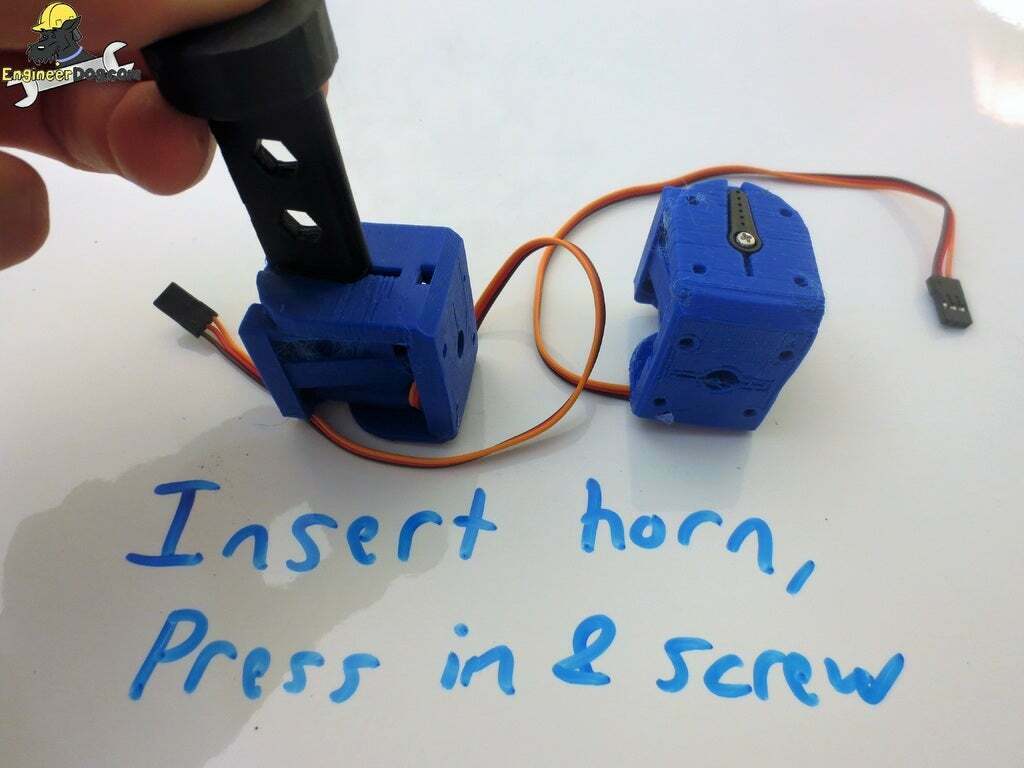

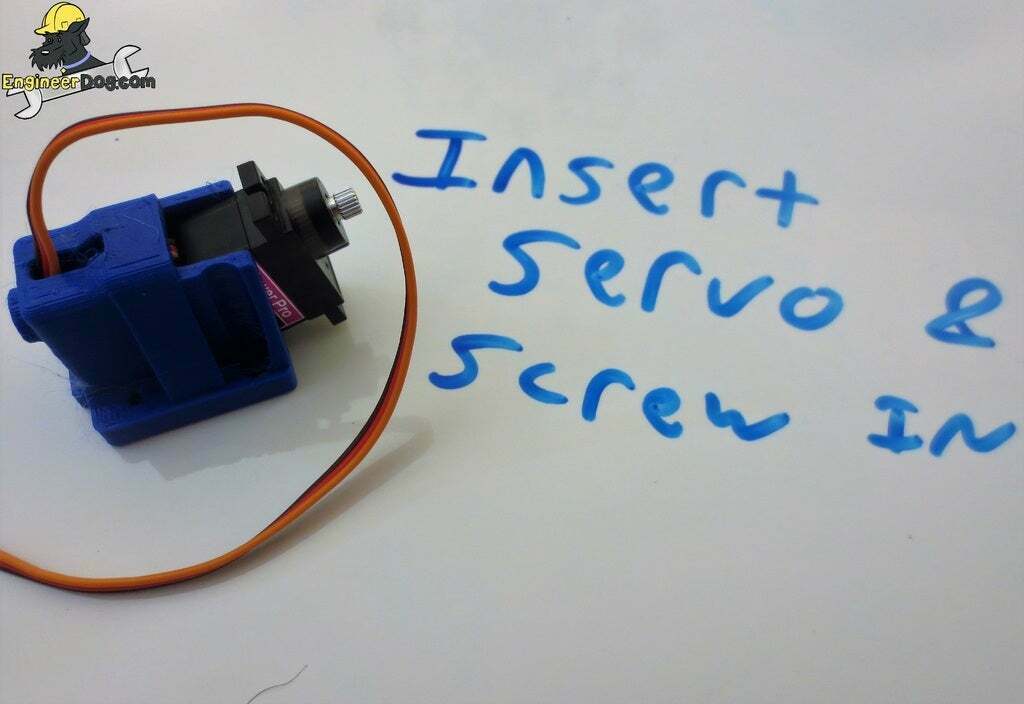

All parts print without supports or post processing! See Photos for assembly directions.
**All information regarding this project is on this page:

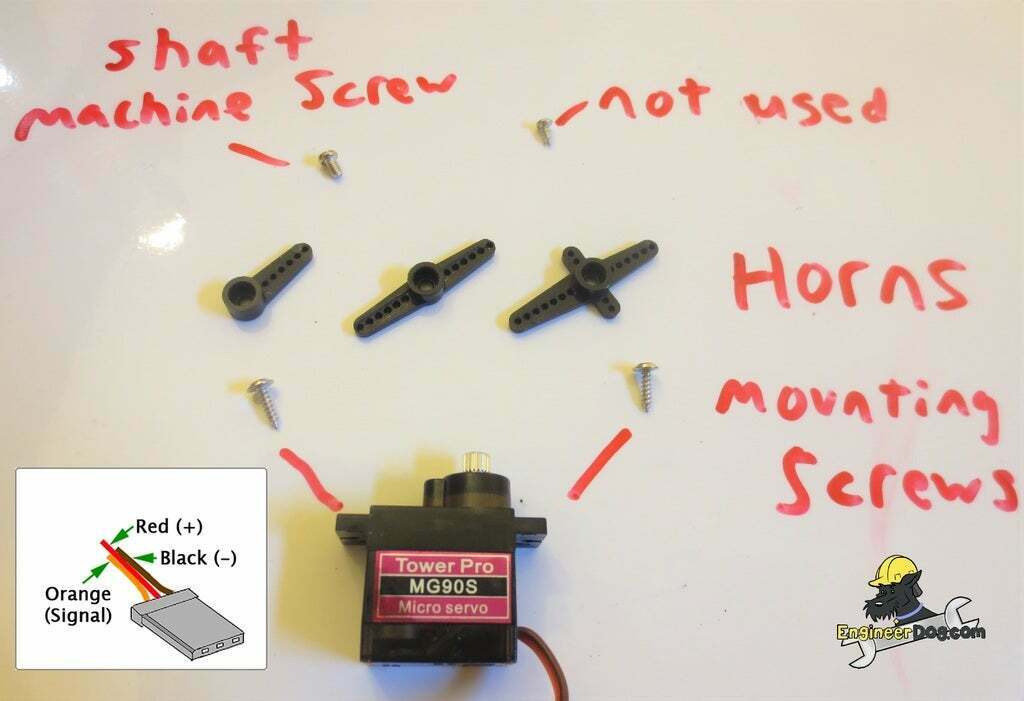

Required Hardware Servo: https://www.amazon.com/RioRand-MG90S-Metal-Geared-Helicopter/dp/B00M8SR0ZK/ref=as_li_ss_tl?ie=UTF8&qid=1533544090&sr=8-3&keywords=mg90+servo&linkCode=sl1&tag=engin09-20&linkId=bab41ca93adb7ed7bc5a44287879d527&language=en_US
Recommended Material: https://www.amazon.com/RioRand-MG90S-Metal-Geared-Helicopter/dp/B00M8SR0ZK/ref=as_li_ss_tl?ie=UTF8&qid=1533544090&sr=8-3&keywords=mg90+servo&linkCode=sl1&tag=engin09-20&linkId=bab41ca93adb7ed7bc5a44287879d527&language=en_US
*Can be printed in any material as long as all parts are the same material.
*Note 1: Included are STEP files so you can further modify these to your needs. Please enjoy these files and use them as you wish while respecting the sharing license.
**Note 2: If you do print these out snap a pic and share your make! I'd love to see how these designs are being put to use.
Video Demo @ 5min-36sec: https://youtu.be/EGnOKyPqEH8?list=PLxT-reigvGs1LH1x2Emq-B8s_OtdUZwxE&t=336
3D printing settings
- 3D file format: STL
- Publication date: 2021/03/29 at 16:35
- first robotics
- hobby servo
- tiny cnc collection
