picam simple case

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 119 views
  • 1 download

3D model description

Raspicam simple case.
This project is for the raspberry camera noir, for protect the circuit.

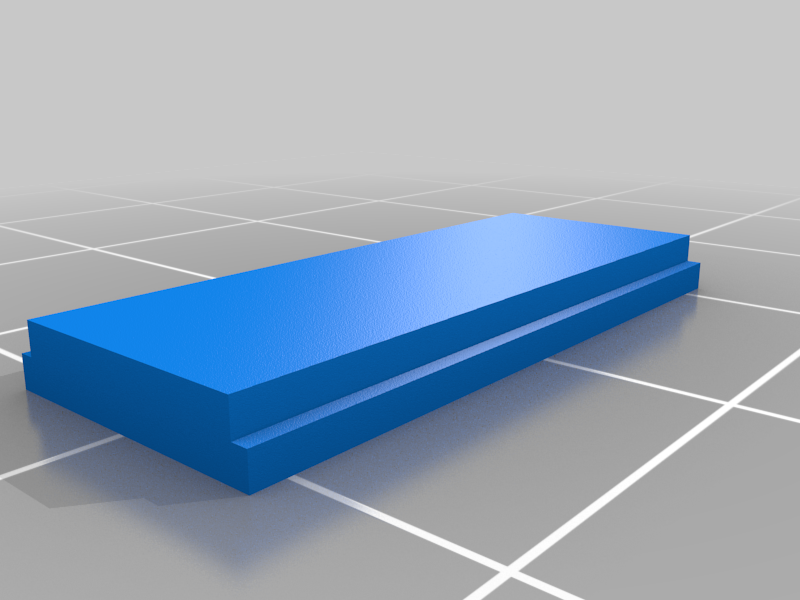

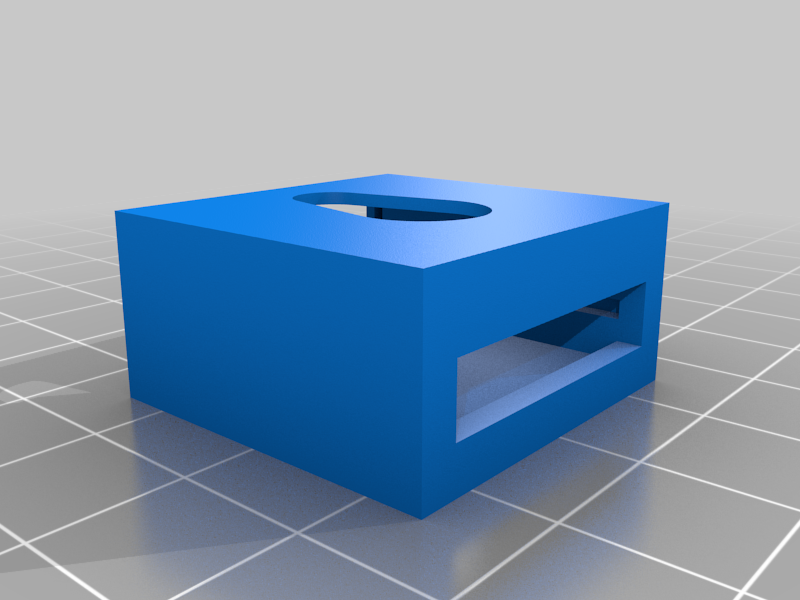

The case has a slot for cable, and a little lid on top the case.
sorry for my english. Print setting:
do not need a support.
I put a glue stic fix for more adherence.
I have a platform for printing bed
Spanish instructions:
Esta es una pequeña cajita diseñada para la cámara raspicam noir, la cámara infrarroja.
La cajita tiene una ranura inferior, para pasar el cable, y una ranura interna para ajustar la placa.
en la parte superior, tiene una tapa que se pone a presión.
No necesita soporte.
Uso stic fix pritt, para poner una pequeña capa sobre la plataforma, para tener una mejor adherencia.
También uso una plataforma magnética que se puede remover de la cama de impresión, para despegar los modelos y no dañar la cama de metal de mi impresora.
Esta cámar es el inicio de un proyecto para robótica, usando la raspverry pi, y en el próximo modelo , añadiré un soporte para servo, como un ojo dentro de una cabeza.

Have fun!
adiós tengan un buen día.
Designed up this dealer button to use in home games or have just as something laying around for any poker fan. It was inspired by a dealer button in Pokerstars VR.

Printing:

Ring - Infil to add weight, supports needed for spade inset. Letter embossing doesn't need it.
Spade - Infil to add weight, no supports
Letters - Print flat, already scaled to fit nicely in the embossing
Star - Infil to add weight.

Full print with 4x4x4 walls/top/bottom and 38% infil came to about 48g in weight.

Glue in lettering and spade. Star may need minor sanding but should push fit into the space tightly and not need anything else to secure it.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • picam_soporte.stl
    • picam_tapa.stl

    Learn more about the formats

  • Publication date: 2021/08/22 at 01:11
