PiCam Print Bed Mount

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Having viewed a couple of camera mounts for the Rasberry Pi camera (V2.1), I decided to have a stab at designing my own. I wanted one that would fix to the print bed of my Ender 3 for more stable timelapse footage of my prints.

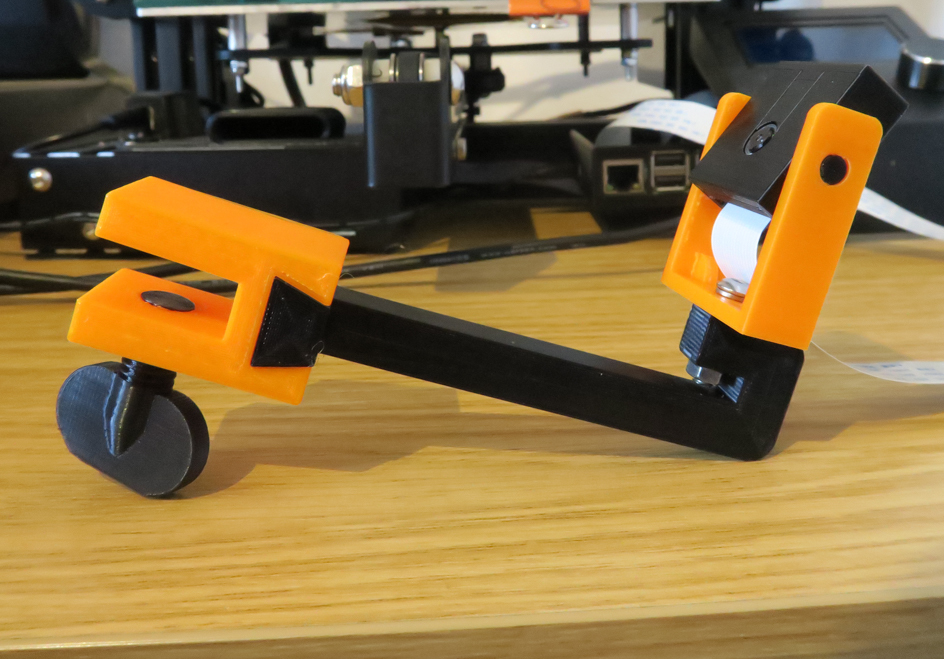

The mount fixes to the bed bed via a U shaped bracket and threaded wingnut. I have it clamped to the plate that carries the heated print bed on an Ender 3 (having fitted an EZABL and removed the springs and adjusting nuts for a fixed position) but it can also be clamped directly to the bed. I have allowed enough gap in the clamp should you use a glass plate on your bed (as I do).

You may need to adjust the focus of the camera to allow for the short distance to the print area. I used this wrench to tweak the lens. Or use a sharp pair of tweezers.

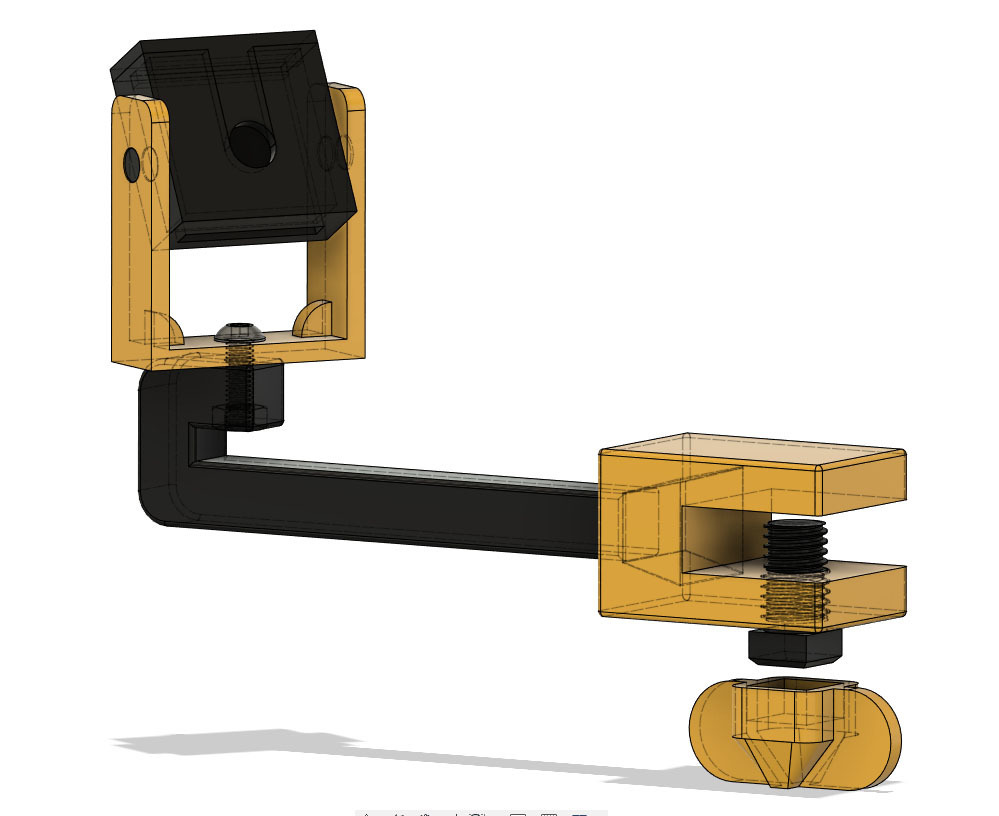

The U Bracket is attached to the arm with a M4 bolt (16mm long), nut and spring washer.

I have also created an additional bracket (extrusion bracket) that fits onto the top aluminum extrusion of the Ender 3 so that the arm and camera assembly can be repositioned to view the print bed from above.

Update (7/6/20)

I have changed the wingbolt for a version that uses a thread and key. There were concerns over the printed wingbolt hitting the aluminium extrusion under the print bed when the mount is fitted to the print bed support. Use the key to wind the thread in and out then remove it. There should now be plenty of clearance beneath the print bed. I have also done some work on the thread to create a smoother fit into the clamp thread.

3D printing settings

Resolution: 0.16mm
Speed 50mm/s
Material: PLA
Nozzle Temp: 205° (210° on the first layer)
Bed Temp: 55°
Infill: 15-20%

4mm Brim on all parts except the arm.

Use 100% infill on the thread and key.
