Phone recording stand

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 950 views
  • 3 likes
  • 23 downloads

3D model description

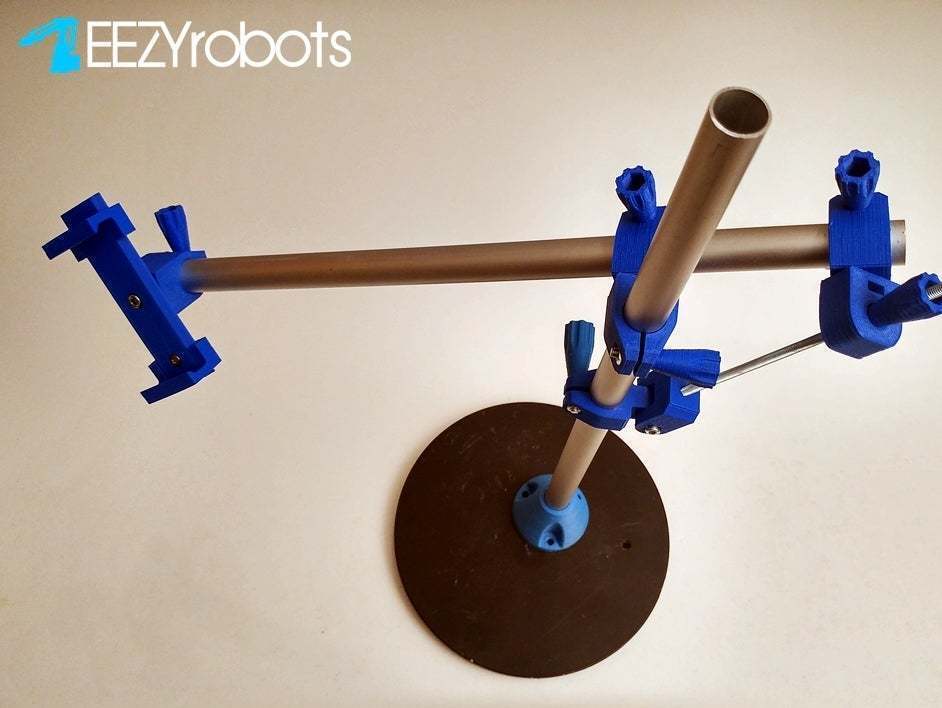

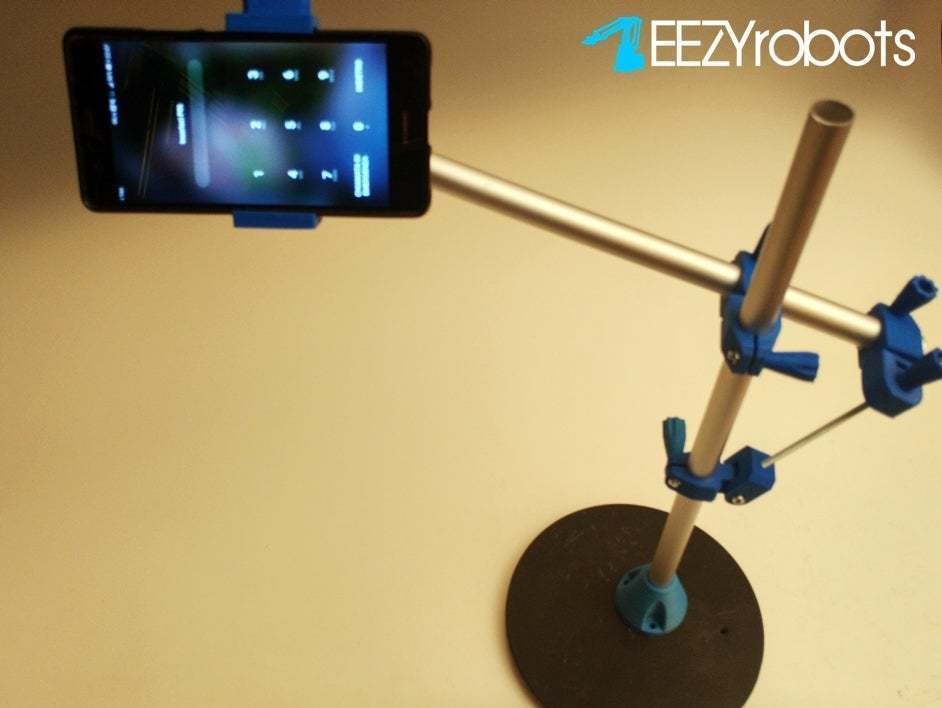

This is a stand that I use to hold my smartphone during video recording or to provide a better stability when I take photos of my Thingiverse things.

It is a mixed construction that uses printed parts and commercial components.

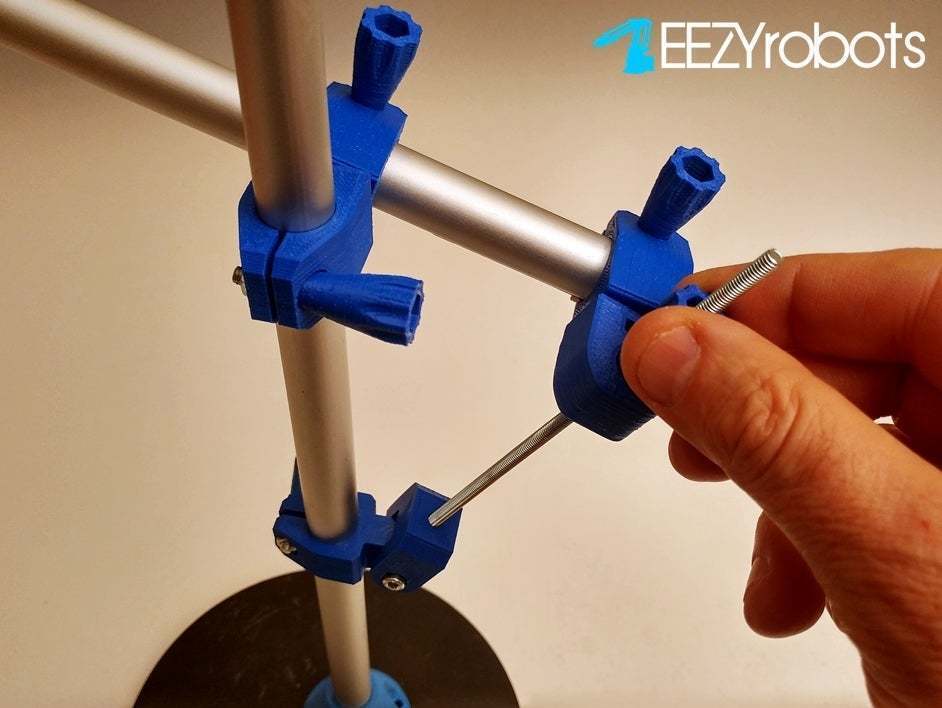

I used 16mm aluminum tubes for the arms, an M4 threaded bar for the tilt adjustment and a base recovered from a scrap lamp.
To attach the vertical tube to the base I made an expandable stud, but you can use screw also

The phoneholder can hold my phone that is 75 mm wide but also up to 85 mm are managed
A rubber band can be used to provide pressure with terminal clamps

Following the BILL OF MATERIALS

PRINTED PARTS

q.ty code description

1 PHstand_001 FEET
1 PHstand_002 WEDGE
1 PHstand_003 EXPANDER

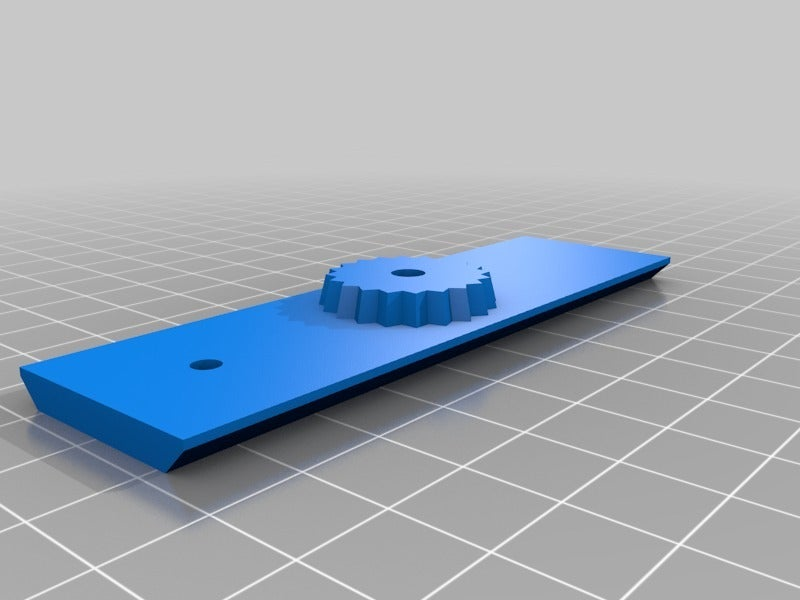

1 PHstand_004 BAR
2 PHstand_005 TERMINAL CLAMP
1 PHstand_006 FORK A
1 PHstand_007 FORK B

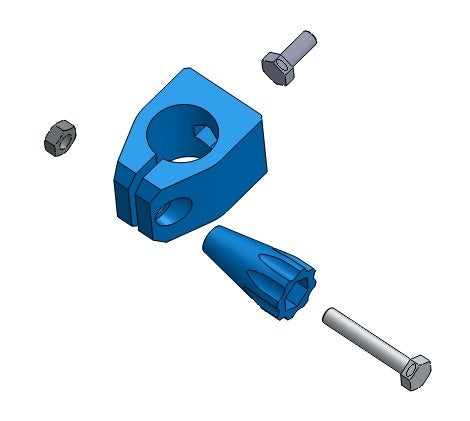

3 PHstand_008 CLAMP A
1 PHstand_009 CLAMP C

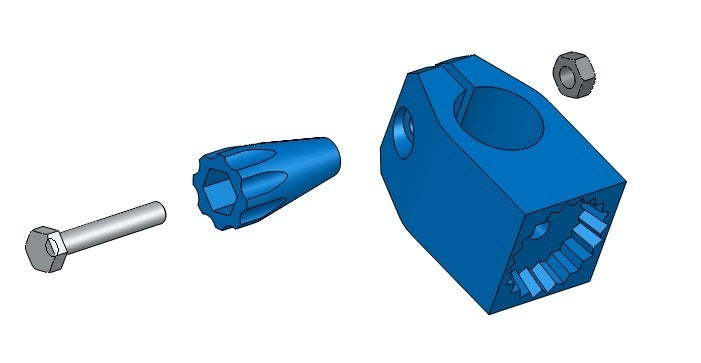

1 PHstand_010 CLAMP F
6 PHstand_011 KNOB

HARDWARE

5 M4x25 HEX HEAD SCREW
3 M4x10 HEX HEAD SCREW
7 M4 HEX NUT
1 M4 x 22 HEX SOCKET HEAD CAP SCREW
1 M4 x 14 HEX SOCKET HEAD CAP SCREW
2 Ø16 x 400mm Aluminum tube
1 M4 x 150mm threaded bar

3D printer file information

  • 3D design format: STL Folder details Close
    • PHstand_001.STL
    • PHstand_002.STL
    • PHstand_003.STL
    • PHstand_004.STL
    • PHstand_005.STL
    • PHstand_006.STL
    • PHstand_007.STL
    • PHstand_008.STL
    • PHstand_009.STL
    • PHstand_010.STL
    • PHstand_011.STL
