3D model description

For a newer and improved version on my own website, go to https://www.designuitinspiratie.nl/phone-head/

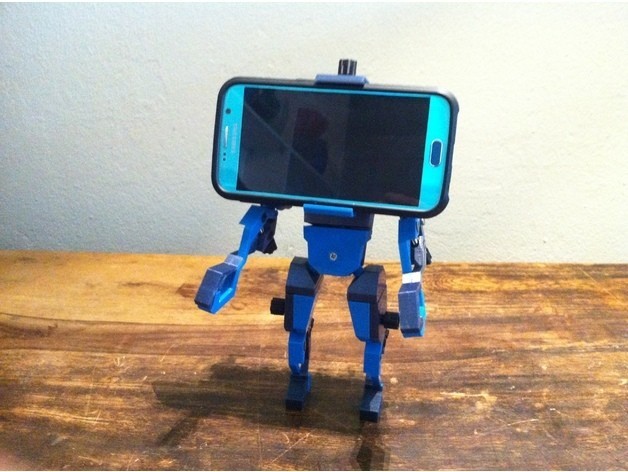

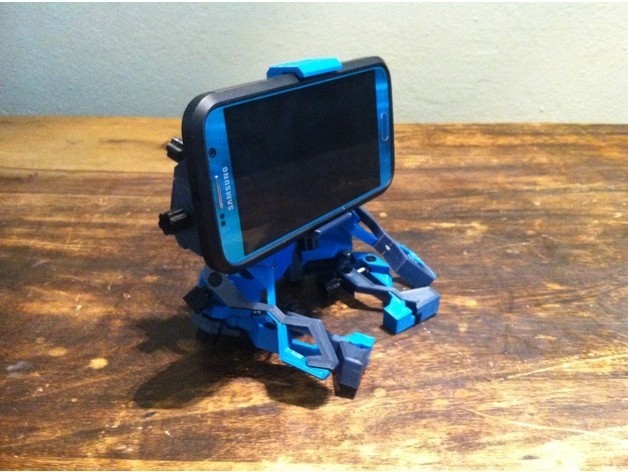

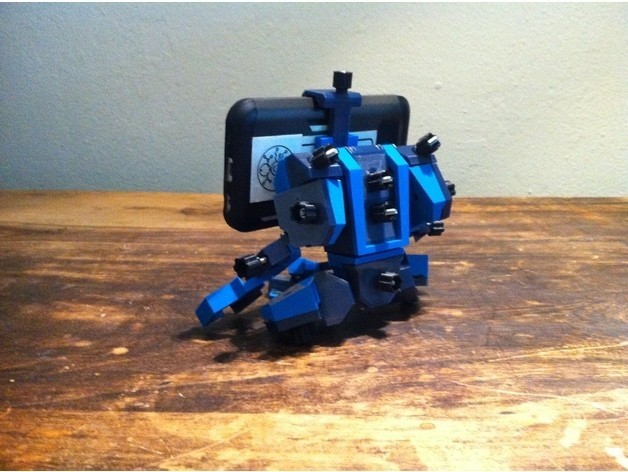

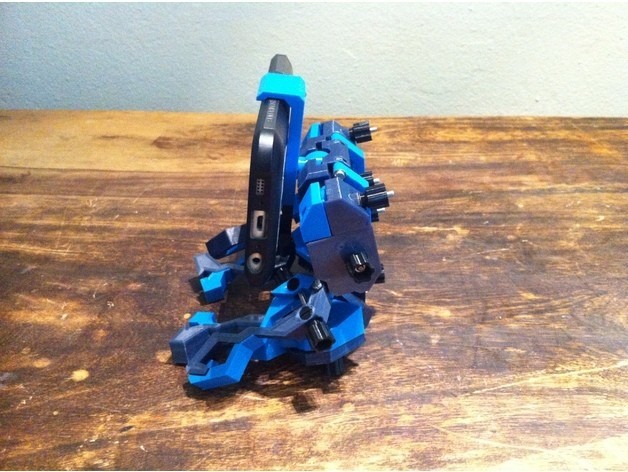

Phone Head is an universal phone holder in the form of a robot body.

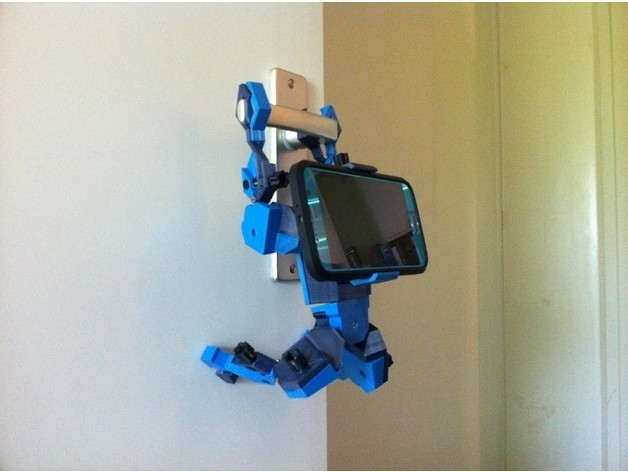

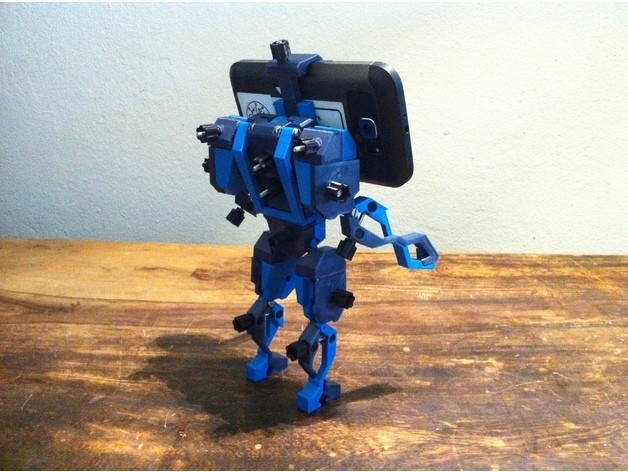

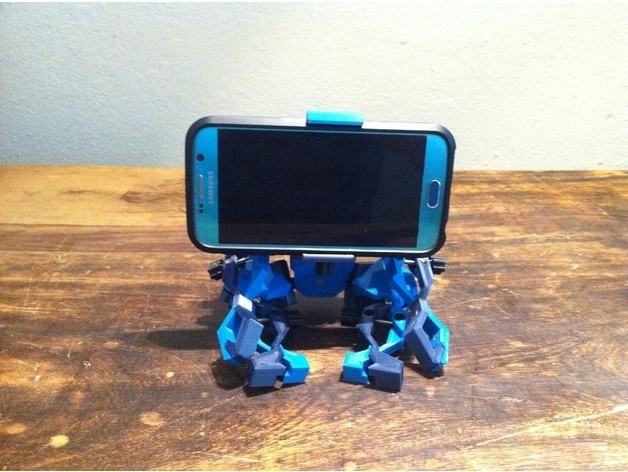

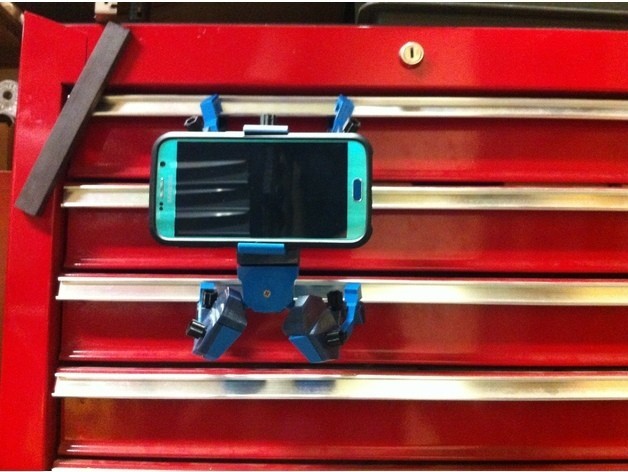

His joints can be fastened in various positions. This way the phone holder can be made fit to hold on anything :-). Also he can sit as a human or hang on to something as a monkey :-). His hands and feet can be opened and closed for gripping stuff. On his back he has an bracket so you can hang him on the wall on a nail or something :-)

“pin 1.stl” & “pin 2.stl” are printed in 0.1mm resolution and very slow with a lot of cooling in PLA. The other parts are printed in PET-G, 0.2mm resolution.

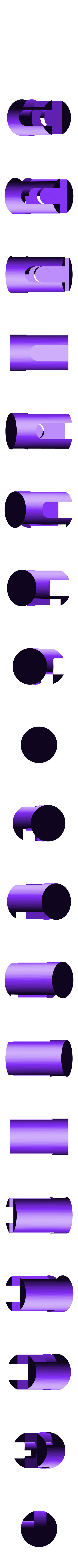

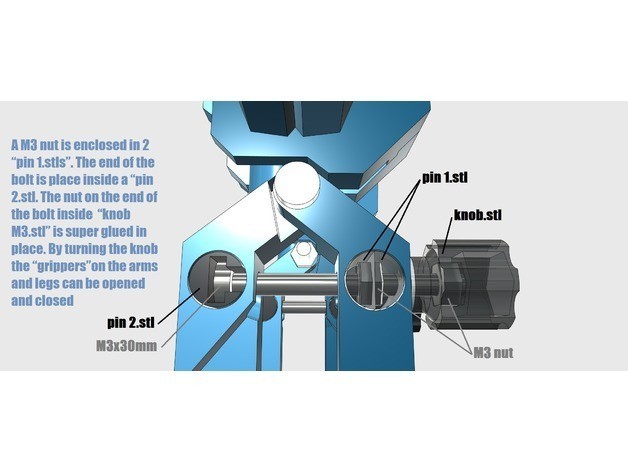

To assemble pin1 & pin2 please see picture.

parts list:

-9X M3x30mm bolt (although I used some 40mm instead because that was what I head)
-6X M3x20mm
-4X M3x15mm (but I just put in 10mm ones. The bolts made their own treats :-) )
-18X M3 nut
-6X M3 washer (optional)
-1X M4 treated rod 96mm. (Length depend on phone dimensions)
-2X M4 nut

if you have any questions, feel free to ask :-)

If you think I forgot something, feel free to comment :-)

3D printer file information

  • 3D design format: STL Folder details Close
    • back_A1.stl
    • back_A2.stl
    • back_B.stl
    • down_back_.stl
    • down_front.stl
    • hip_L_A.stl
    • hip_R_A.stl

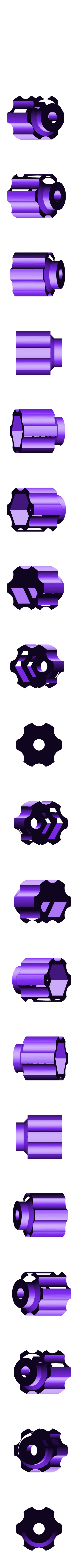

    • knob_M3.stl
    • knob_M4.stl
    • left_arm_part_A.stl
    • left_arm_part_B.stl
    • left_shoulder_part_A.stl
    • left_shoulder_part_B.stl
    • leg_L_A.stl
    • leg_L_B.stl
    • leg_R_A.stl
    • leg_R_B.stl
    • phone_bracket_part_A.stl
    • phone_bracket_part_B.stl
    • pin_1.stl
    • pin_2.stl
    • pivot_A.stl
    • pivot_B.stl
    • pivot_C.stl
    • right_arm_part_A.stl
    • right_arm_part_B.stl
    • right_shoulder_part_A.stl
    • right_shoulder_part_B.stl
    • upper_body_front.stl
    • upper_left_arm_part_A.stl
    • upper_left_arm_part_B.stl
    • upper_leg_L_A.stl
    • upper_leg_L_B.stl
    • upper_leg_R_A.stl
    • upper_leg_R_B.stl
    • upper_right_arm_part_A.stl
    • upper_right_arm_part_B.stl

    Learn more about the formats

  • Last update: 2020/05/17 at 16:15
  • Publication date: 2018/06/28 at 10:01
