Palette Extruder Adaptor for Bondtech DDX V3

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

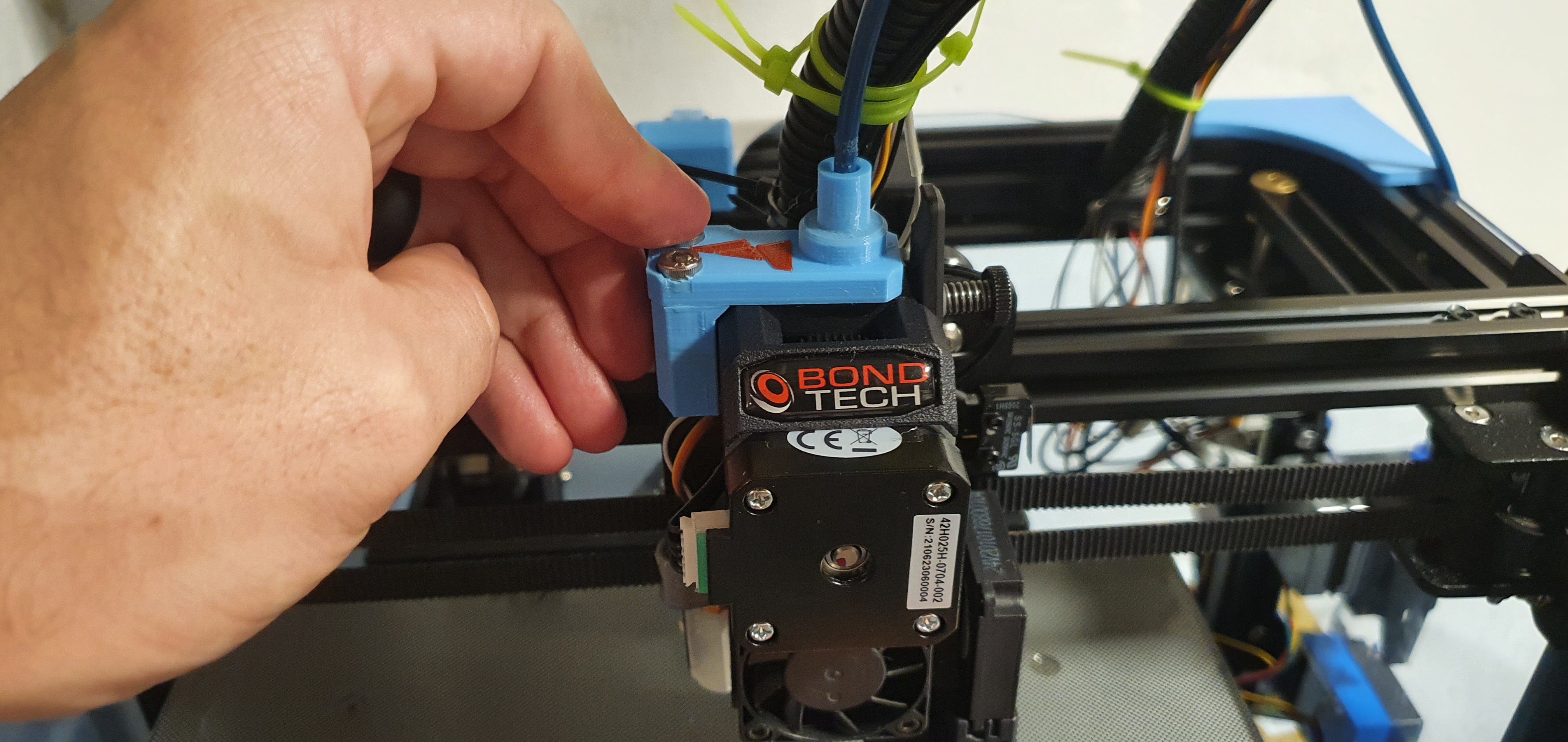

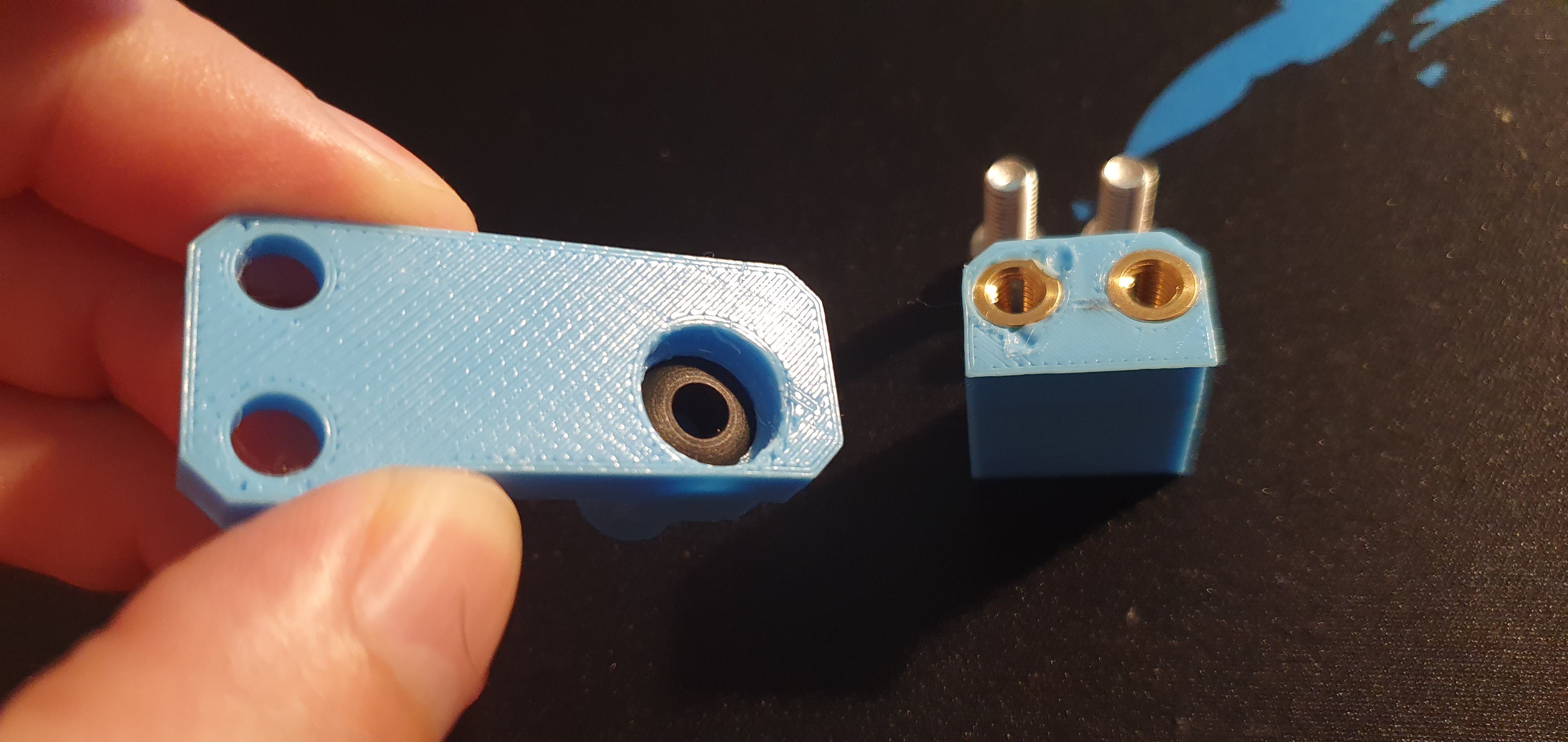

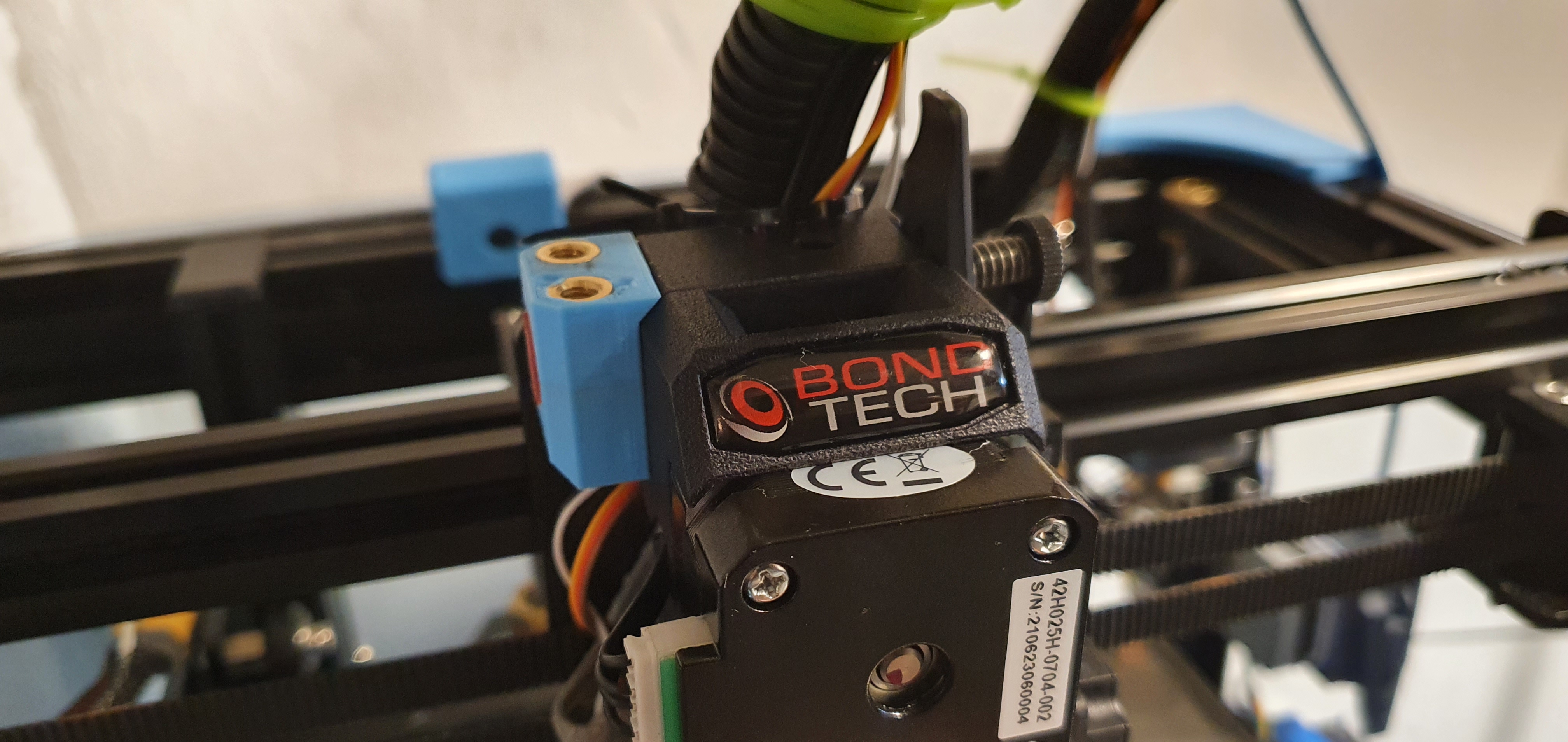

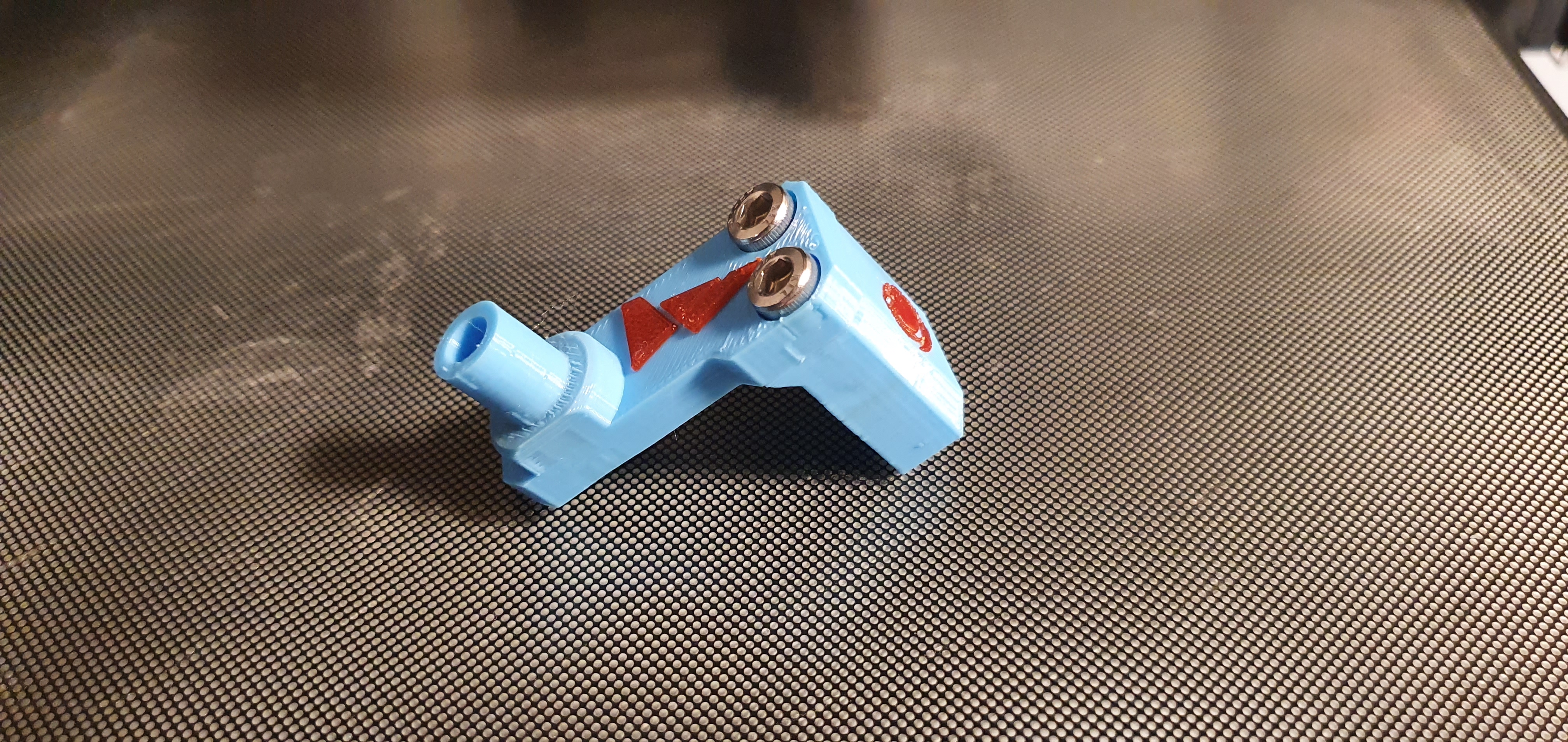

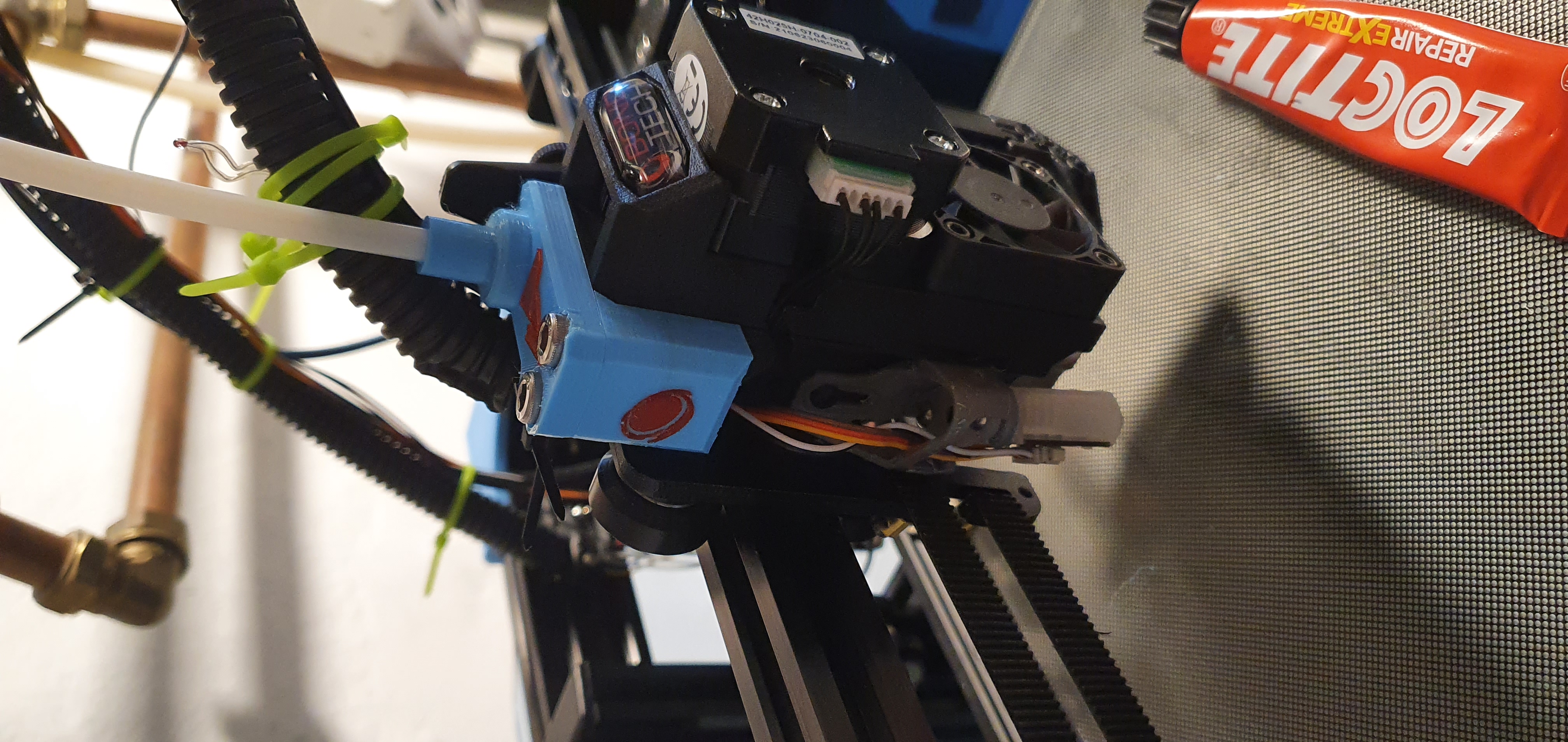

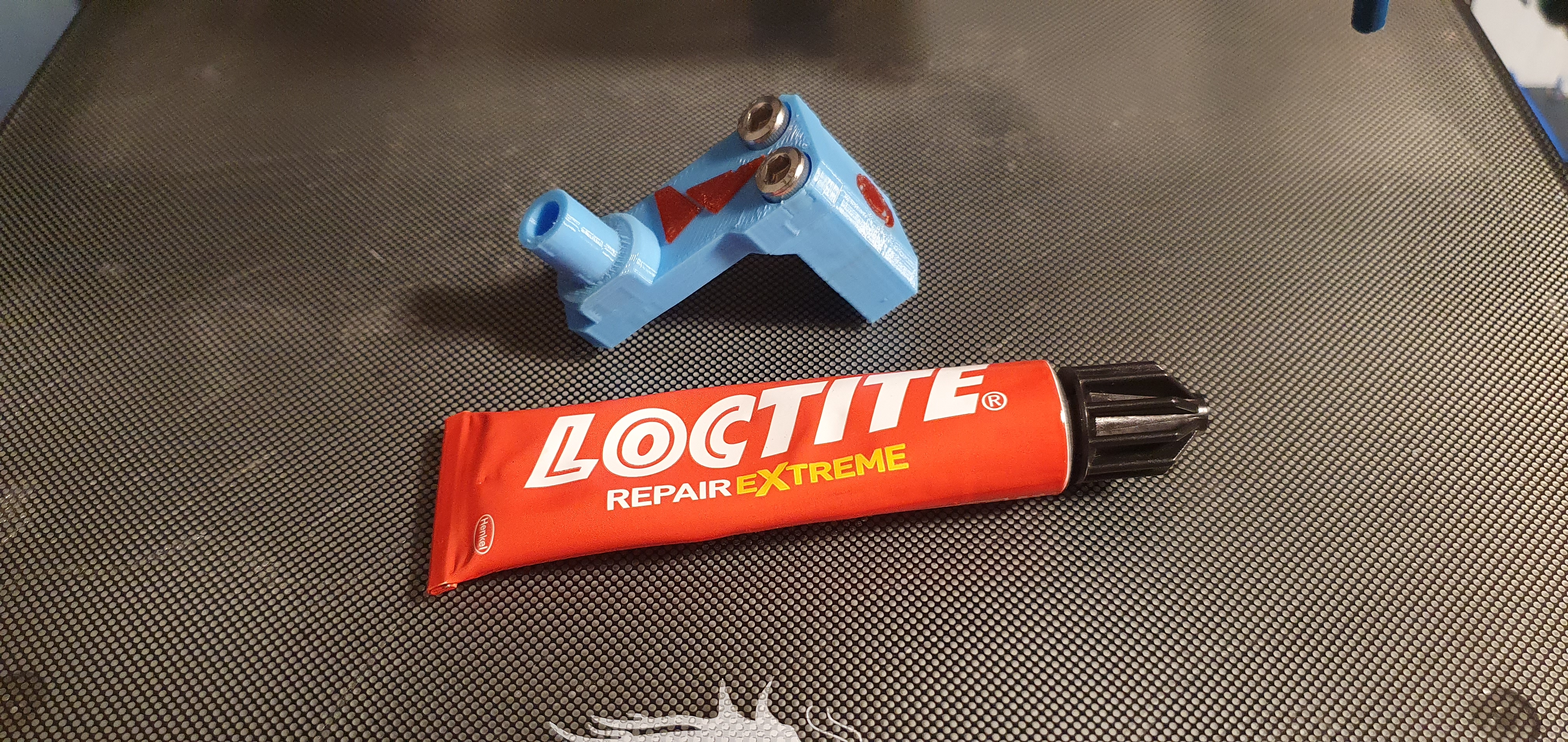

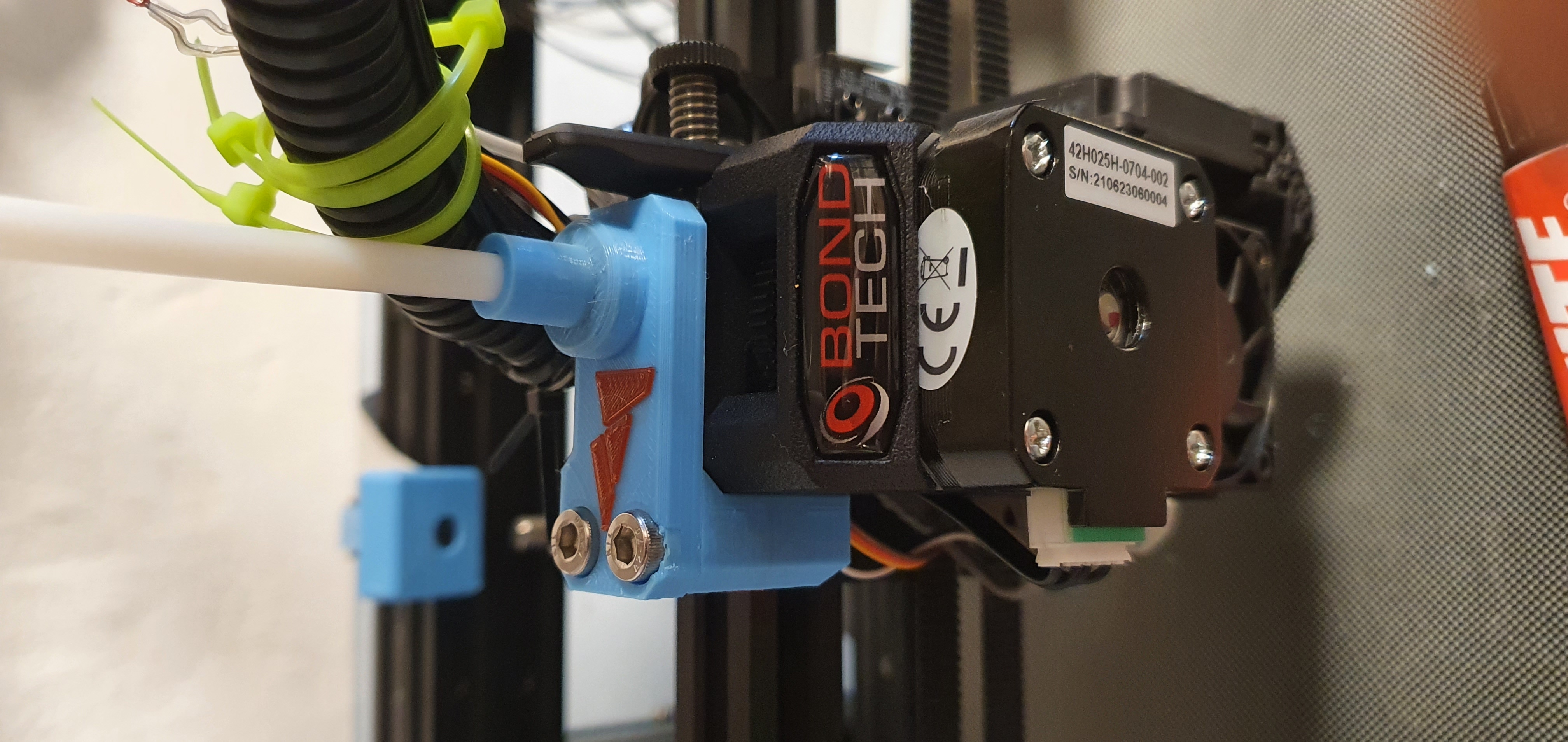

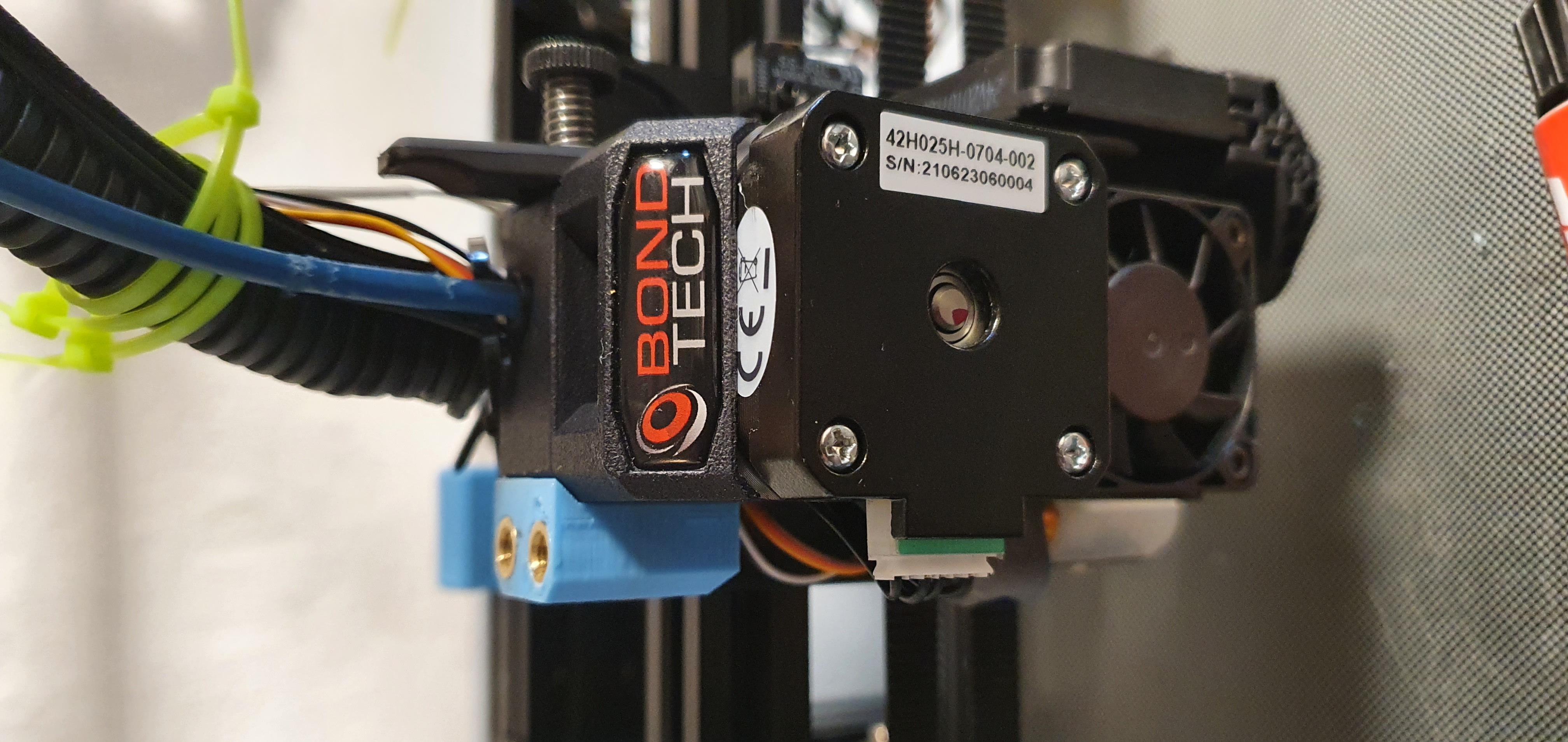

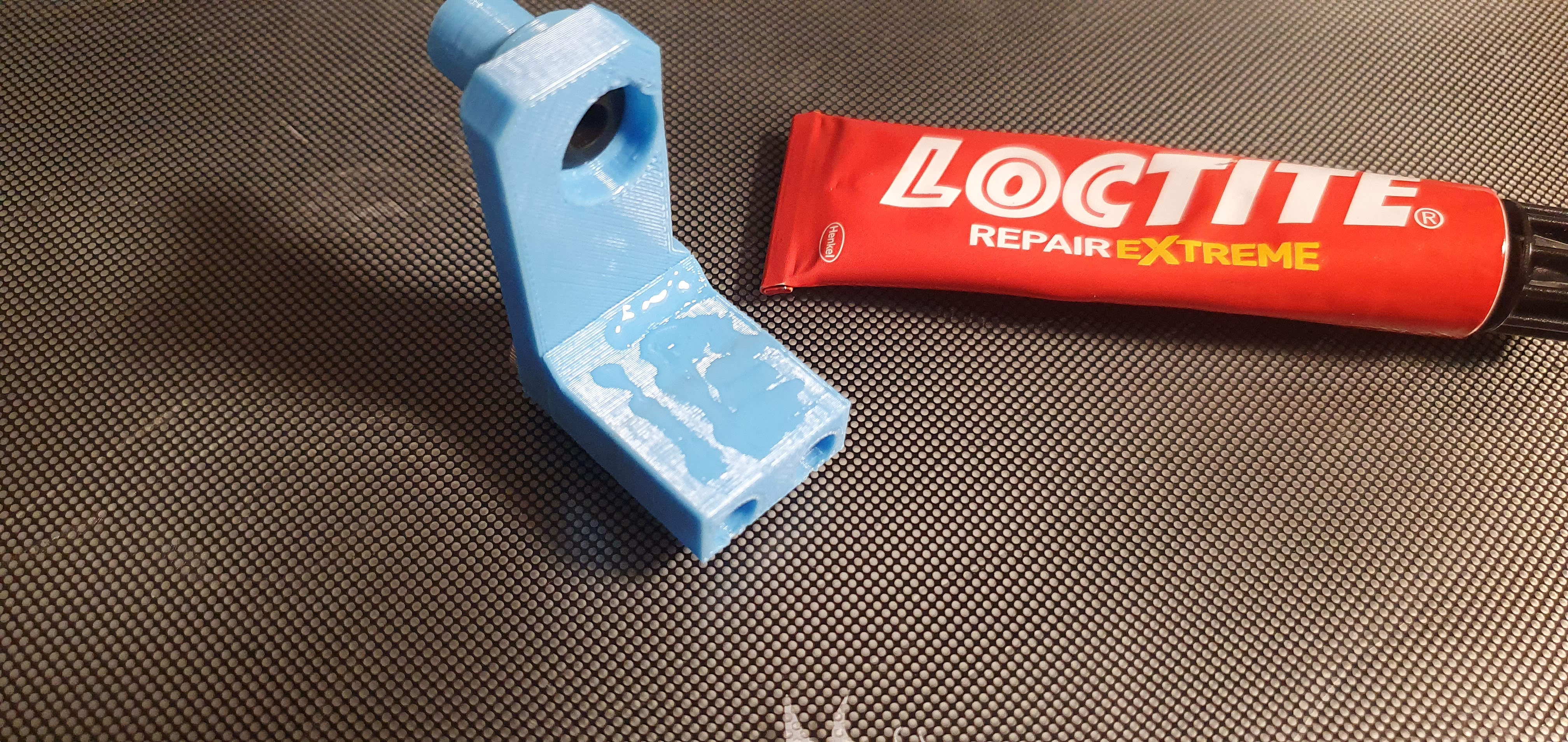

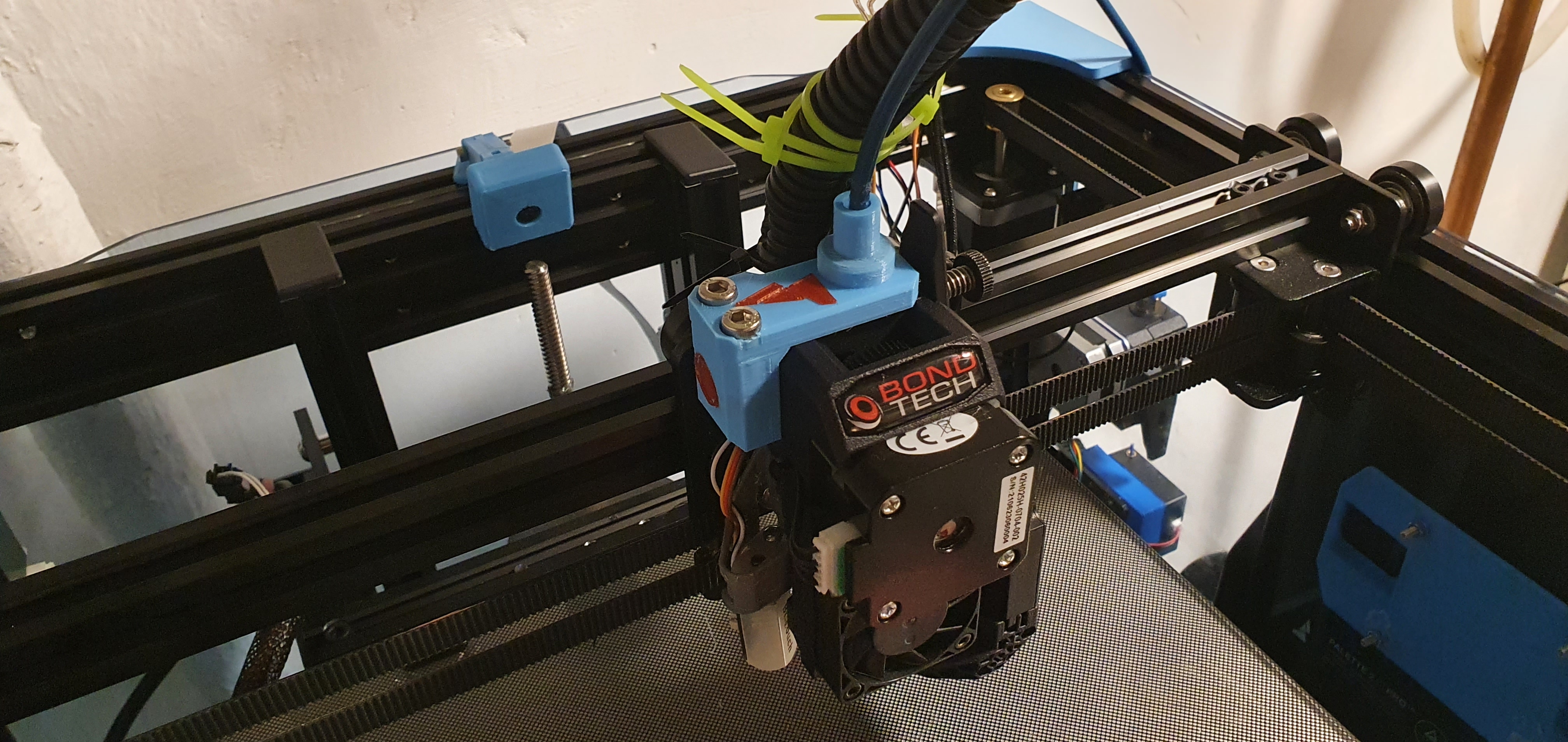

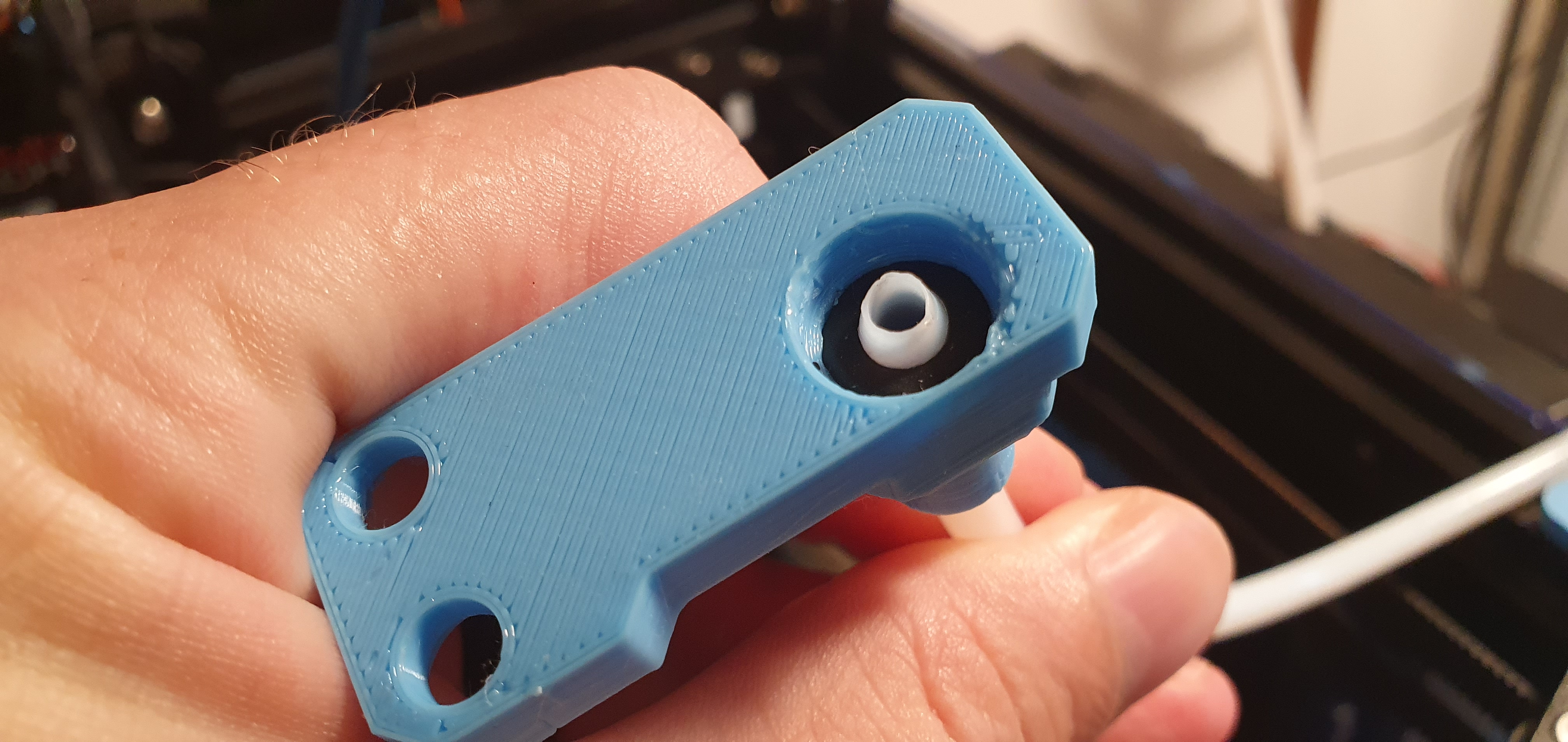

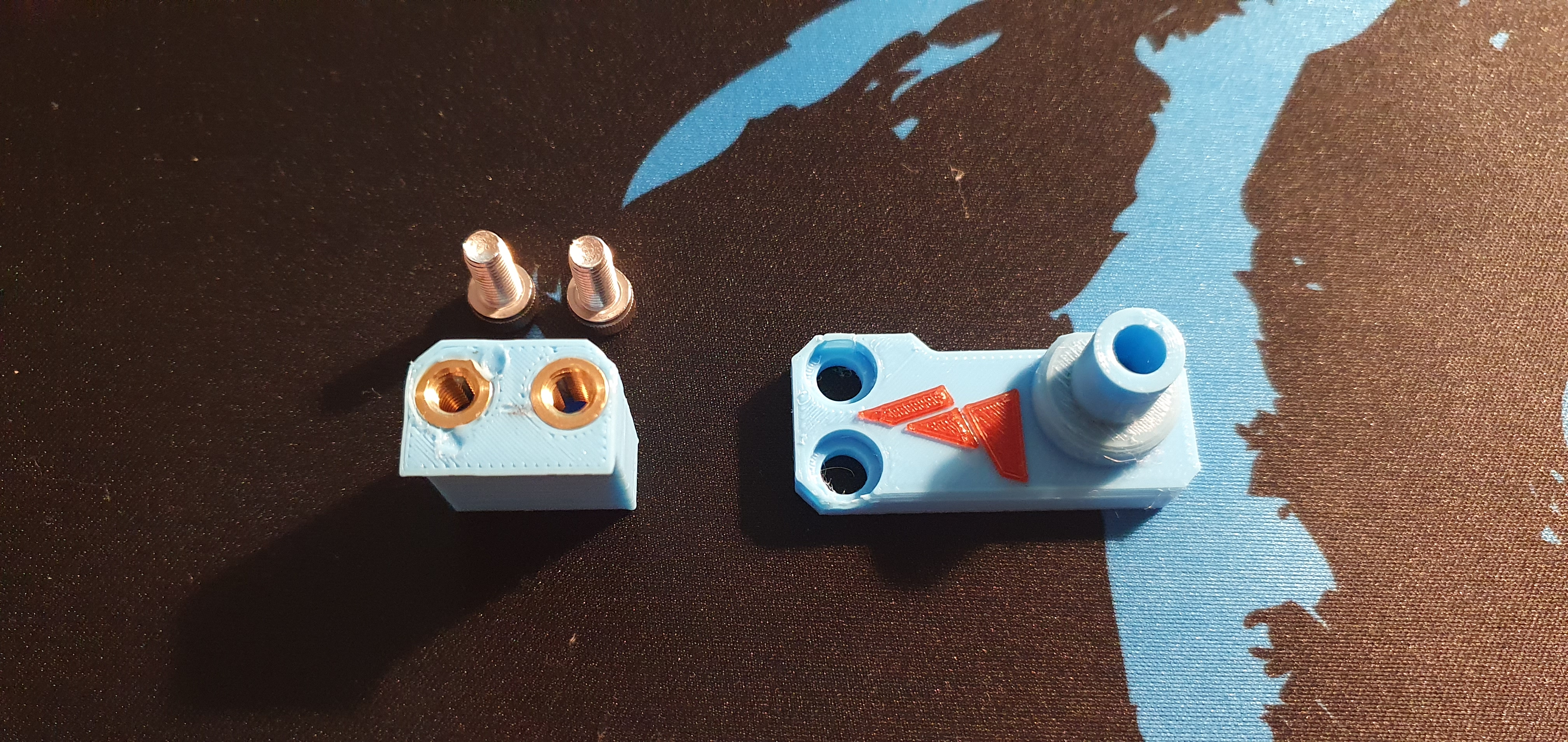

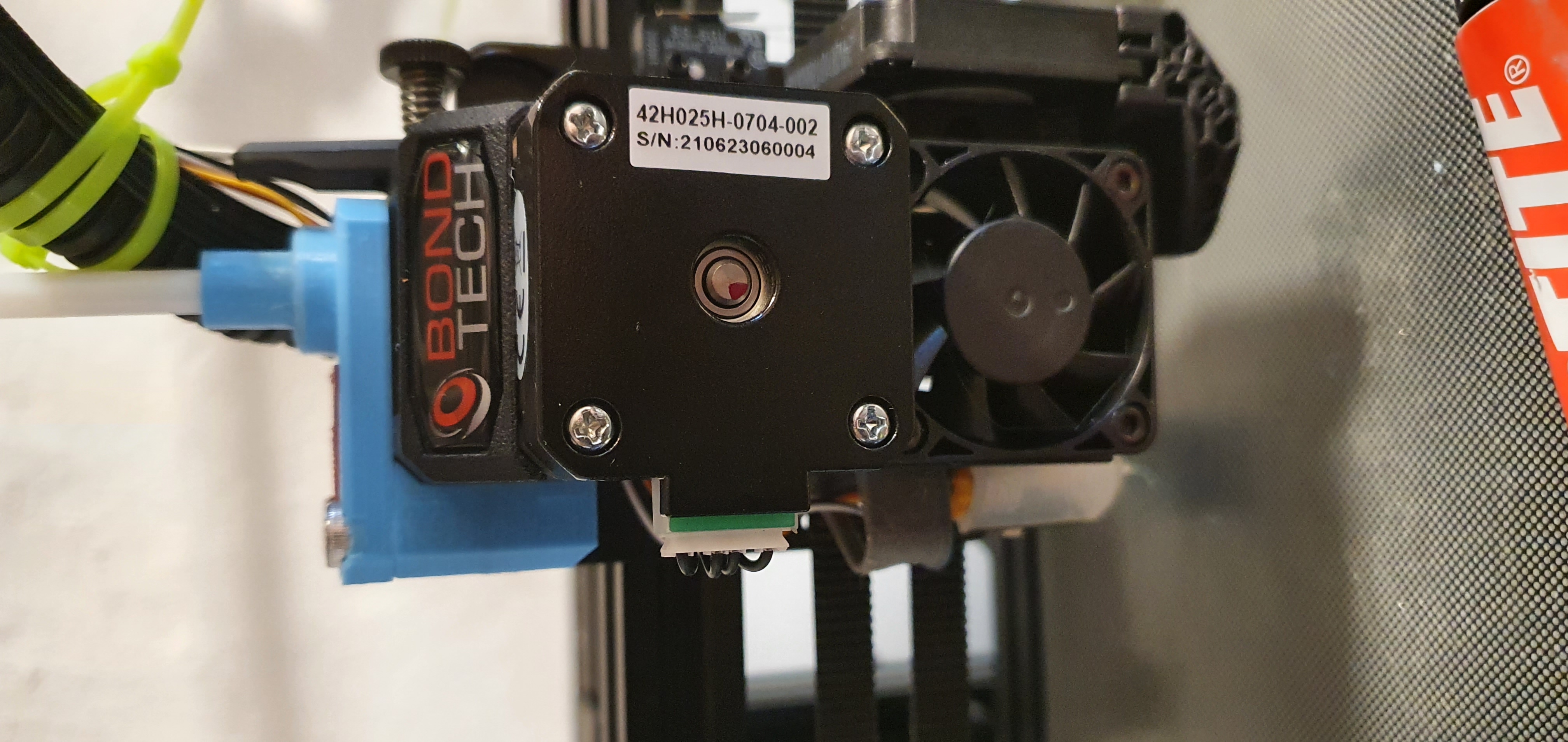

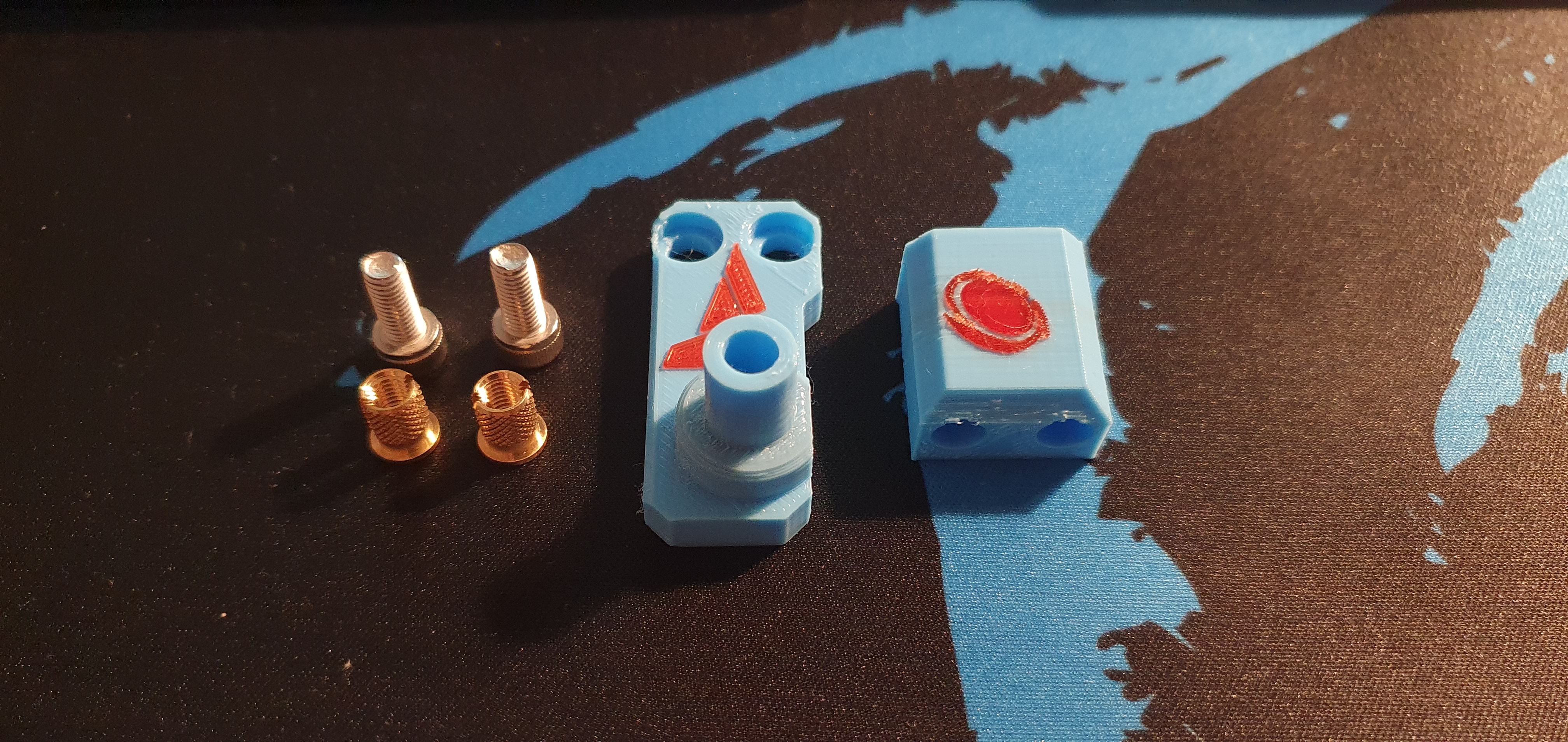

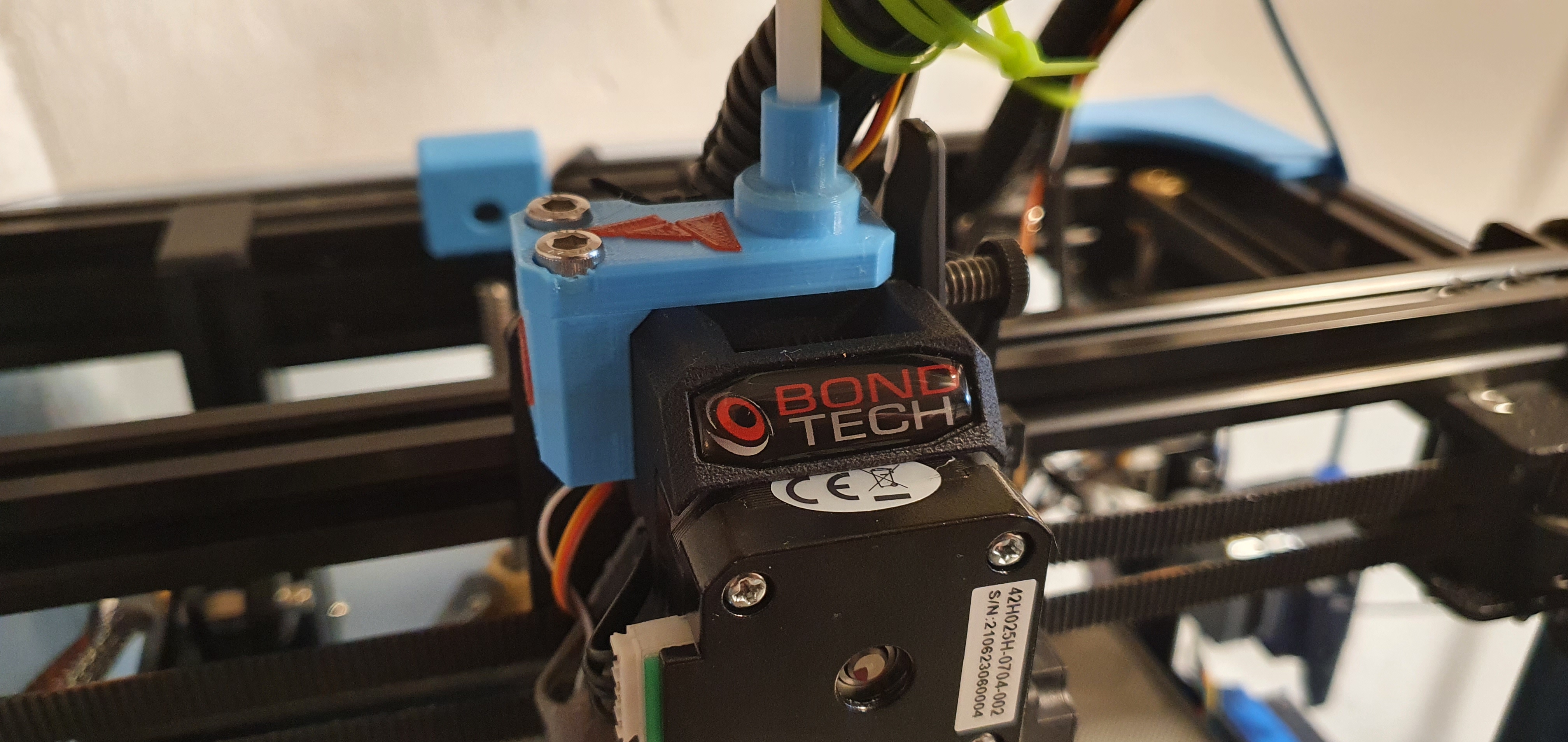

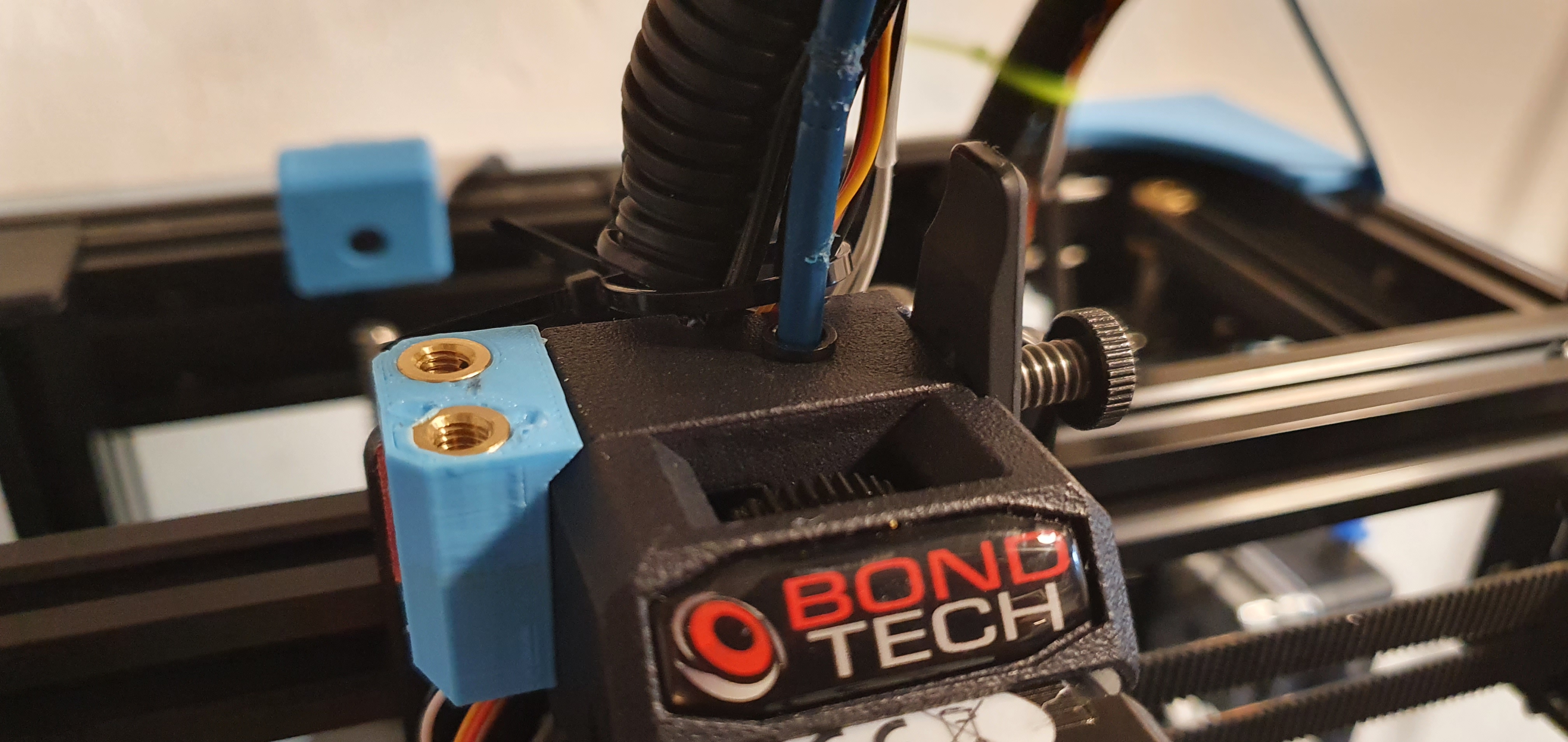

This is an extruder adaptor designed to fit the Palette feed tube to the Bondtech DDX V3. Here it is fitted to an Ender-6 specifically. The adaptor requires additional hardware. Two heat set inserts, and two M5 cap screws. With the top of the adaptor bolted in place, the Palette feed tube successfully stays in place during printing. Removing the 2 screws and the top, the extruder can be used again with a regular PTFE or Capricorn feed tube. Note: The mounting block needs to be glued to the side of the extruder. This should not interfere anywhere, but test to make sure before permanently adhering to the extruder side. Get his design for less than the price of a coffee! All logos presented are the property of their respective owners.


3D printing settings

Print with PLA, ABS or PETG.
0.4mm Nozzle, 0.2mm layers
4+ Walls to ensure heat set inserts have plastic to adhere to
20% infill

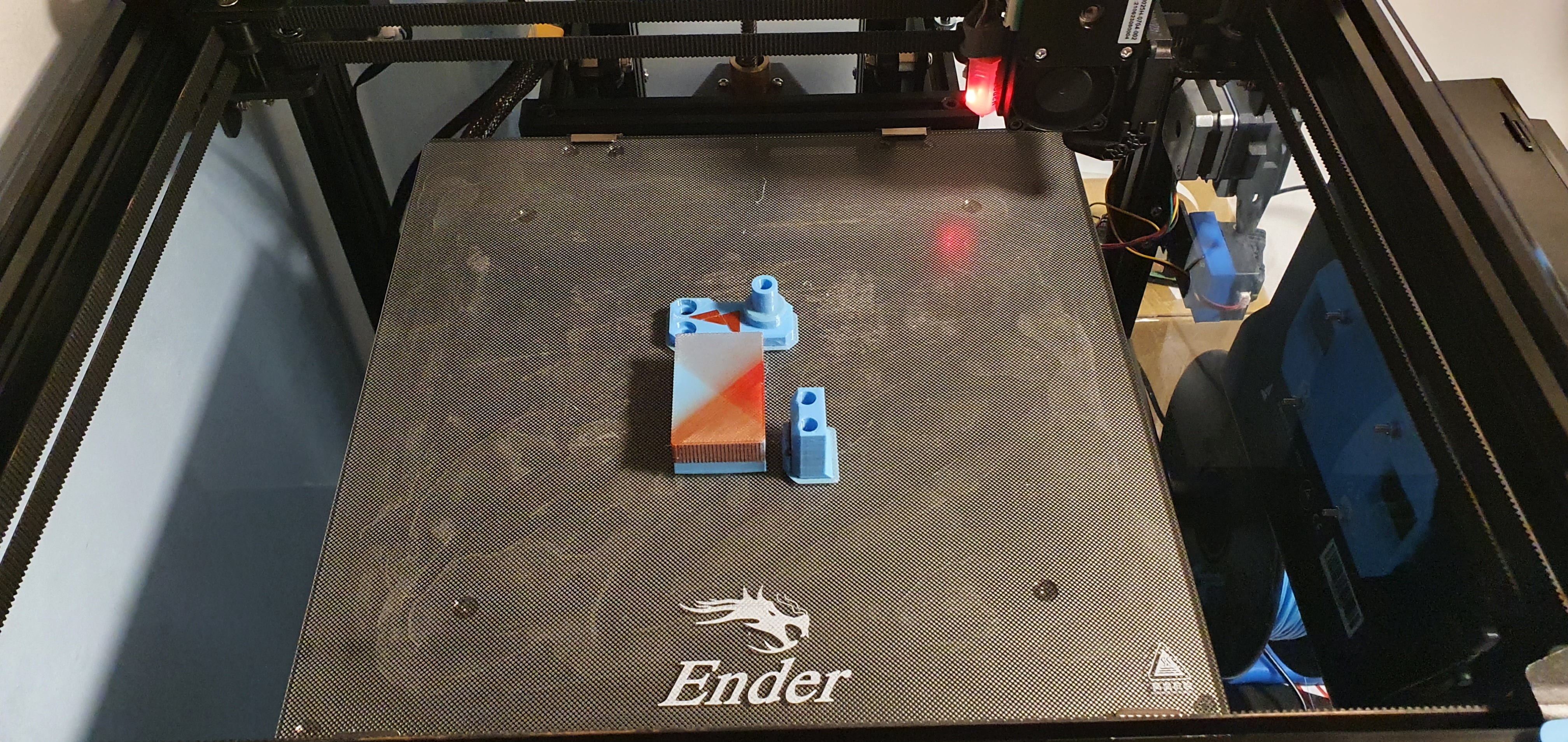

I used the Palette to make the Bondtech and Mosaic logos red. Both logos are provided as seperate STL's for the purpose of multicolor printing.

3D printer file information

  • 3D design format: STL Folder details Close
    • 1-_Bondtech DDX v4_BT L 1_Bondtech DDX v4.stl
    • 1-_Bondtech DDX v4_BT L 2_Bondtech DDX v4.stl
    • 1-_Bondtech DDX v4_BT L 3_Bondtech DDX v4.stl
    • 1-_Bondtech DDX v4_BT L 4_Bondtech DDX v4.stl
    • 1-_Bondtech DDX v4_Extruder Clip_Bondtech DDX v4.stl
    • 1-_Bondtech DDX v4_MS L 1_Bondtech DDX v4.stl
    • 1-_Bondtech DDX v4_MS L 2_Bondtech DDX v4.stl
    • 1-_Bondtech DDX v4_MS L 3_Bondtech DDX v4.stl
    • 1-_Bondtech DDX v4_Mounting Block_Bondtech DDX v4.stl

    Learn more about the formats

  • Publication date: 2021-09-30 at 09:16
