ORTUR NEJE Lift adapter kit - Mk3 :

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 2 likes
  • 4 downloads

3D model description

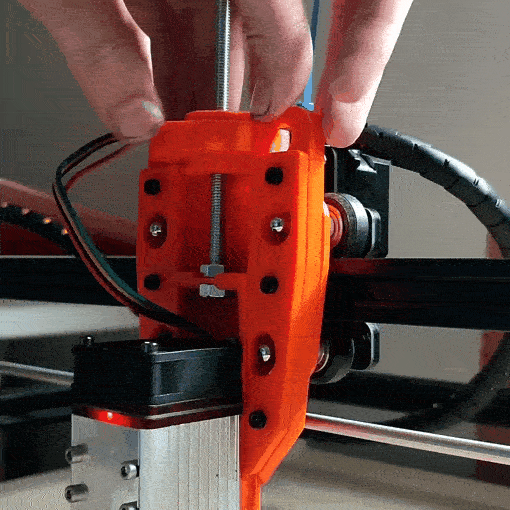

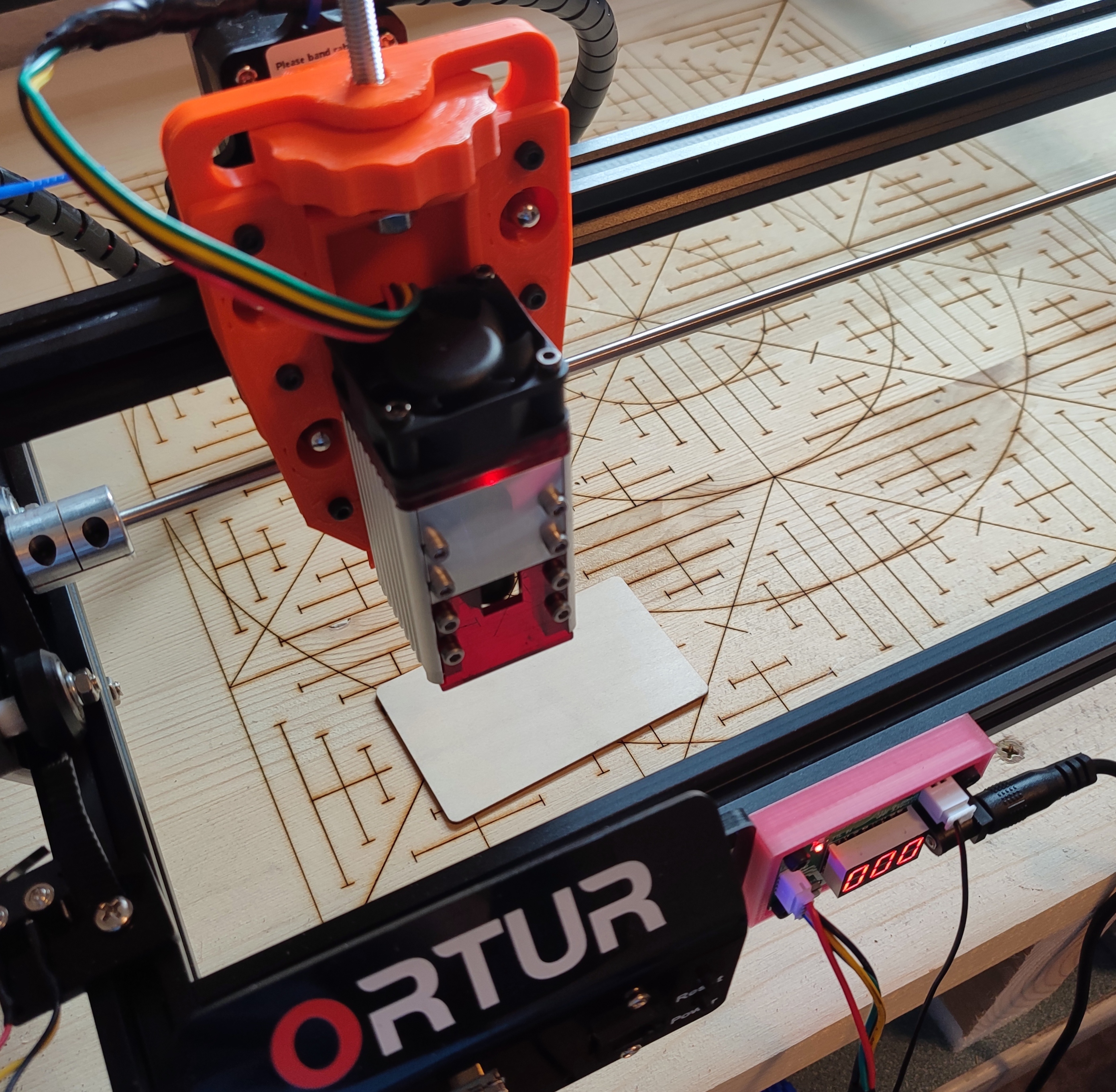

a highly constrained lifting kit for mounting a NEJE laser block on to an ORTUR LM2 frame. allows the user up to 100mm of lifting space

highlights:

(!) deploys adjustable pieces that compensate for poor printer tolerances.

(!) 7mm standoff distance, saving as much workspace as possible on the ORTUR frame.

================================

HARDWARE REQUIRED:

for carriage assembly
1 M6 x 120mm threaded rod
3 M6 hex nuts
6 M3 bolts 10-15mm long

to mount the adapter board
2 M3 x 8
2 M3 t-slot nuts

================================

LINKS

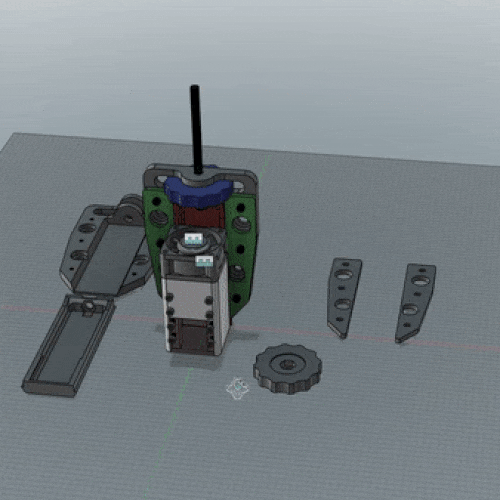

assembly instructions
https://www.youtube.com/watch?v=ZxQ7hMvqgiU

electrical hookup instructions
https://www.youtube.com/watch?v=C4WfgJUurdU

purchase kit printed in ABS from Etsy shop:
https://www.etsy.com/listing/1057662833/printed-abs-ortur-lm2-neje-laser-adapter


3D printing settings

NO SUPPORT REQUIRED

-0.1 horizontal offset

3D printer file information

  • 3D design format: STL Folder details Close
    • NEJE test board mount.stl
    • X plate.stl
    • back plate.stl
    • left retaining leaf.stl
    • right retaining leaf.stl
    • wheel.stl
    • z carriage.stl
  • Last update: 2021/09/15 at 07:51
  • Publication date: 2021/07/26 at 01:42
