Operation Wolf Assault Weapon - Gun Shell- for GUN4IR
:still():format(webp)/https://files.cults3d.com/uploaders/19142293/illustration-file/a22df1c8-497d-4364-8c7e-9eeae96dc767/image8442.jpg)
/https://preview3d-images.cults3d.com/variants/vsifgugeayauwbgl273to1qjt10u/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/94cntui1i9aa4ptvnqmtwrlo8s7l/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/ms23lxp68ck7sczghyg594q39ewz/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/mk0prvechmnt5a2epyprf9ob6n1u/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/aymkyqsa8jbzmkttodisrojc0k29/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/a7d6mm72s2hns567z2ljpqpmgz37/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/8vf4ch4rxix40sq6irrvprizcpbv/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/qp7veuykch1jw2xqih83b3c4ofj3/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/kaygfpm3lio2k86uuo8bbmncpl1a/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/vp7pbdy4ddn02vqo4zgokyajs033/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/akkezw93ee9kwubkovnrr6oq3jrk/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/f52bn9wtf1f3miskqho7hkc2wl3h/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/hrgup8v1290ofx3d8czzea3fkquw/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/wq49d95nfts32gvgaji50jss79o8/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/i9m4pbc0d864x7w7ckk68pt44t40/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/87m1dcb44xmlt189a4tm55srmd7l/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/rv16638o80ezn6lxybtvouyax70t/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/37q42g0ur4ixkh9tkst1t0vqnb9c/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/2ubc7gnnis1khoxwtiwb5gf7f4tx/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/9zm5ijipo4eognkjj2l23nfe397b/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/qj6ykkac8x5l1ye138k7aqdxchay/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/9zia2423w4mf8uu91jrnj79ck12c/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/g03p6kwibl6we1e0465ohxnw687d/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/wl8jnpfinal4bu4j8swxog9e993e/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/5s7f5zu4a7ag1scueouvof3x78gh/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/x8w69nmb9oi7nf7n0ybb4ko4150z/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/bb2fckdr3660oa9iubusu1b74xvm/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/py0h34vpdzigzdbr58gxpqgrjyam/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/wwuvnf1u25vv9nejboq7dsizjenc/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/zbcgddts5z1k419qg0lbyxmp1yay/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/m7tw7a4rh7jmvug0r24etkbziuov/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
🔫 3D models of guns or weapons are dummy objects or prop toys and have no real functionality as weapons. They are intended for entertainment or decorative purposes only. For any design violating our T&Cs, please report them.
?
Creation quality:
5.0/5
(2 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 6.5k views
- 16 likes
- 181 downloads
- 0 comments
- 0 makes
Designer
3D model description

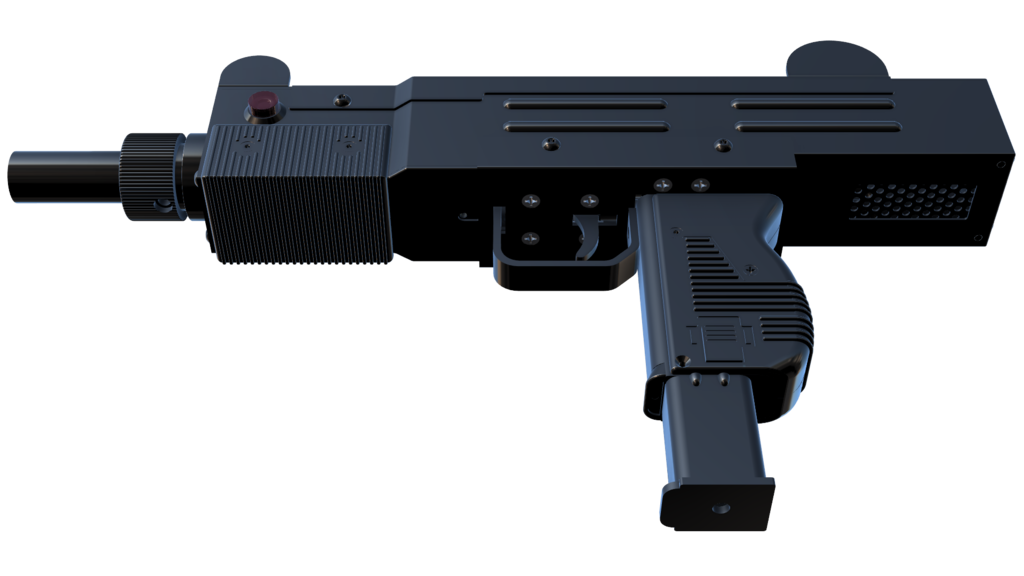

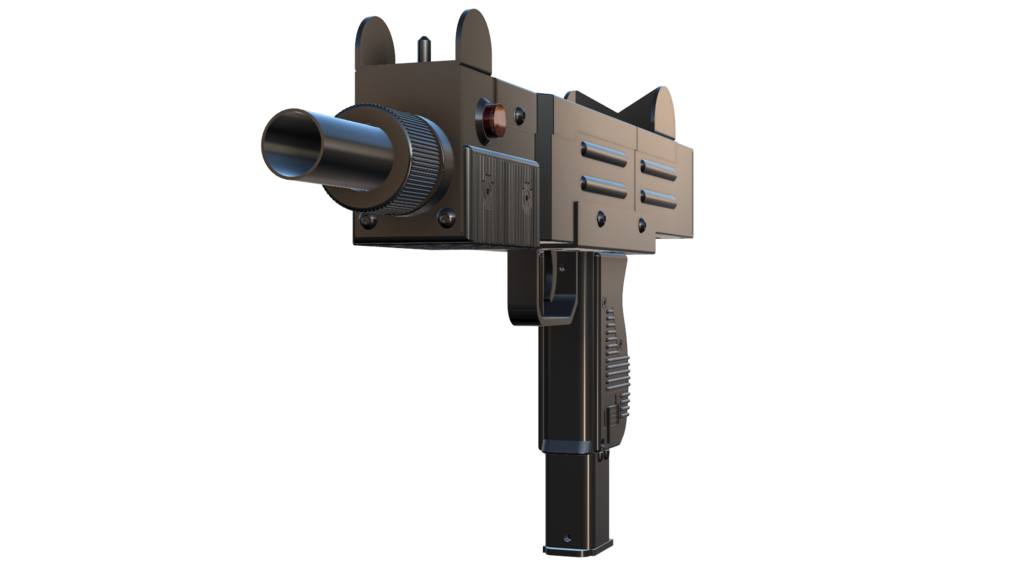

This gun shell is a replica from the Operation Wolf Arcade game. It is assembled much like it's sheet metal and steel father, but designed to be 3dprinted and hand held.
Mounting points inside for a recoil solenoid, and Arduino Micro.
Barrel inner diameter is just right to snugly fit a IR camera sensor from DFRobot..
Do not sustain a lethal injury, always wear protection and be mindful of hot surfaces!
\\CHANGE-LOG\\
1\7\22
Added mount for XBOX 360 rumble motor.
PARTS ADDED: rumble_mount.3mf
Added a pretty detailed assembly guide pdf. Updated BOM file.
6\20\21
PARTS REMOVED: 0
PARTS UPDATED: 1 BOM text file
PARTS ADDED: 1 lgs_assy_guide.pdf (Includes BOM)
6\16\21
Enlarged arduino mount spacers.
PARTS REMOVED: 0
PARTS UPDATED: arduino_mount
PARTS ADDED: 0
6\15\21
split_main_body_R2: Corrected minor geometry error.
PARTS REMOVED: 0
PARTS UPDATED: split_main_body_R2
PARTS ADDED: 0
6\13\21
split_main_body_R1: Corrected minor geometry error.
trig_mech_1: added more adjustment space for screws.
PARTS REMOVED: 0
PARTS UPDATED: trig_mech_1, split_main_body_R1
PARTS ADDED: 0
PLEASE NOTE:
- BOM TXT file for links to all products used is currently missing a few items and "WIP", will update at a future date.
2.This is only the Gun Shell.
For electronics system information please see the official GUN4IR project page for further details.
LINK:
https://github.com/JayBee-git/GUN4IR
and
http://forum.arcadecontrols.com/index.php/topic,161189.msg1697808.html#msg1697808
3D printing settings
-
3D printer file information
- Design number: 481259
-
3D design format: 3MF, PDF, STL, TXT, and ZIP Folder details Close
- BOM_-_Operation_Wolf_Assault_Weapon_-_Gun_Shell-_for_GUN4IR.txt

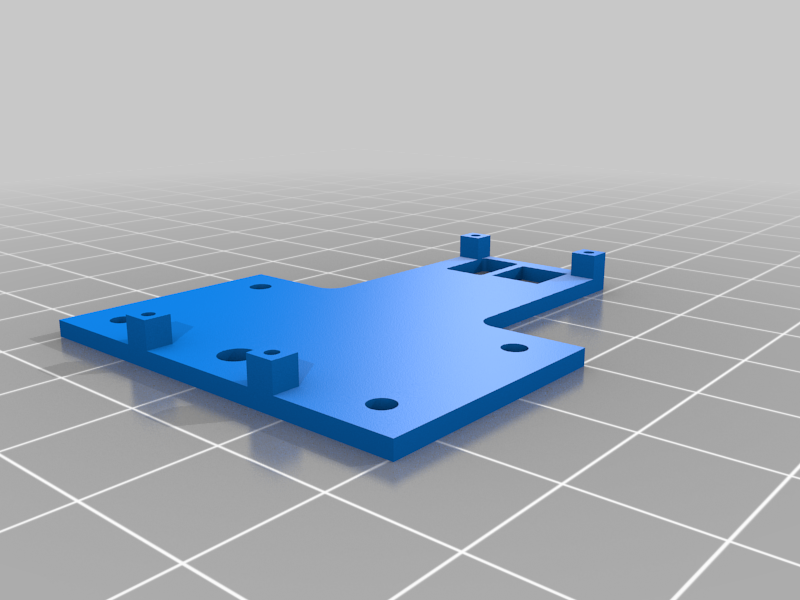

- arduino_mount.stl

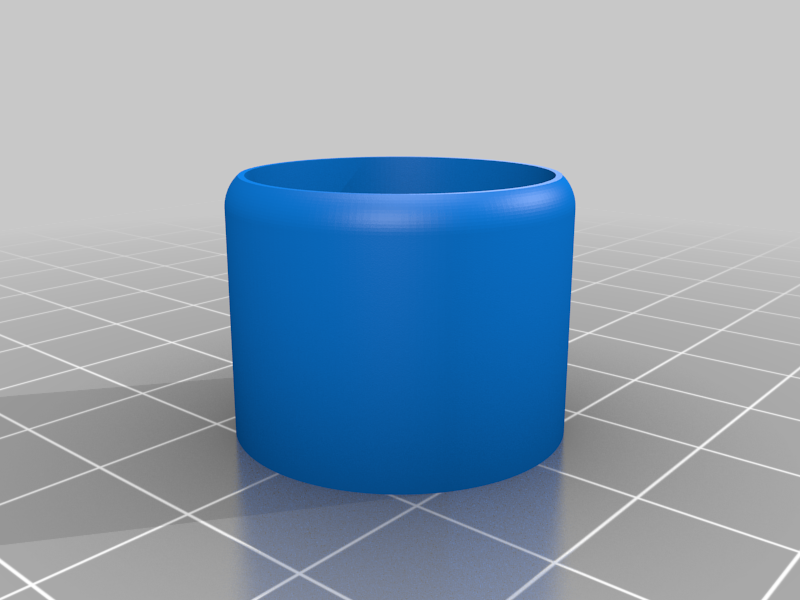

- fish_eye_adapter.stl

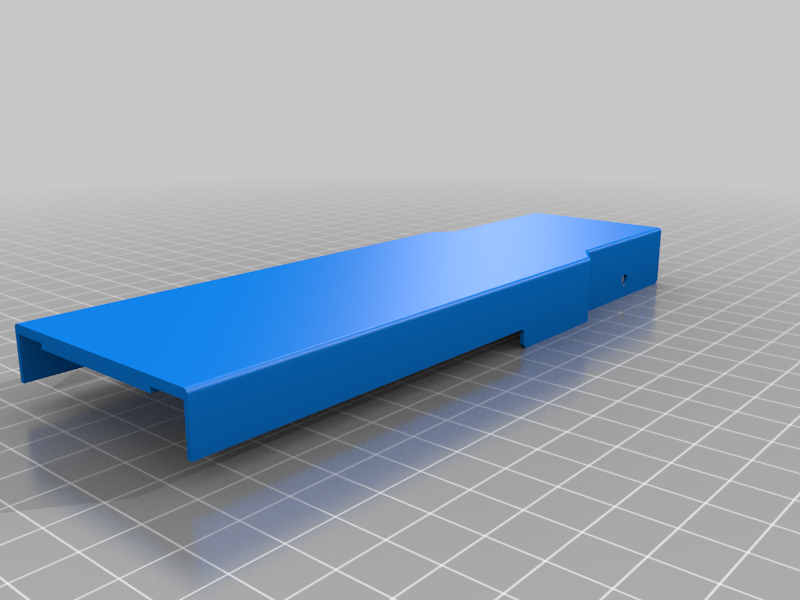

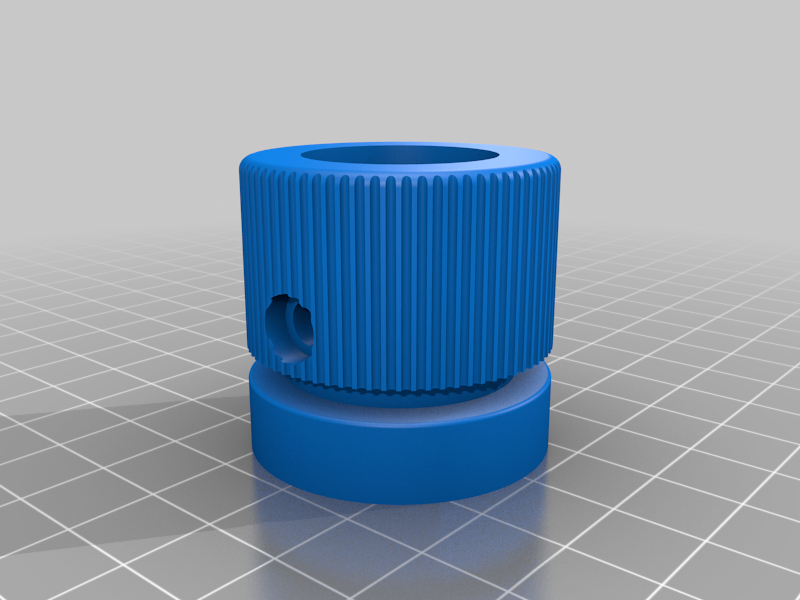

- front_barrel_1.stl
- front_barrel_2.stl

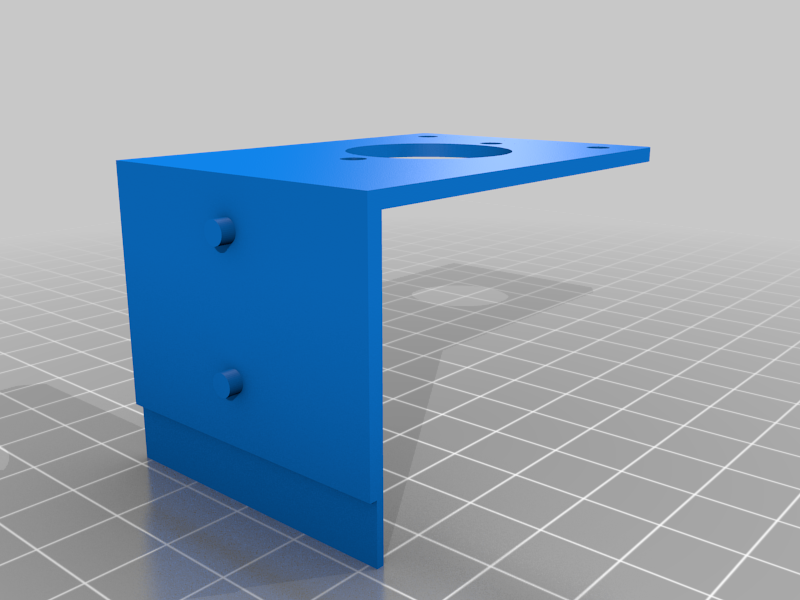

- front_barrel_face.stl
- front_bottom.stl
- front_grip_left.stl

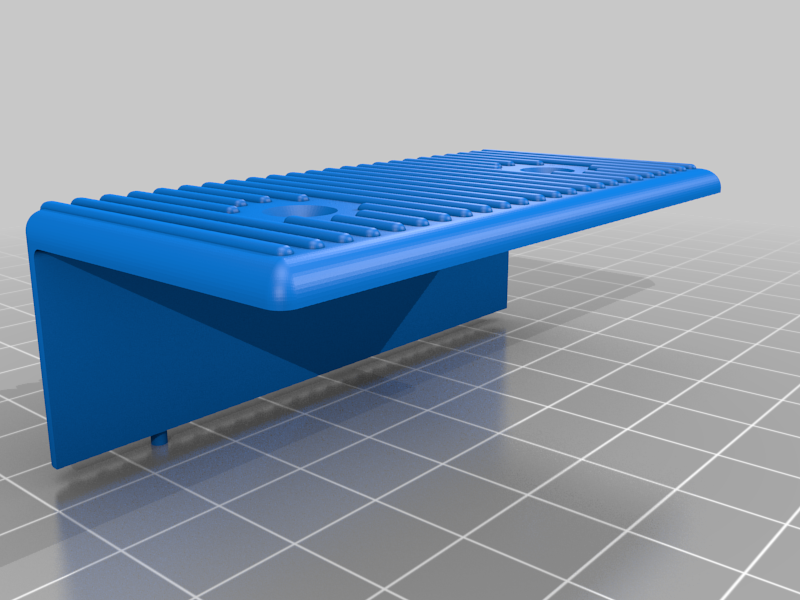

- front_grip_right.stl

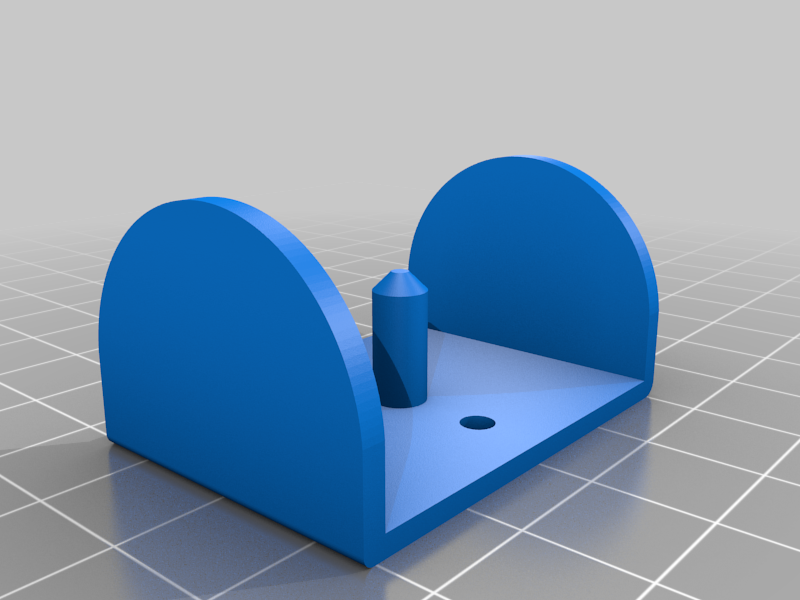

- front_sight.stl
- hand_grip_left.stl
- hand_grip_right.stl
- lgs_assy_guide_v1.1.pdf

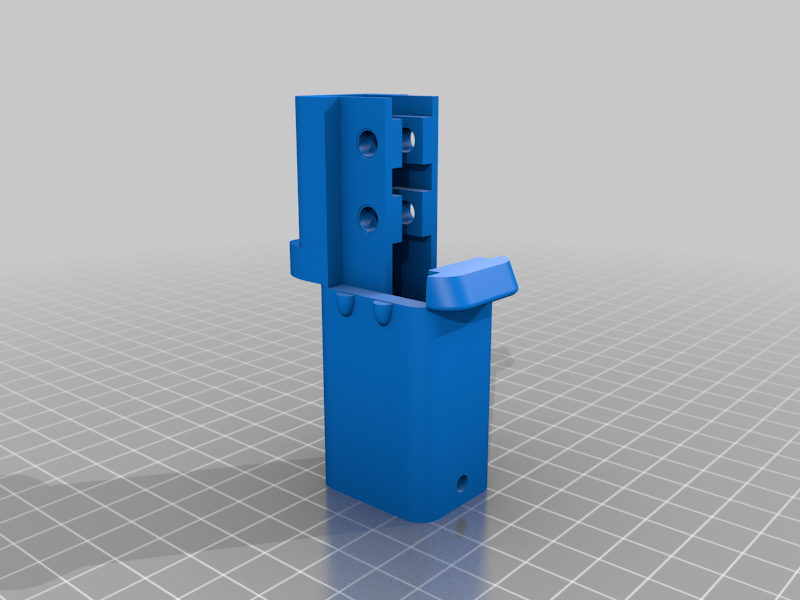

- lower_mag.stl

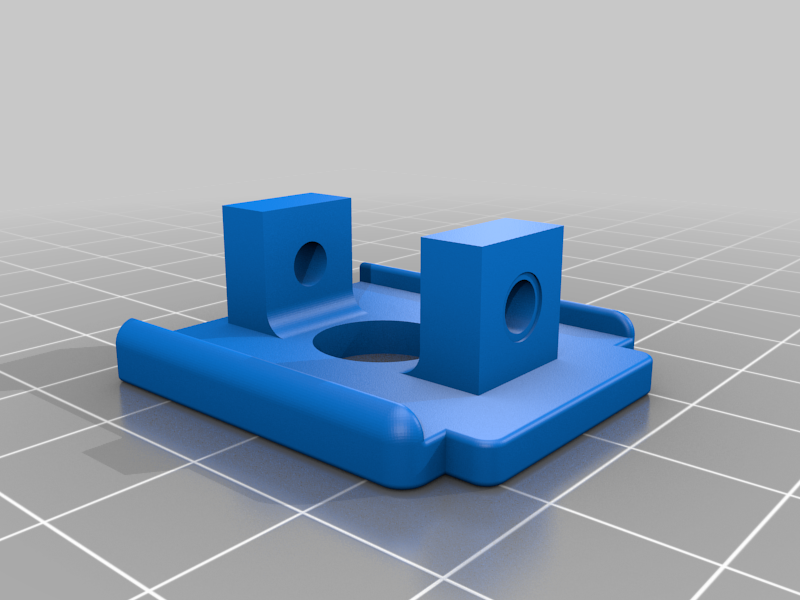

- mag_bottom.stl
- main_grip_body.stl
- middle_body.stl
-
op_wolf_3mf.zip
- arduino_mount.3mf
- fish_eye_adapter.3mf
- front_barrel_1.3mf
- front_barrel_2.3mf
- front_barrel_face.3mf
- front_bottom.3mf
- front_grip_left.3mf
- front_grip_right.3mf
- front_sight.3mf
- hand_grip_left.3mf
- hand_grip_right.3mf
- lower_mag.3mf
- mag_bottom.3mf
- main_grip_body.3mf
- middle_body.3mf
- rear_bottom.3mf
- rear_bottom_grate.3mf
- rear_sight.3mf
- rumble_mount.3mf
- split_main_body_L1.3mf
- split_main_body_L2.3mf
- split_main_body_R1.3mf

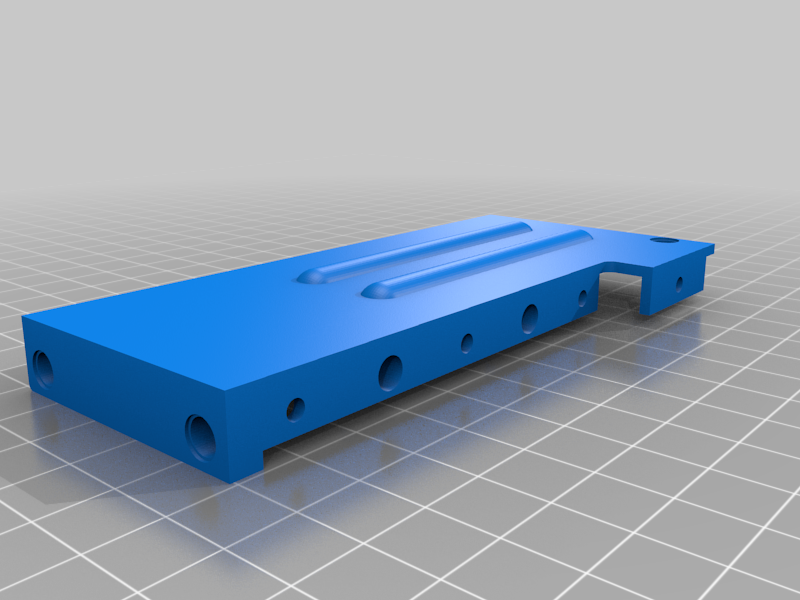

- split_main_body_R2.3mf
- split_top_1.3mf

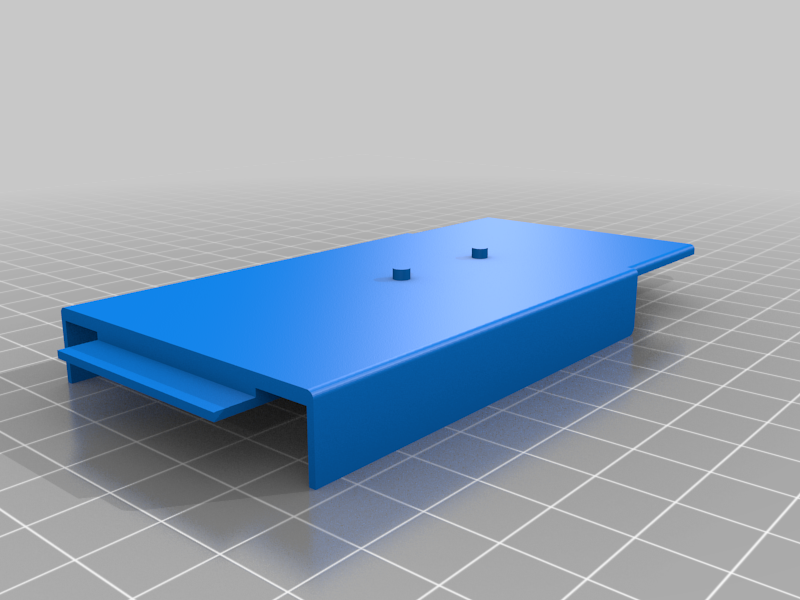

- split_top_2.3mf

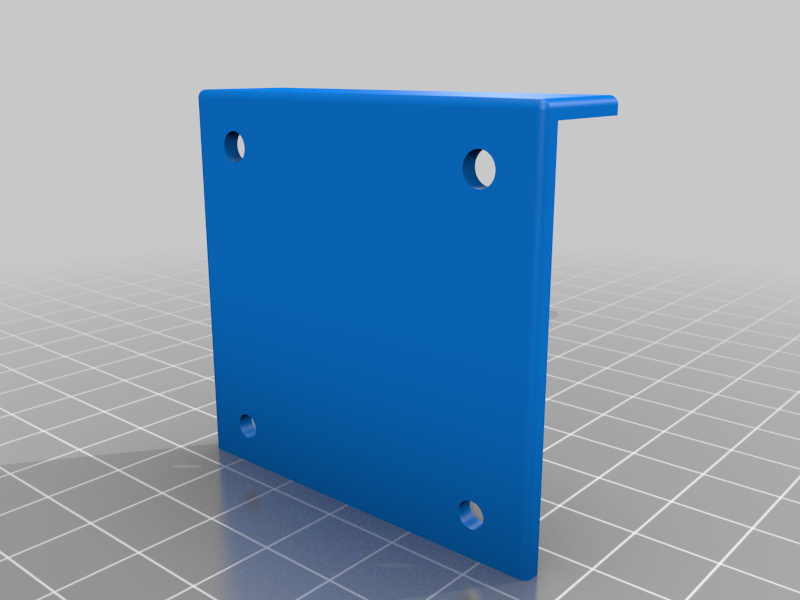

- split_top_3.3mf

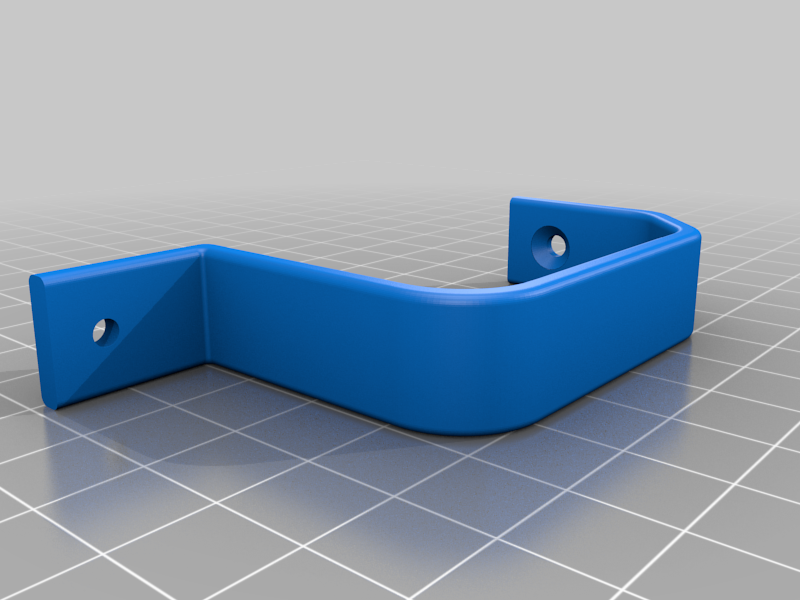

- trigger_guard.3mf
- trig_mech_1.3mf

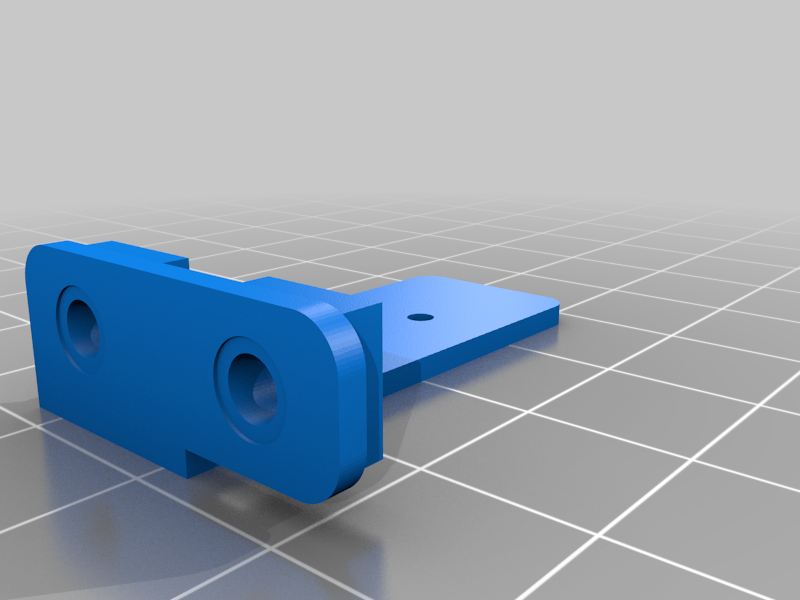

- trig_mech_2.3mf

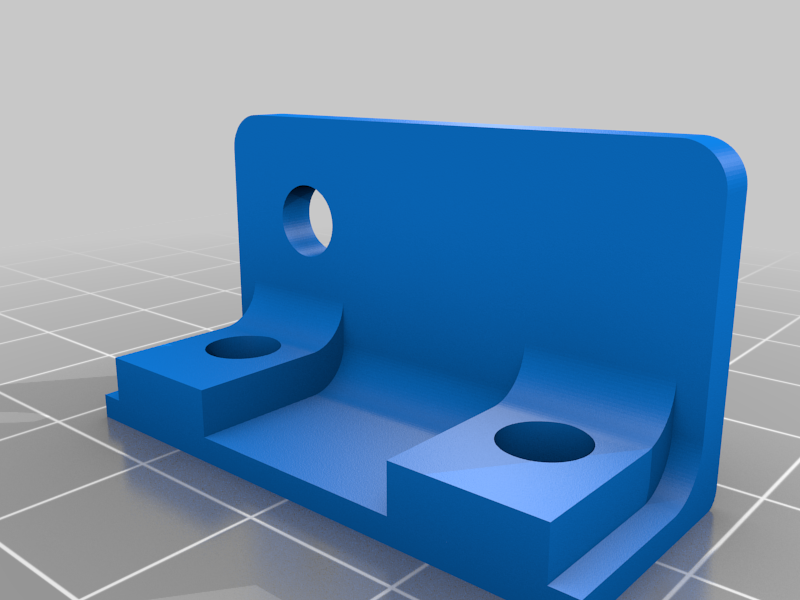

- trig_mech_3.3mf
- trig_mech_4.3mf

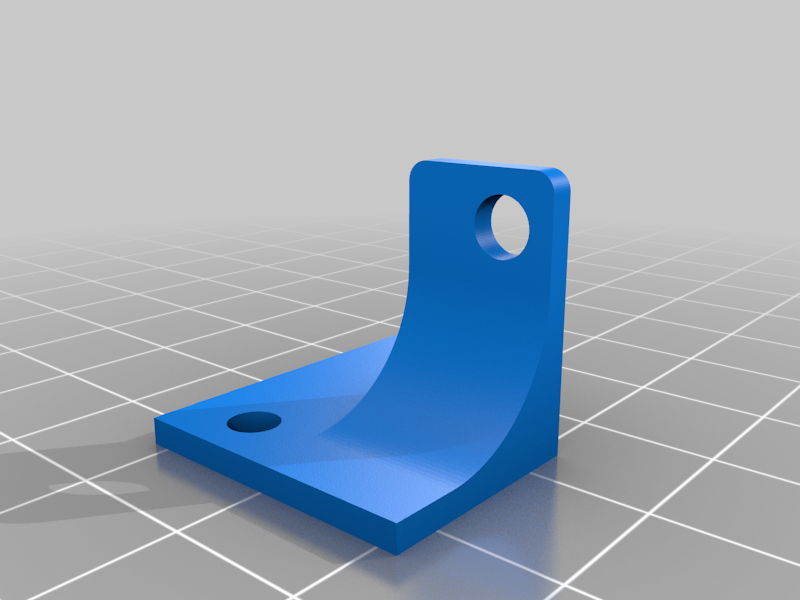

- trig_mech_5.3mf

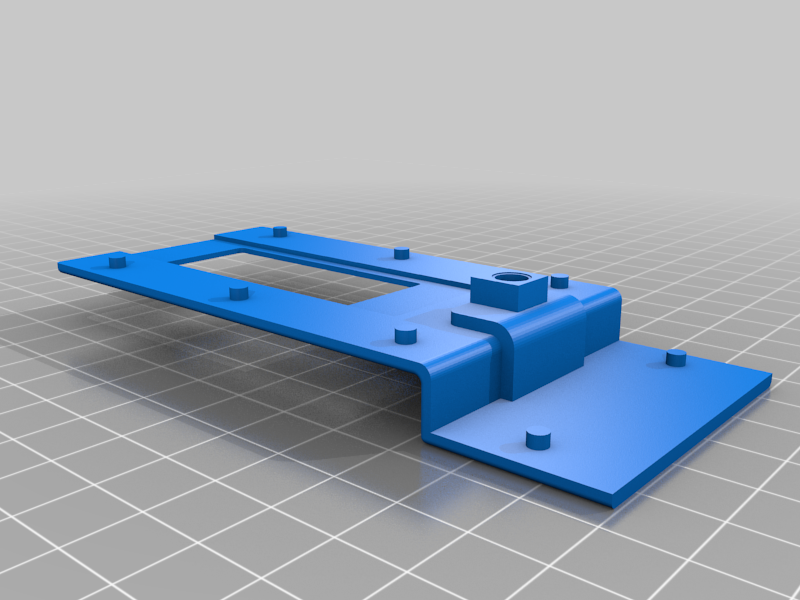

- rear_bottom.stl
- rear_bottom_grate.stl

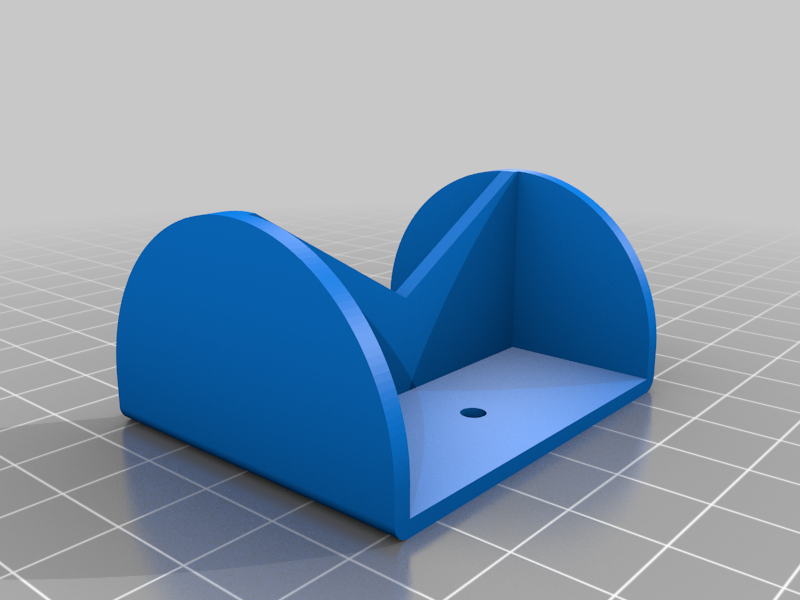

- rear_sight.stl
- rumble_mount.3mf

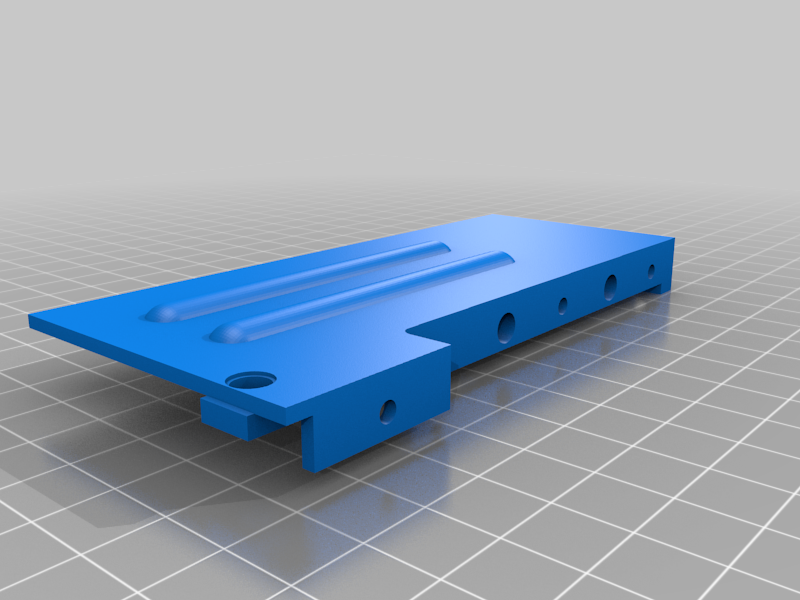

- split_main_body_L1.stl
- split_main_body_L2.stl

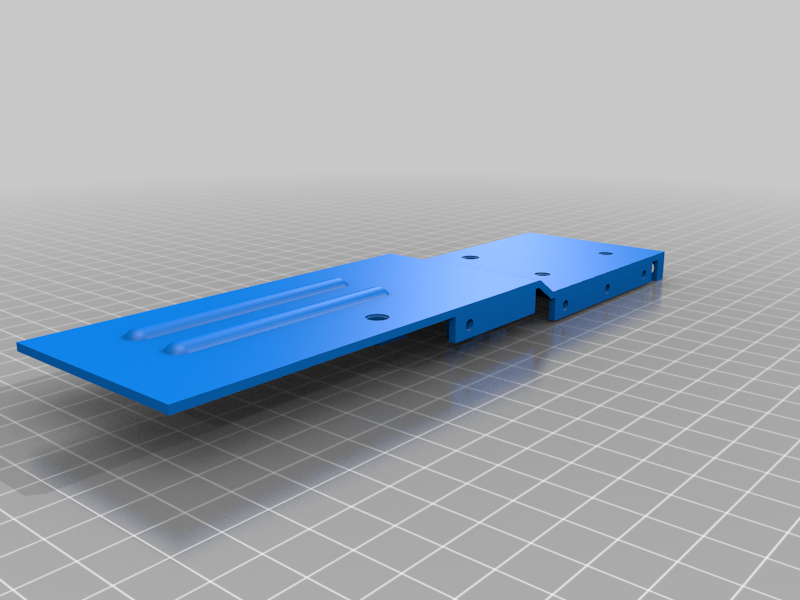

- split_main_body_R1.stl
