3D model description

Timeline of Updates:

3/10/2021: Initial Upload

3/11/2021: Improved Snap-Together Pieces. Updated Hinge, Ring Bottom, Ring Top, Ball Top, and Steam Valve.

3/24/2021: New Inserts! I uploaded files for a Nintendo Switch Game Insert (2 Piece) & Jewelry Insert (3 Piece). The previous silver ring design (top & bottom) changed to accommodate the snap-in inserts (now v2).

3/25/2021: Steam Hinge with Extra Clearance Added

7/26/2021: New Files 'Ball Top (Extra Clearance)' and 'Ball Bottom (Extra Clearance)' added to help with the rings snapping into place.

Model Description

Here is my take on the very unique-looking "Old" Pokeball from the upcoming game, Pokémon Legends: Arceus, with inserts for Nintendo Switch Games (Holds 16 Games) & Jewelry Storage (Multi-Tray System).

The Pokeball itself prints in 7 individual pieces and then simply snaps together, even the custom hinge! No glue or fasteners are required! The optional Nintendo Switch holder is 2 pieces, and the Jewelry Insert is 3. Inserts are designed to snap in and out of place easily.

I have also included some 'extra clearance' STL's if you are having a difficult time getting things to snap together.

You will need to have your printer reasonably dialed in to achieve good results with this design (as with most snap-fit designs)! The print settings I list are the settings I have had good success with, but feel free to adjust according to your printer!

As of 6/25/2021: If you wish to sell this model commercially, you can join my Patreon where I grant all of my patrons a commercial license. If you purchased my STL before then, your commercial rights are still in place.


3D printing settings

List of STL's (7 Pieces for Pokeball, 2 for Switch Insert, 3 for Jewelry Insert):

  • Ball Top
  • Ball Bottom
  • Ring Top
  • Ring Bottom
  • Hinge
  • Steam Valve (2 Different Clearance Options)
  • Small Notch
  • Switch Game Insert Bottom
  • Switch Game Insert Top
  • Jewelry Insert Bottom Piece 1
  • Jewelry Insert Bottom Piece 2
  • Jewelry Insert Top

Infill:
-I use 15% for Pokeball pieces, except 100% for the hinge. I also only use 5% infill for the inserts

Perimeters:
-2 Perimeters for all pieces seems to be fine, but you can feel free to add more for additional strength.

Support:
-You will need support for Ball Top & Bottom and Ring Top & Bottom. I have included photos of what my supports look like in PrusaSlicer. Make sure to use "Supports on Build Plate Only". You don't want supports to end up inside the notches that the hinge gets inserted into on the Ring Top & Bottom.

- I also included a photo of my support settings from PrusaSlicer (they're pretty much stock settings), but use whatever support settings work best for you.

Assembly:
- I have an assembly video in the highlights of my Instagram profile @thinair3d if you want to use that as a guide.

  • Here is a good assembly order to minimize the risk of breaking anything:

1) Snap the Ball Top onto the Ring Top (the one with the swinging latch)
2) Snap the Steam Valve onto the Ball Top. If you're having an issue with it snapping into place, there is an additional Steam Valve STL with more clearance.
3) Snap the Ball Bottom onto the Ring Bottom.
4) Insert the Small Notch into the Ring Bottom/Ball Bottom (It will be very snug, I advise CAREFULLY using pliers. You may hear two snaps, one snapping past the ring and the next snapping into place.)
5) Snap the Hinge into the Ball Bottom (It is easiest to do this side first; the 3 notches have more resistance than the 2 notch side.)
6) Snap the Ball Top/Ring Top onto the Hinge (which should already be installed onto the Ball Bottom).

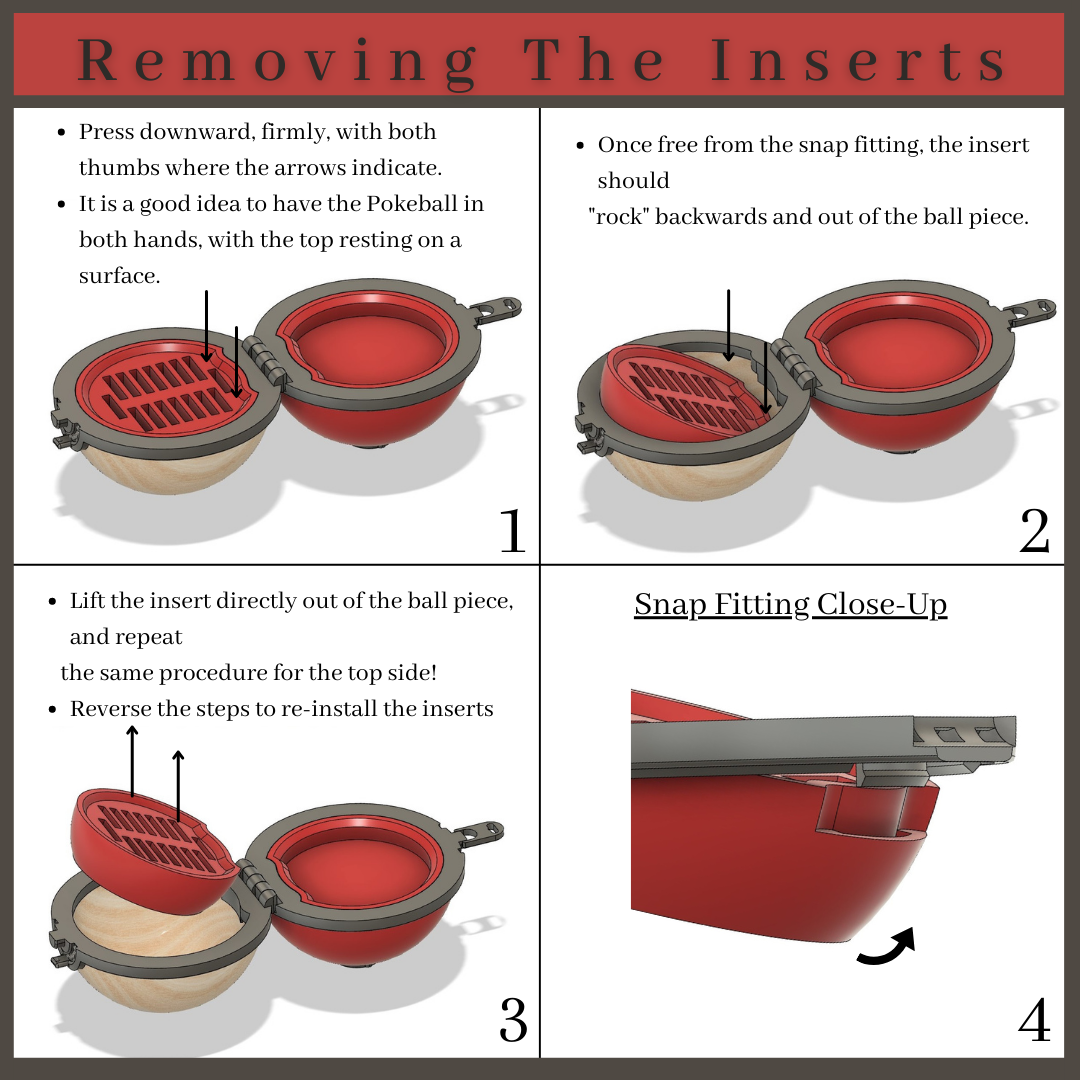

7) Snap Inserts Into Ball Top and Bottom using a rocking motion while pressing on the front - I included guide photos above!

**Be careful not to twist the hinge while assembling!

Troubleshooting:

-If the hinge is either too tight or too loose, you should be able to get away with either scaling down or scaling up by 1% to get a snug fit. Keep in mind, there should be a good bit of resistance to push the hinge into place (the more resistance, the better the final hinge fit). You should be able to CAREFULLY, and without twisting, snap it all into place by hand.
-You can also scale the small notch up or down 1% to get a better fit if needed.
- You're going to want to make sure there is no warping on any of your parts or you will have a difficult time getting a good fit with the ball and ring pieces. Use a brim if you need to.

-If you are still having issues, please feel free to message or email me and I will see what I can do to help!
