Mounting Base Scottoiler eSystem

3D model description

I am a fond user of the Scottoiler eSystem, an automated system to lubricate your motorcycle's chain & sprockets.

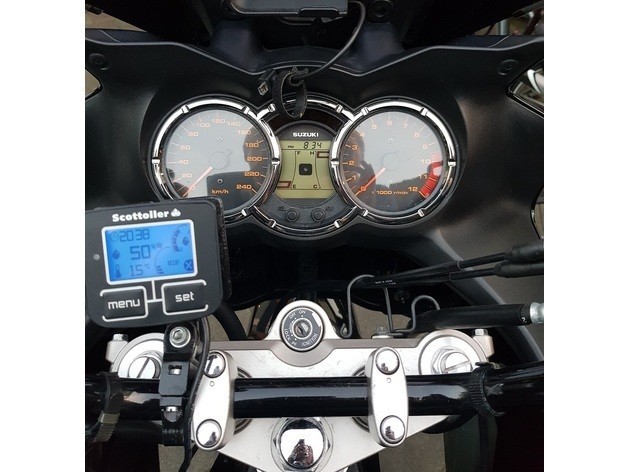

However, mine was installed on the left handlebar, using the standard mounting bracket. This works good normally, but alas - not in combination with my tank bag! In tight turns, when moving the bike about, the display unit often hit into the bag... Not the best base for a long product life, I thought...

So I figured, I'd try to think of an alternative mounting assembly & here's my take. :-)

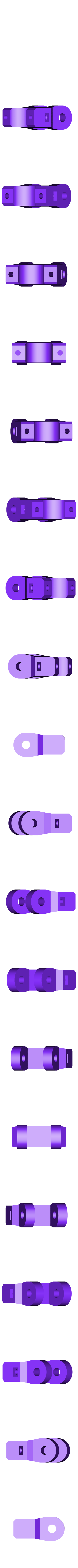

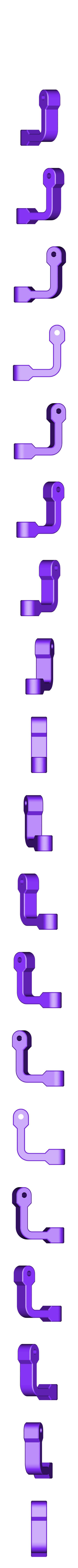

The platform (for the display) and the clamps for the handlebar were easily done - for the swivel, I needed a few iterations to find the one that (I think) will suit my bike best.

  • 1) This design is intended for a Suzuki V-Strom: other bikes may have different handlebar diameters.
  • 2) The handlebar clamp #2 is fitted with a thin neoprene rubber sheet, to increase friction on the handlebar.
  • 3) Tolerances are targetted at my printer & settings - adjust as required.
  • 4) I figured, the #3 swivel will suit my bike best: I included the other 2 versions in case someone might find these useful.
  • 5) Parts are configured for metric bolts & nuts - adjust as required.

You'll find the STEP source files included, to allow any of the above mentioned changes, should these be required.

3D printing settings

Printer: Velleman Vertex K8400
Rafts: No
Supports: Yes
Resolution: 0.2
Infill: 30 to 50%

  • 3D model format: STL and ZIP

Tags

Creator

Many interests, among which: motorbikes, photography, computers, travelling, ...,

License

CC BY NC
