Mk.82

3D model description

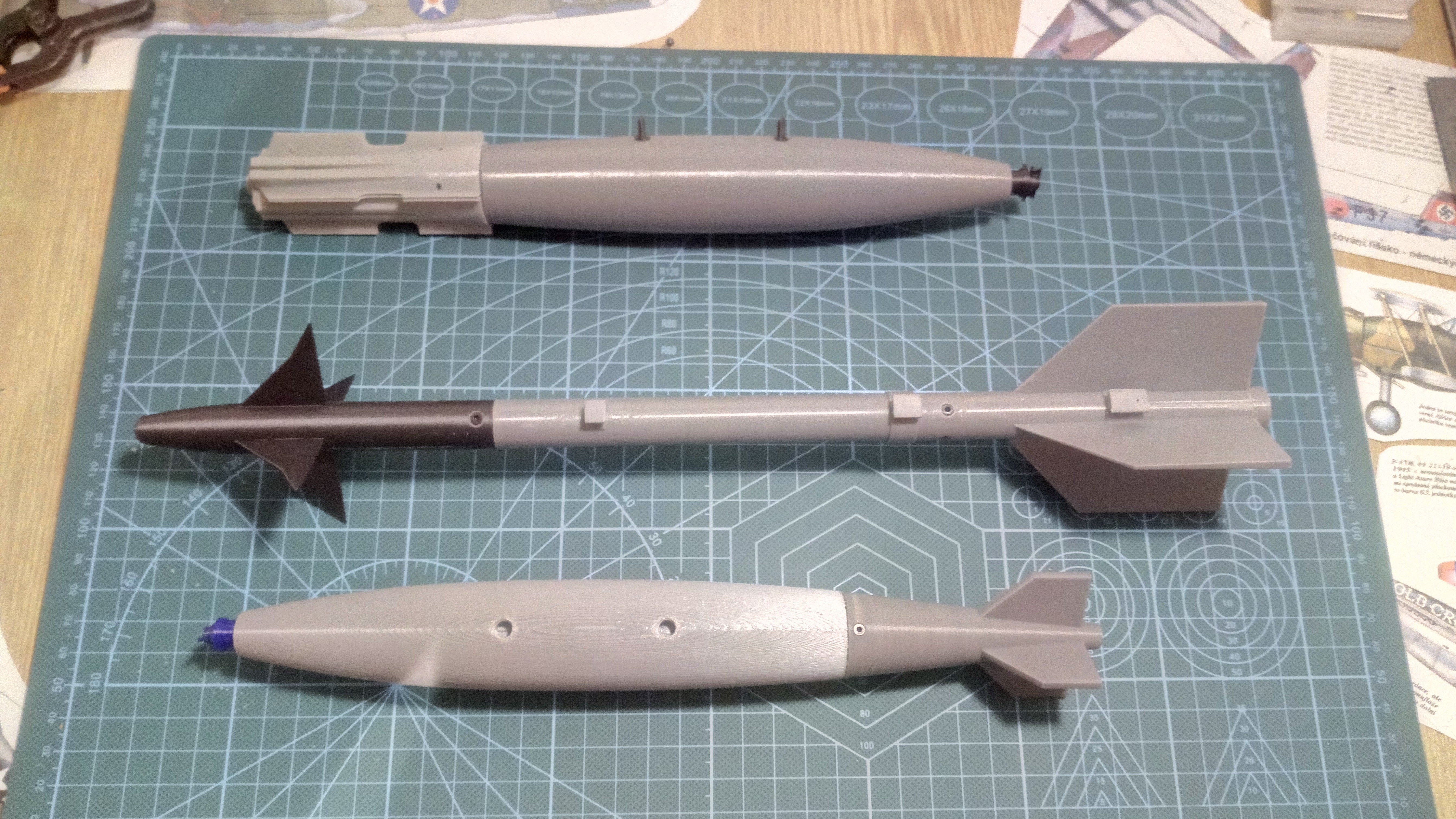

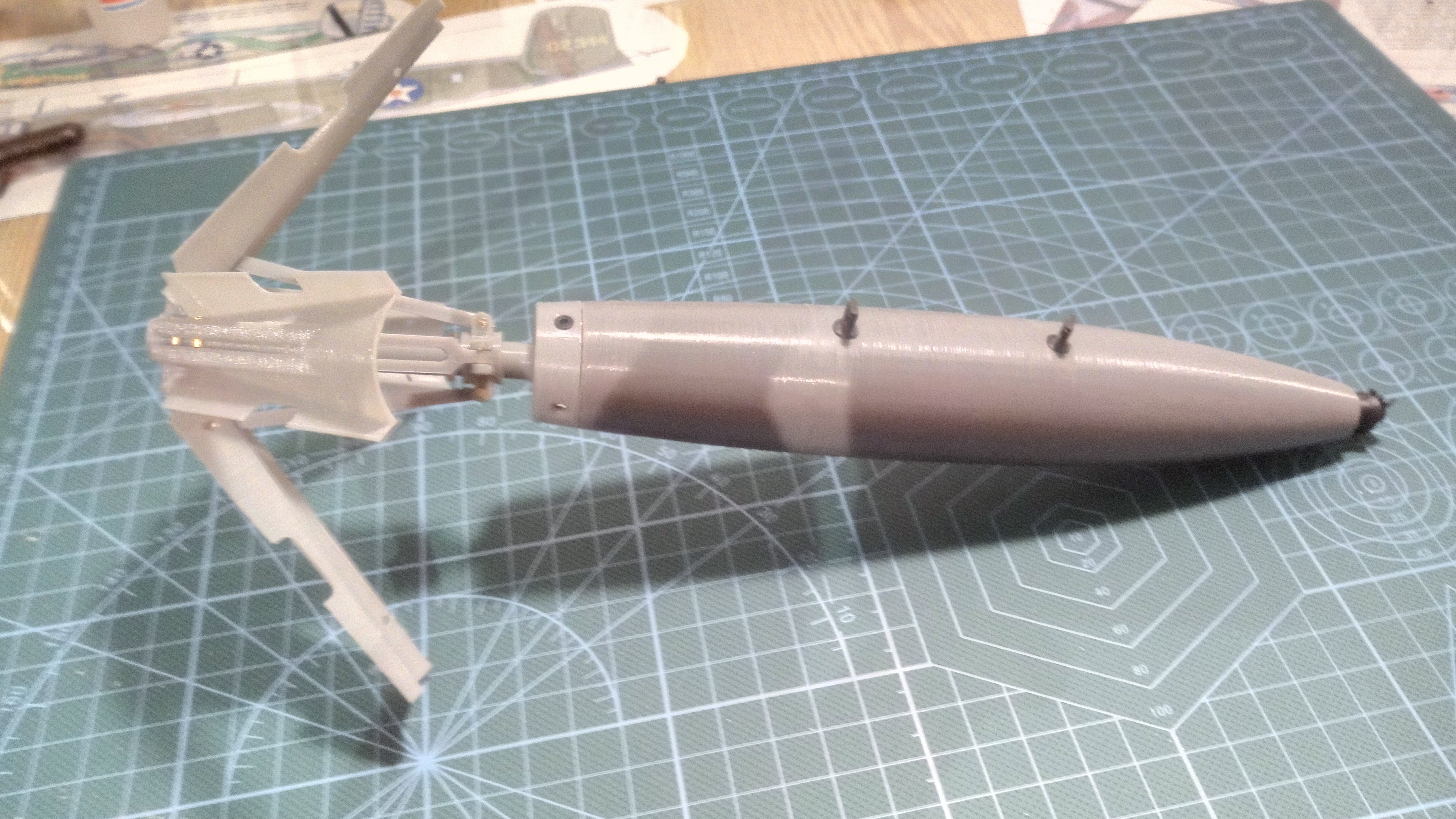

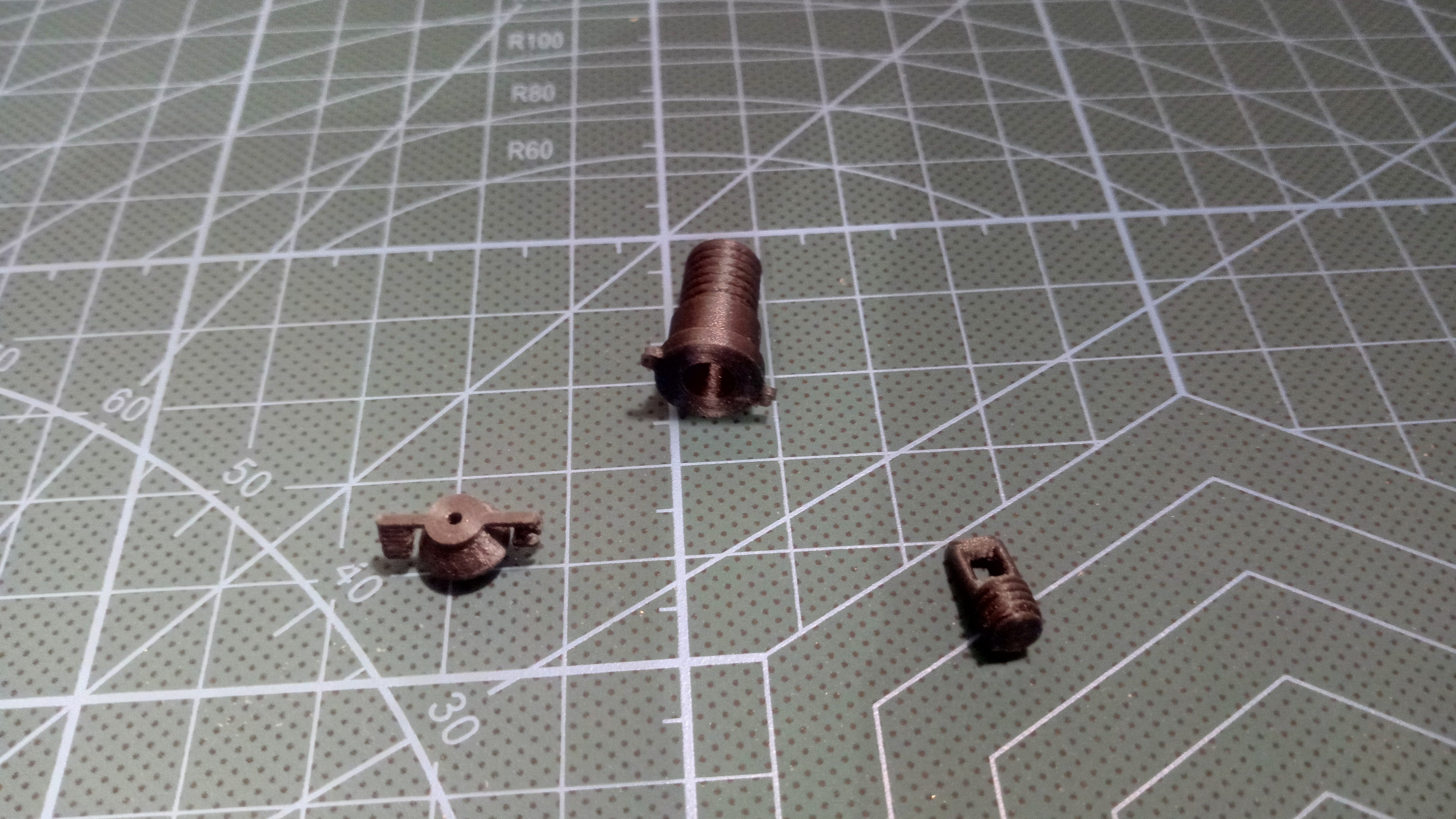

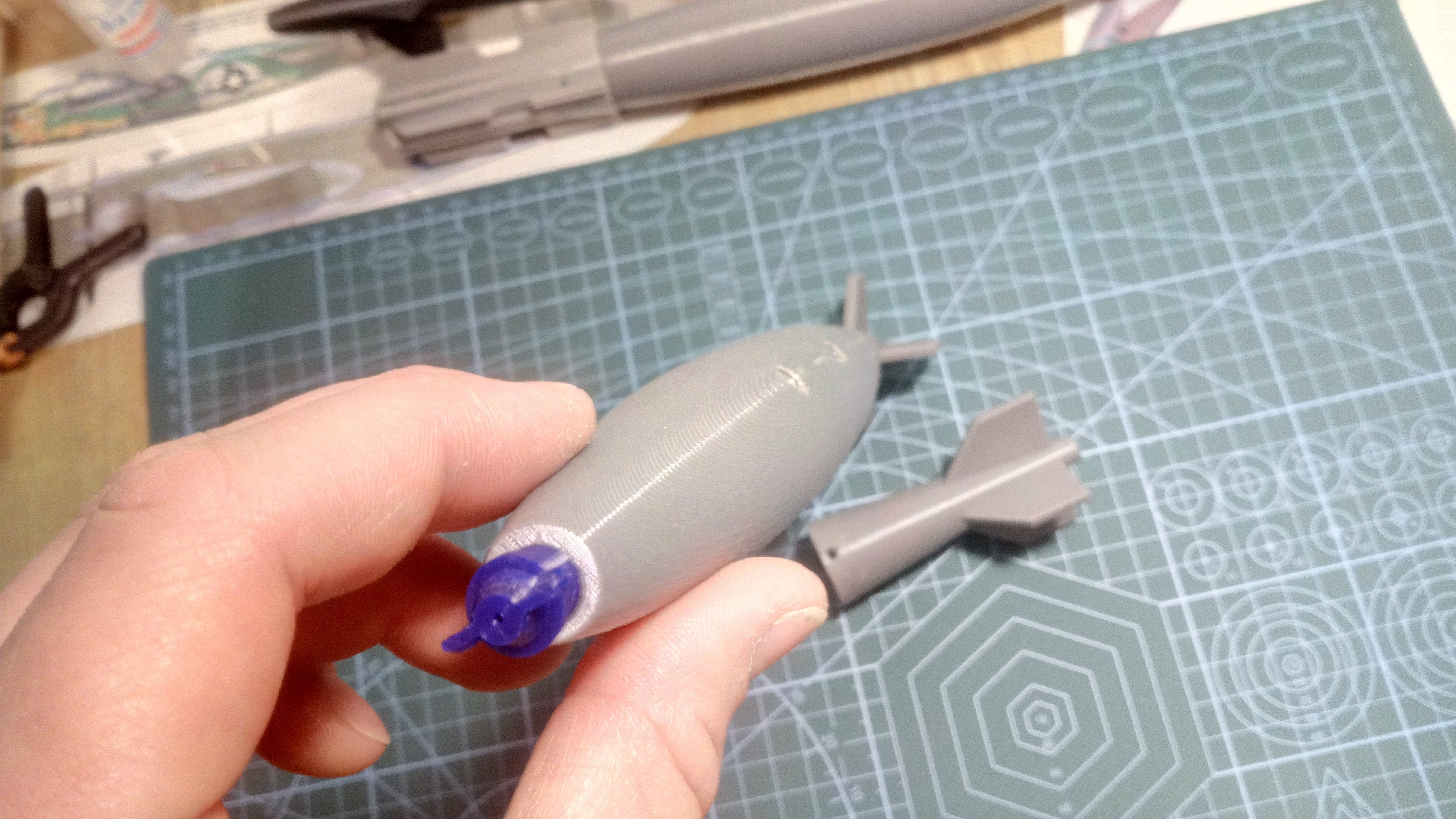

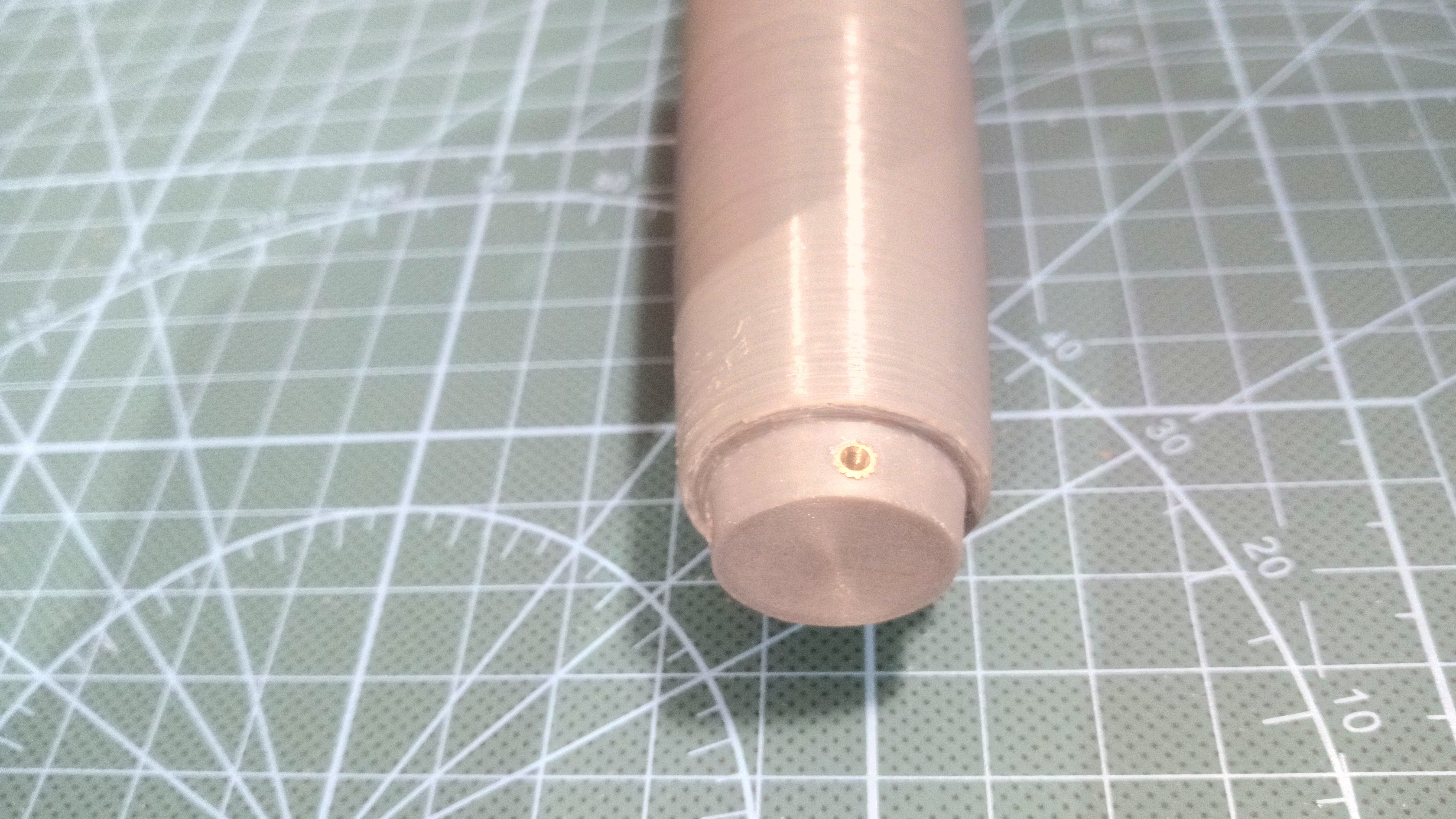

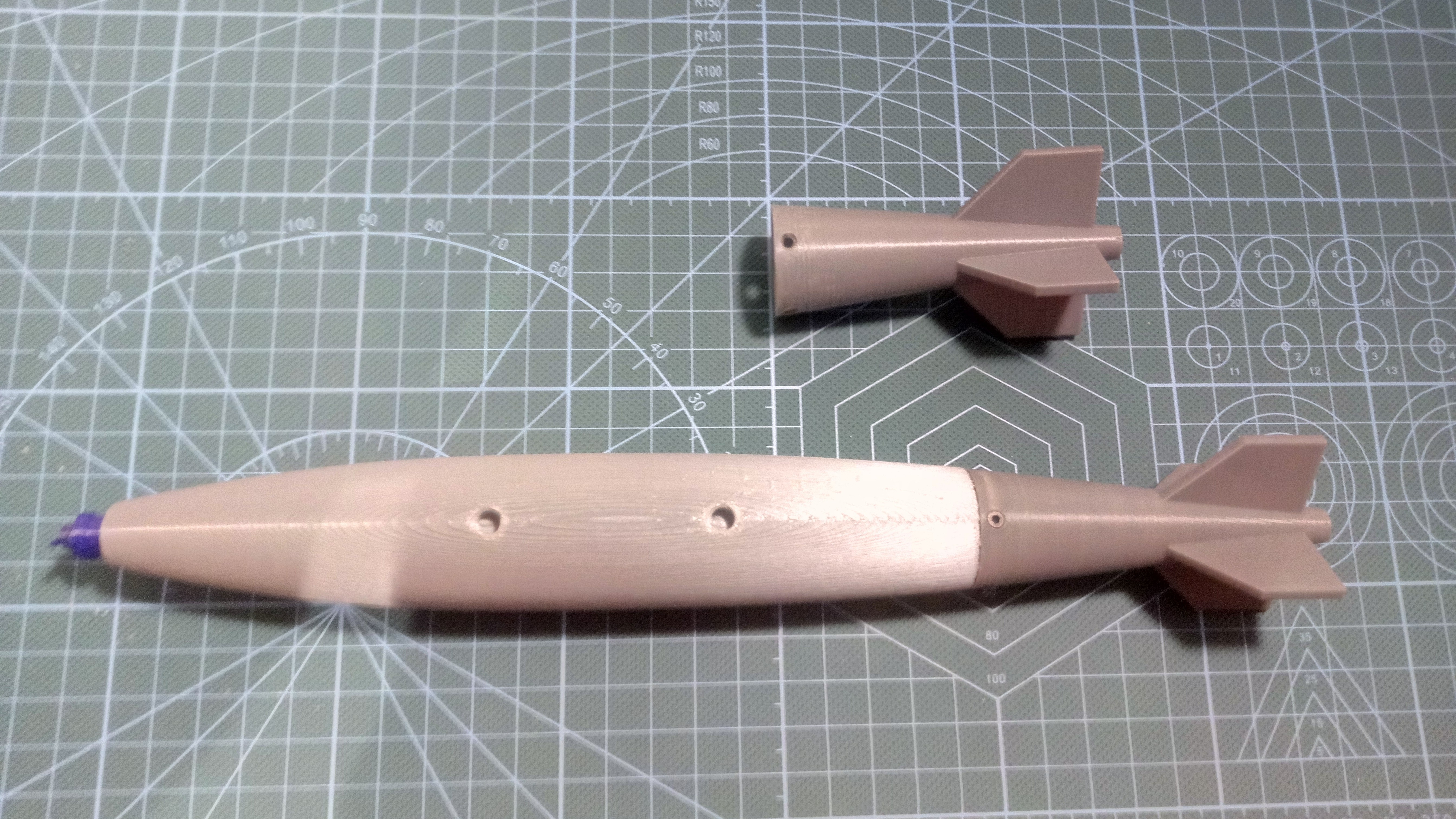

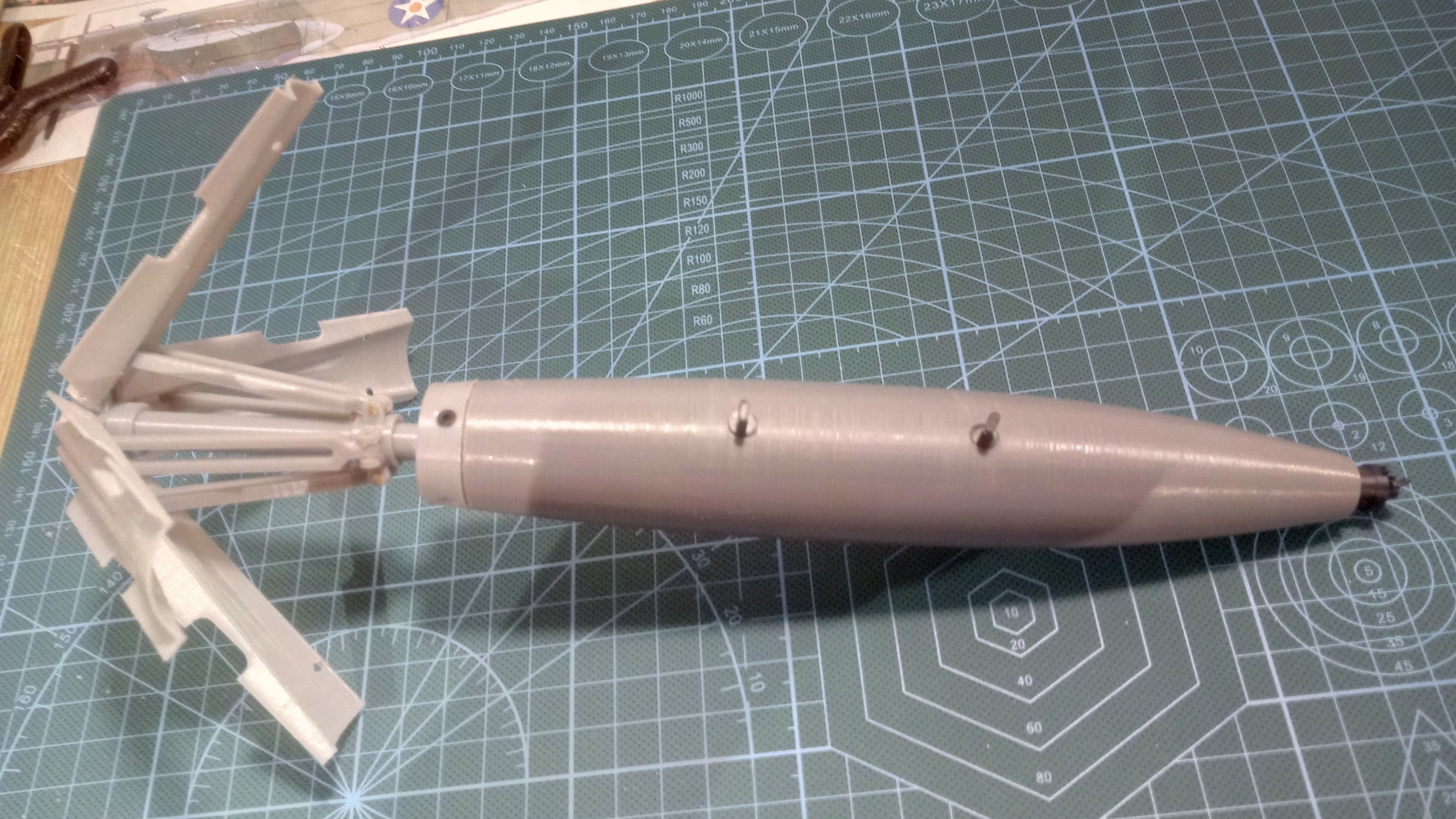

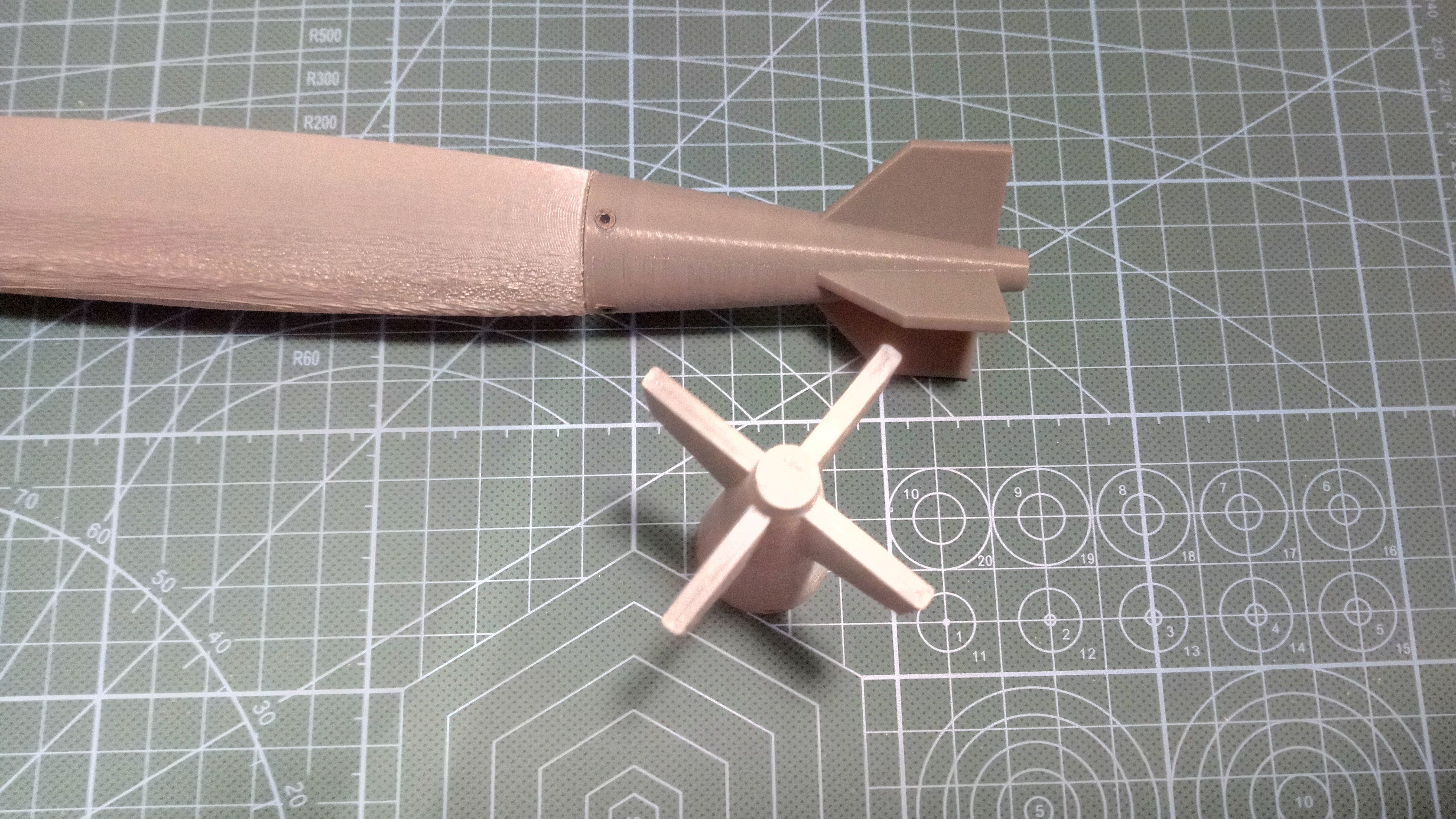

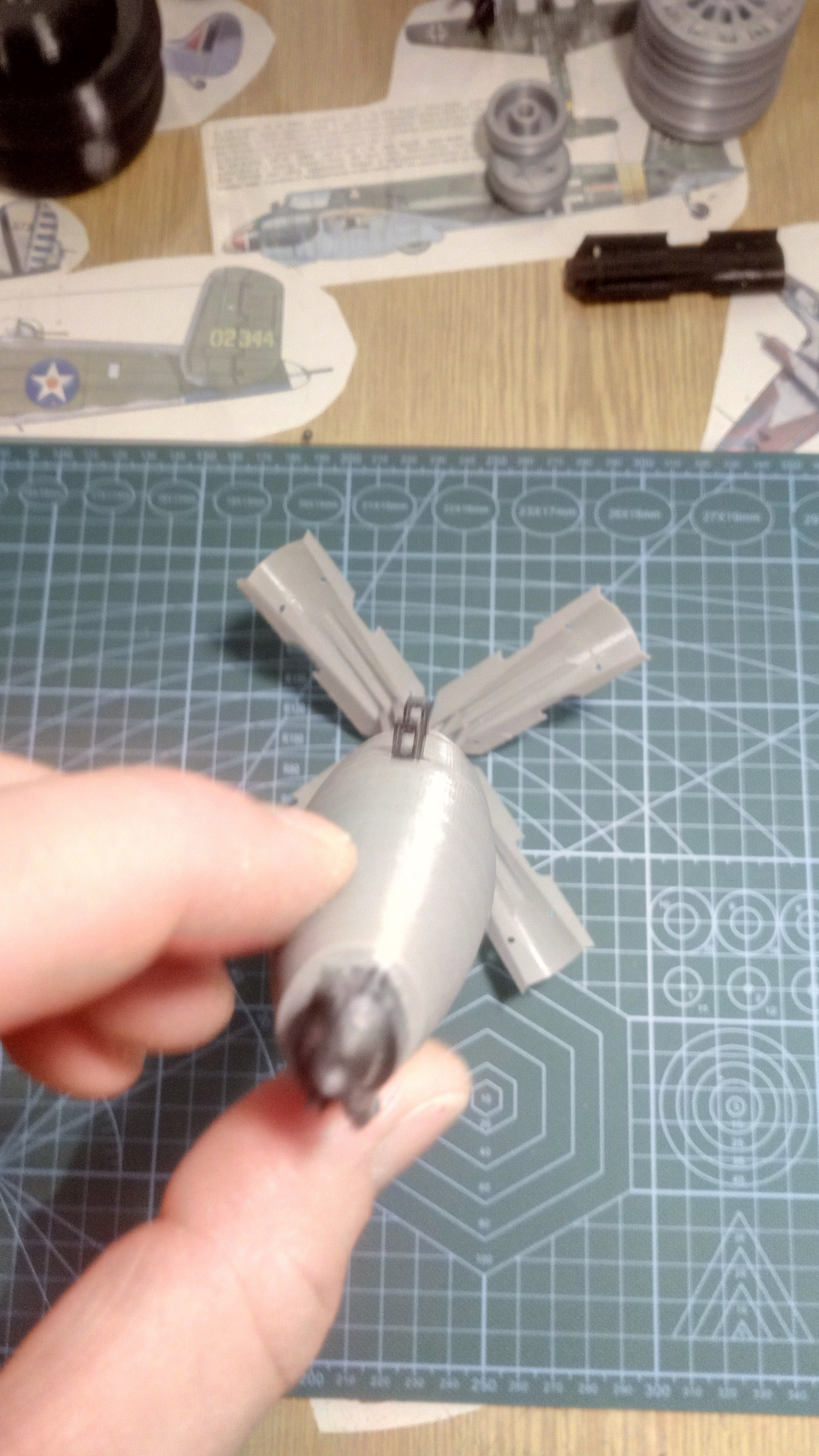

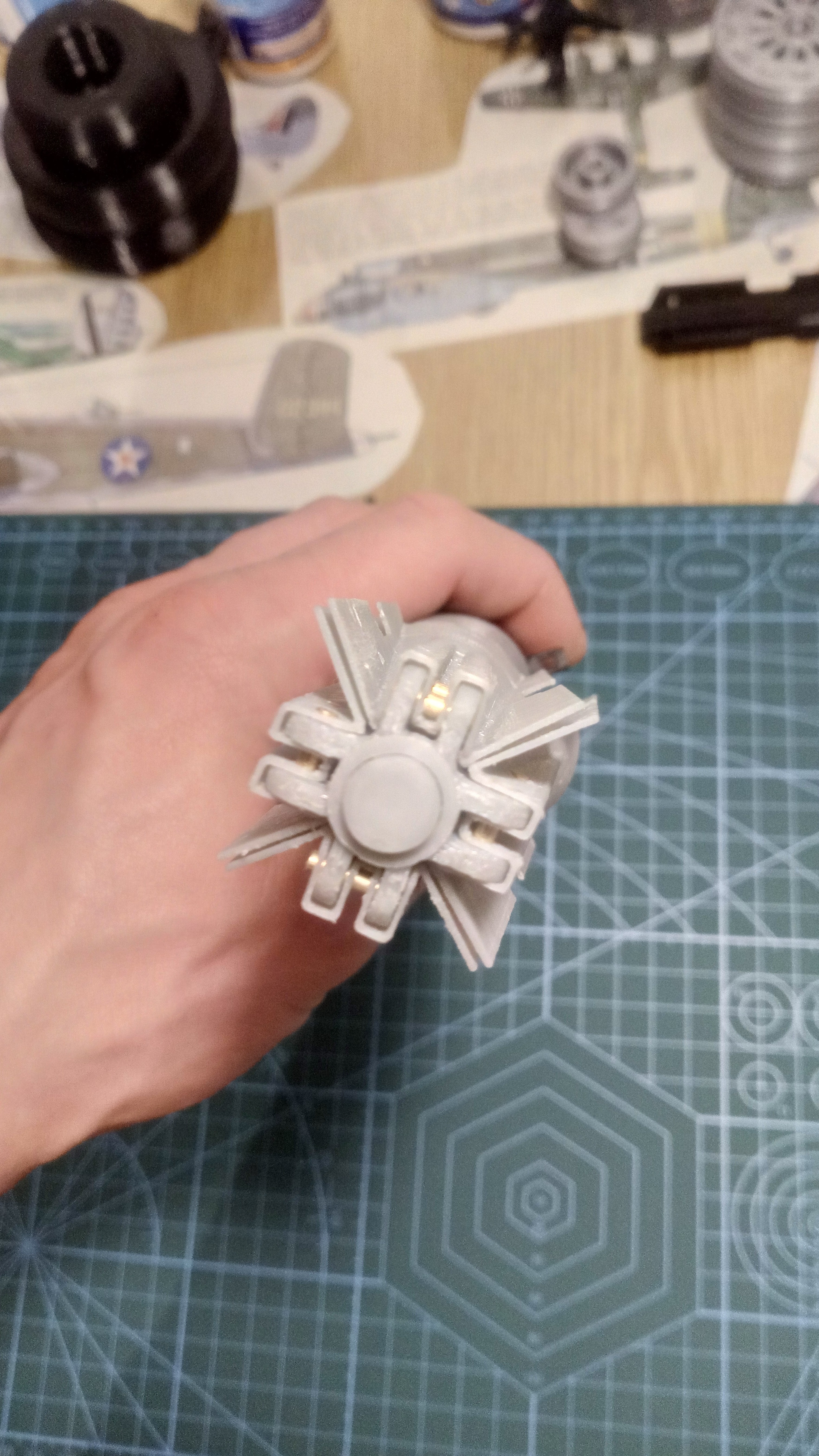

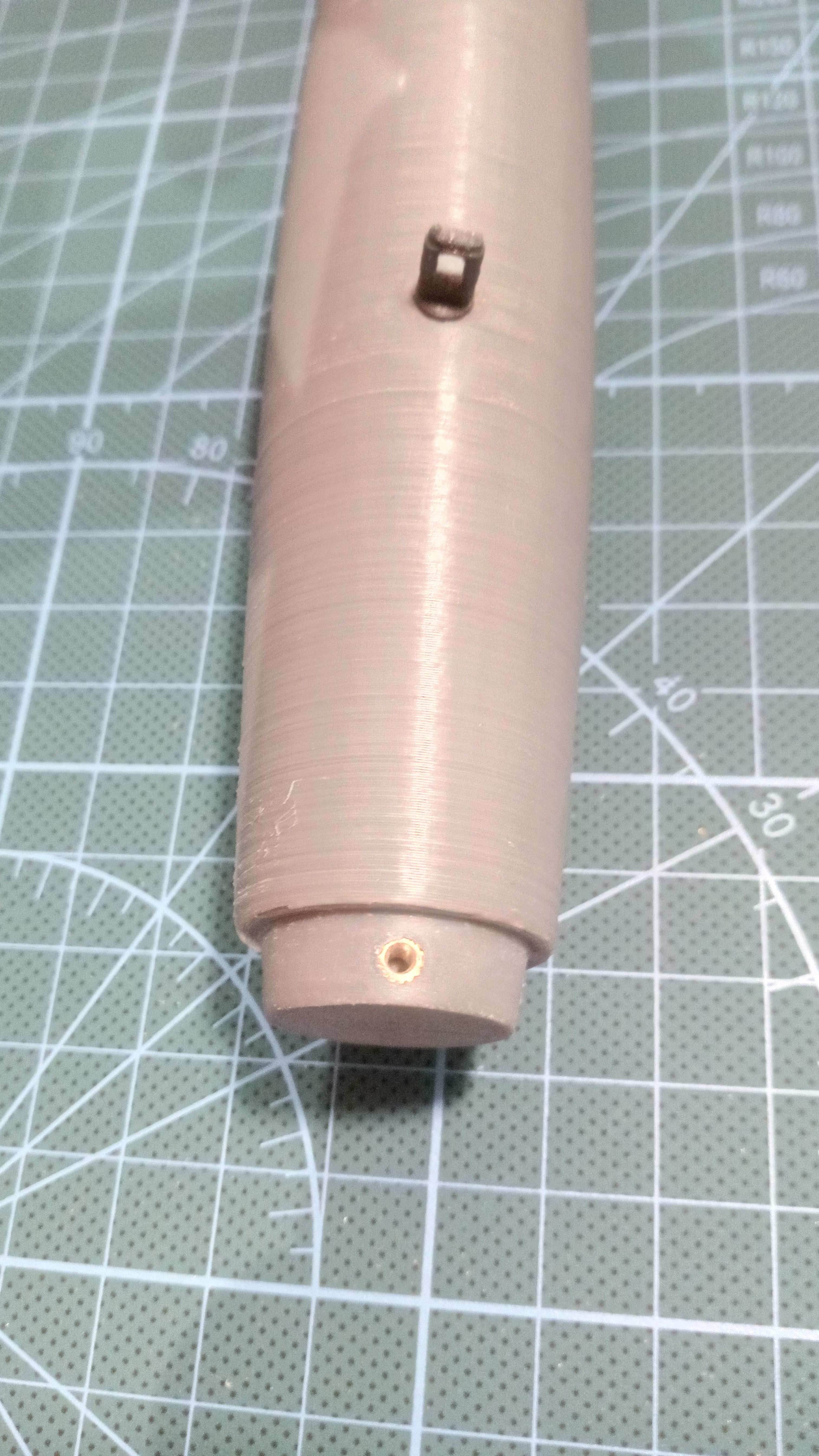

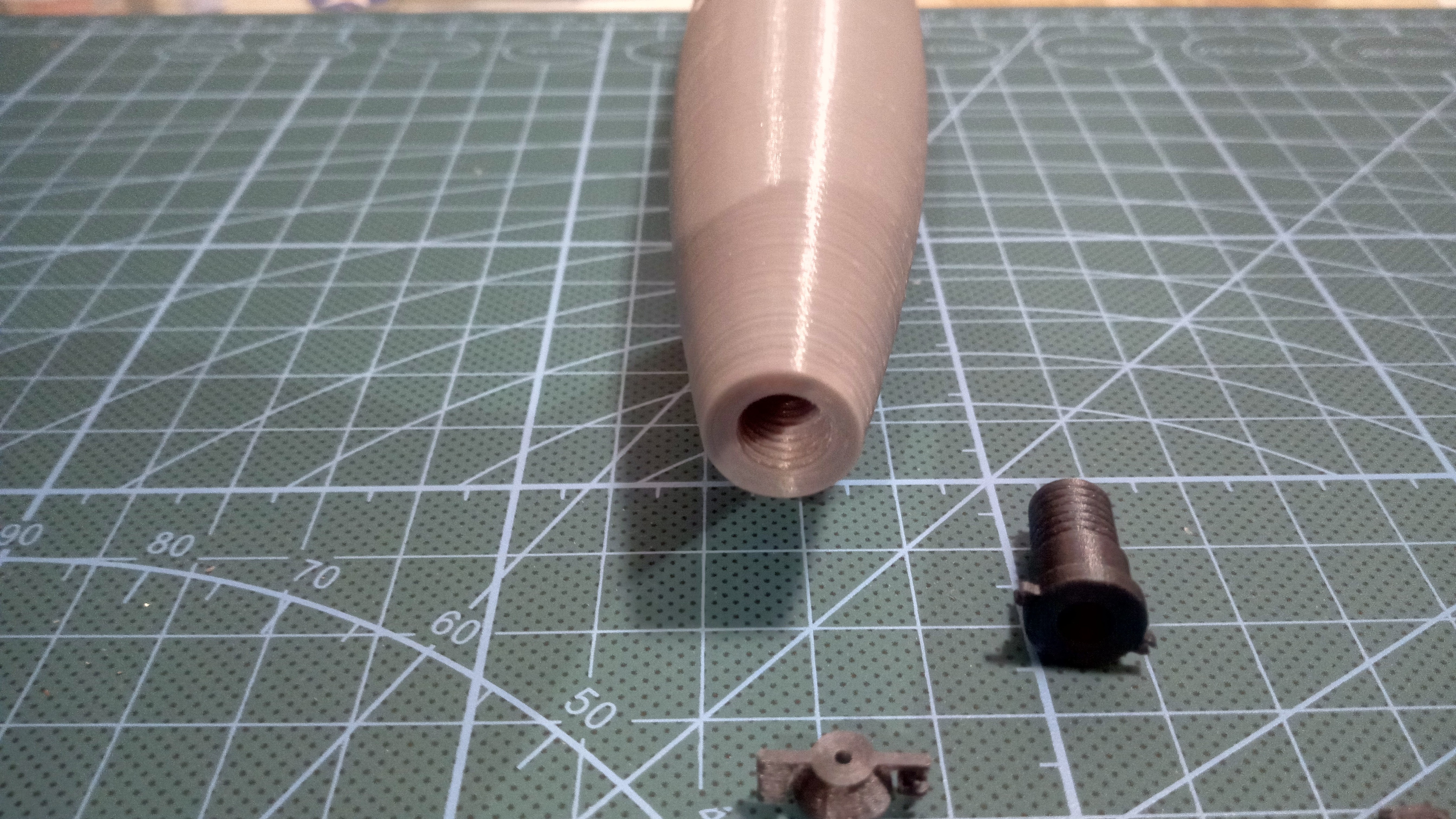

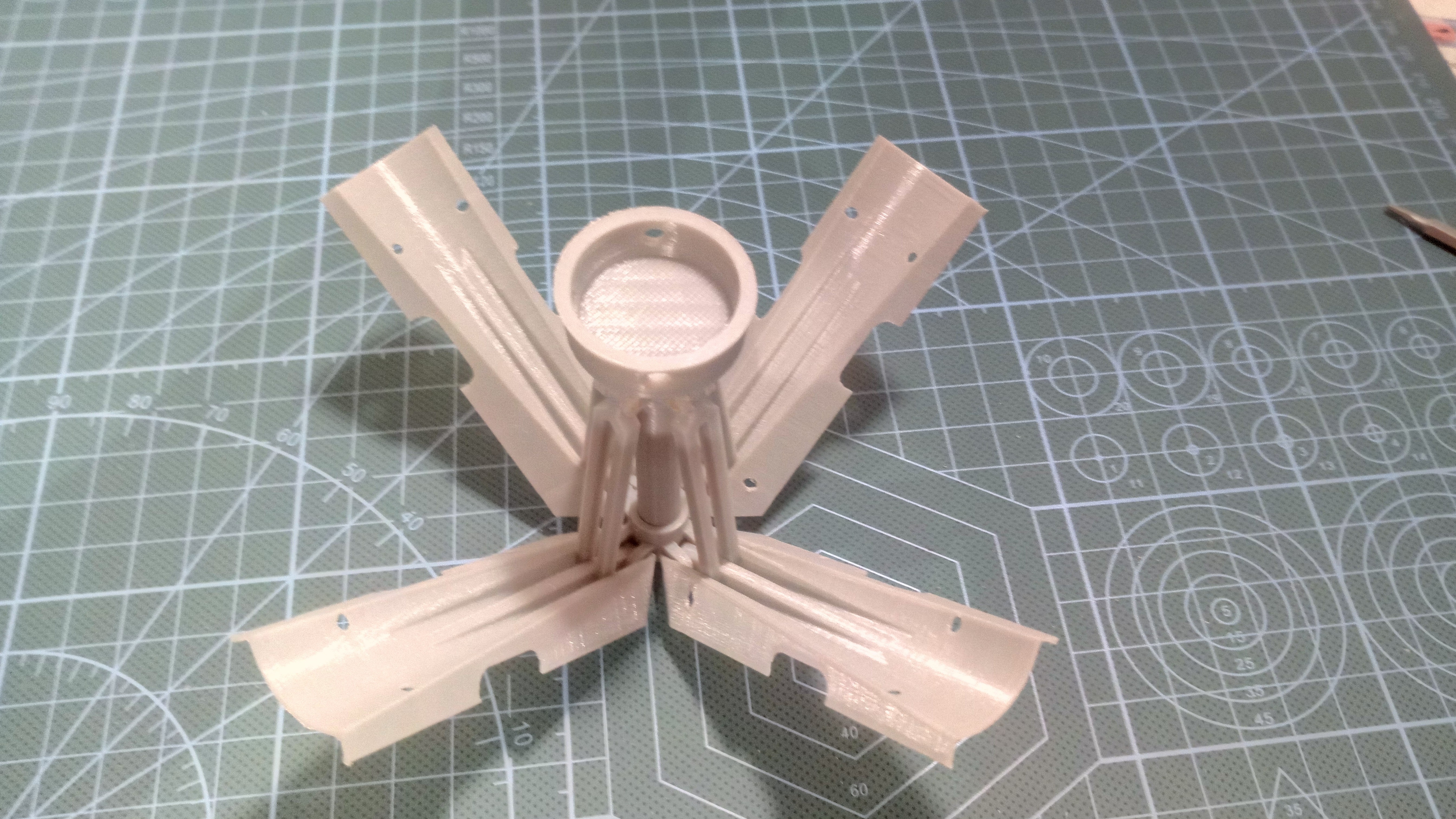

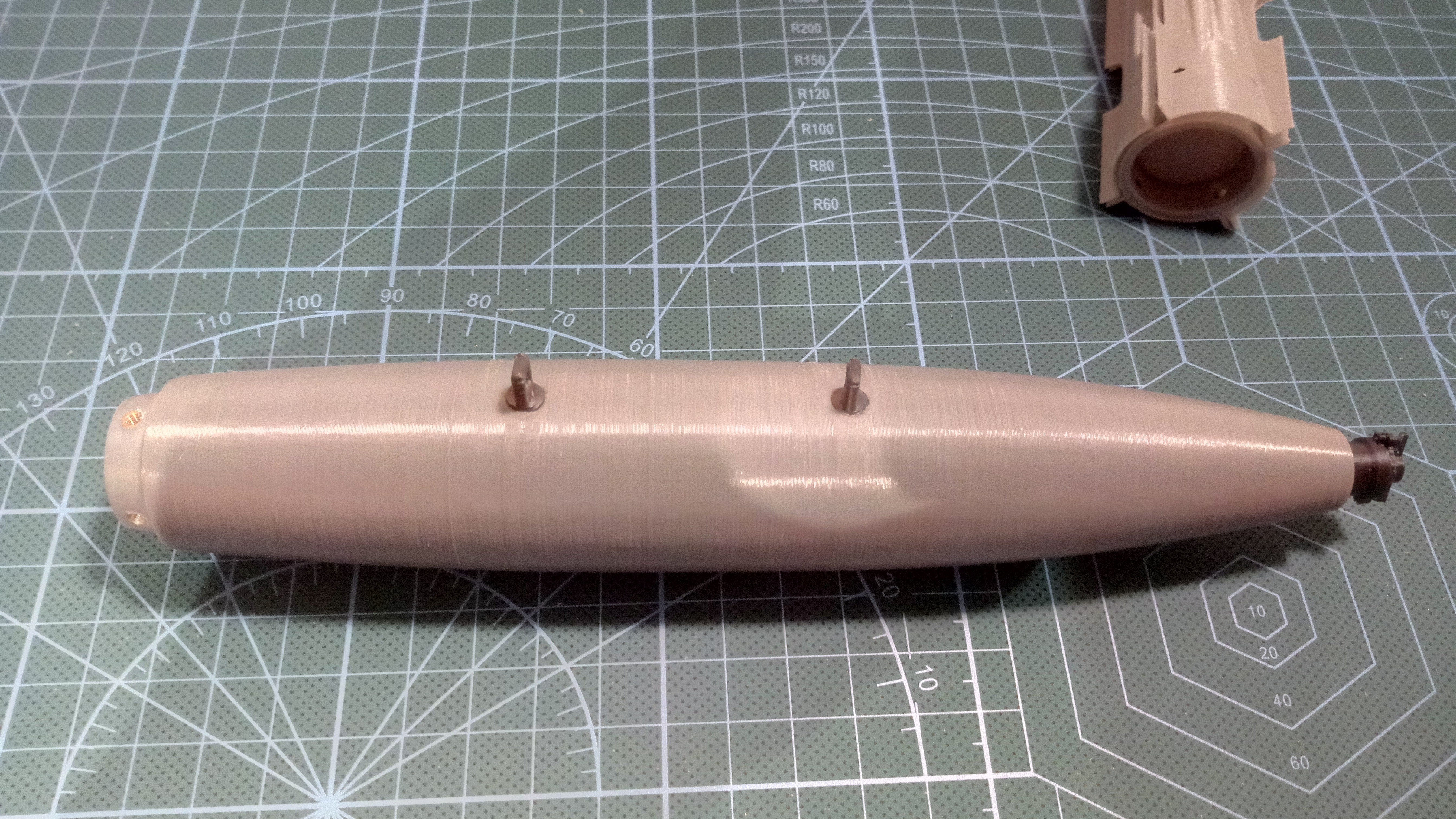

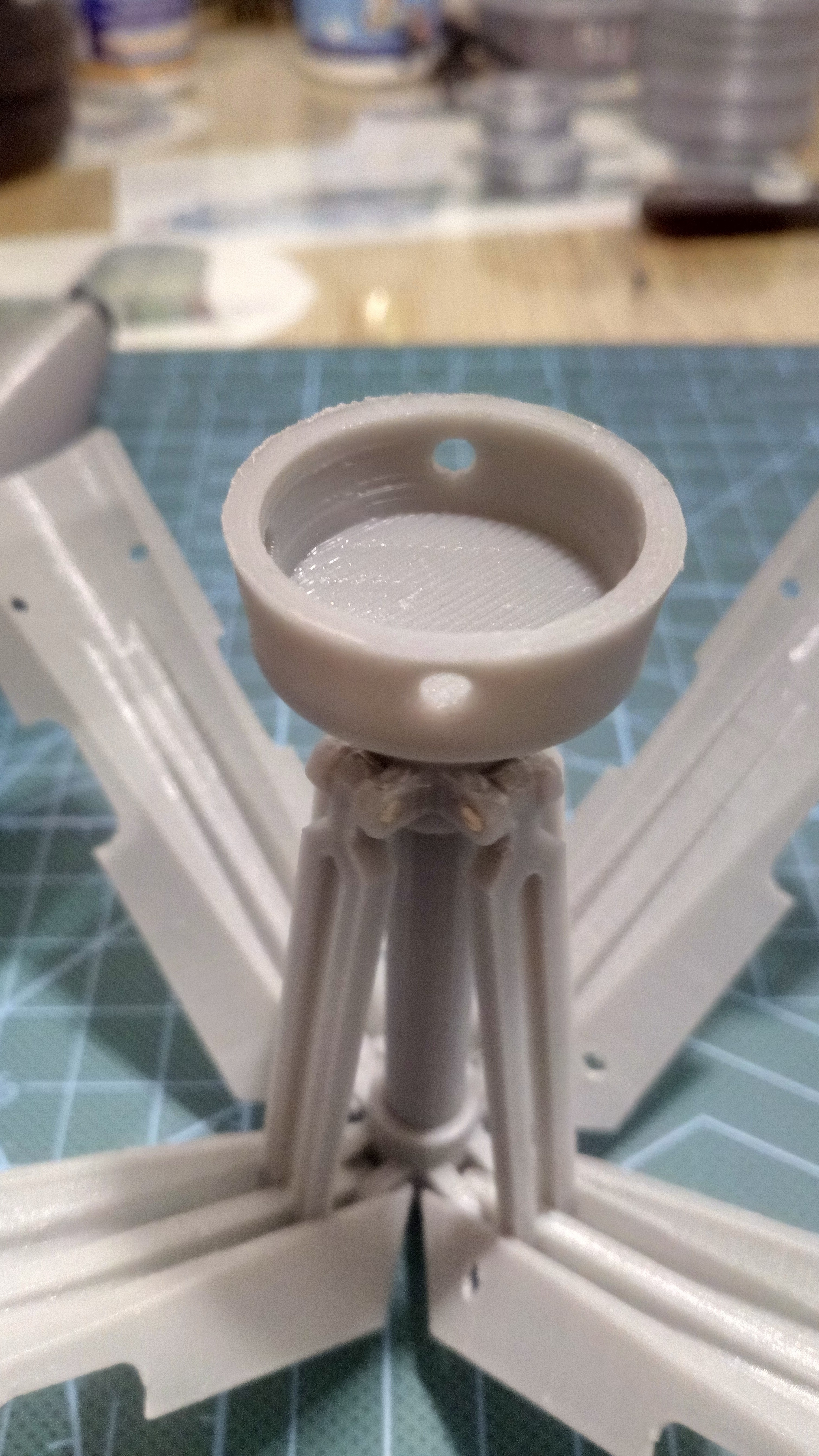

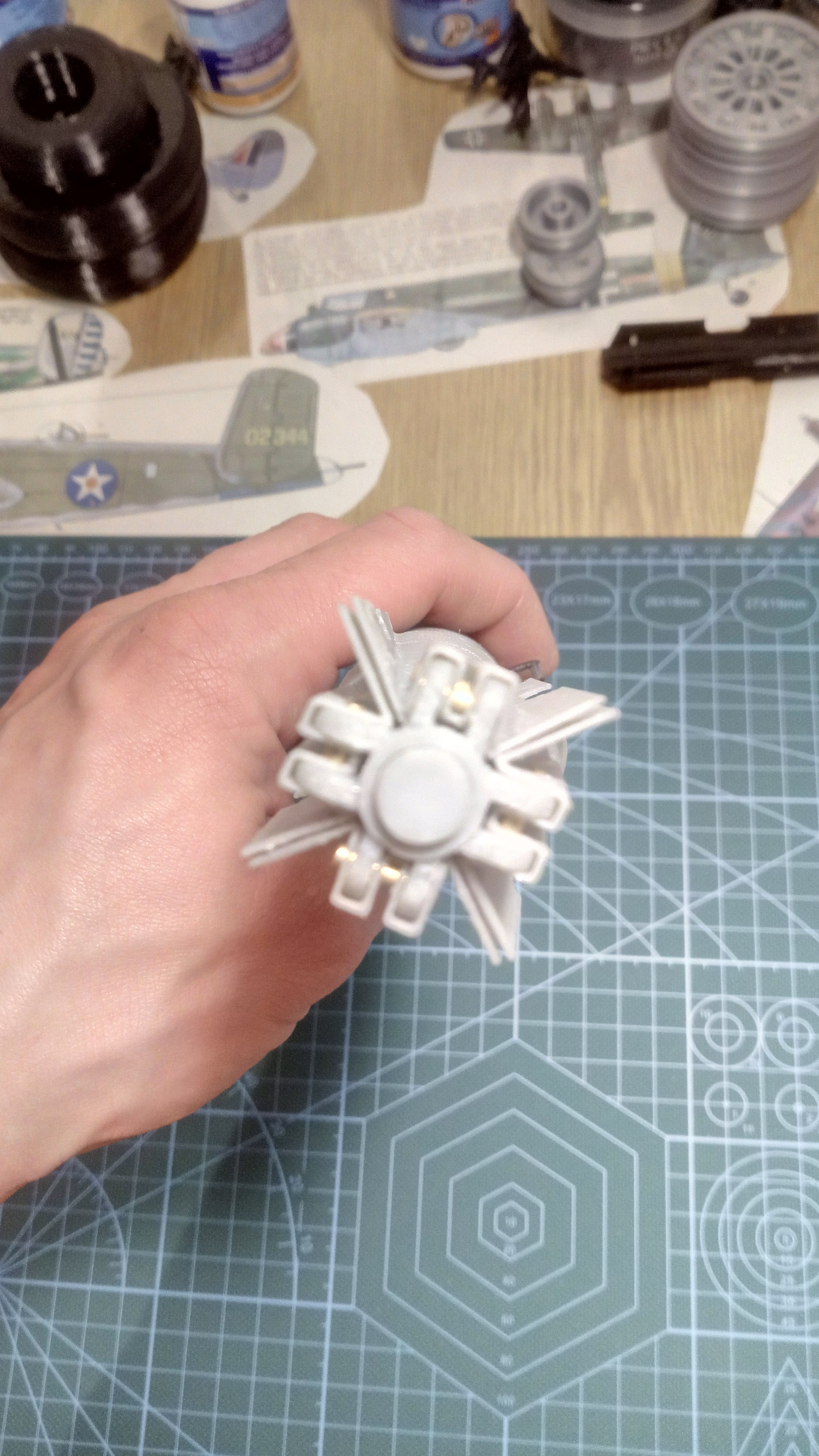

Here is my Mk.82 model with standard or braked (snake eye) tail. Snake eye tail version is functional you can try is by blowing on breaks from flight direction. It is design for RC plane in 1:8 scale. It has screw fuse and hook pins. Print setting for pins is 0.1mm high or les, 0.3mm nozzle recomanded and infil on 100% don't forget turn support off. Brake segment print in one preimeter with 0.4mm nozzle. For assembly you wil need 2mm round profile, pliers, tweezers, 2mm drill bit, some glue for securing cutted pins, file, scalpel, sand paper, and scale. Pins for securing moving parts, you have to measure by your self for good accuraci. In my case it was 8.5mm for top assembly parts and 7.5mm for bottom moving ring part. Tail section is screwd by 4 screw. You should use flat head M2 5MM screw and M2 x 3mm Brass Cylinder Knurled Threaded that you can press by solder iron into designed holes. You can see in on the picture.

3D printing settings

Printer:

Ender 3

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.15mm

Infill:

20%

Filament: PLA

  • 3D model format: ZIP
