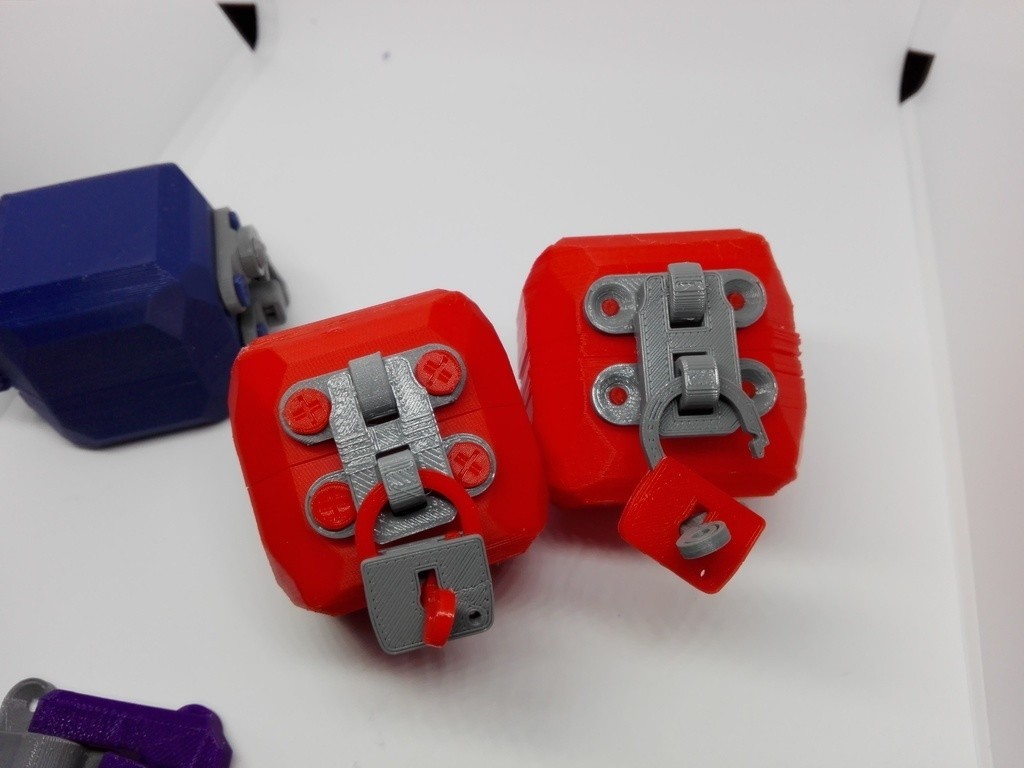

c489ff3e8171abc4166d2a6af4369658_display_large.jpg Free STL file minimal mini lock with working mechanism and key・3D printable design to download

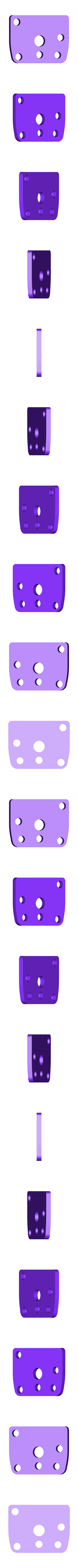

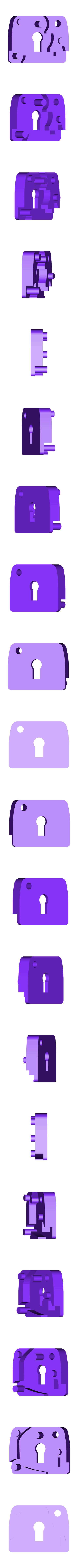

front.stl Free STL file minimal mini lock with working mechanism and key・3D printable design to download

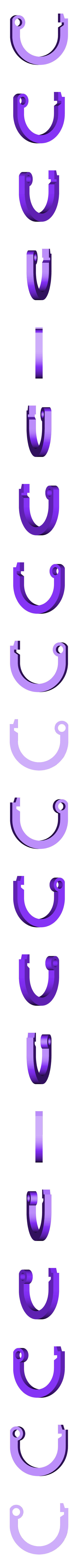

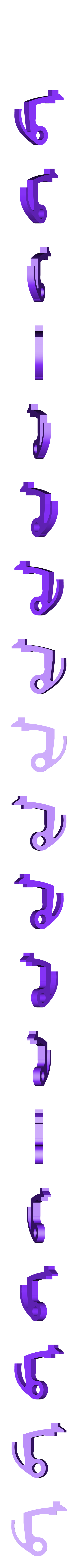

arm.stl Free STL file minimal mini lock with working mechanism and key・3D printable design to download
in.stl Free STL file minimal mini lock with working mechanism and key・3D printable design to download
back.stl Free STL file minimal mini lock with working mechanism and key・3D printable design to download

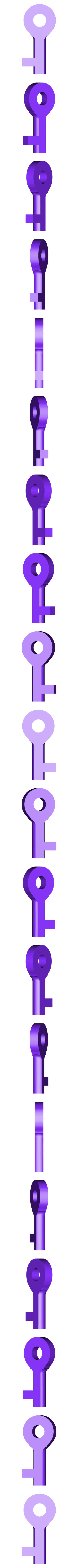

key.stl Free STL file minimal mini lock with working mechanism and key・3D printable design to download
Share
Add to
Make
?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

raffosan

raffosan

3D model description

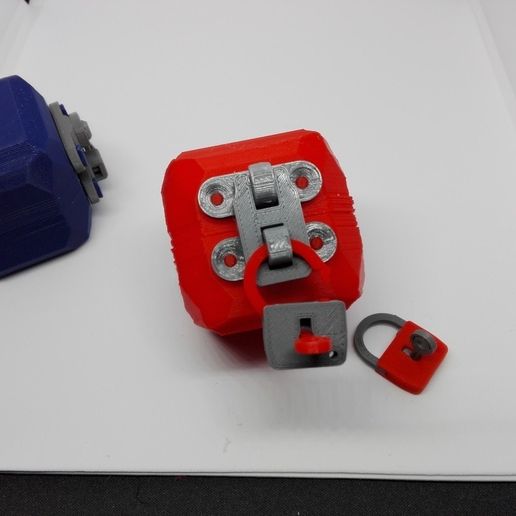

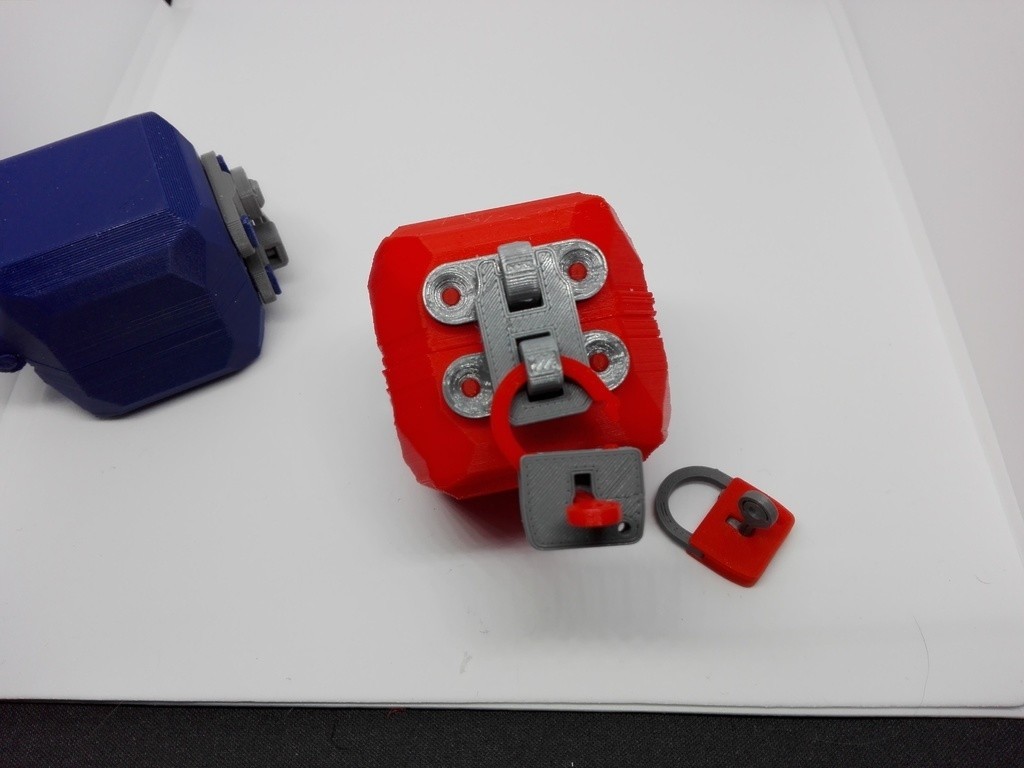

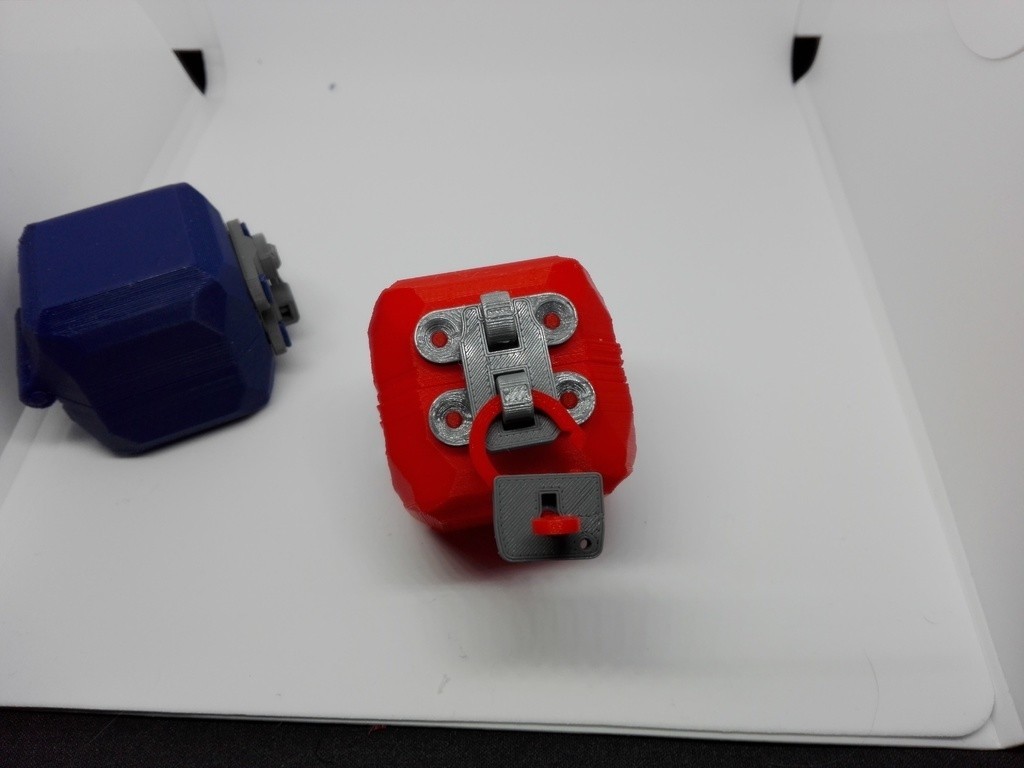

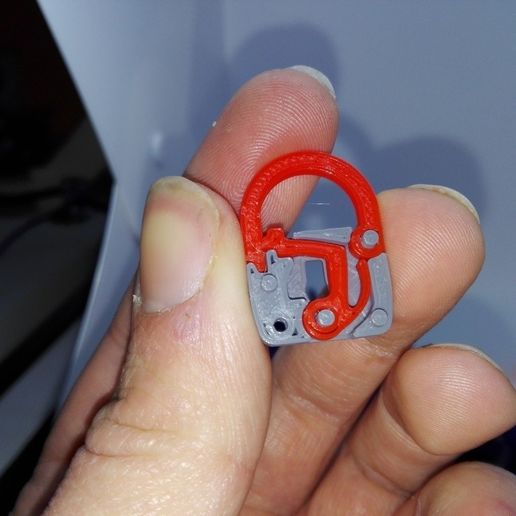

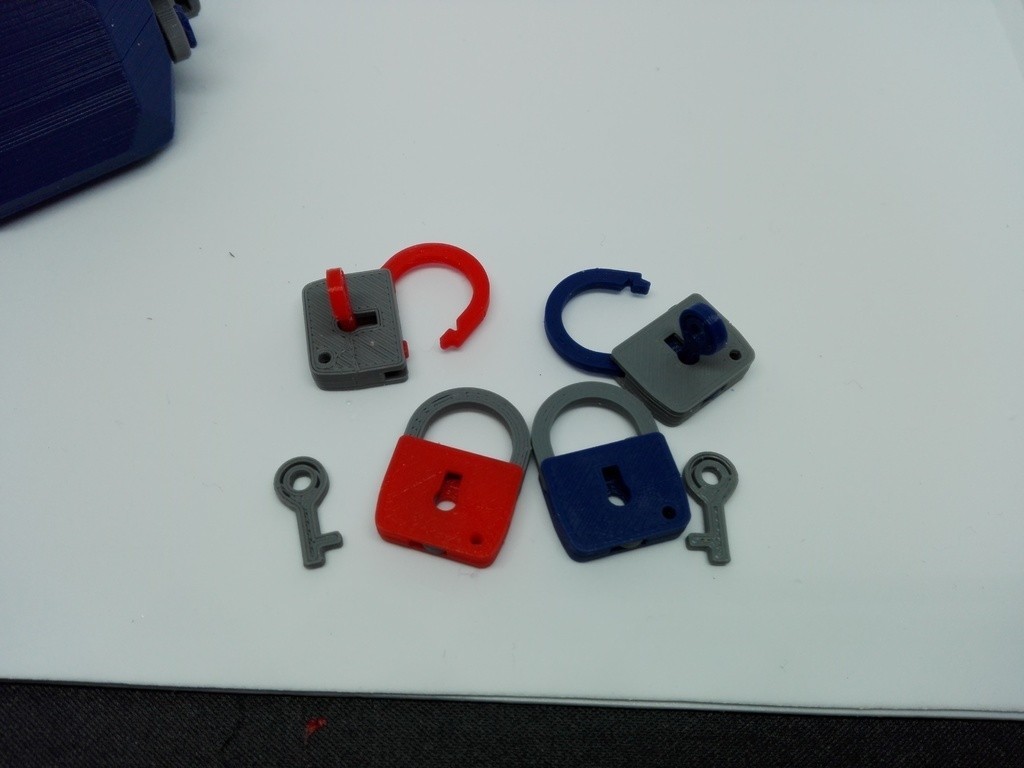

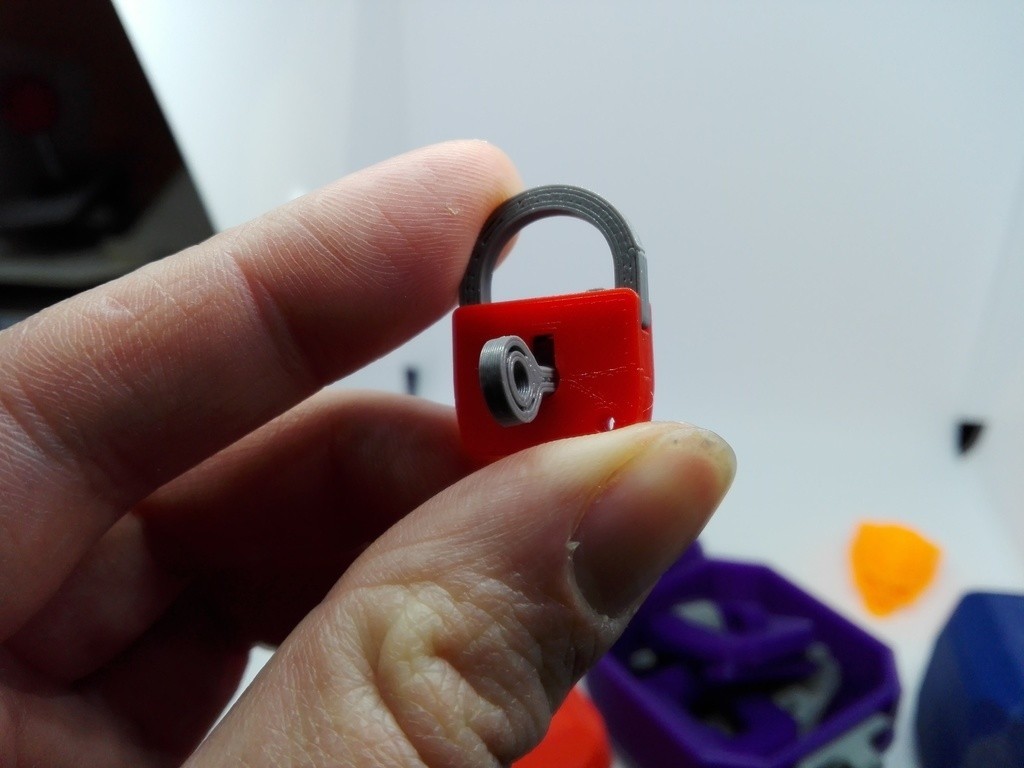

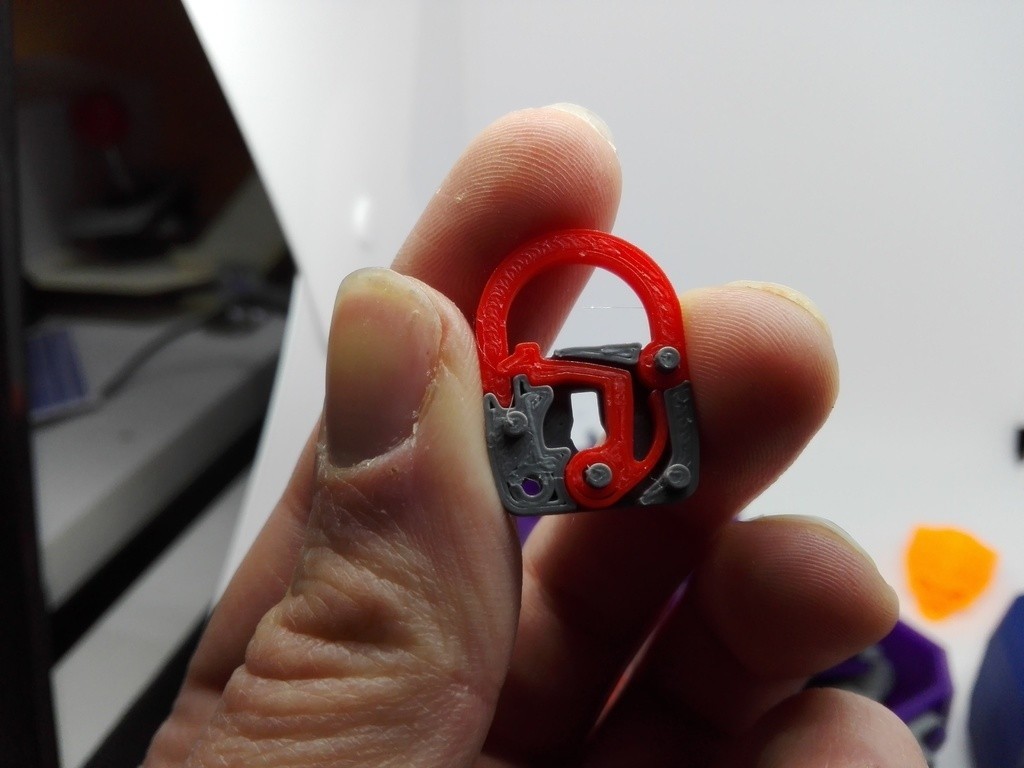

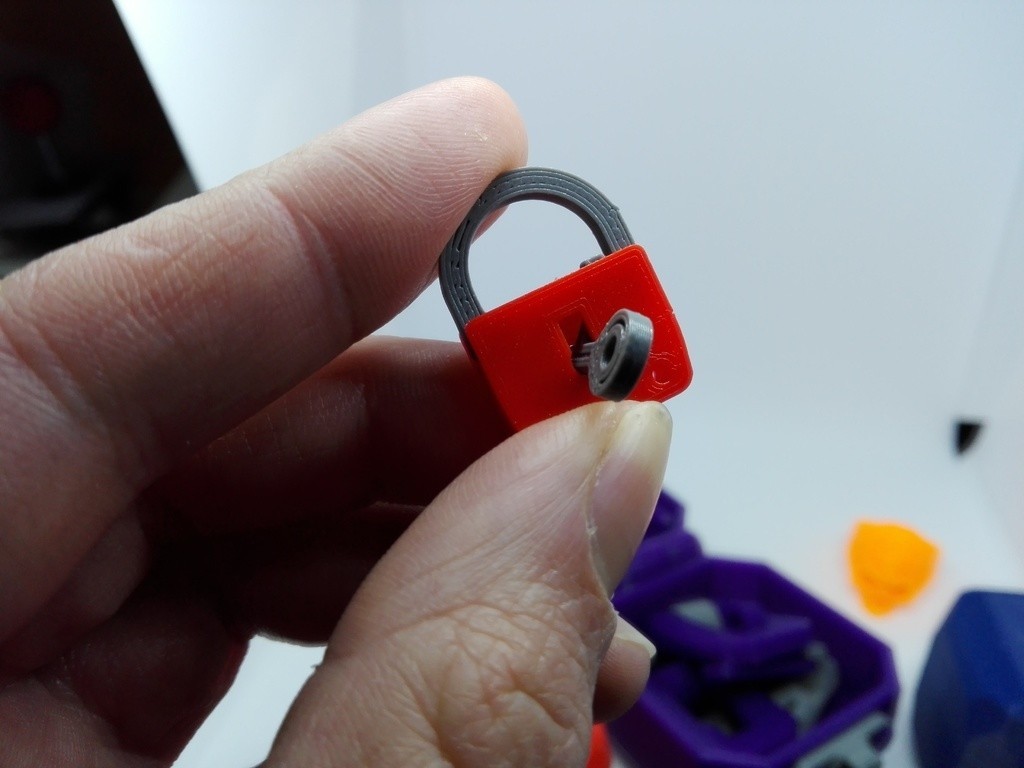

after so many boxes and hasps I've decided to create my own mini lock.

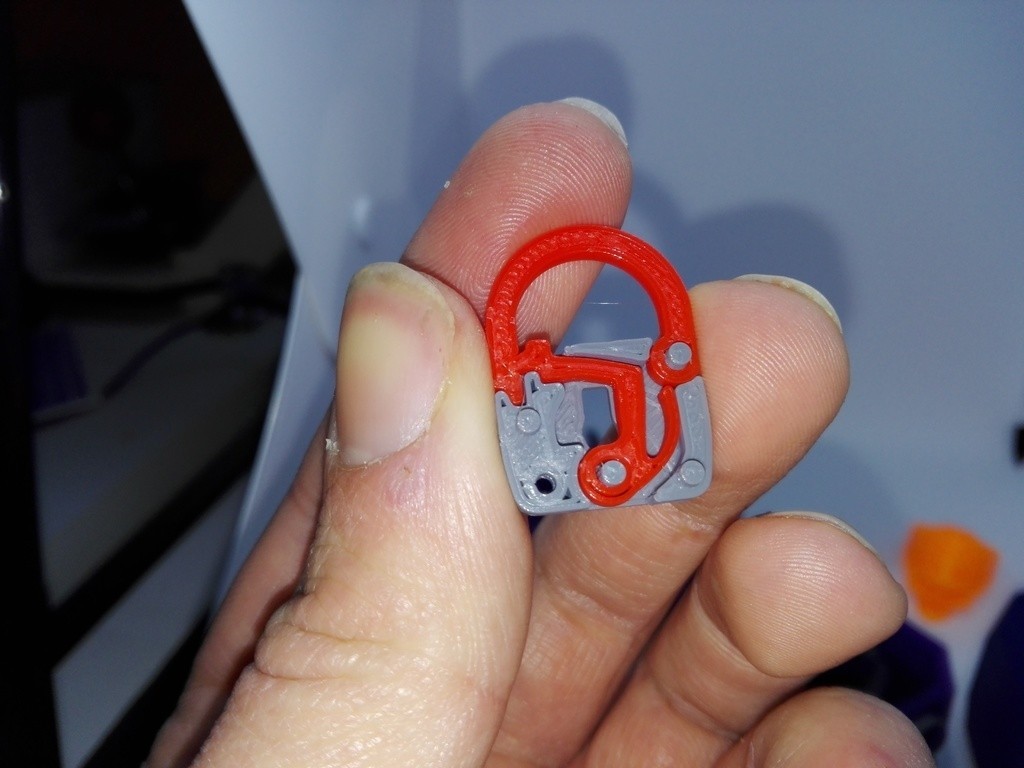

and after about 10-15 tests i managed to get it also working, to be so small it has a good grip.

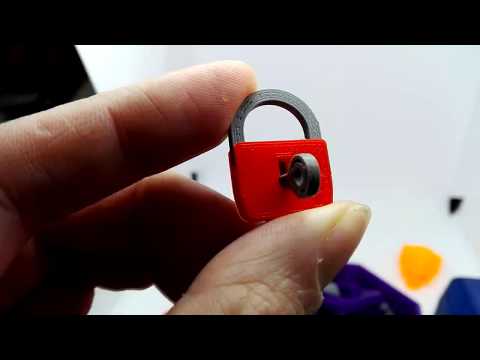

https://www.youtube.com/watch?v=gVL0piwpTQw

the file is optimized for a 0.4 nozzle, so far I had problem printing it with s3d but not with ideamaker, i suggest to look always at the print preview for gaps in the print (anyway few are normal in the inside part)

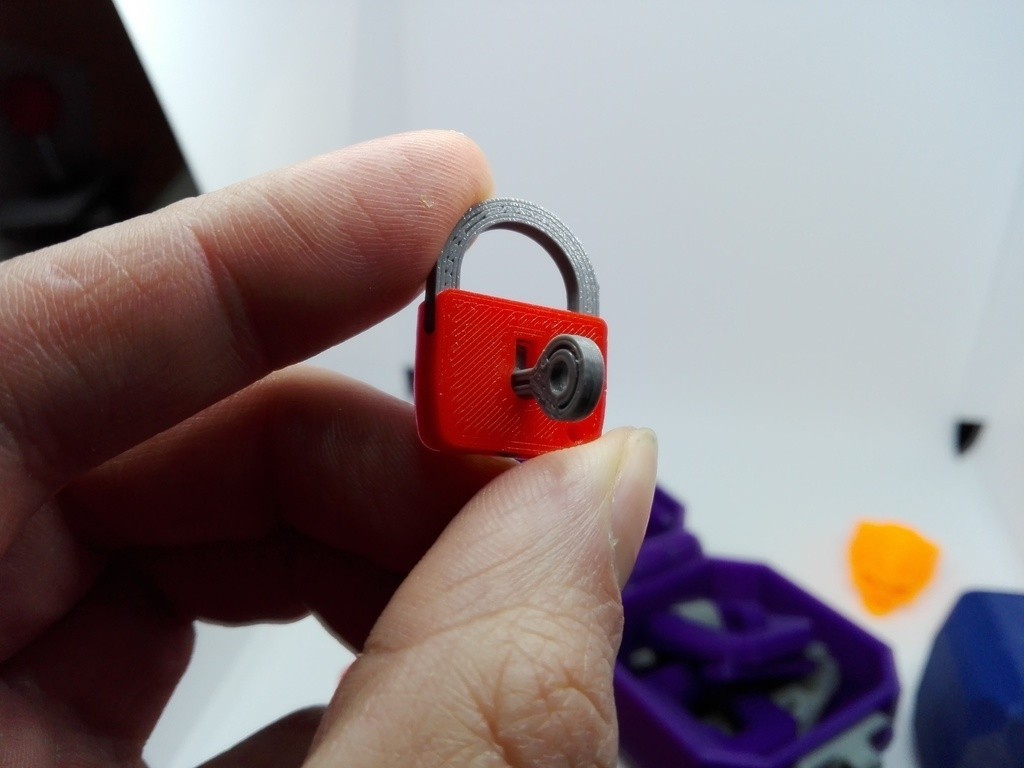

its cute it's simple and it prints in just 17 minutes.
20-30 mm/s speed or less
cooling at max
0.2 height
2shells

maybe u will nide a clamp or something similar to press close all togheter

MESSAGE:
if u like my work any support is appreciated, just uploading the make of this thing will incite me to continue sharing my works :)

3D printer file information

  • Design number: 30813
  • 3D design format: STL Folder details Close
    • arm.stl
    • back.stl
    • front.stl
    • in.stl
    • key.stl

    Learn more about the formats

  • Last update: 2018-08-27 at 10:57
  • Publication date: 2018-08-24 at 14:21
    ?
    Published to Thingiverse on: 2018-03-01 at 22:43

License

CC BY - Attribution
