Mini Wind Turbine

3D model description

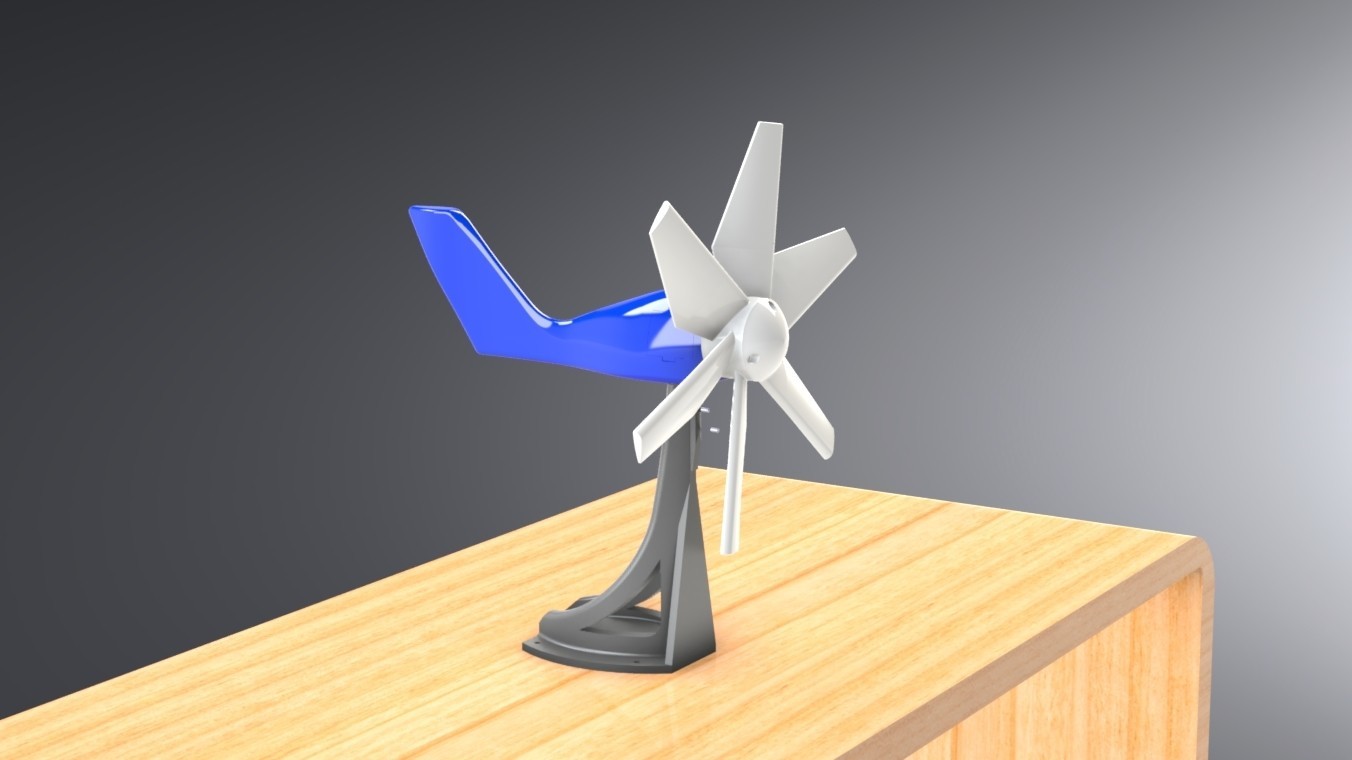

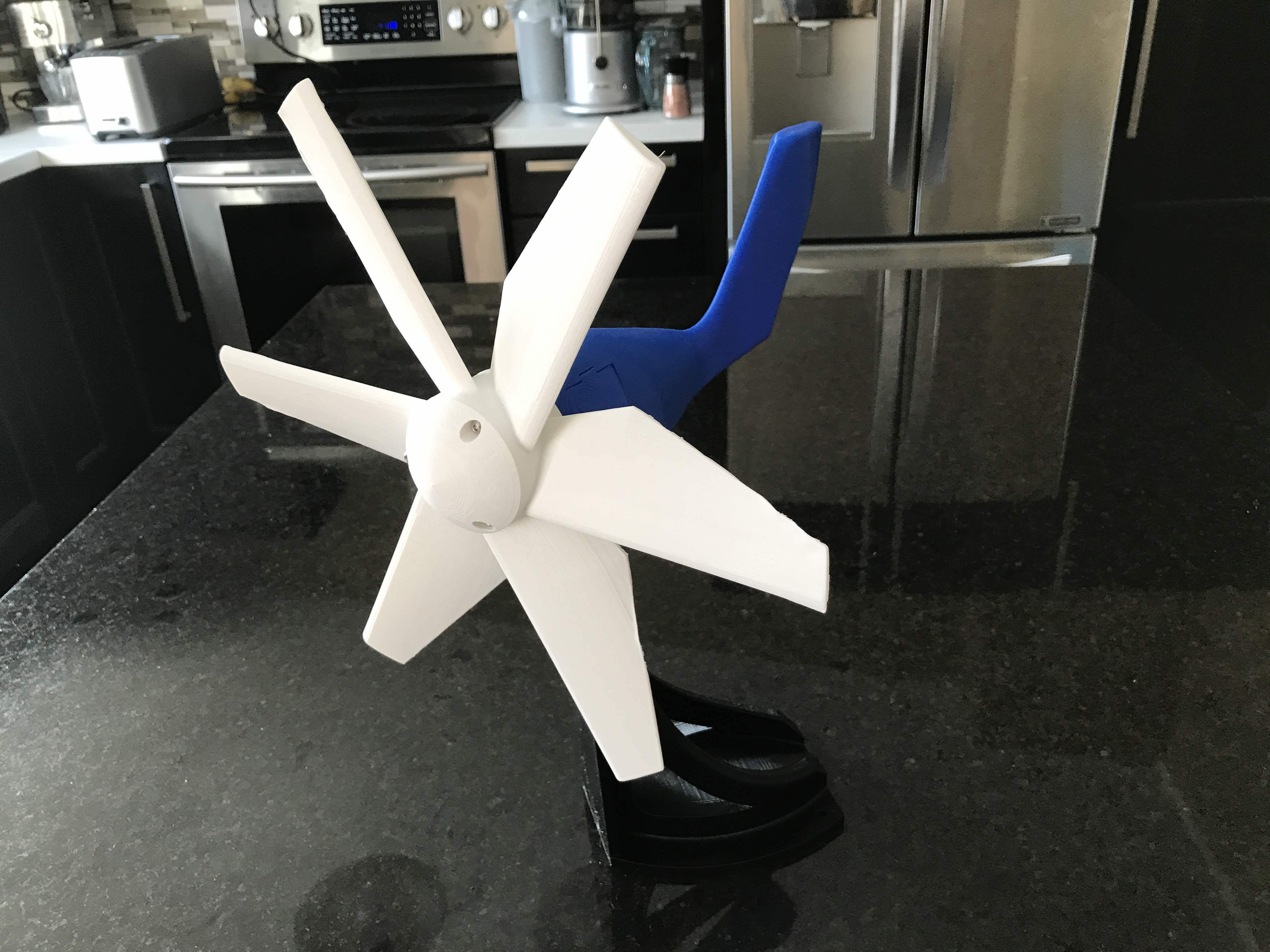

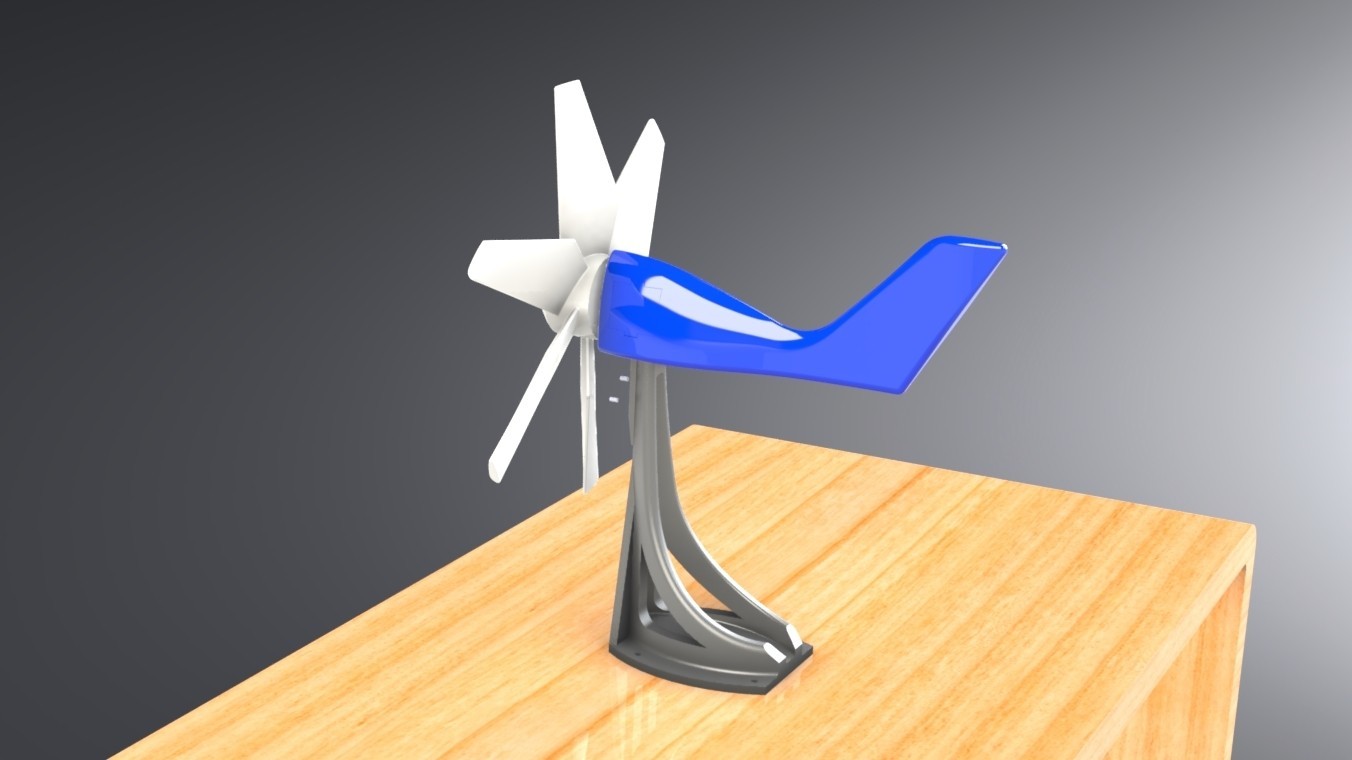

Mini Wind Turbine great family fun project. NO GENERATOR.

Install outdoor and see high speed blade turn. Observe wind intensity and direction. see video here: https://youtu.be/zg7N522N_9A

Blade diameter = 290mm
All parts will fit printer bed of 300mm x 300mm

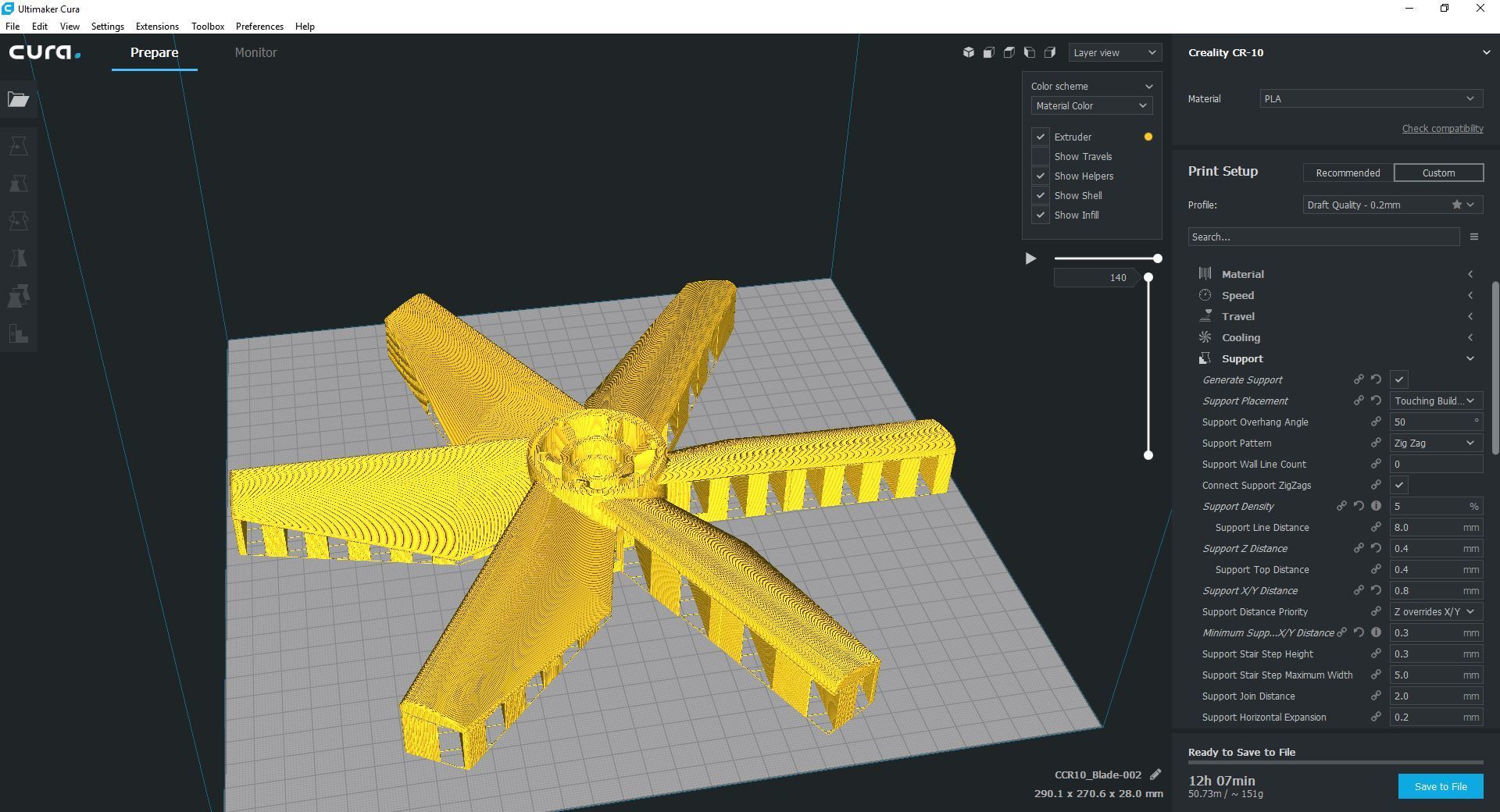

Supports needed for blade only. No supports needed for remaining items. Easy print.
Infill 20 percent.
3 walls for all parts.

Required hardware which is all standard and taken from an old roller blade skate:

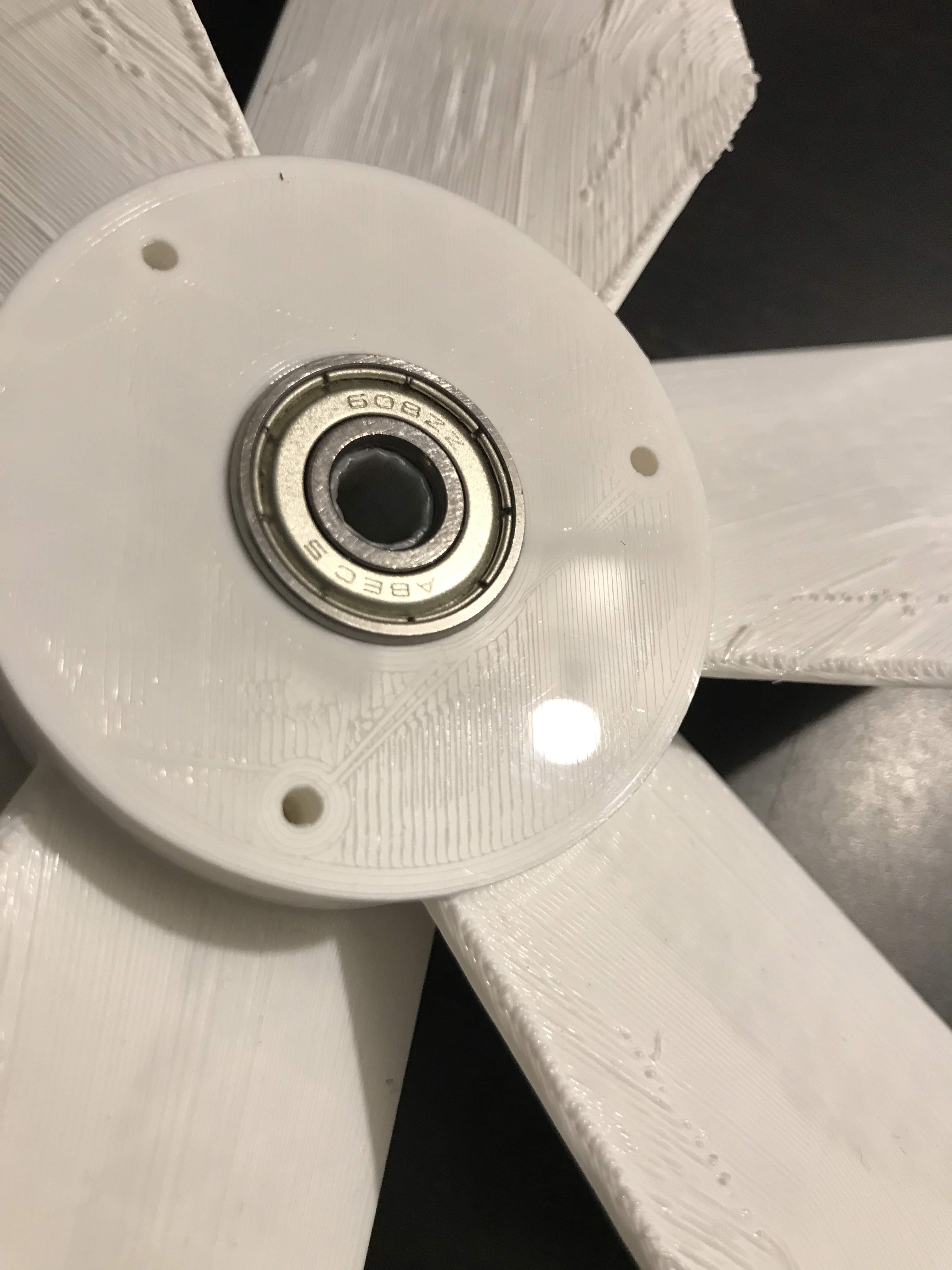

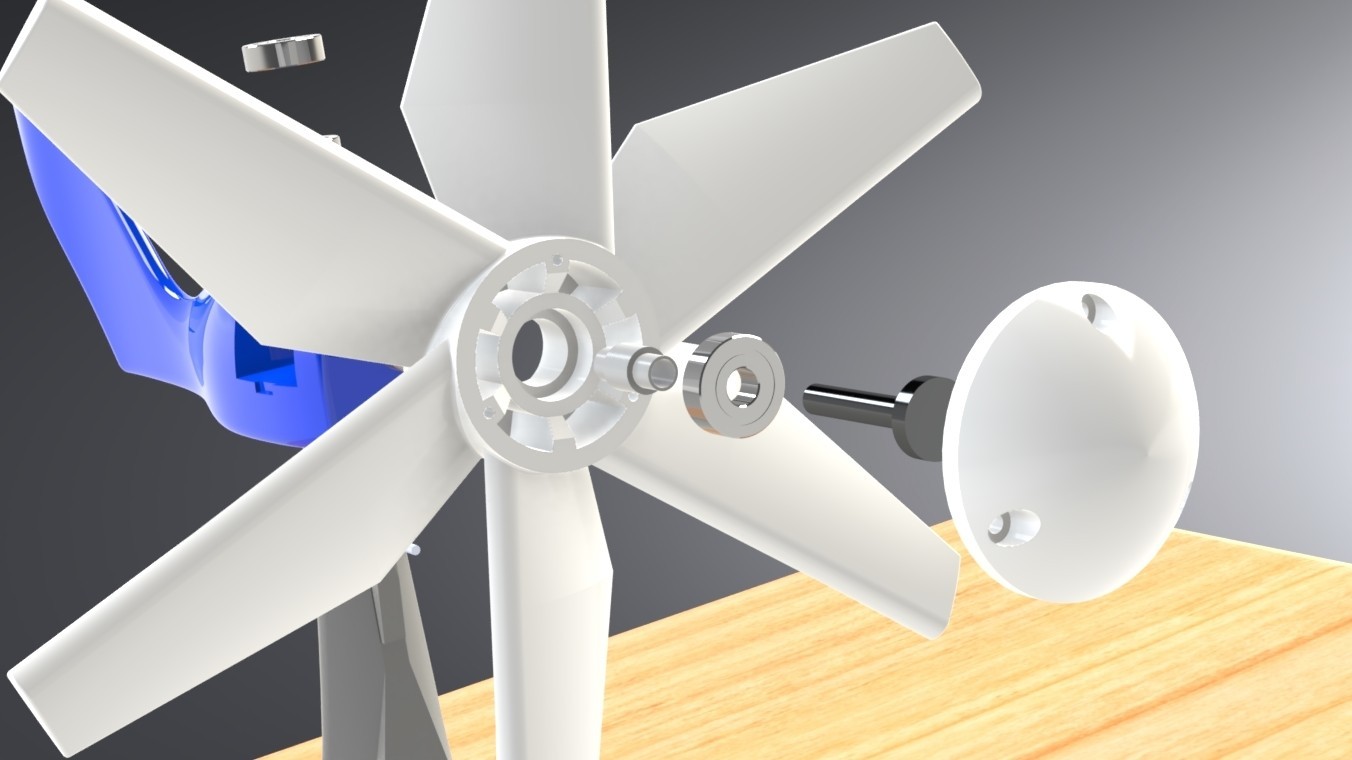

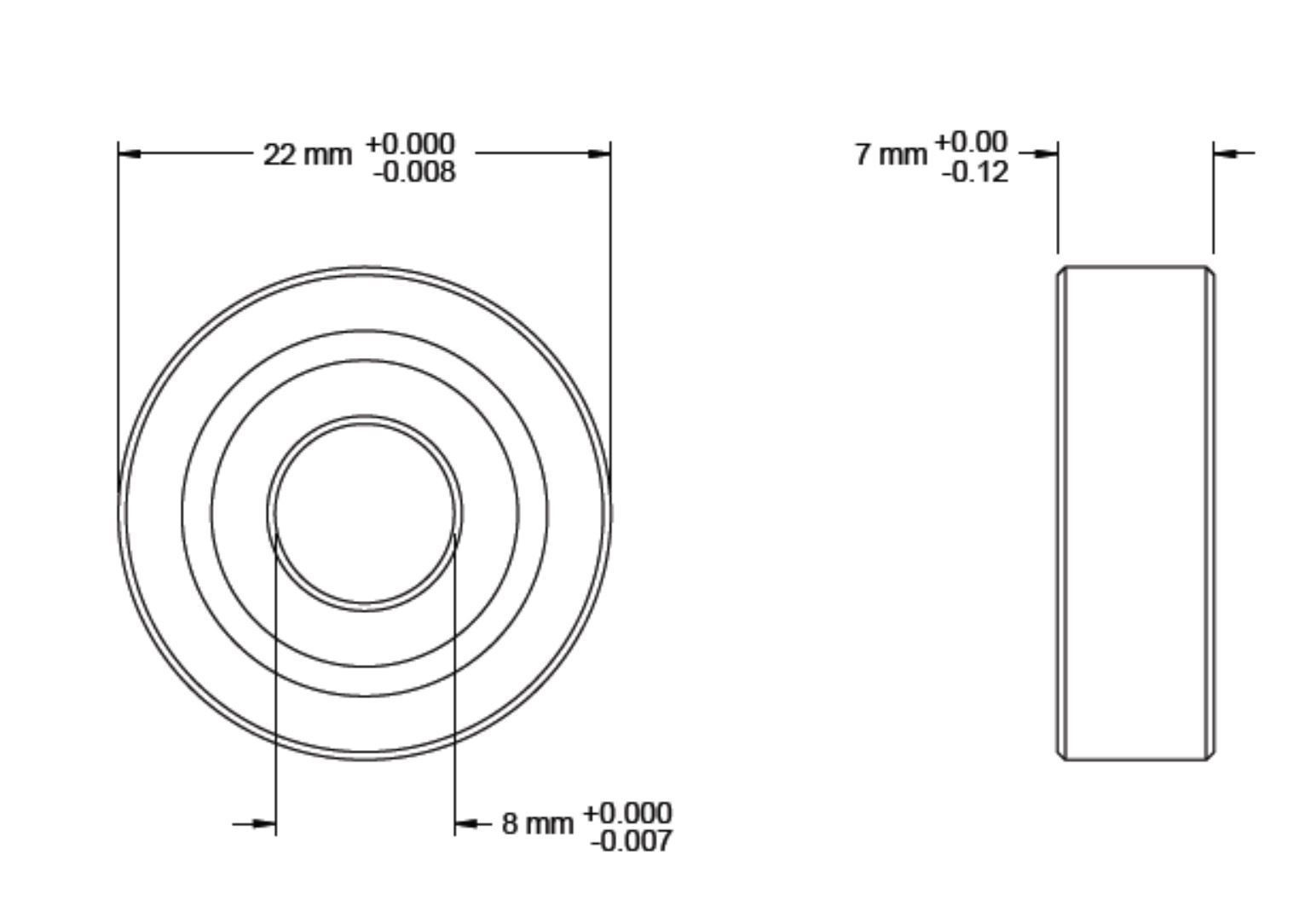

QTY 4 - Standard ball bearing 22mm dia x 7mm width (2 for blade and 2 for post). Taken from old Roller Blade wheel.

QTY 1 - Sleeve for blade between bearings. Taken from old Roller Blade wheel.

QTY 1 - Shaft and nut assembly for blade taken from old Roller Blade wheel.

QTY 3 - M3 x 6mm long screw for cap on blade.

QTY 4 - Wood screws to secure base to outdoor fence, table etc..

Hot glue gun to secure side covers to body and vertical post stiffener with pins.

CHECK OUT MORE GREAT 3D PRINTS HERE: https://cults3d.com/en/users/Trikonics/creations

Have fun printing!

Regards,
Trikonics

3D printing settings

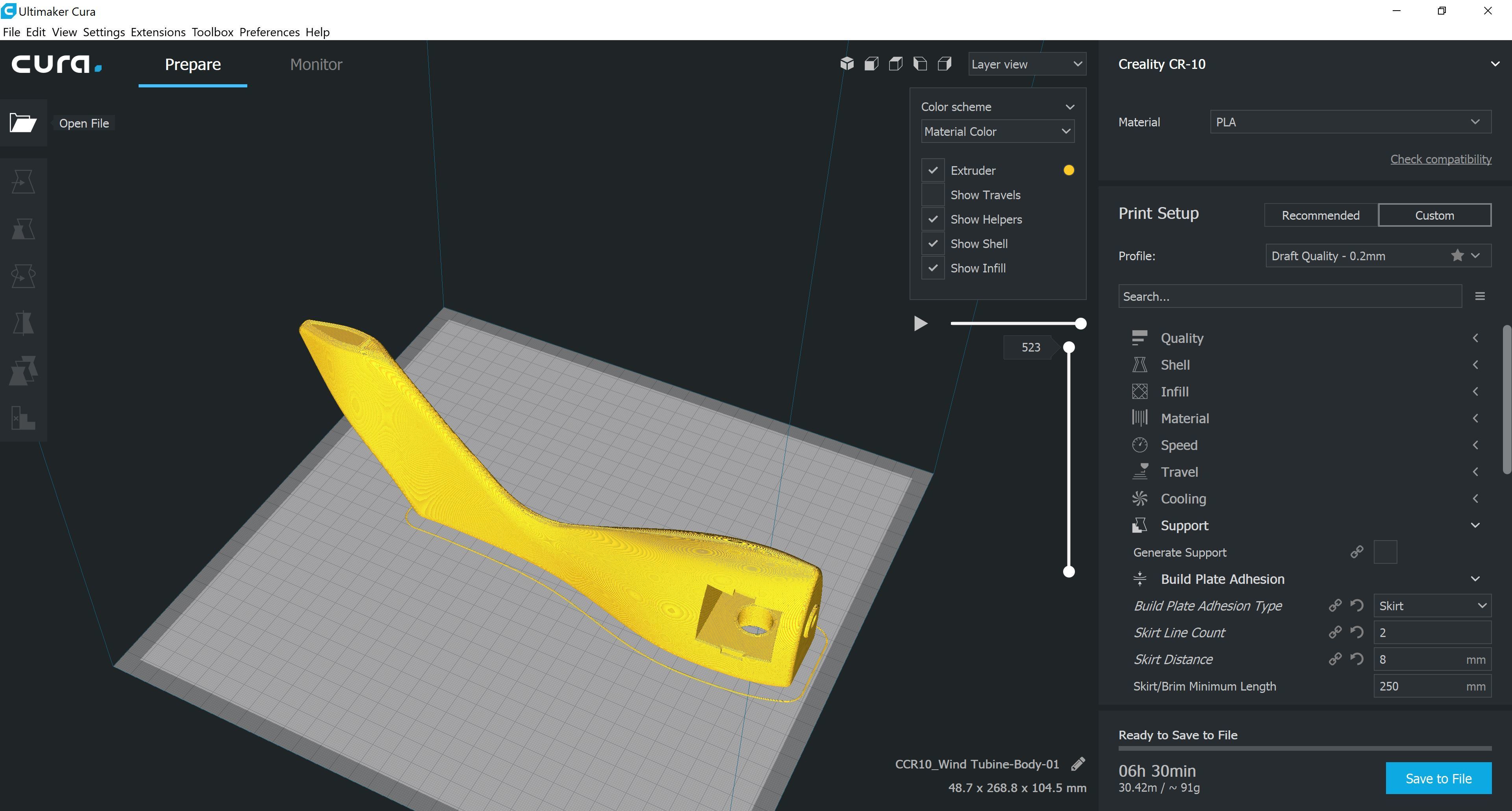

Supports needed for blade only. No supports needed for remaining items. Easy print.
Infill 20 percent.
3 walls for all parts.

  • 3D model format: STL
