Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S

822981432608779b4da0b0dcf1c4c504_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
95d2ce882f8397739921b5e07611cdd0_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
1e9c1ca1c98fbc494aca66b9f76ff454_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
2f940aeb99a31164ee6e58b022aef5c2_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
8d3ec0a79541ae01e1044409e22beefc_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
13dc3bf5a5d44026b09b8fa219d76409_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
26fcf6937e66fcaea5a1dc744411ccdb_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
915d77823dc6737508ae49d9f9d4f701_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
953e4d16fb9b1e322e7cb1acbe61dfba_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
44702c3bf1dc03910601fb25fb08a846_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
11567394b992c8342b033d844939d0f3_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
cae1da49a095d6e3c860df5739597572_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
cc10b3907e01b4c9932faae5ac8e7d8d_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
cd8f086750101486bd067a822b149129_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
d93c9d63e69896c6b38f0d6ccd46c082_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
f93e11613f04c0c05dbe874e01bcf92b_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
f461c9dbb8b1ec4cb6cb7baa565de026_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
f92254aa0899e2c4dcf2361cfccd0b99_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
fadd53db89fc463cf0cb2d9b04bc2f30_preview_featured.jpg Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
fixation_lipo_300mha_2S_Nanotech_mini_racer_brushless_0806_2s_.stl Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
Mini_racer_Brushless_0806_Top_Plate_2S_.stl Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
Mini_racer_Frame_Brushless_0806__2S_.stl Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
Soft_mount_gemfan_0806_6200kv__2S_.stl Free STL file Mini Quad Racer 100mm Brushless GemFan 0806 6200kv 2S・Design to download and 3D print, Microdure
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

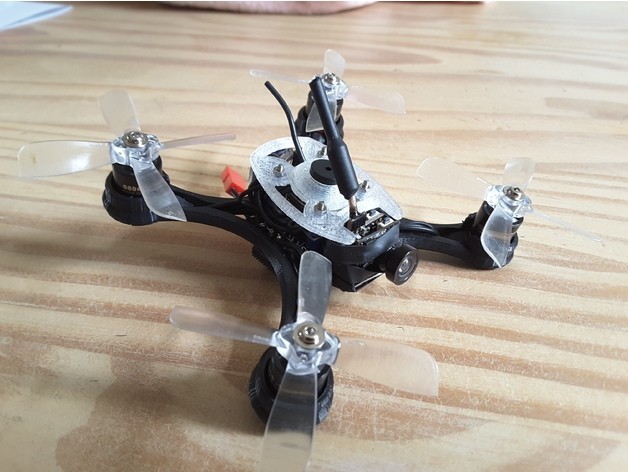

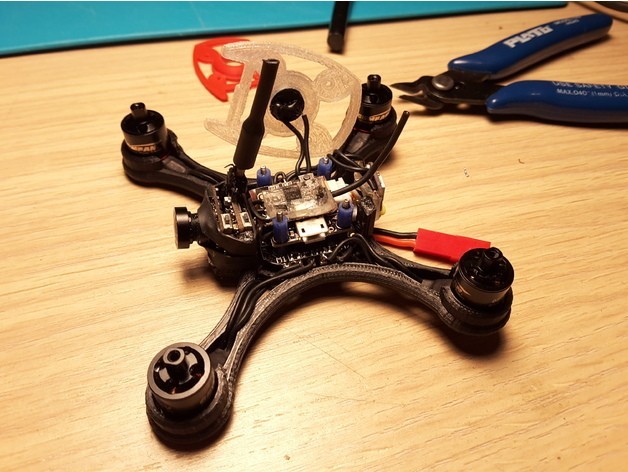

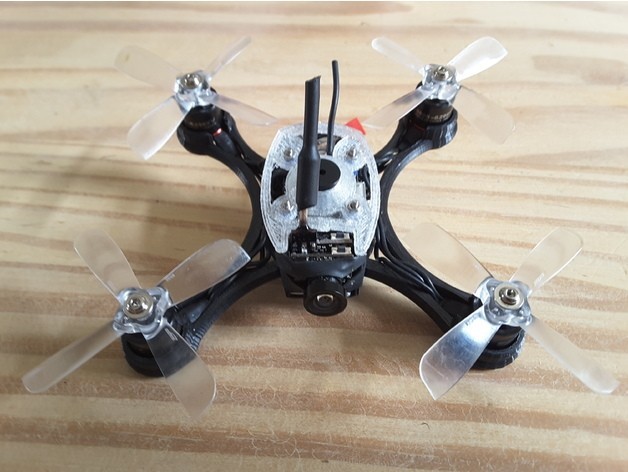

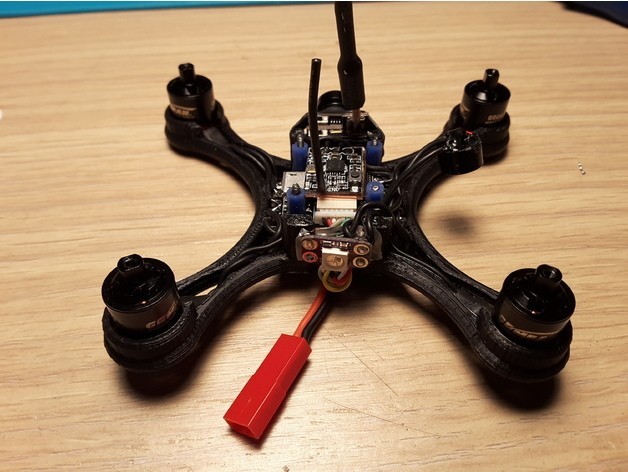

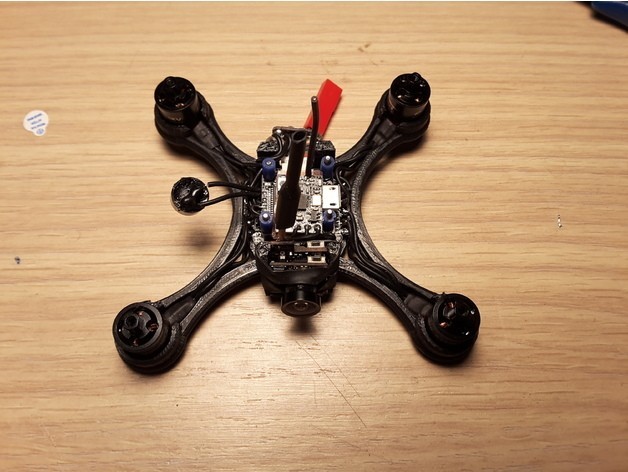

Here is a mini racer 100mm made of polycarbonate equipped with brushless 0806 gemfan 2S version 6.200kv.

This mini quad is very resistant (thanks to the polycarbonate).

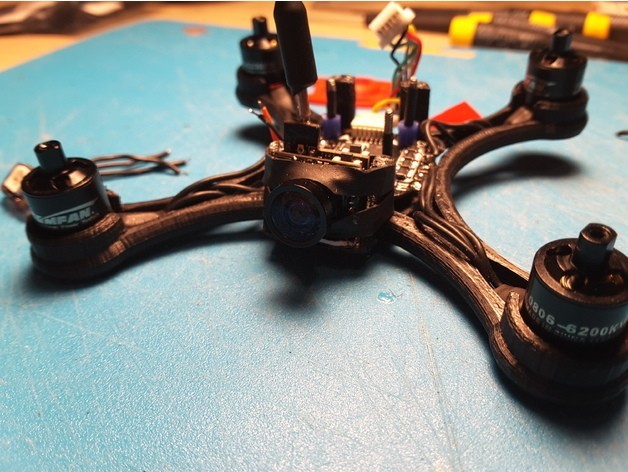

This frame has been designed to protect the entire brushless without harming the cooling thanks to the passage of air in the frame

With brushless it is full power! Especially from 2S

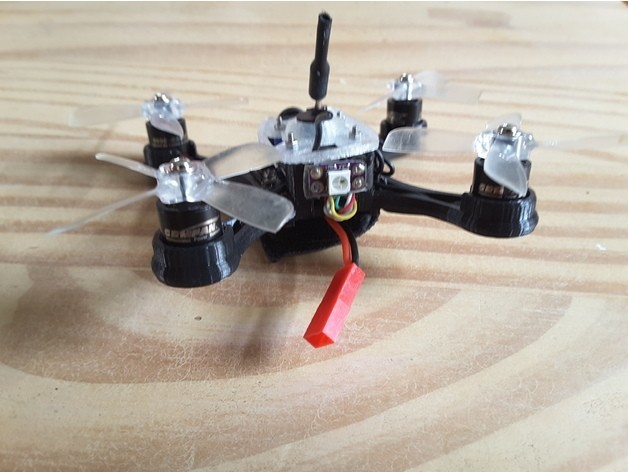

Fullly equipped (camera 600tvl 25mW, micro buzzer and micro led)

Fasteners: 4X M1.6 in 25mm + mini shrinkable sleeve to avoid circuit courts

To avoid vibrations, please use the soft mounts made with TPU

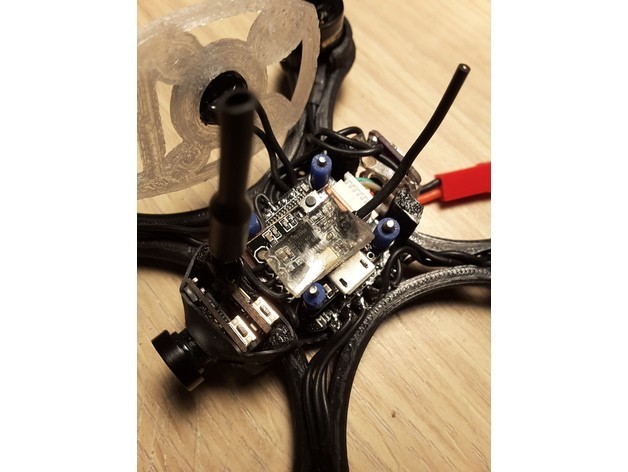

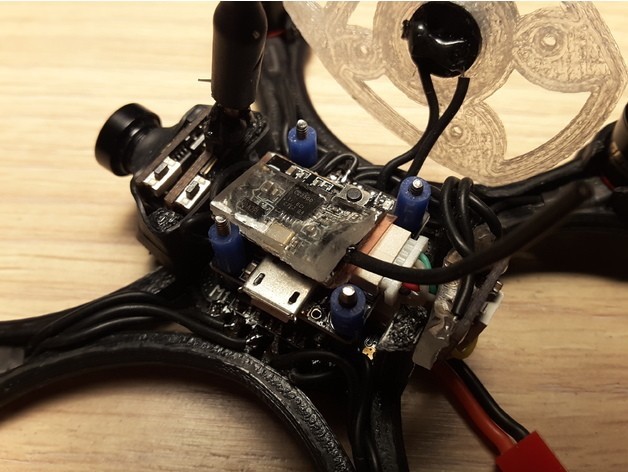

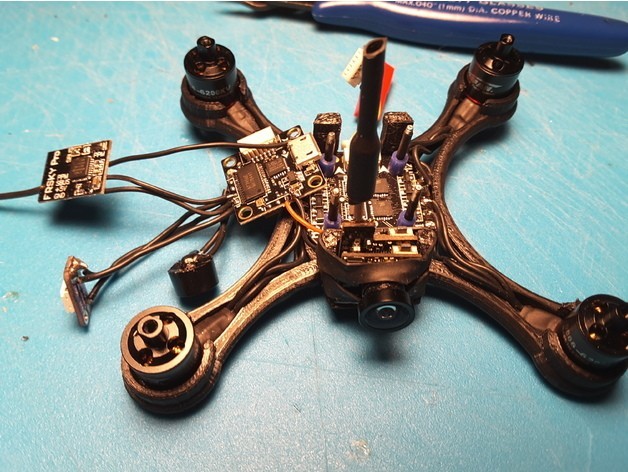

Micro Flight controler F3

https://www.banggood.com/Super_S-16x16mm-Betaflight-STM32F3-F3-Flight-Controller-Integrated-with-OSD-BEC-p-1147583.html?p=LD020411878172015024

Recever frsky Sbus:

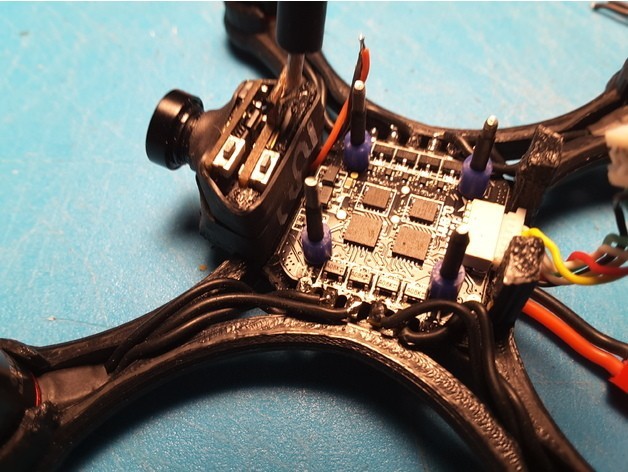

Esc 4x6amp Dshot600 2S 16x16mm:

https://www.banggood.com/Guide-4-In-1-6A-6amp-BLHeli_S-ESC-2S-Dshot600-Ready-BB2-16x16mm-3g-Support-Oneshot-Multishot-Dshot-p-1145523.html?p=LD020411878172015024

Brushless Gemfan 0806 6.200kv fpv racing:

https://www.banggood.com/Gemfan-0806-M0806-6200KV-2S-Brushless-Motor-For-8090100110mm-Micro-FPV-Racer-p-1135538.html?p=LD020411878172015024

Buzzer:

https://www.banggood.com/5V-Buzzer-Alarm-Beeper-With-Cable-for-Eachine-QX70-QX90-QX95-NAZE32-F3-DIY-Micro-Brushed-FPV-Racer-p-1100338.html?p=LD020411878172015024

Camera 5.8 600tvl 25mW:

https://www.banggood.com/CM275T-5_8G-25mW-48CH-600TVL-120-Degree-AIO-FPV-Mini-VTX-Camera-Transmitter-CAM-NTSC-PAL-Switchable-p-1139777.html?p=LD020411878172015024

Propeller Gemfan 2035 BN fpv racing:

https://www.banggood.com/2-Pairs-Gemfan-2035-2X3_5-BN-4-Leaf-3mm-Square-Hole-CW-CCW-FPV-Racing-Propeller-p-1137626.html?p=LD020411878172015024

https://www.facebook.com/Microdure/

3D printer file information

  • 3D design format: STL Folder details Close
    • Mini_racer_Brushless_0806_Top_Plate_2S_.stl
    • Mini_racer_Frame_Brushless_0806__2S_.stl
    • Soft_mount_gemfan_0806_6200kv__2S_.stl
    • fixation_lipo_300mha_2S_Nanotech_mini_racer_brushless_0806_2s_.stl

    Learn more about the formats

  • Publication date: 2017-07-05 at 12:09

License

CC BY NC SA
