Mini arcade controller

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 8 likes
  • 65 downloads

3D model description

Hi!

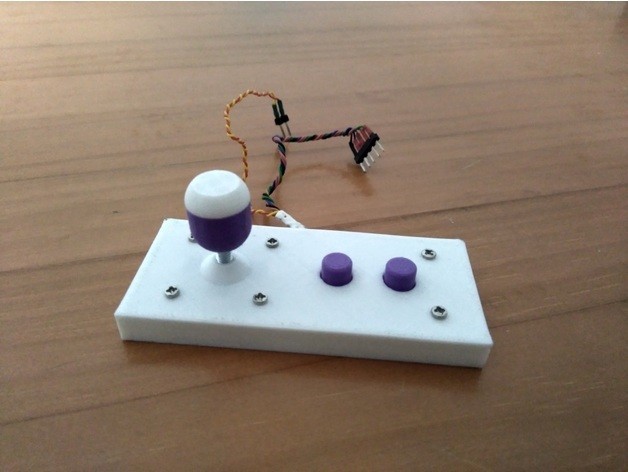

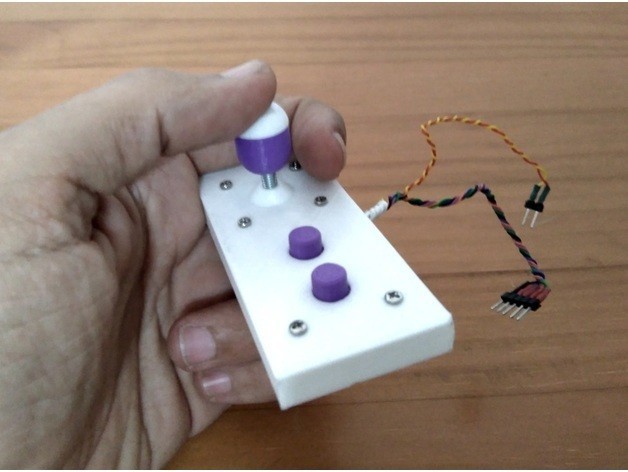

This is some sort of mini arcade controller suitable for Arduino/Raspberry projects.

The joystick works better than i expected, a full 8-way stick.

Tested playing Street Fighter 2 in a PC through a USB encoder using Arduino Pro Micro board. I can even launch Hadokens!!!

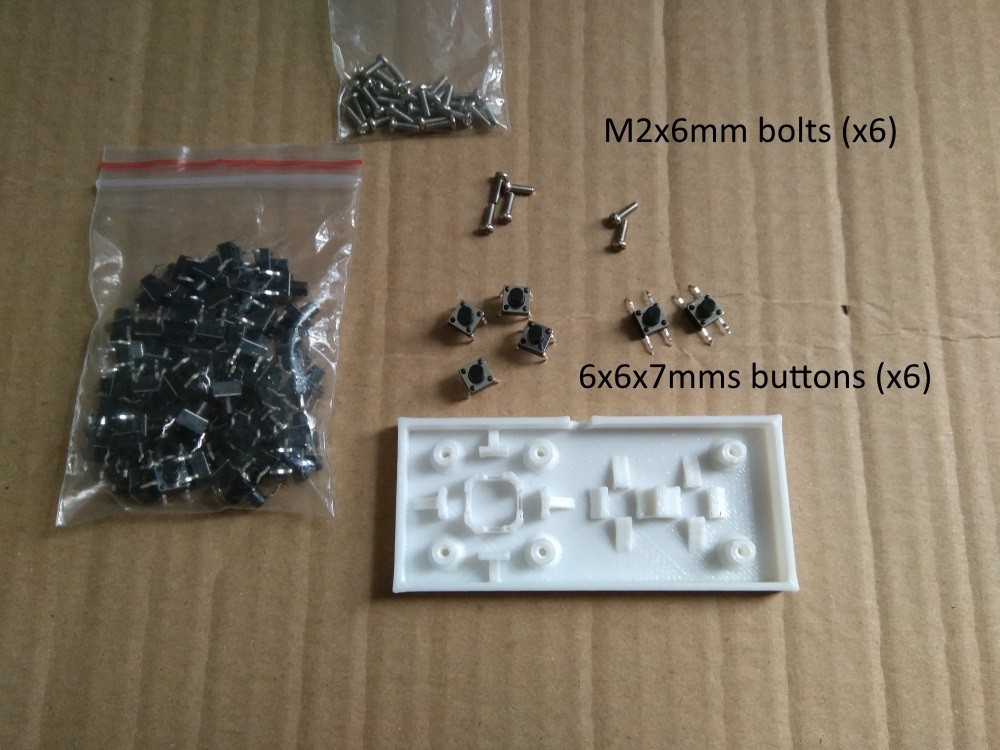

Materials:

Six M2x6mm screws (http://www.ebay.es/itm/272513431910)
Six 6x6x7 buttons (http://www.ebay.es/itm/272584042767)
Wires (http://www.ebay.es/itm/322382620874)

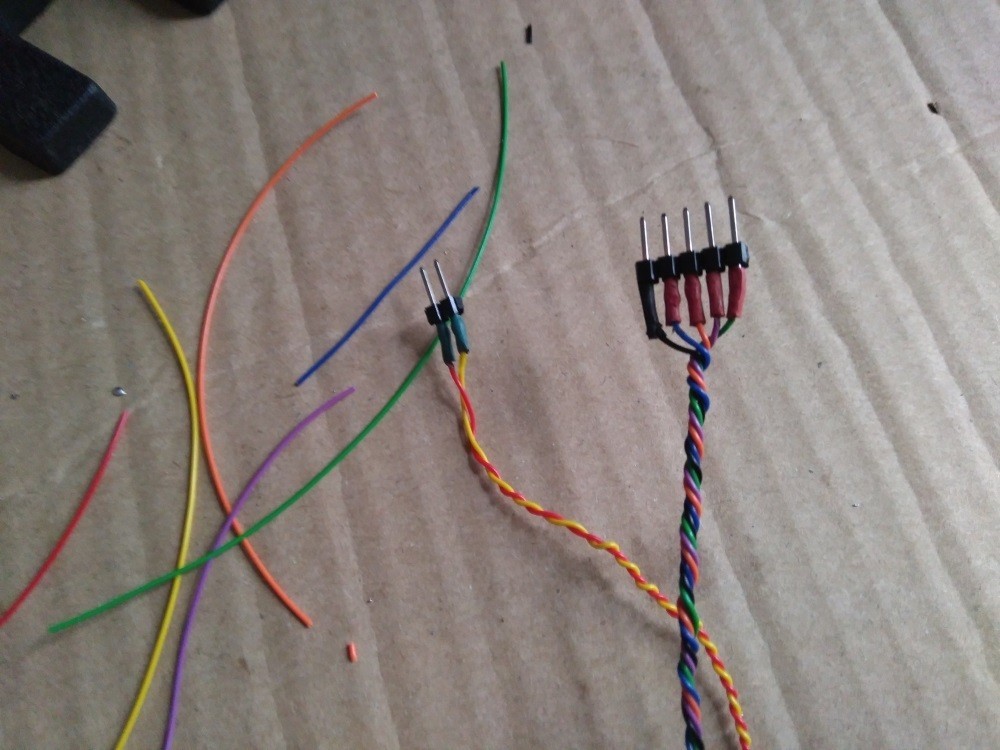

Thermoretractil (optional but recomended) (http://www.ebay.es/itm/291026145128)

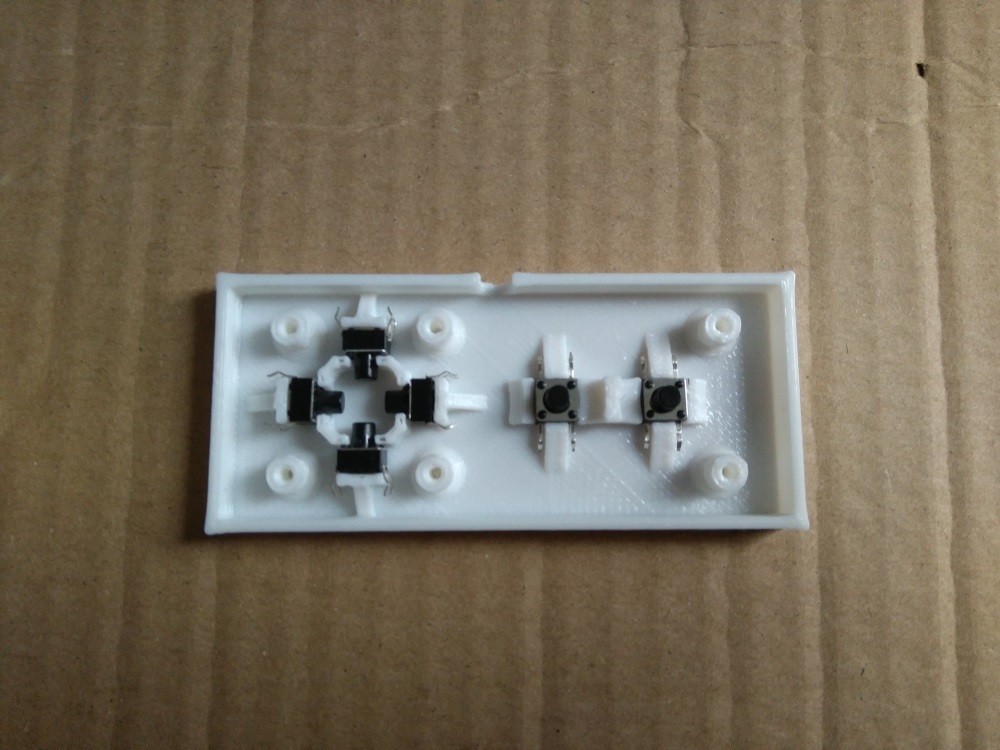

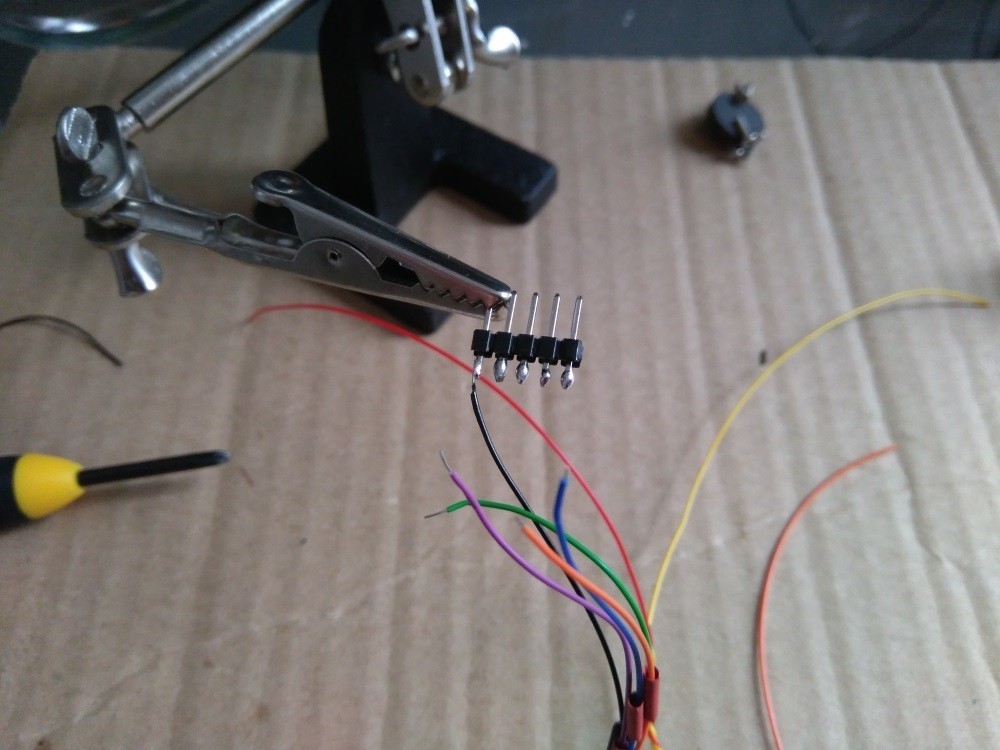

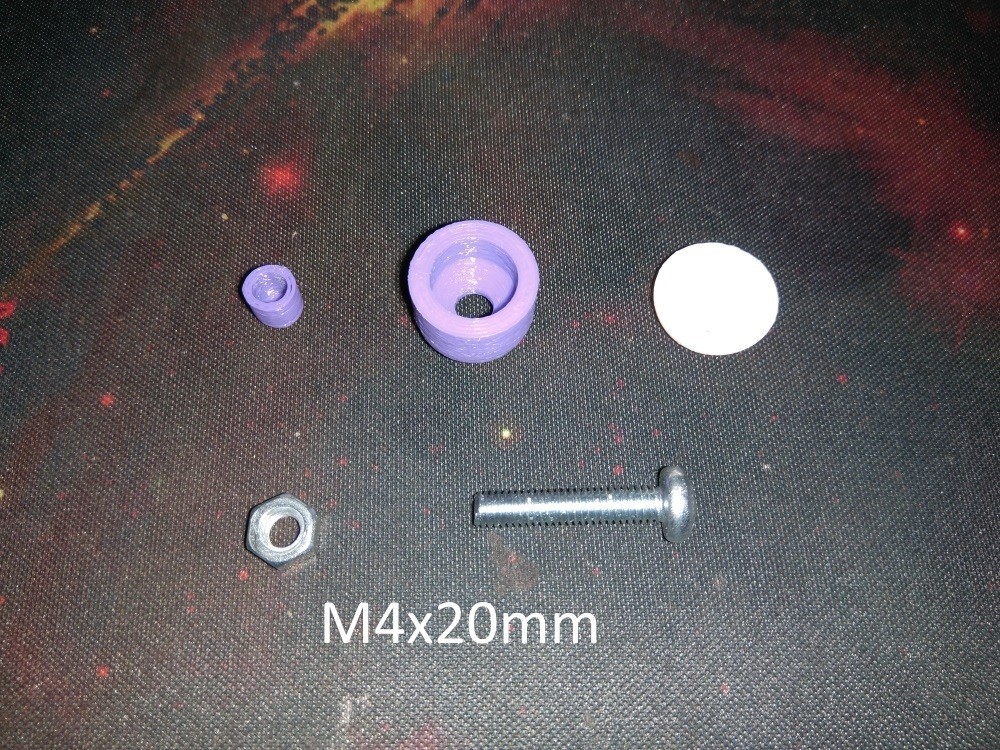

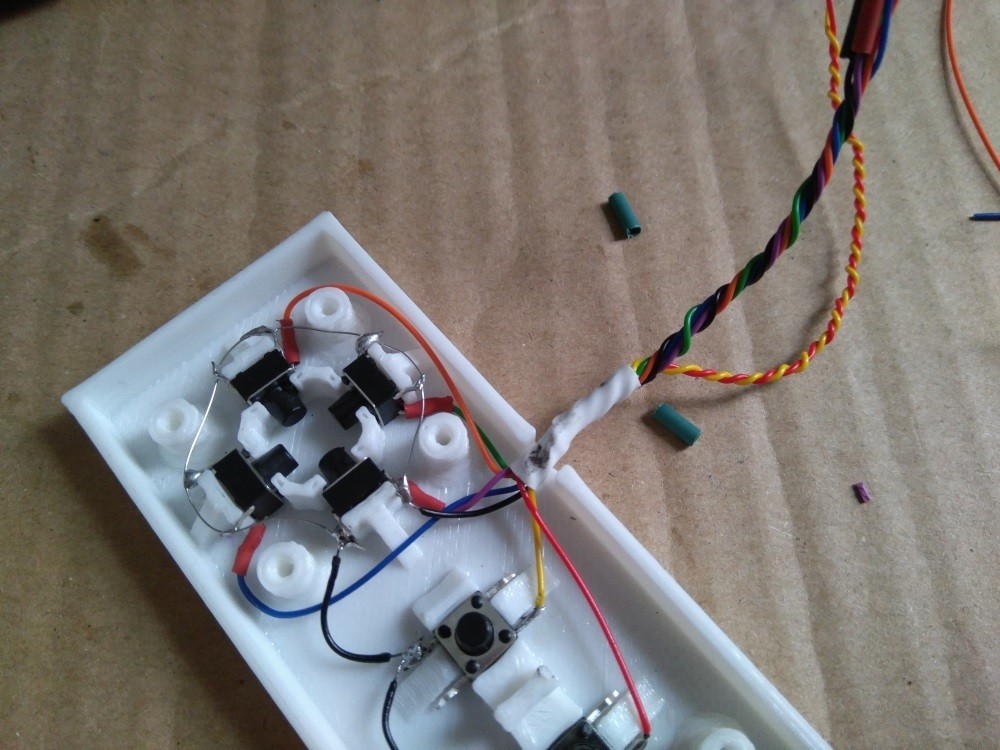

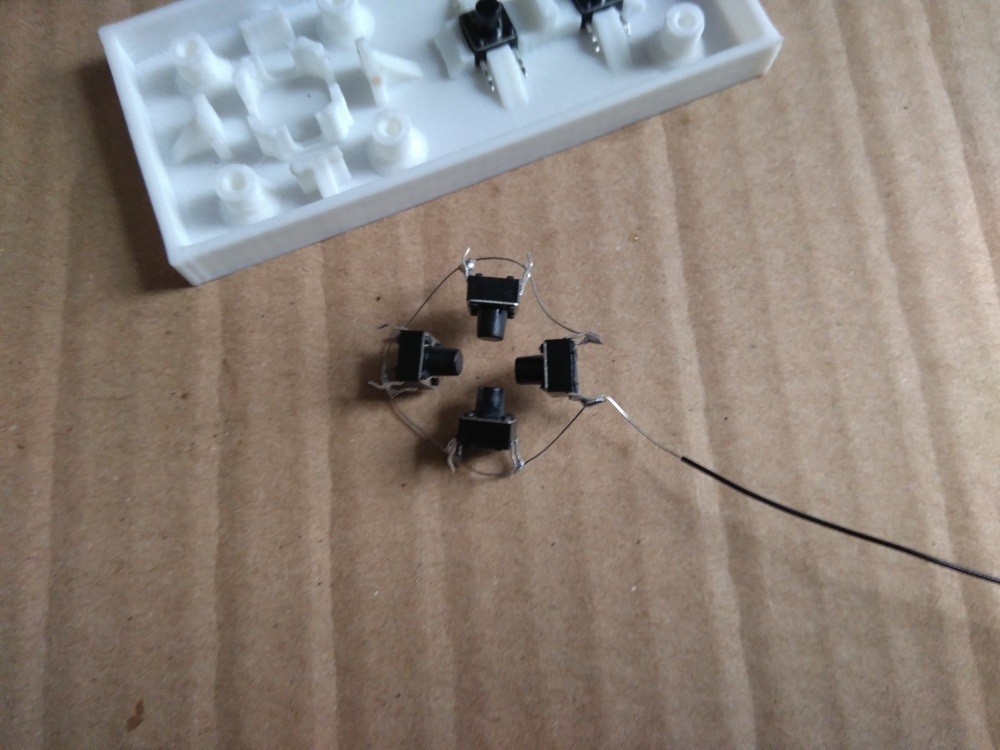

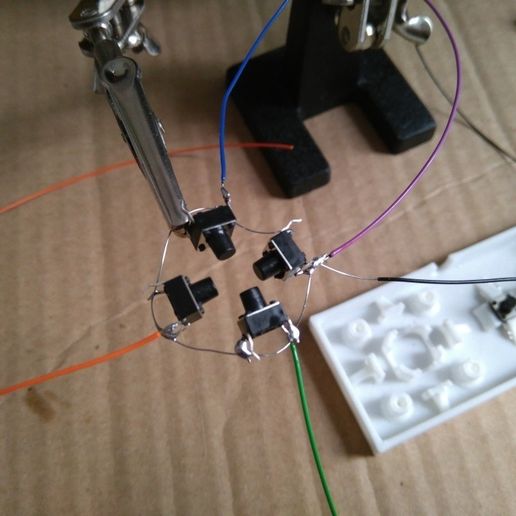

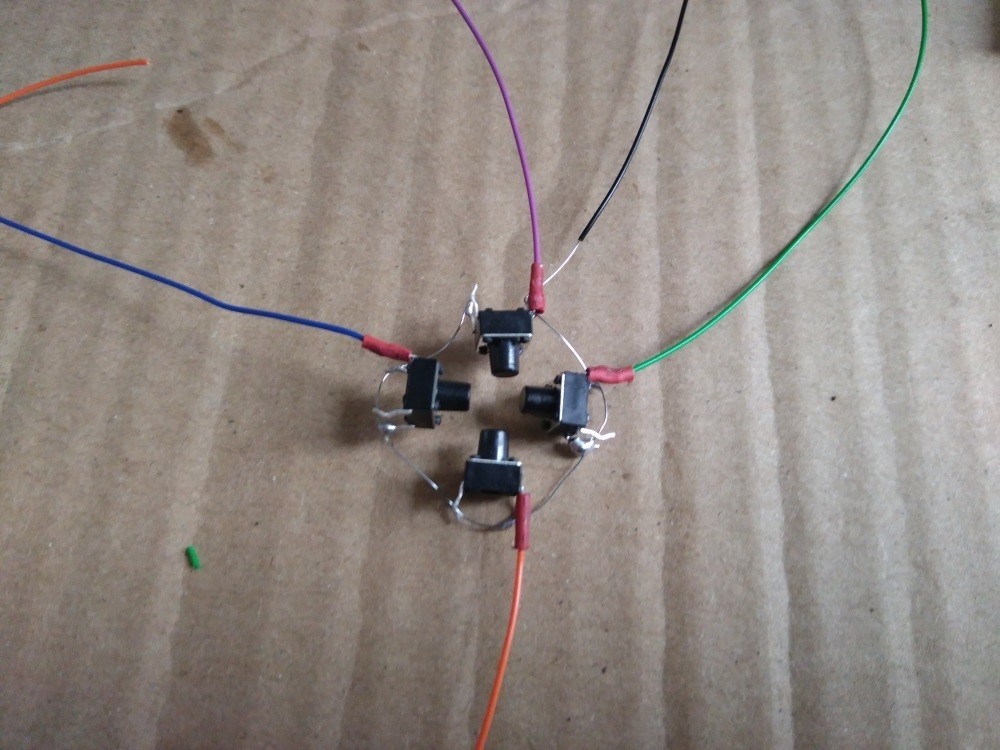

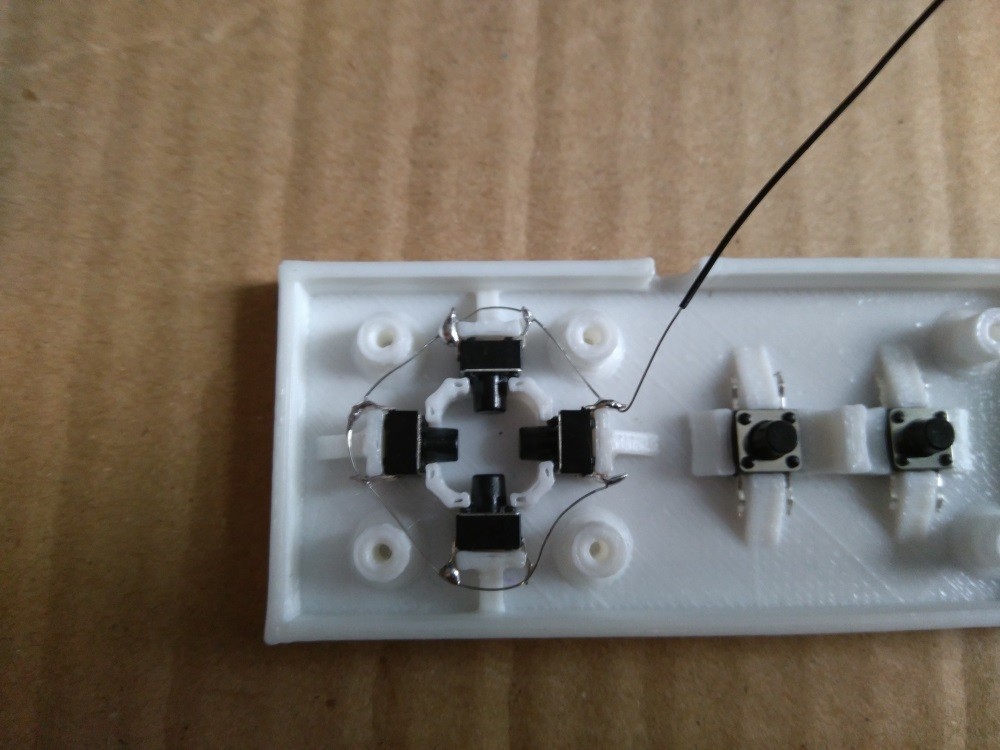

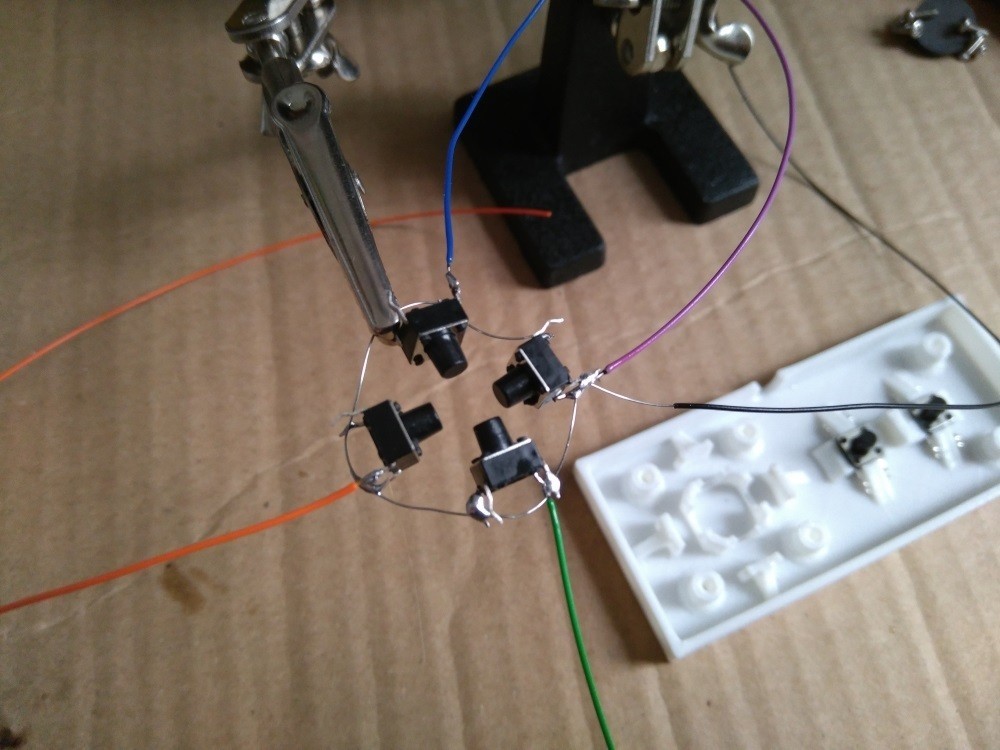

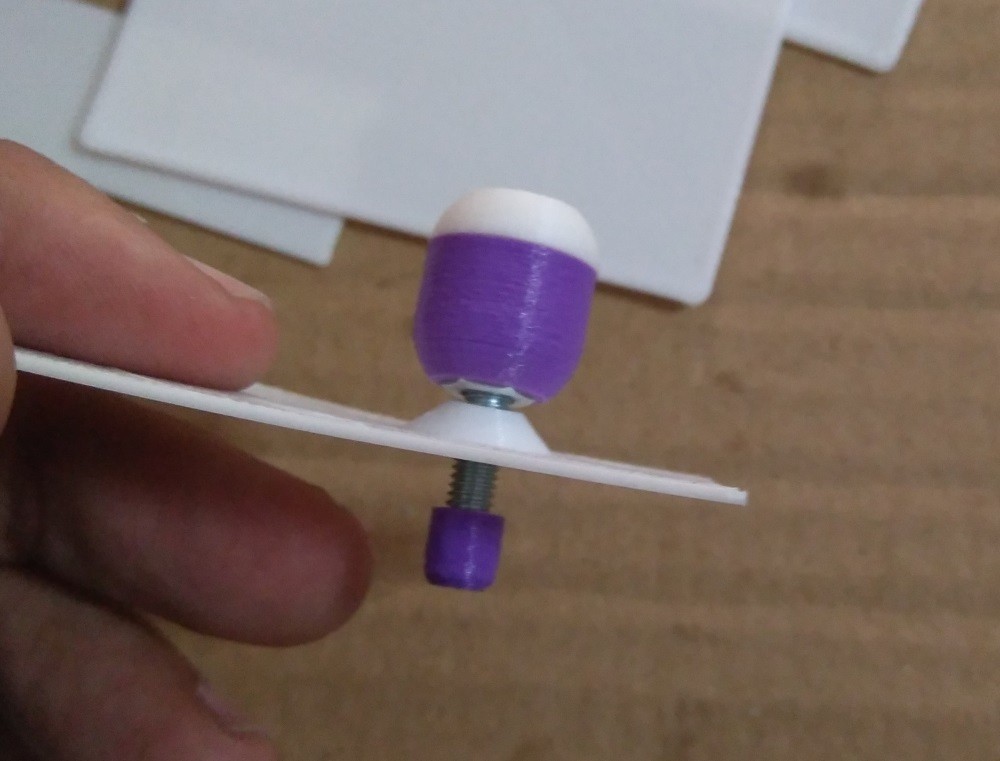

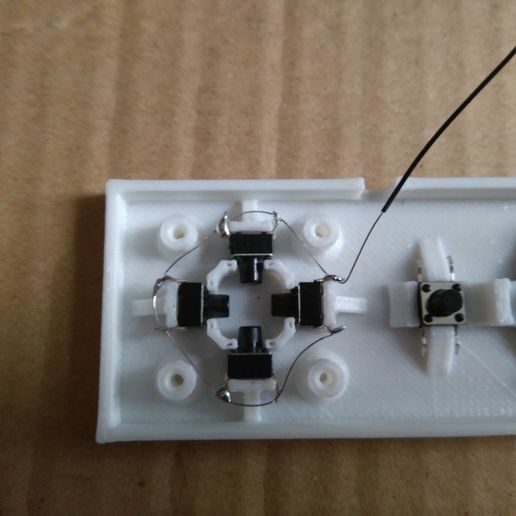

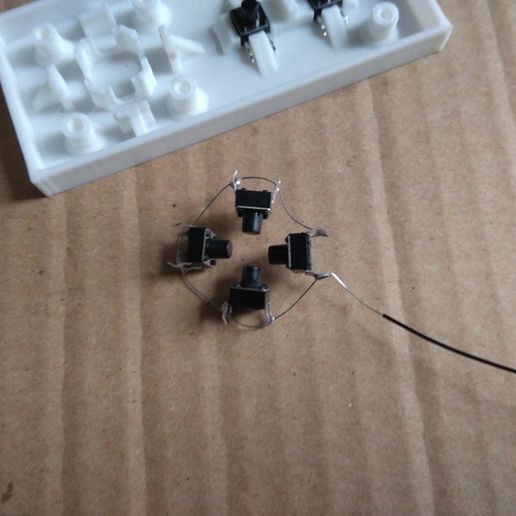

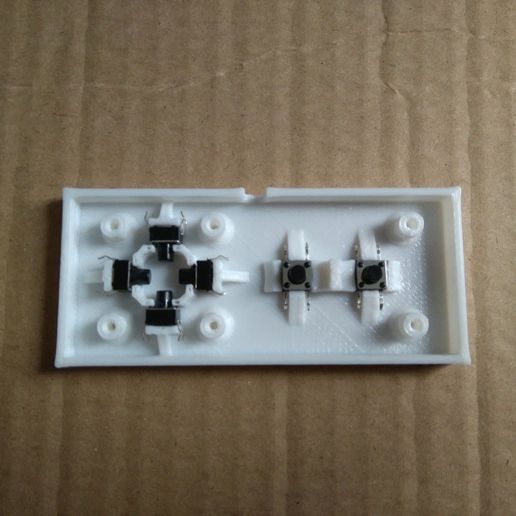

See the pictures below for the construction process and some tips

Designed in 123DDesing (include the 123dx file so you can adapt to your needs)

Hope you find it useful.

Have fun soldering!!

3D printing settings

Printer:

BQ Prusa i3 Hephestos

Rafts:

No

Supports:

No

Infill:

Doesn´t matter

Notes:
Use a resolution of 0.1 for small parts.
0.2 resolution it's ok for the controller case.

  • 3D file format: STL and ZIP
  • Publication date: 2018/07/18 at 15:01
