Micro RC Solid Axle Monster Truck

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 6 likes
  • 16 downloads

3D model description

These are the printable parts needed to build your own Solid Axle Micro RC Monster Truck! The build uses an HBX Devastator for many of the parts, as well as a few other parts. It's a whole lot of fun with brushless power indoors on rainy days. You can check out the build series on my YouTube Channel to follow along for the build. I have a list of the rest of the parts needed for the build below! Thanks for your Support!

Printed parts needed:
1x Frame Left

1x Frame Right

1x Electronics Tray

1x Base Pl

1x Motor Plate

1x Front Body Mount

1x Rear Body mount

2x Servo Mount Left

2x Servo Mount Right

Either 4x Wheel adapter or 4x Wheel

Other Parts Needed:
HBX Devastator : https://www.amazon.com/Goolsky-2-4GHz-Devastator-Crawler-Off-Road/dp/B07P1T51LM

Spin Masters 1/24 Die Cast Monster Jam Truck of your choice for tires and body

ESC: http://gl-racing.com/store/electronics-motors-c-11/brushless-sensored-esc-p-483.html

Motor: http://gl-racing.com/store/electronics-motors-c-11/sensored-brushless-motor-3500kv1pc-p-453.html?zenid=48iduuvdpoesrdt4m04r2t4or1

Axial Transmission : https://www.amainhobbies.com/axial-scx24-transmission-axi31608/p977303

Hot Racing 0.5M gears: https://www.amainhobbies.com/hot-racing-axial-scx24-0.5m-spur-gear-conversion-hrasxtf328m05/p1169362

Pinion : https://www.amainhobbies.com/robinson-racing-mini-8ight-.5-mod-hardened-steel-mini-pinion-2mm-bore-13t-rrp1813/p454469?v=271021

Servos I used: https://usa.banggood.com/4pcs-Lofty-Ambition-MG90S-Metal-Gear-9g-Servo-for-Robot-Airplane-RC-Helicopter-Car-Boat-Model-p-1406267.html?rmmds=search&cur_warehouse=USA

Transmitter I use (any transmitter with 3 position switch for 3rd channel can work if you want 4WS) : https://www.amazon.com/FlySky-GT-3C-2-4GHz-Controller-Orange/dp/B00FS2U83O

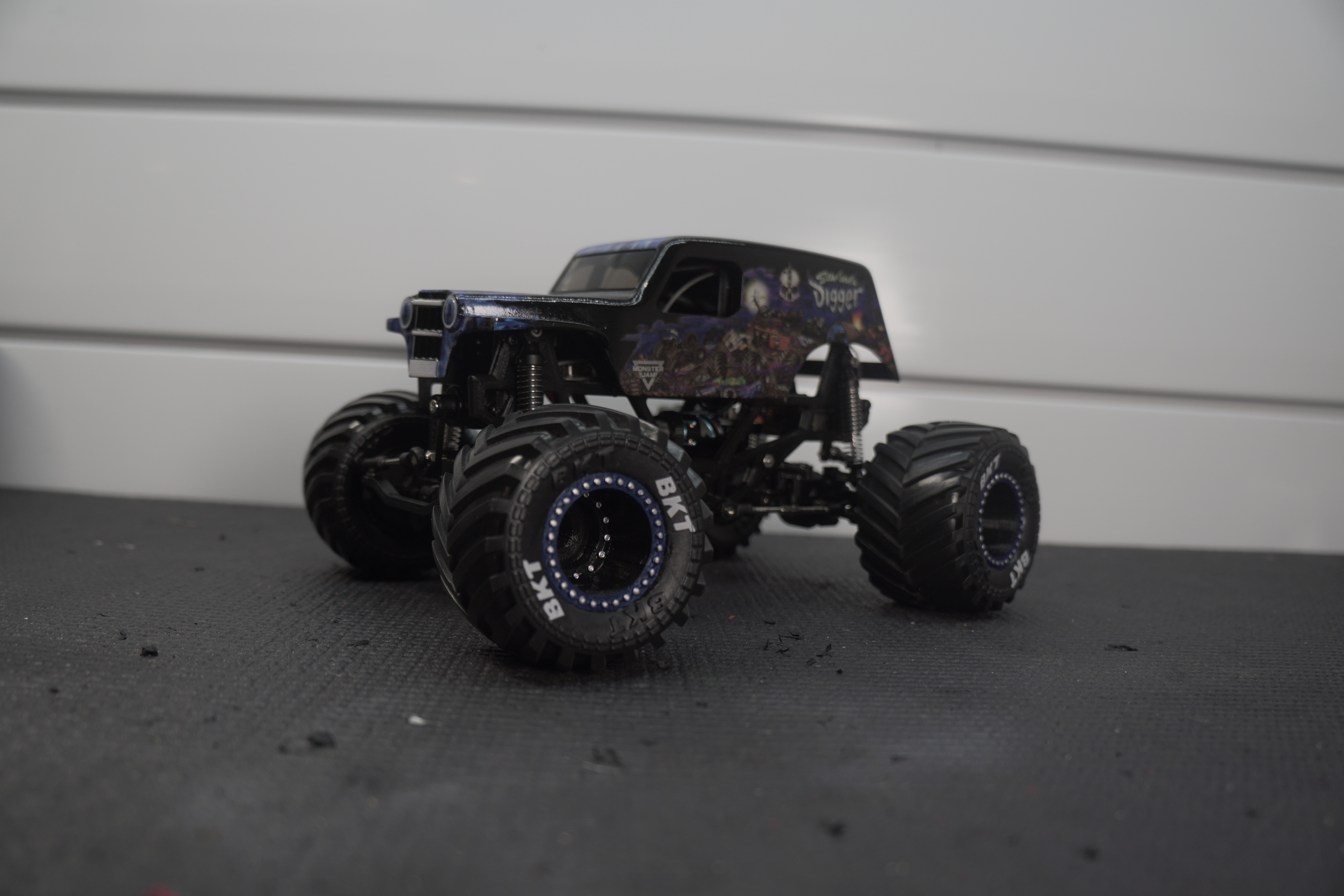

Final Build Video:
https://youtu.be/QEP16Faik8A

3D printing settings

Files need to be scaled by 2540% in your slicer. Fusion360 exports the STLs in mm even though I model in Inches.
Just about all parts were printed at .12mm layer height, the frame sides were printed at .16mm to save a little time. 25% infill should be enough but you can use higher if you'd like.

  • 3D file format: STL
  • Publication date: 2020/10/23 at 03:02
