Micro FPV Quad-racer 2S 90mm polycarbonate

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.9k views
  • 9 likes
  • 86 downloads

3D model description

The light and airy architecture of the 90mm frame has been possible due to the soliditer and stiffness of the polycarbonate.
Be very careful in flight with other filaments

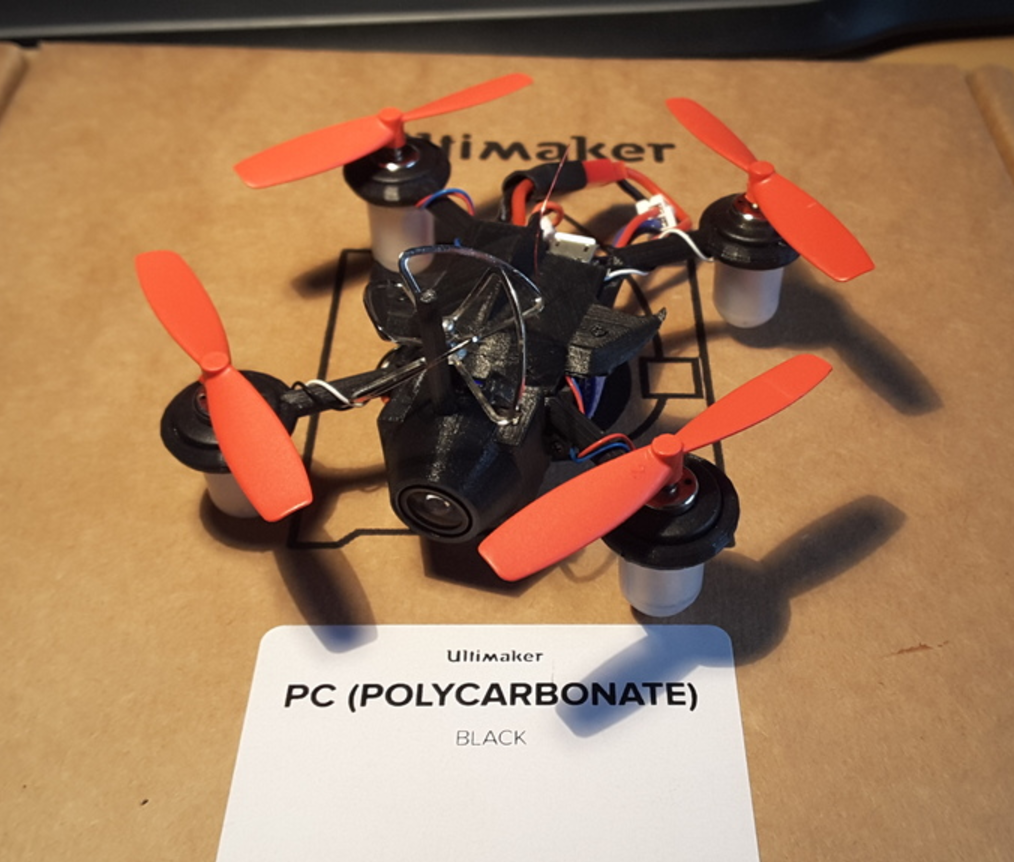

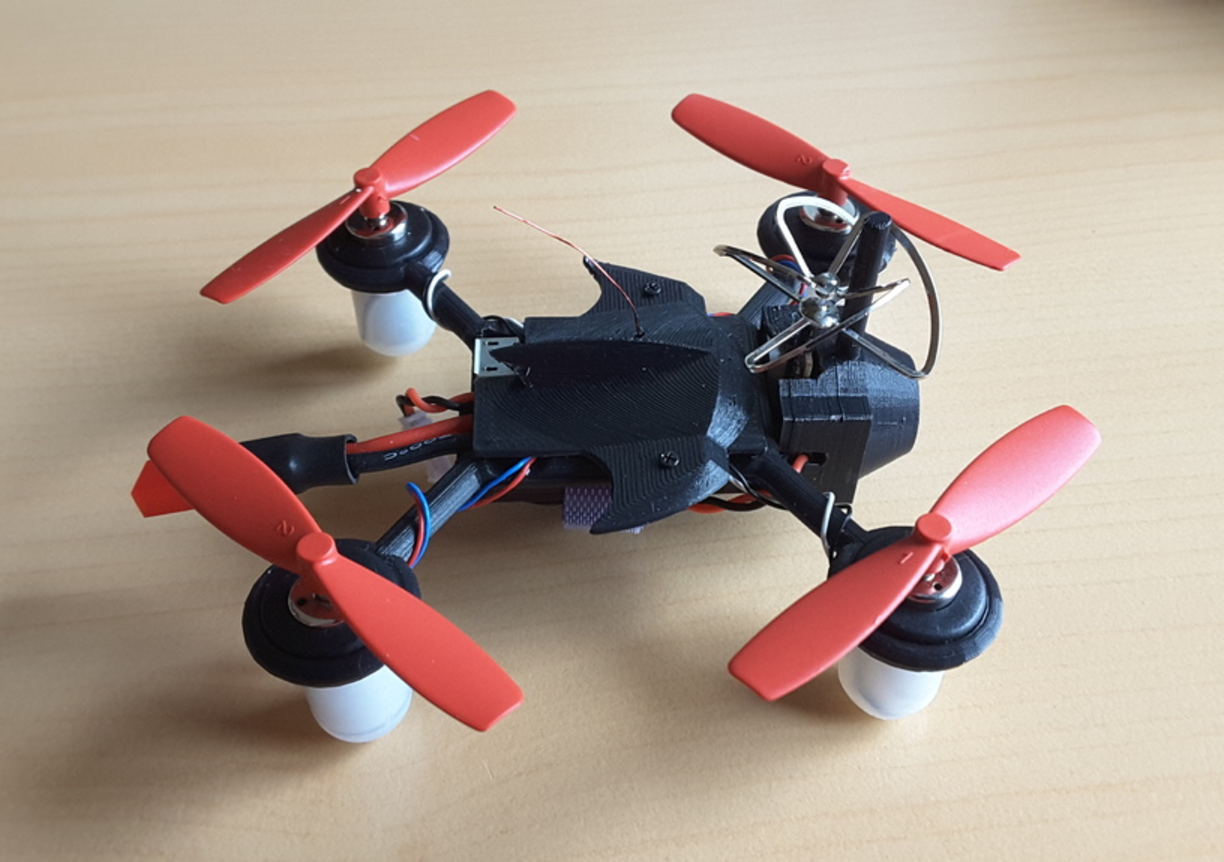

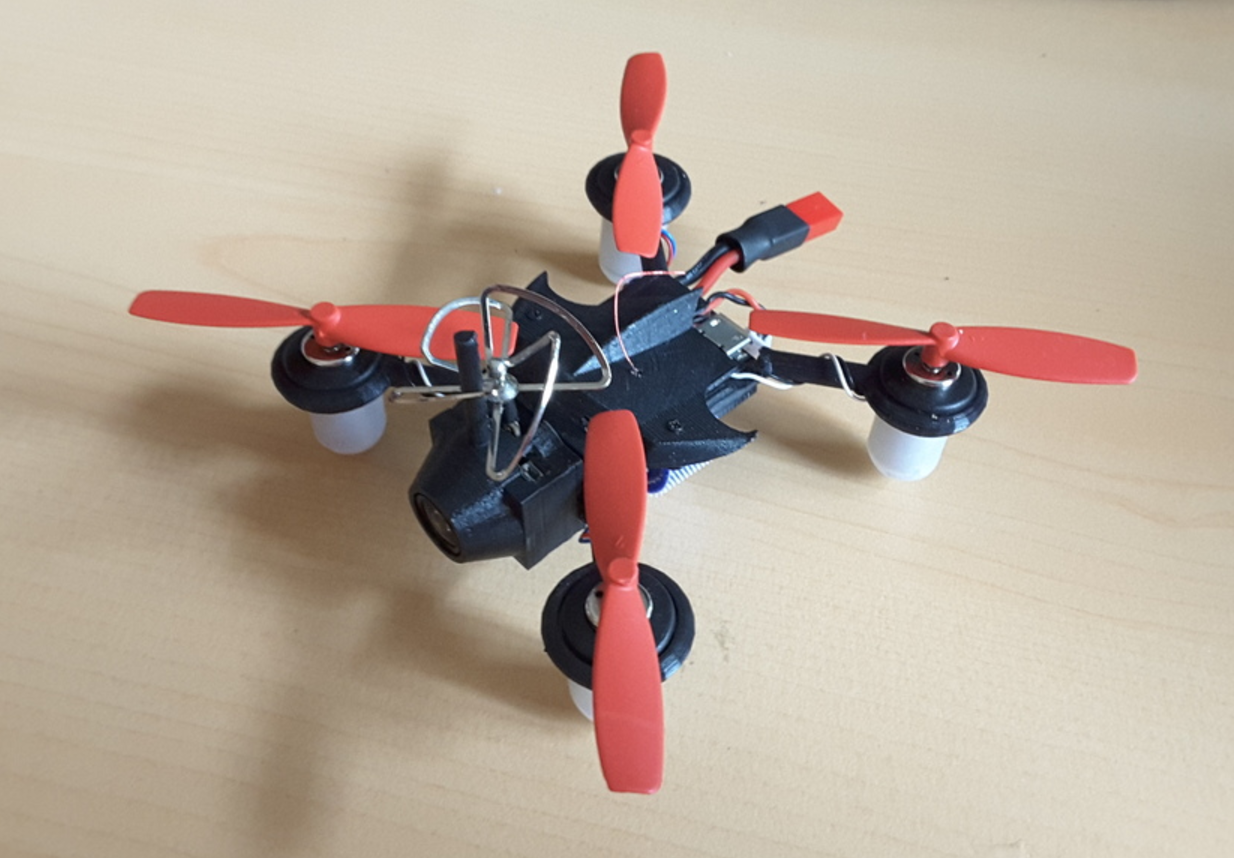

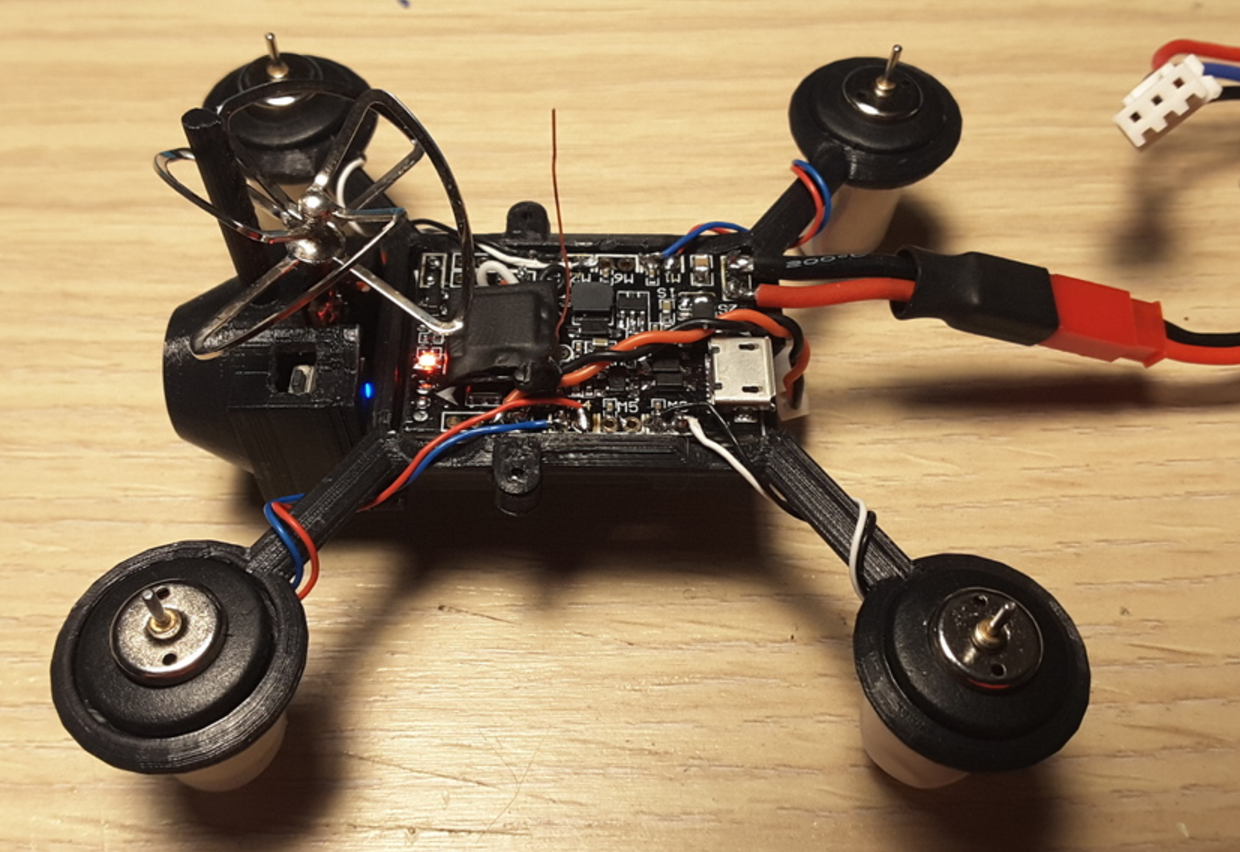

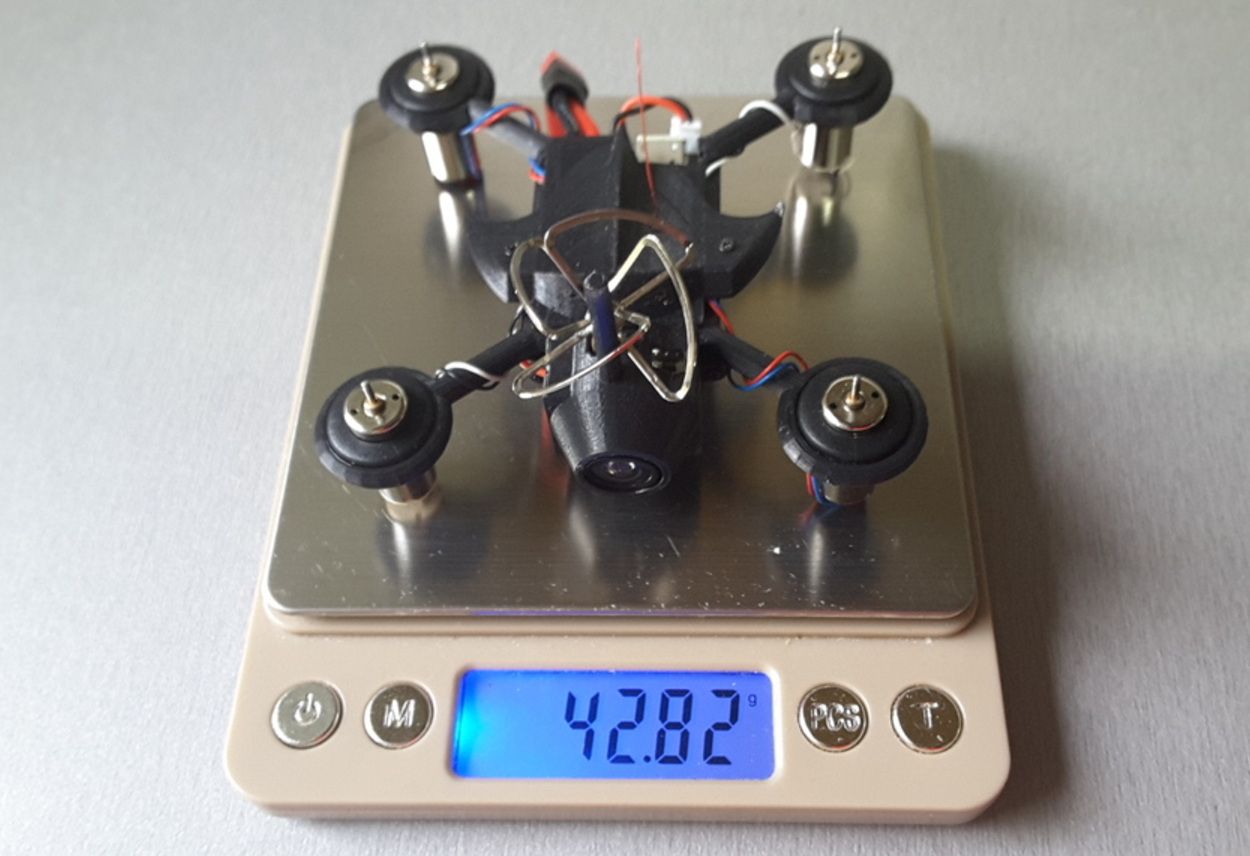

Frame in polycarbonate Ultimaker 90 mm center distance with a flight controller sp racing evo . It is fully configurable and cleanflight on all flights modes

F.C. :
http://www.banggood.com/fr/Eachine-32bits-F3-Brushed-Flight-Control-Board-Based-On-SP-RACING-F3-EVO-For-Micro-FPV-Frame-p-1076530.html?p=LD020411878172015024

Coreless:
http://www.banggood.com/Chaoli-CL-820-8_5x20mm-2S-Coreless-Motor-for-90mm-150mm-DIY-Micro-FPV-RC-Quadcopter-Frame-p-1084265.html?p=LD020411878172015024

Protection Insulated Rubber Ring for FPV Racer:
http://www.banggood.com/fr/20-PCS-3MM-5MM-6MM-8MM-10MM-Short-Circuit-Protection-Insulated-Rubber-Ring-for-FPV-Racer-p-1075031.html?p=LD020411878172015024

Recpteur: http://bit.do/DSM2-5CH-2-4Ghz-RC-Micro-Receiver-With-6-CH-PPM

Camera 25mw:
http://www.banggood.com/Eachine-TX01-Super-Mini-AIO-5_8G-40CH-25MW-VTX-600TVL-14-Cmos-FPV-Transmitter-p-1088374.html?p=LD020411878172015024

Camera 200mW:
http://www.banggood.com/Eachine-TX02-Super-Mini-AIO-5_8G-40CH-200mW-VTX-600TVL-14-Cmos-FPV-Camera-p-1088368.html?rmmds=myorder?p=LD020411878172015024

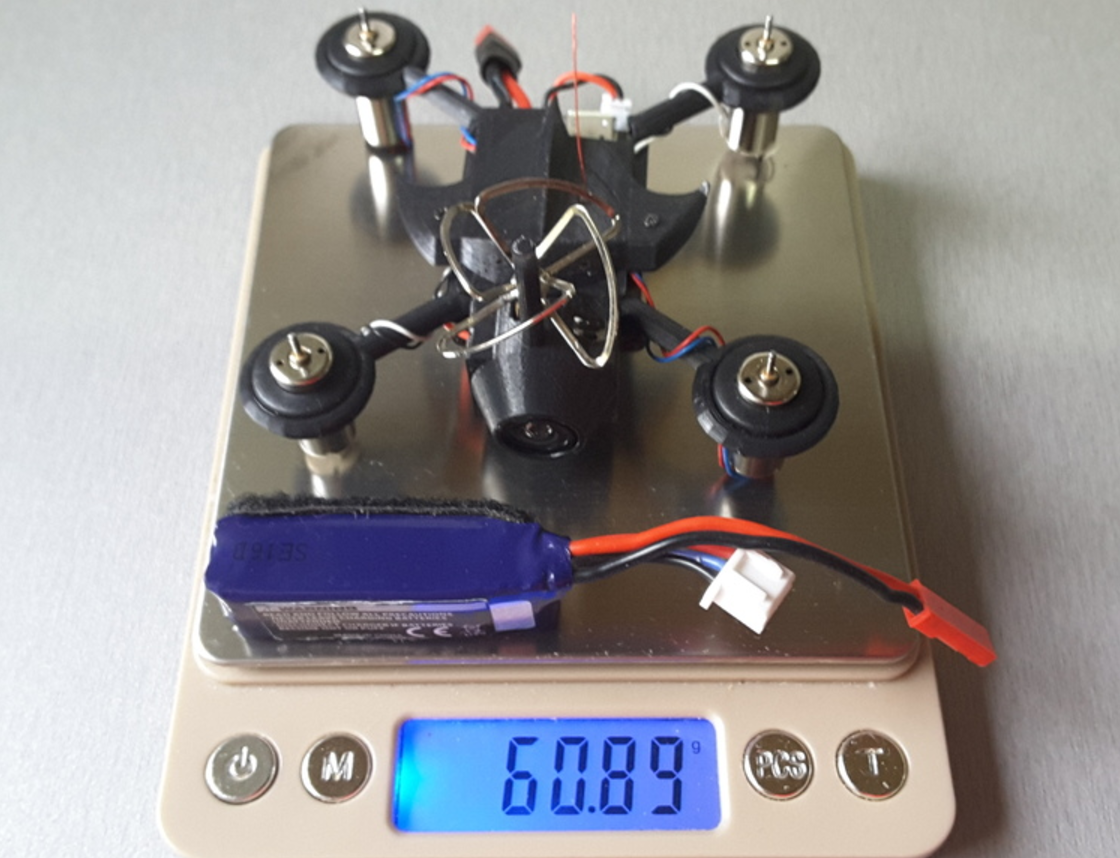

lipo: 300mha 2S : +/- 3-4min

screws: 4x M1.6 x 5mm

The fixing part lipo is glued to the frame.
At the time of bonding, move lipo fixing on one side as the antenna and its protection are in the passage of the propellers.

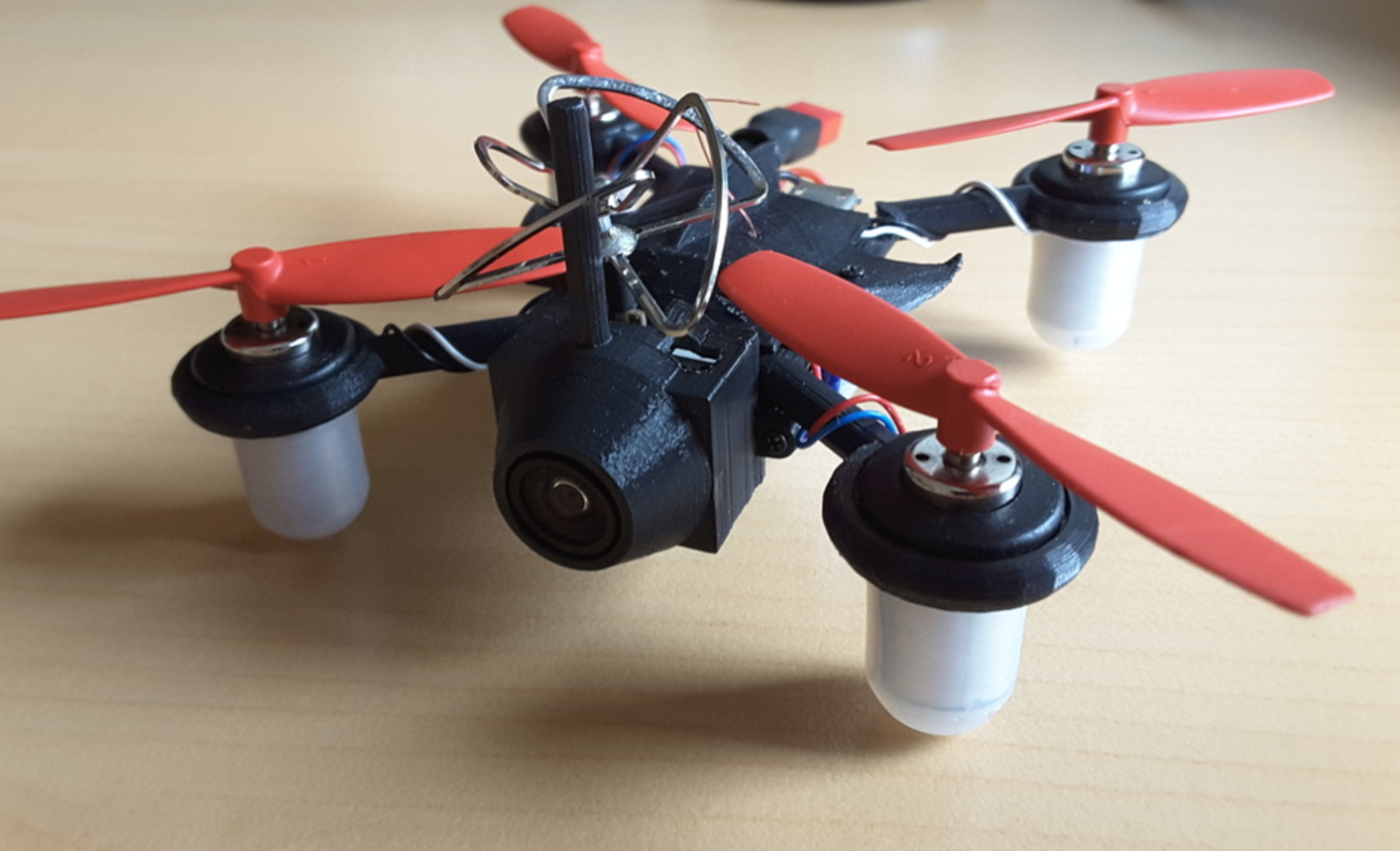

The Camera 25mW and 200mW mention in the links above if its compatible with camera protection.

A flat top cover larger and larger and compatible with the greatest receivers is being prepared.

https://www.facebook.com/Microdure/

3D printing settings

Printer Brand:
Ultimaker

Printer:
Ultimaker Original

Rafts:
Yes

Supports:
Yes

Resolution:
0.100 mm

Infill:
Polycarbonate Ultimaker

  • 3D file format: STL
  • Last update: 2017/03/13 at 13:35
  • Publication date: 2017/02/20 at 11:53

License

CC BY NC SA
