Micro FPV Antenna Support Plate and Lens Cap DIY FPV
- 856 views
- 3 likes
- 11 downloads
3D model description

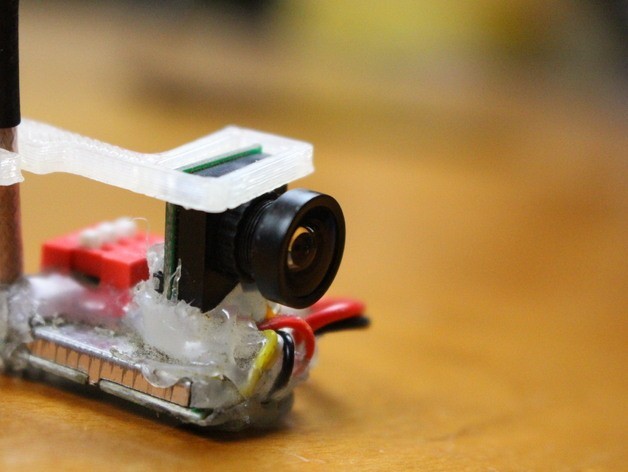

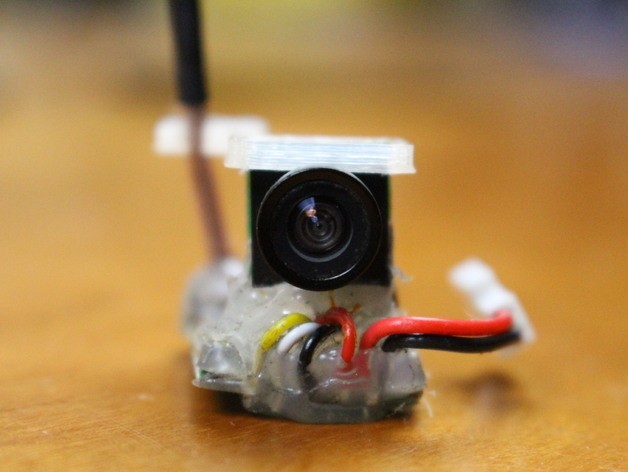

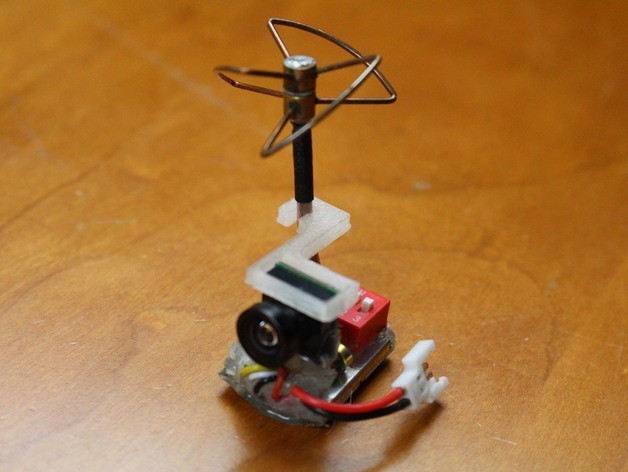

Want to build a $25 high-resolution high-quality micro FPV rig? If so, you've come to the right place. We have created a complete and detailed youtube tutorial that will clearly explain every step. We understand that there are many other tutorials online who show you how to build micro FPV rigs, but we guarantee that none of them show you how to build them for $25. This micro FPV rig will allow you to mount FPV on pretty much any of your RC vehicles especially ones where every gram counts. Unlike other peoples designs, we show you how to build it with a cloverleaf antenna, not just a crappy piece of wire. This optimizes both your range and your video quality. If you don't have a 3D printer, for your convenience, we are selling both the antenna and the support plate, and the lens cap on eBay.
3D printing settings
Flashforge Creator Pro
Use your default settings
Print in ABS or PLA.
Get Your Parts
All the parts and odd tools that you may need are listed below (prices include shipping):
Light Weight Micro Cloverleaf Antenna:
Boscam FPV 5.8ghz 200mw FPV Transmitter:
Safety Glasses: -$5
Longnose Pliers: -$11
Soldering Iron Kit: -$21
Helping Hand: -$8
Heat Gun: -$18
EPIC 100w Glue Gun (uses 11mm glue sticks): -$17
Silver Rosin Core Solder (1/2 pound): - $25
Assemble Your Micro FPV
We have created a complete tutorial video on how to assemble your very own inexpensive micro FPV rig.
- 3D file format: STL
- Publication date: 2018/03/02 at 12:18
