3D model description

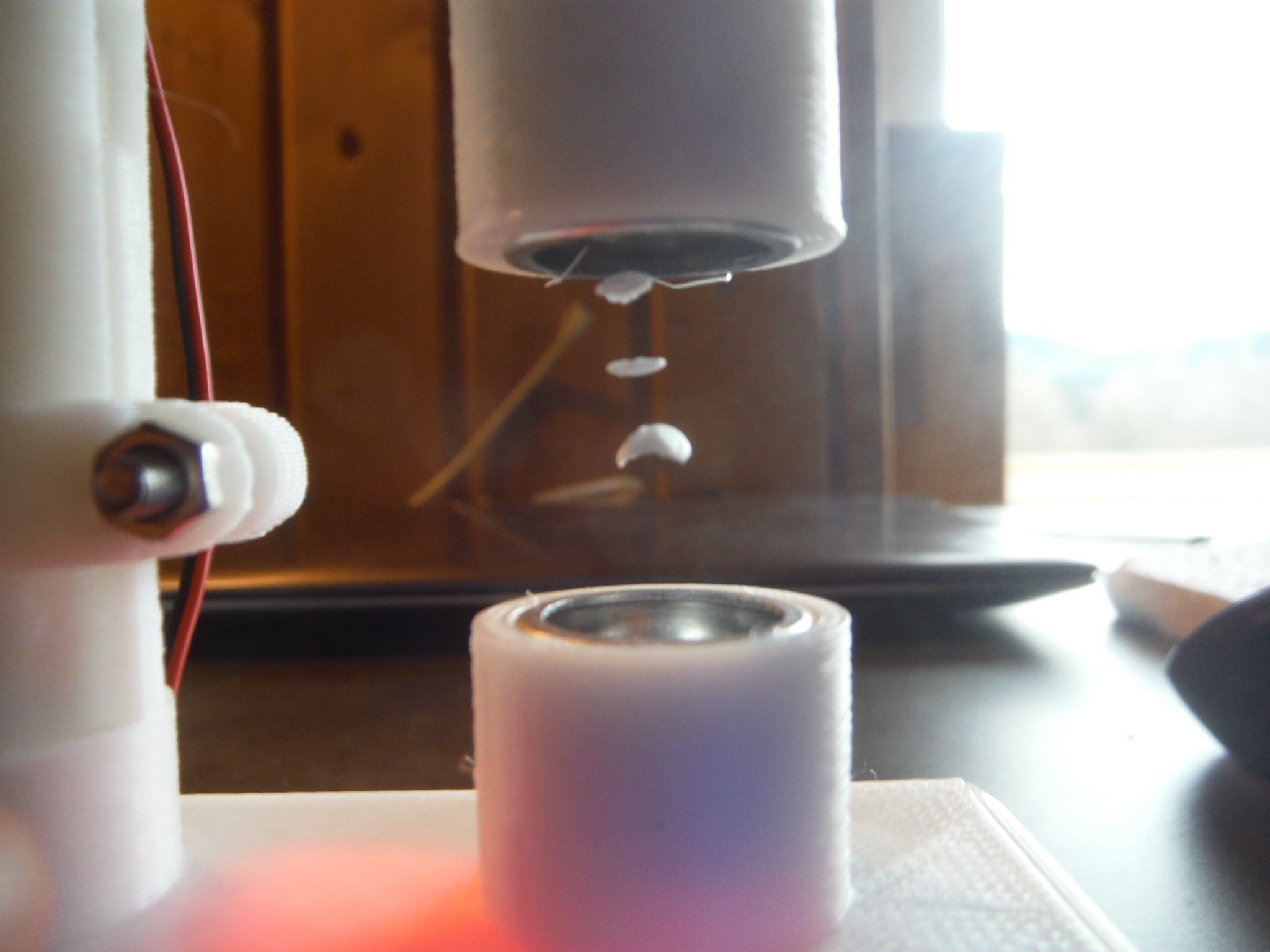

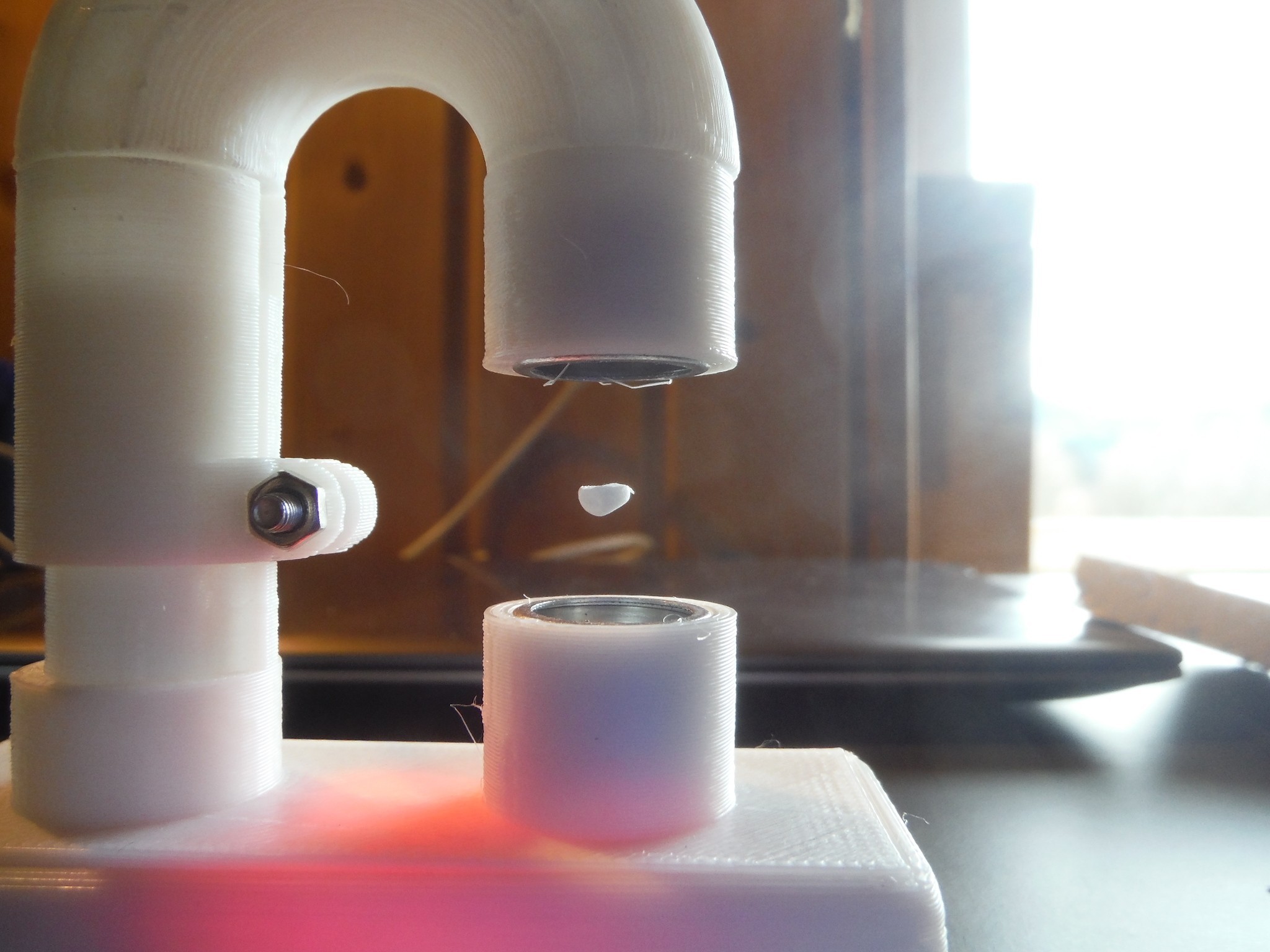

This is a machine that levitates small polystyrene balls by ultrasound.
DC-005 power jack connector: https://www.amazon.fr/gp/product/B01NCY1FEP/ref=ppx_yo_dt_b_asin_title_o03__o00_s00?ie=UTF8&psc=1
12v power supply (or Li-Polymer (Lipo) supply in 4 cells): https://www.amazon.fr/EFISH-Adaptateur-Alimentation-Composants-%C3%A9lectroniques/dp/B07D9FDFW4/ref=sr_1_8?s=computers&ie=UTF8&qid=1549964383&sr=1-8&keywords=alim+12v
1N4007: https://www.amazon.fr/Ils-Pi%C3%A8ces rectifier-projects-Do-it-yourself/dp/B07F6CKTM9/ref=sr_1_1?s=computers&ie=UTF8&qid=1549964484&sr=1-1&keywords=1n4007
All the elements for code, schematics and electronics are here: https://www.heise.de/make/artikel/Einfacher-Ultraschall-Levitationsapparat-4022505.html
3D printing settings
If a parameter is not entered, it is a choice.
The layer thicknesses are only used to improve the printing time (therefore not mandatory).
Elbow1 : Support
Elbow2 : Support
Base_Tube : 0.3 mm thick layer
Tube1 : 0.3 mm thick layer
Tube2 : (printing parameter of your choice)
- 3D file format: STL
- Publication date: 2019/02/12 at 10:54
