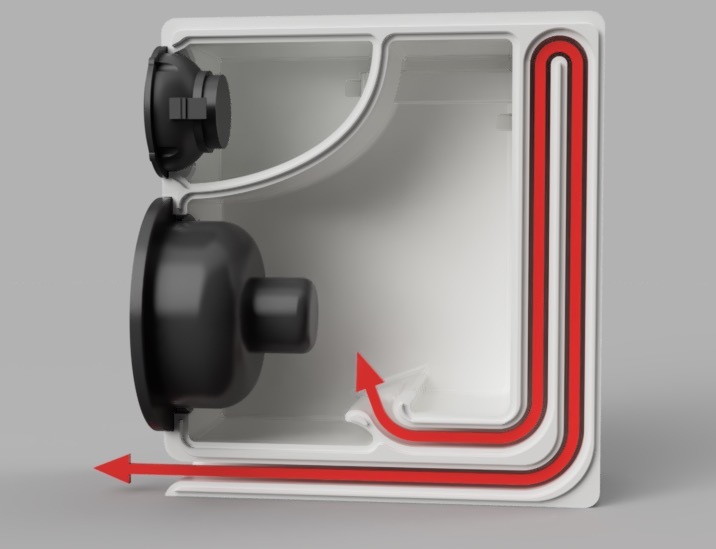

LCM_Proto_1a_waveguide.jpg Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_Proto_1_Semi-wood_2021-Oct-02_05-54-28AM-000_CustomizedView3223957370.png Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82

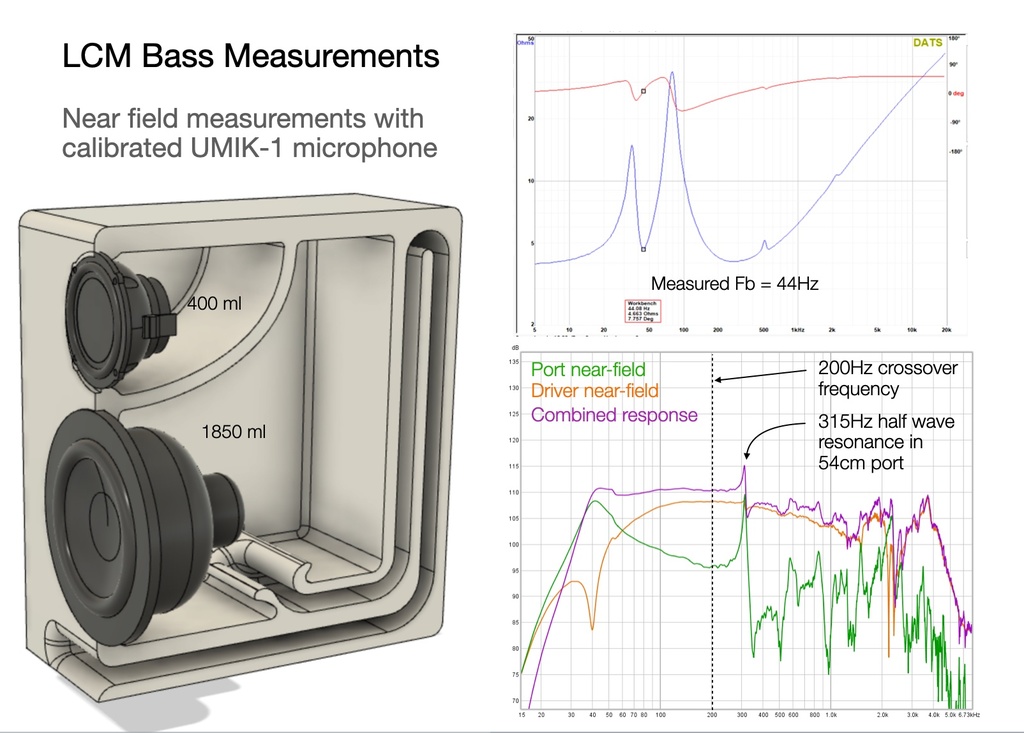

LCM_LF_Response.jpg Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82

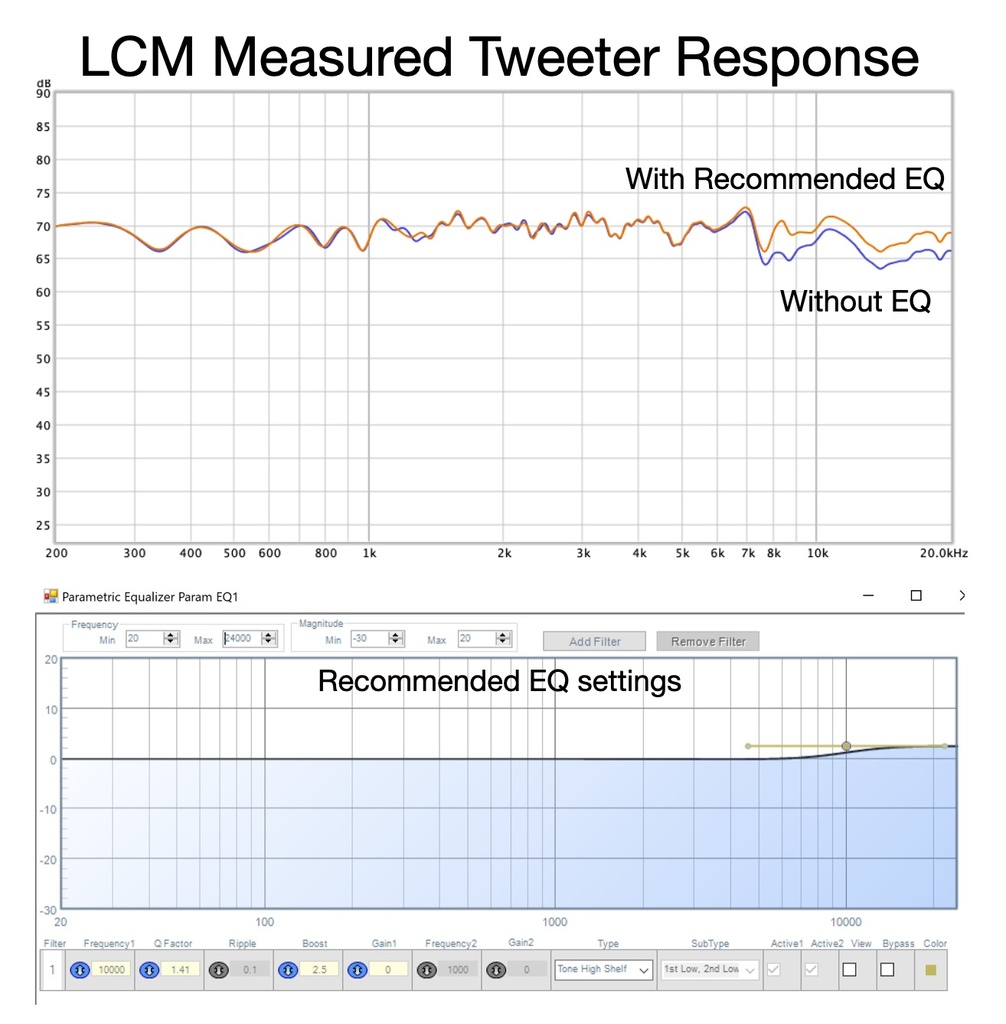

LCM_HF_Response.jpg Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82

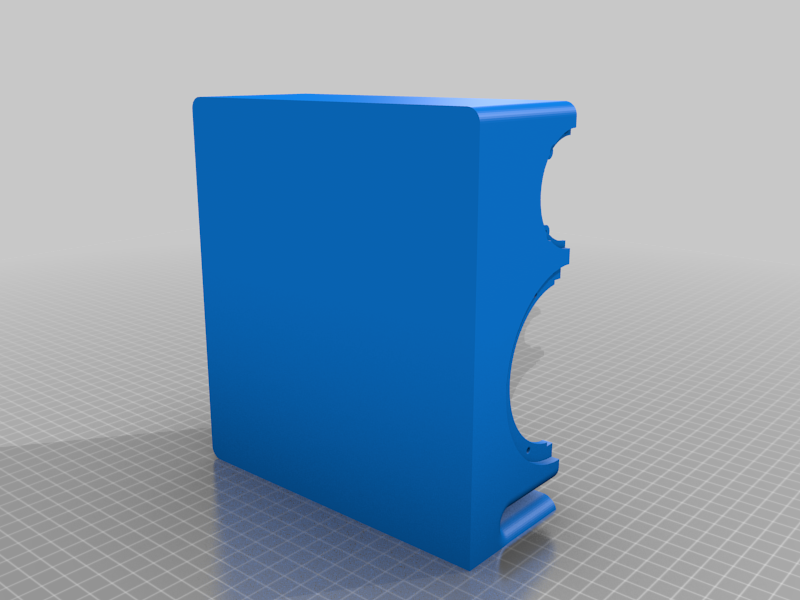

LCM_Printed_Case_R.png Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Printed_Body_R_.png Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Printed_Body_L_.png Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_Printed_Case_L.png Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Side_Panel_template_.png Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Side_Panel_L_.png Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Side_Panel_R_.png Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_Printed_Case_R.stl Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_Printed_Case_L.stl Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Side_Panel_template_.stl Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Side_Panel_R_.stl Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Side_Panel_L_.stl Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Printed_Body_R_.stl Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
LCM_LCM_Proto_1_Semi-wood_v4_Half_Wood_Printed_Body_L_.stl Free STL file LCM Monitor Speaker - 40Hz waveguide - Bluetooth - DSP・3D printing design to download, zx82
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

LCM Nearfield monitor speaker

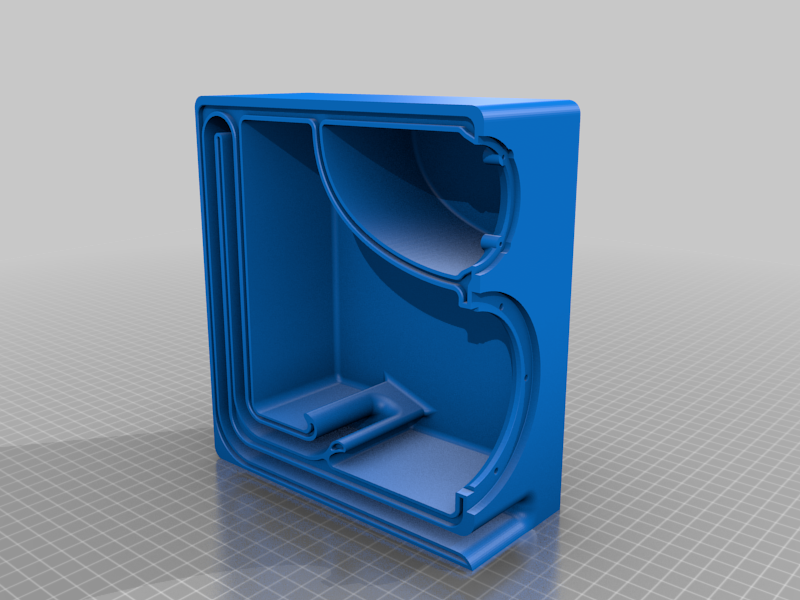

This is a near field mini-monitor, designed for excellent bass response, and intended for use at a desk or console. The are suitable for desktop, shelf or wall mounting and optimized for small to medium sized rooms. The 55cm waveguide port is tuned to 44Hz and provides bass down to 40Hz in a small 14cm x 19cm x 17cm package (5.5 x 7.5 x 6.7 inch).

The recomended 4 channel DSP amplifier has bluetooth and 3.5mm input and functions as the crossover to split the signal between woofer and tweeter at 200Hz. (It will be possible to use other amplifiers but you will need to have a crossover for it to work.)

The speaker prints in 2 halves which glue together with a tongue and groove joint. I made a version for wooden side panels. This will cut the amount of plastic and the print time down massively.

If you like it, please hit like!

I suggest using this amplifier with the attached sigma studio DSP project:
https://www.thingiverse.com/thing:4761687
