3D model description

Impossible to find spares for the Bowens Illumitran slide copier!

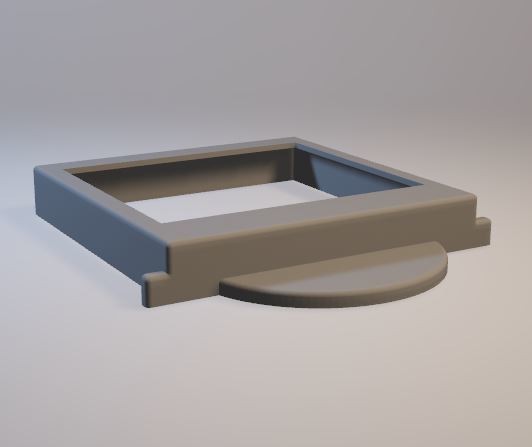

An improved design would have been possible, but this is a copy of the original (1960s-80s) slide tray. You will also need a sheet of opal/white opaque acrylic diffuser, approx 77mm square.

Plus a slide support for unmounted 35mm and a 70mm slide tray.

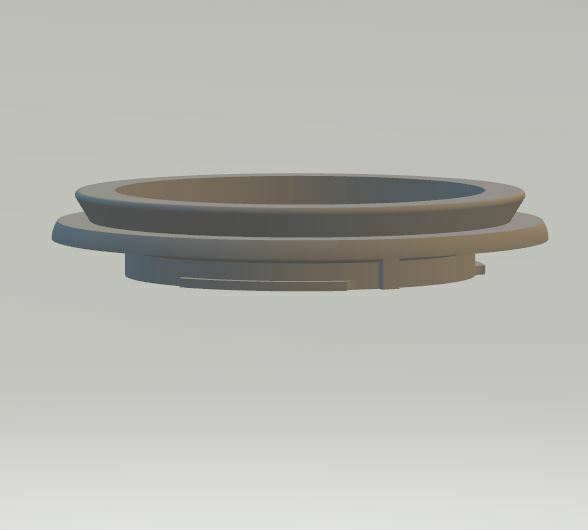

Plus a M4/3rds camera adapter to fit the illumitran or Butterfield BPM bellows unit.


3D printing settings

Illumitran slide copier: support required.
M4/3rds adapter: FDM: best printed with M43 adapter on top (ie printed last), with support on M43 flanges (CURA: use concentric supports, draft 0.2 layers is sufficient).

3D printer file information

  • 3D design format: STL Folder details Close
    • M43 BPM adapter v1.stl
    • illumitran 35neg unmounted top (v1).stl
    • illumitran 35neg unmounted tray (v2).stl
    • illumitran 70slide tray (v1).stl
    • illumitran slide tray (v1.1.2).stl

    Learn more about the formats

  • Last update: 2020/12/21 at 22:27
  • Publication date: 2017/10/25 at 15:43
