Hyperbolic Horn - parametrizable

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 7 likes
  • 85 downloads

3D model description

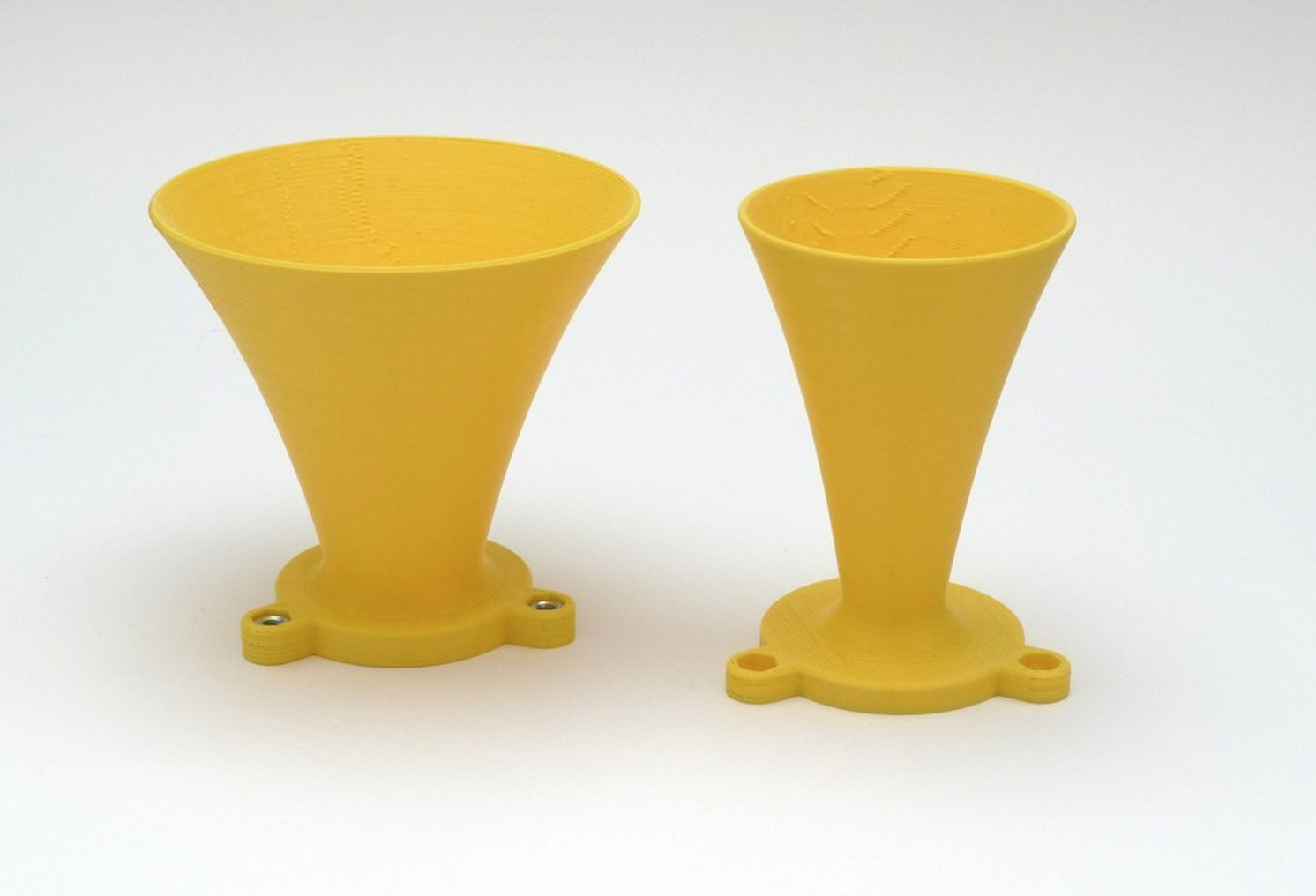

Hyperbolic Horn defined by Salmon equation. Horn can be parametrized - you can change horn throat radius, cut-off frequency, T parameter, length, wall thickness, etc.
You can find more details here:
https://www.grc.com/acoustics/an-introduction-to-horn-theory.pdf

OpenSCAD does not allow to create parametric curves so I have designed it using Autodesk Inventor. Inventor file is attached.


3D printing settings

Printer:
Easy3DMaker

Rafts:
Doesn't Matter

Supports:
Yes

Resolution:
0.25

Infill:
50

Notes:

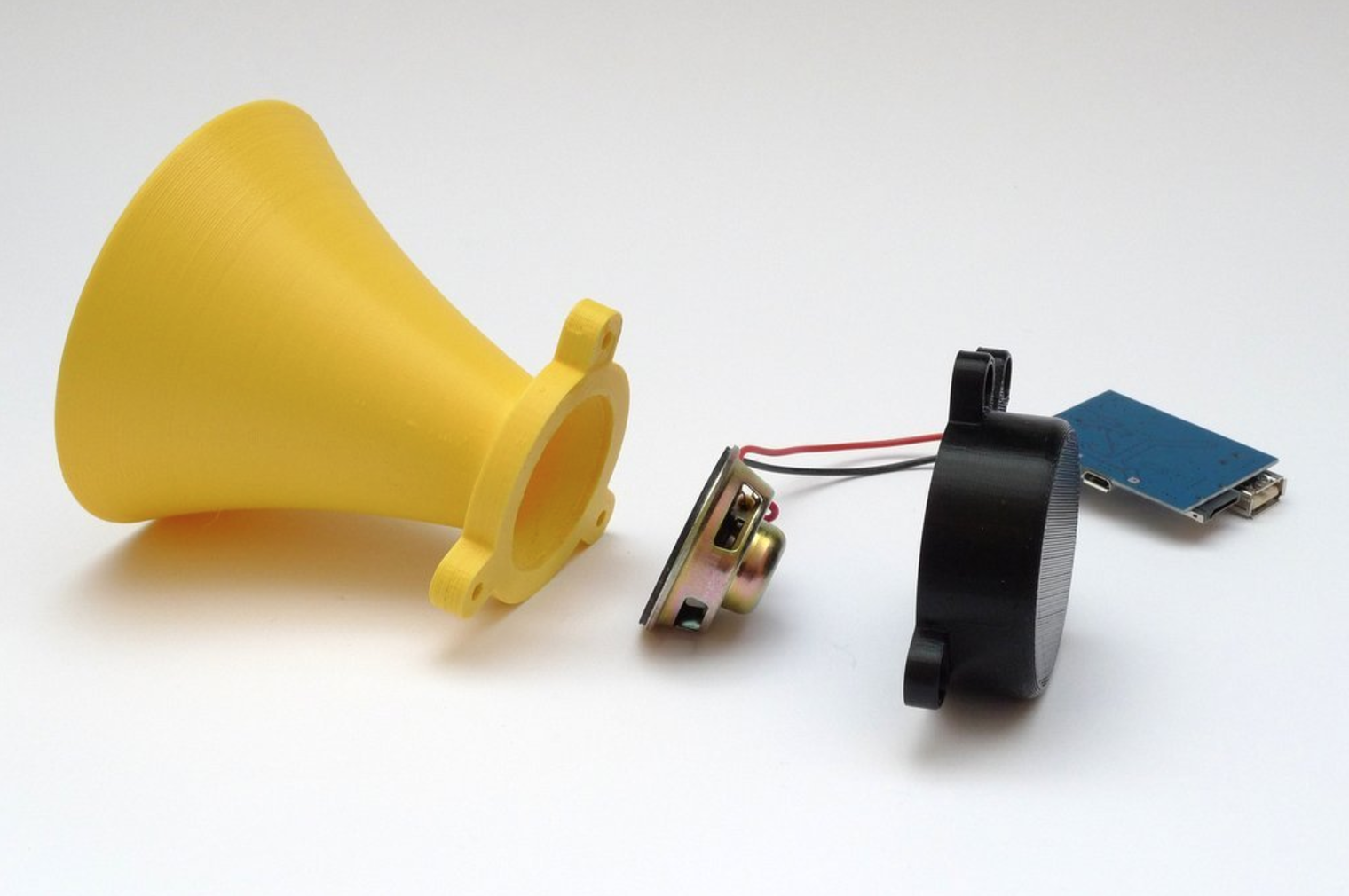

I used support for speaker cover only.
