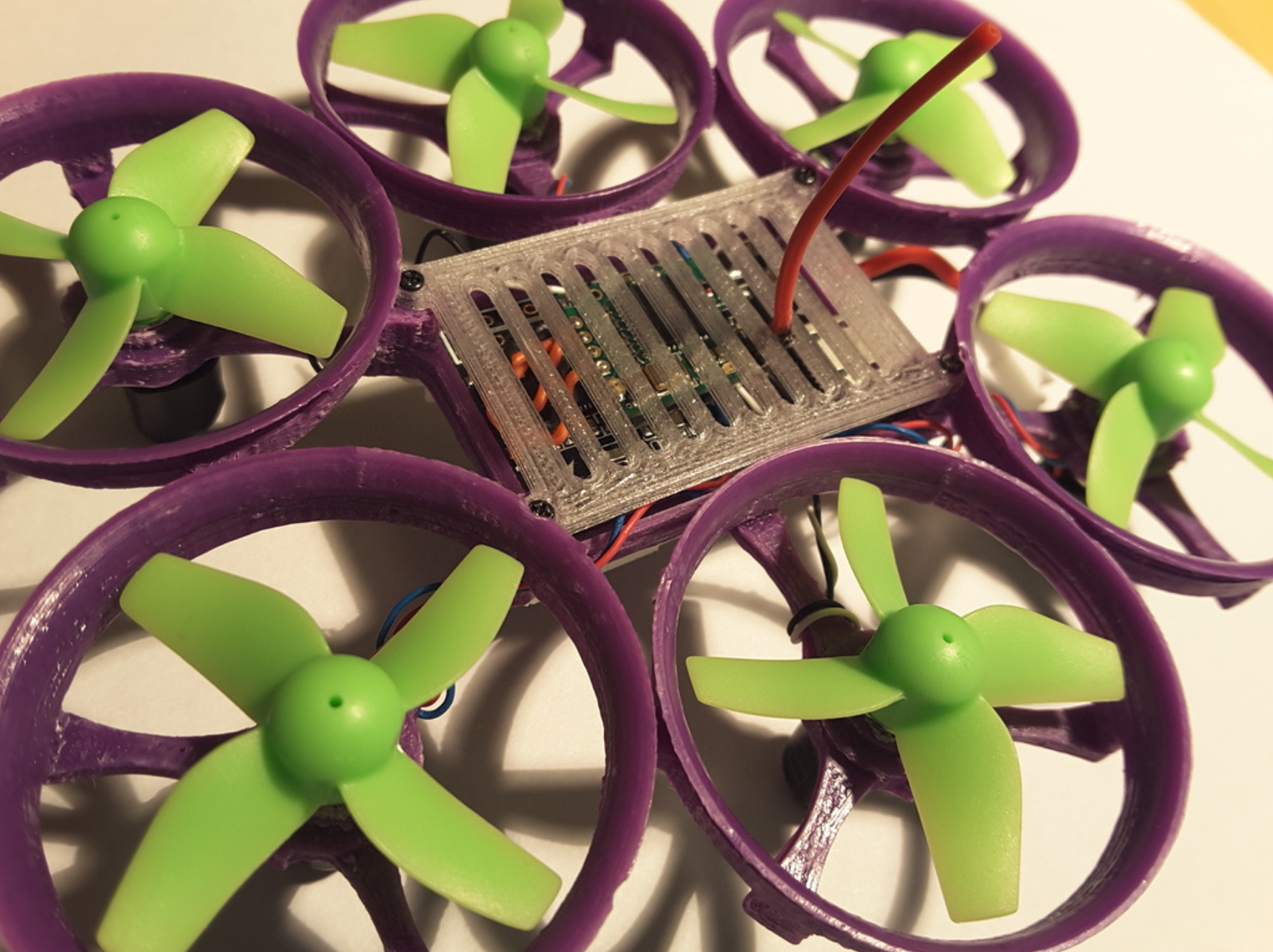

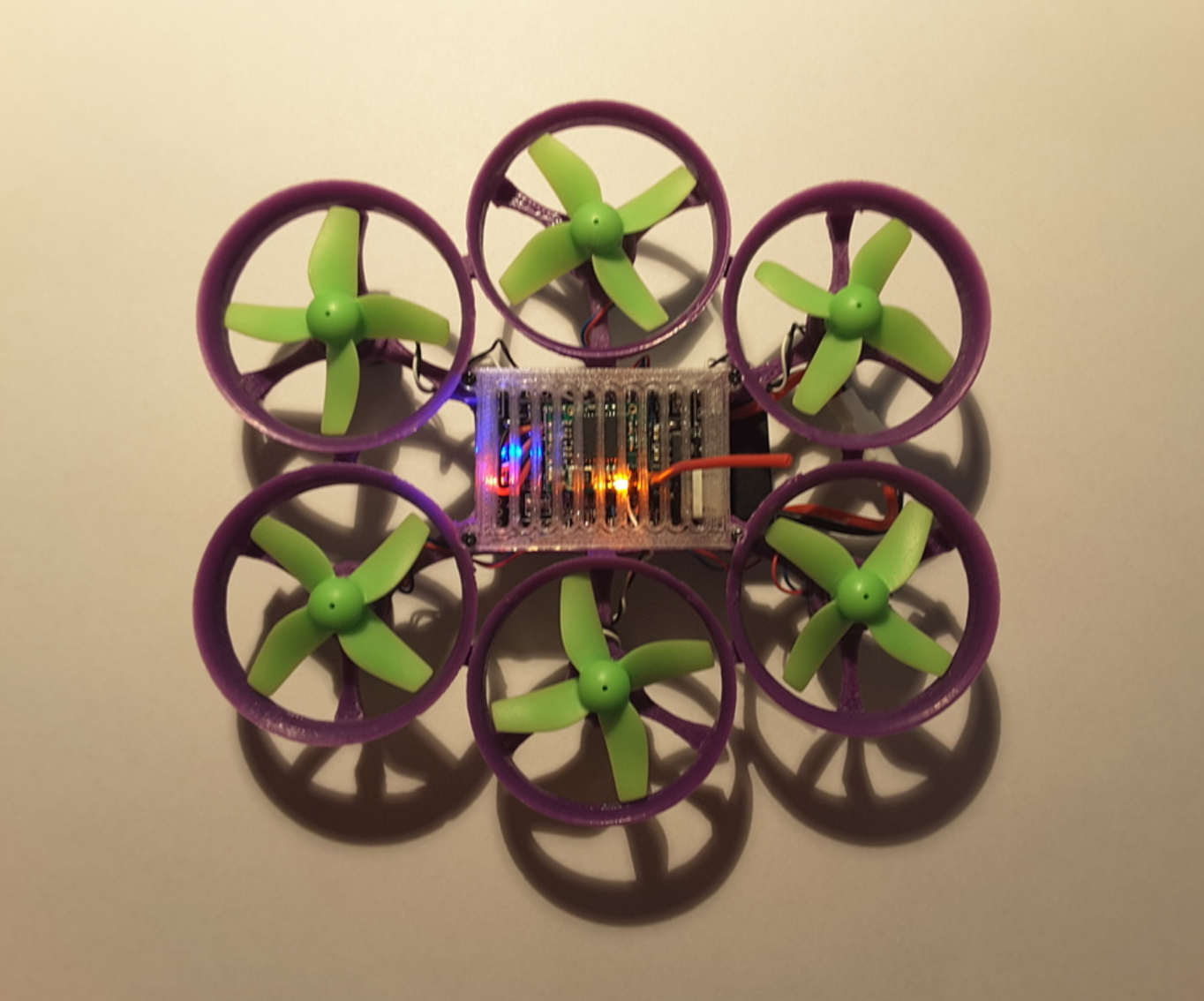

Hexantrix 80mm: Tiny Whoop Hexa based on spf3 brushed

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 26 downloads

3D model description

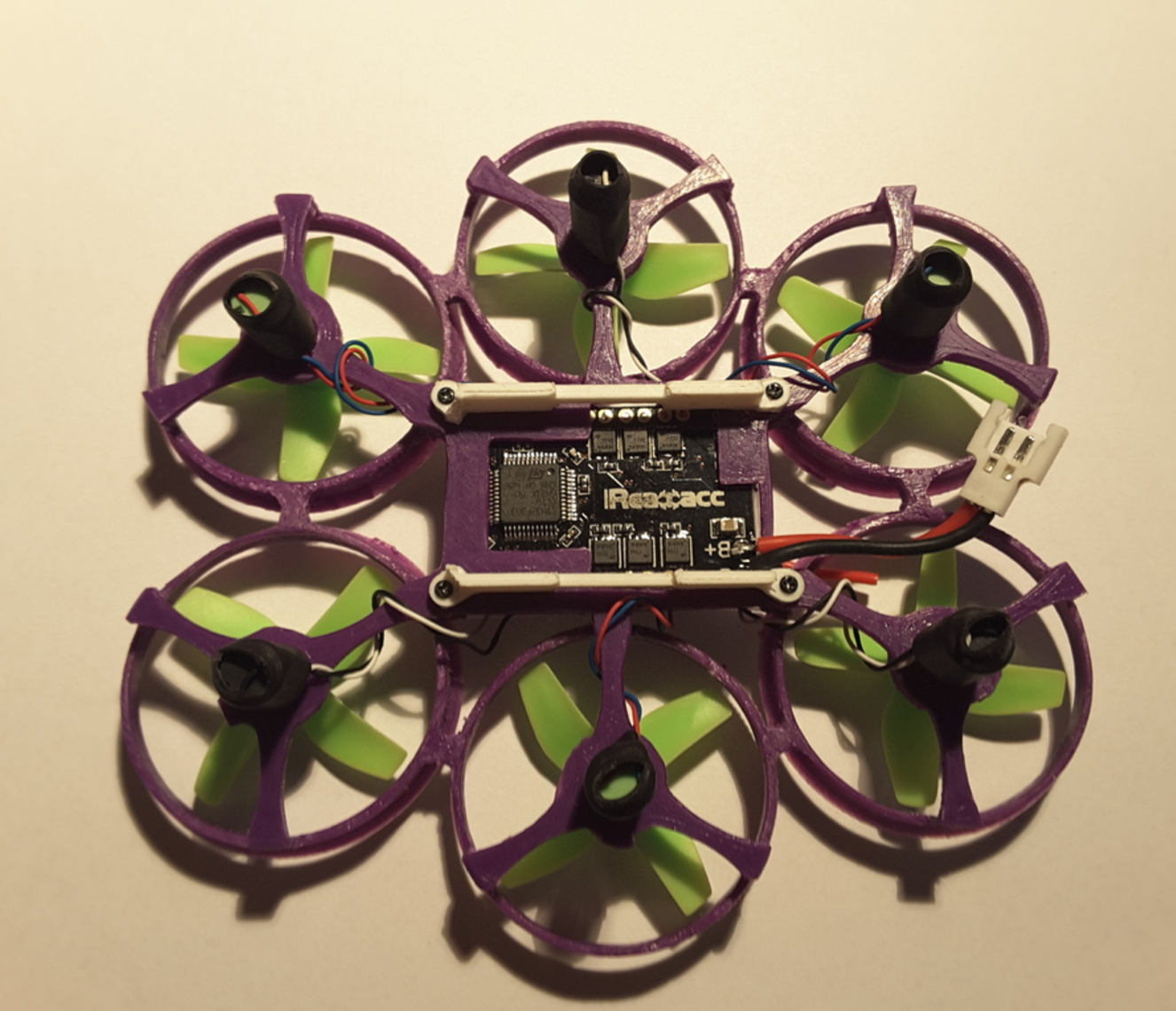

Frame Hexacopter 80mm Abs

Flight control :
http://www.banggood.com/fr/Eachine-32bits-F3-Brushed-Flight-Control-Board-Based-On-SP-RACING-F3-EVO-For-Micro-FPV-Frame-p-1076530.html?p=LD020411878172015024

Coreless:
http://www.banggood.com/4X-Chaoli-CL-615-6x15mm-Coreless-Motor-for-90mm-130mm-DIY-Micro-FPV-Quadcopter-Frame-Blade-Inductrix-p-1074157.html?p=LD020411878172015024

Propeller :
http://www.banggood.com/Eachine-Fatbee-FB90-Turbine-QX70-Micro-FPV-Racing-Quadcopter-Spare-Parts-40mm-4-Blade-Propeller-Set-p-1108674.html?rmmds=search?p=LD020411878172015024

Lipo: 260 mha max / 35c min (nano-tech)

screws : M1.6x5

configuration impression :

Couche: 0.06mm

coque: 0.8mm

remplissage: 20%

vitesse: 40mm/s

T° impression: 250

T° plateau: 100

Support:
Lines / angle: 20 / T. remplissage 30 / e. horizontal: 0.7mm / E. vertical: 0.04mm
Bordure: brim

Débit: 100%

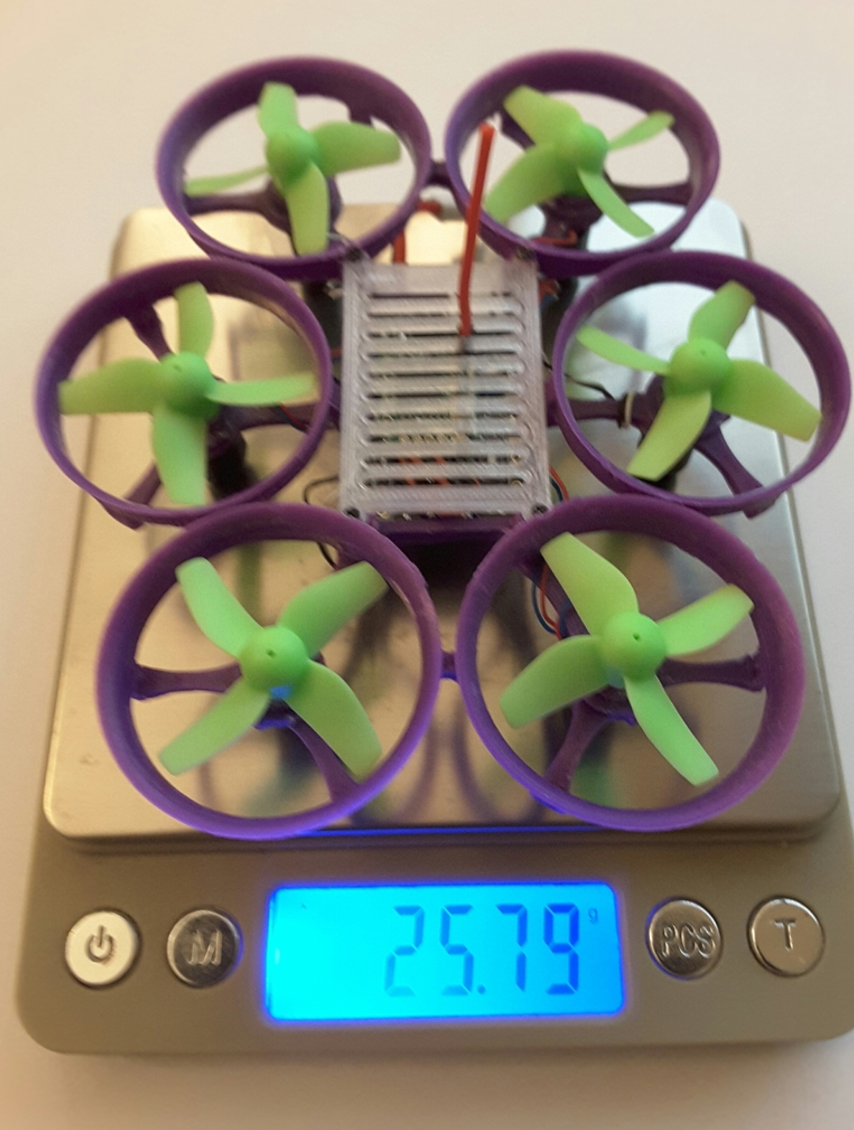

Attention this modèl does not fly well with more weight.
For me it's a lack of discharge is 35C for lipo under 300mha.
By consequences it is very difficult to install a camera on to model.

Thank you to let me know if you find lipos over discharge 40c and maximum 8 gr.
So I could brush up on this challenge.

Mic.

https://www.facebook.com/Microdure/

https://www.youtube.com/watch?v=rnXzFuH8grg

3D printer file information

  • 3D design format: STL Folder details Close
    • Hexantrix_Hood.stl
    • Hexantrix_fixing_lipo.stl
    • Hexantrix_frame.stl
  • Last update: 2017/03/13 at 13:43
  • Publication date: 2017/02/20 at 11:37

License

CC BY NC SA
