HEPA filter case

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.4k views
  • 2 likes
  • 16 downloads

3D model description

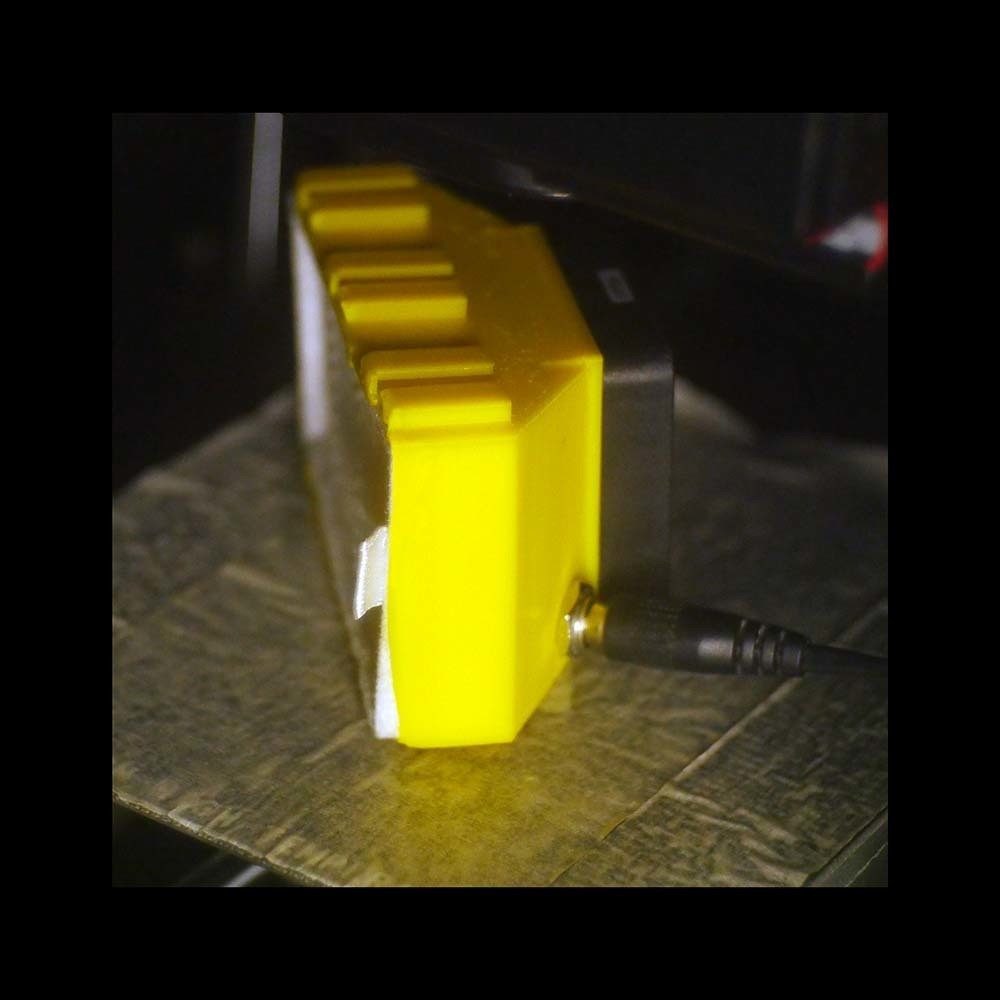

Case uses a 40mm square fan and small HEPA filters. Optionally there is a cut-out for a Panel-Mount 2.1mm (or 2.5mm) DC Power Jack Socket.
Several mounting options included (Bare box, GoPro mount and a slide on fitting*).

extra parts required, eg on eBay:
filters: see "chuwi ilife filter", for Robotic Vacuum Cleaner. (size approx 40x80x15mm) ~$3 in packs of 10.
12v 40mm fan. (40x40x10.5, 3mm self-tap screw, to 2mm holes on 32x32mm centers) ~$1.20
2.1mm or 2.5mm DC Power Jack Socket Panel-Mount Connector (~$0.50)

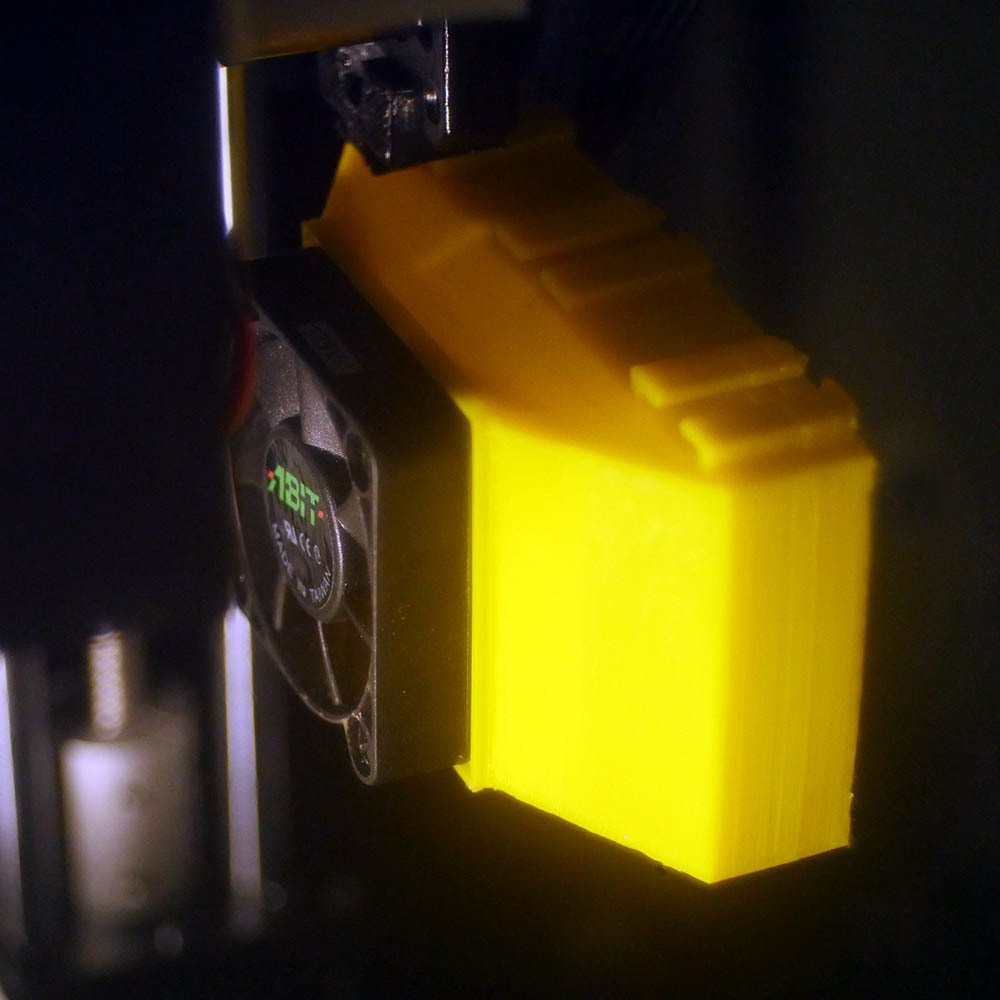

*Originally designed for a Trinus 3D printer, the slide on block-support bolts to the end of the X-axis slider with 2 off M2.5 10mm screws (ie it goes up and down with the printer's extruder!).

I should add, my Trinus is also in the mfr's enclosure, and though, clearly the arrangement of filter and extruder is not very efficient, to some extent the filter/fan is continuously circulating air and particles in the enclosure. After extruding 2Kg of black PLA, I do see some discoloration of the front of the filter (and this may or may not be PLA!) and the level of smell and dust/irritation I perceive (my being quite sensitive to dust allergies) is reduced, but not eliminated.

Aside; the block-support will also hold Ikea model 330 12v LED fittings!


3D printing settings

It will print in PLA without support; face down + brim, typically @ .2mm resolution.

3D printer file information

  • 3D design format: STL Folder details Close
    • iLife-filtr-40(v1.2) bare+seal.stl
    • iLife-filtr-40(v1.2)gopro+seal.stl
    • iLife-filtr-40(v1.2b) bare.stl
    • iLife-filtr-40(v1.2c) pwr+seal.stl
    • iLife-filtr-40(v1.2t)pwr,seal,trinus.stl
    • slide-on block-support (v1.2.1)9mm.stl
    • slide-on block-support (v2.1.1c)15mm.stl

    Learn more about the formats

  • Last update: 2020/04/03 at 12:32
  • Publication date: 2017/12/13 at 16:44

License

CC BY NC

Tags

Creator

Designs 79
Downloads 400
Sales US$249
Followers 24

DP/Lighting cameraman, working in drama and models VFX. Background in electronic and mechanical design, including photographic adapters and accessories.

Issue with this design? Report a problem

Best sellers of the category Gadget


Add a comment

One comment

I should add, my Trinus is also in the mfr's enclosure, and though, clearly the arrangement of filter and extruder is not very efficient, to some extent the filter/fan is continuously circulating air and particles in the enclosure. After extruding 2Kg of black PLA, I do see some discoloration of the front of the filter (and this may or may not be PLA!) and the level of smell and dust/irritation I perceive (my being quite sensitive to dust allergies) is reduced, but not eliminated.
