3D model description

This device simulates mouse buttons and can scroll all through two buttons depending on the sequence they are pressed. It is assumed the user has a head tracker such as a "smartnav" to move the cursor. There is an added feature to select the escape key as well which can be programmed through the code that you can download from the github repository: https://github.com/danielvantsant/Hackabrick

Equipment required:
1x Arduino Micro - https://au.rs-online.com/web/p/arduino/7717667/
2x Specs Switches (Or Alternative) - https://www.ablenetinc.com/specs-switch/
2x 3.5mm Mono Sockets - https://au.rs-online.com/web/p/jack-plugs-sockets/6291325/
1x IDC Cable - https://www.jaycar.com.au/16-way-idc-ribbon-cable-sold-per-metre/p/WM4502?pos=3&queryId=9b0c626dcd5d717ac0ddd9bcc570dbf6
2x 3 Pin IDC Connectors - https://au.rs-online.com/web/p/idc-connectors/1899558/
1x Heatshrink 3/1 3mm/1mm - https://au.rs-online.com/web/p/heat-shrink-cold-shrink-sleeves/8112653/
Solder

Tools:
Soldering Iron, Heat Gun, Cutters, 3d printer :P

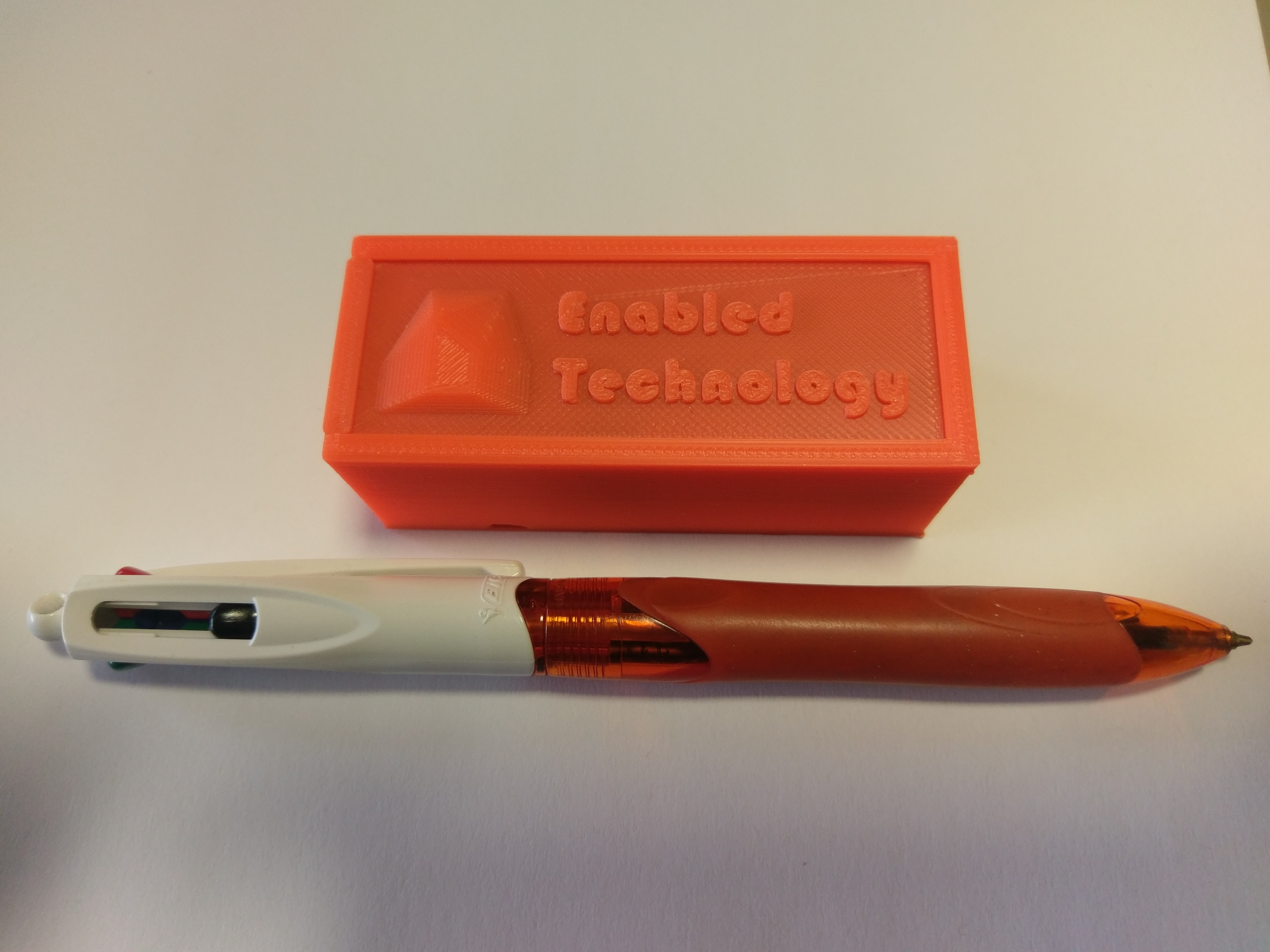

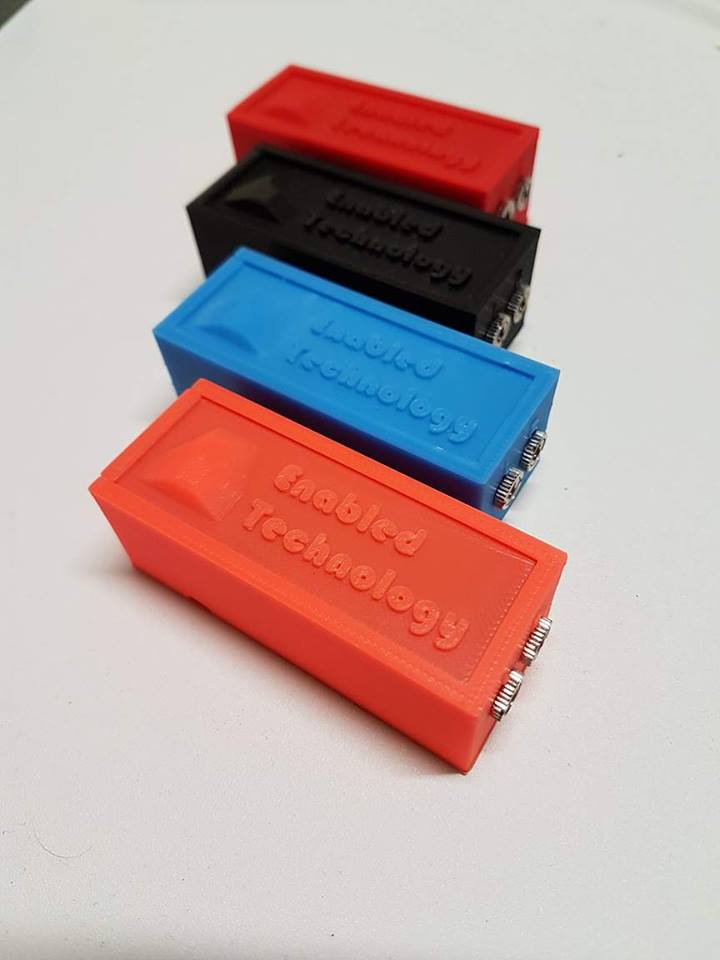

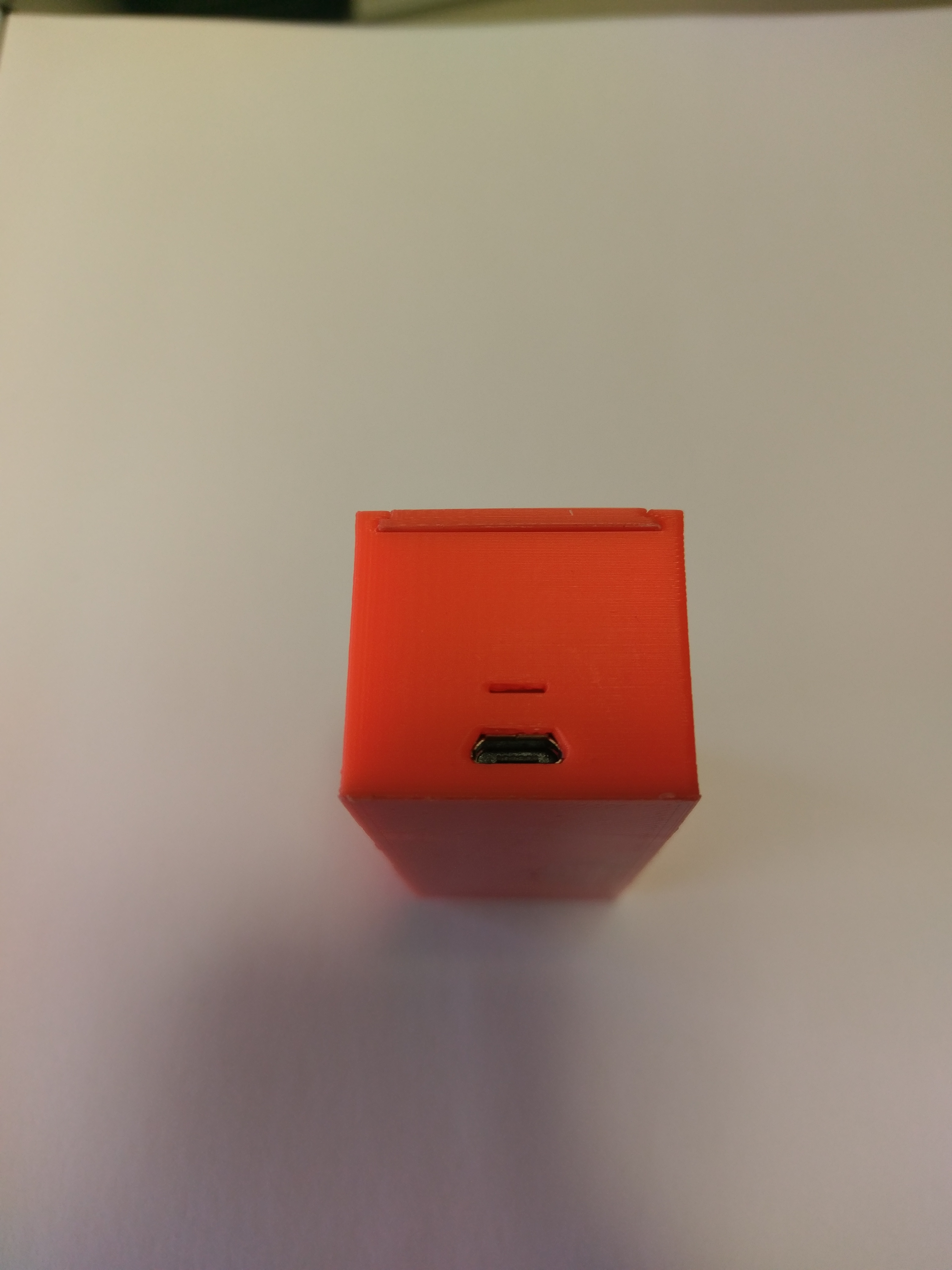

With the photo they were taken in 2017 when I had the business name enabled technology. I don't work under that name anymore - It is really close to other business names. The .stl file of the lid is blank.

You can contact me if your stuck - daniel.vant.sant@gmail.com

3D printing settings

We've printed with ABS on Ultimaker 2+ and it turned out good. PLA works but ABS is better.

  • 3D file format: STL
