GRIPPER End Effector Module *Tiny_CNC_Collection

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 425 views
  • 1 like
  • 10 downloads

3D model description

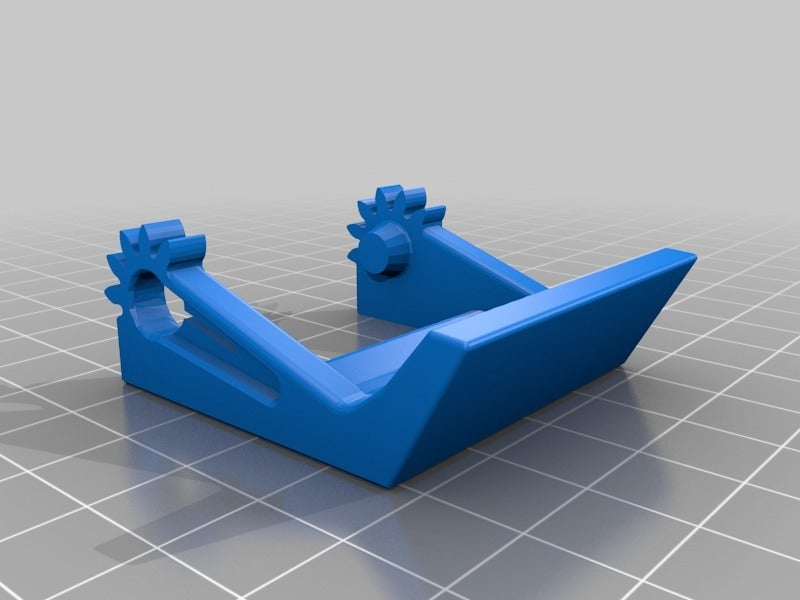

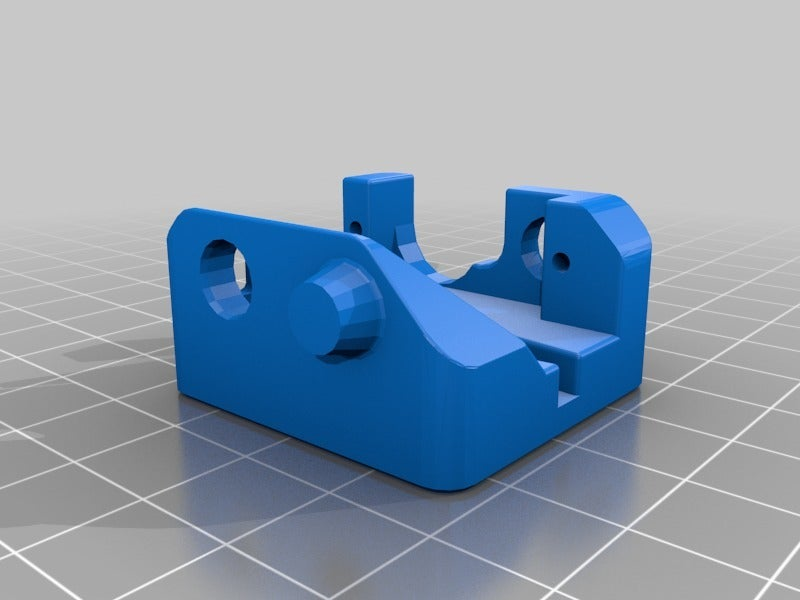

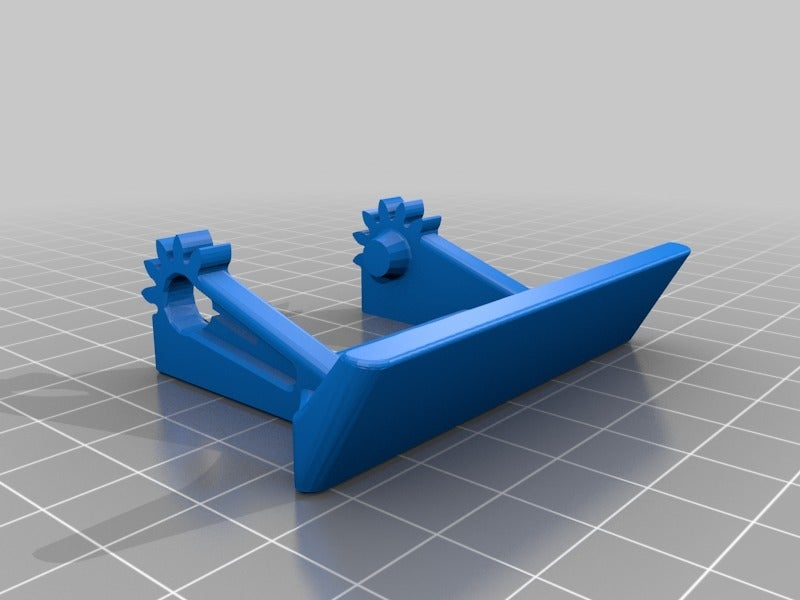

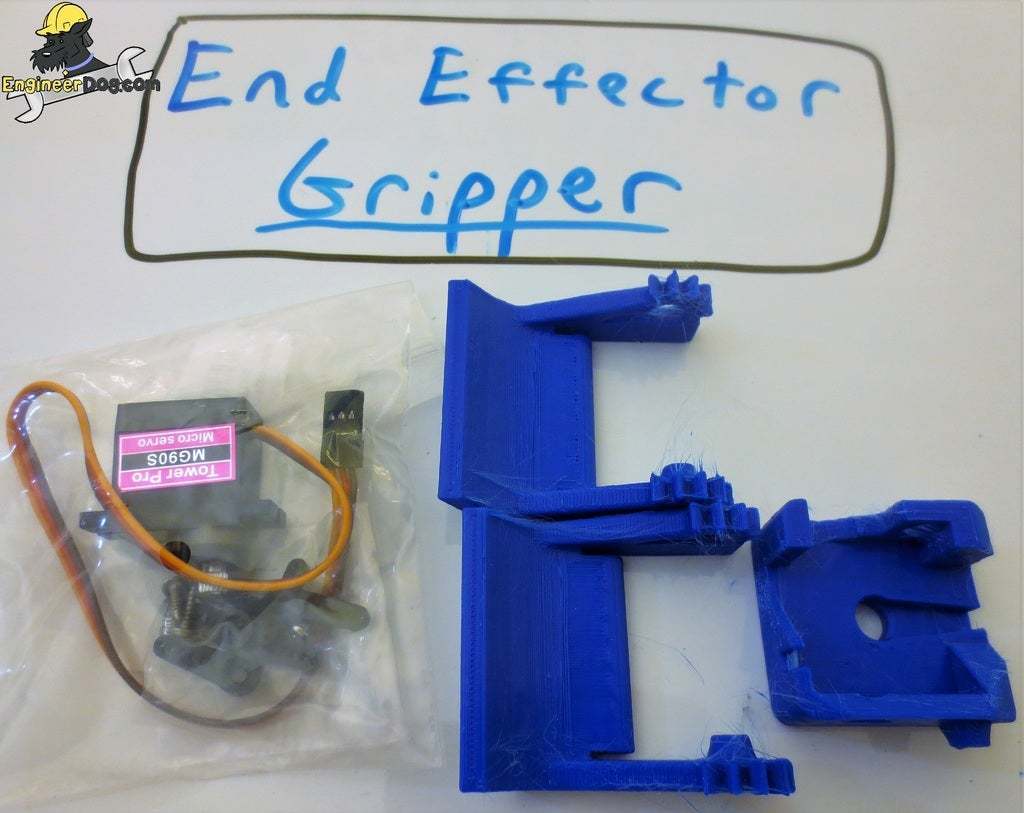

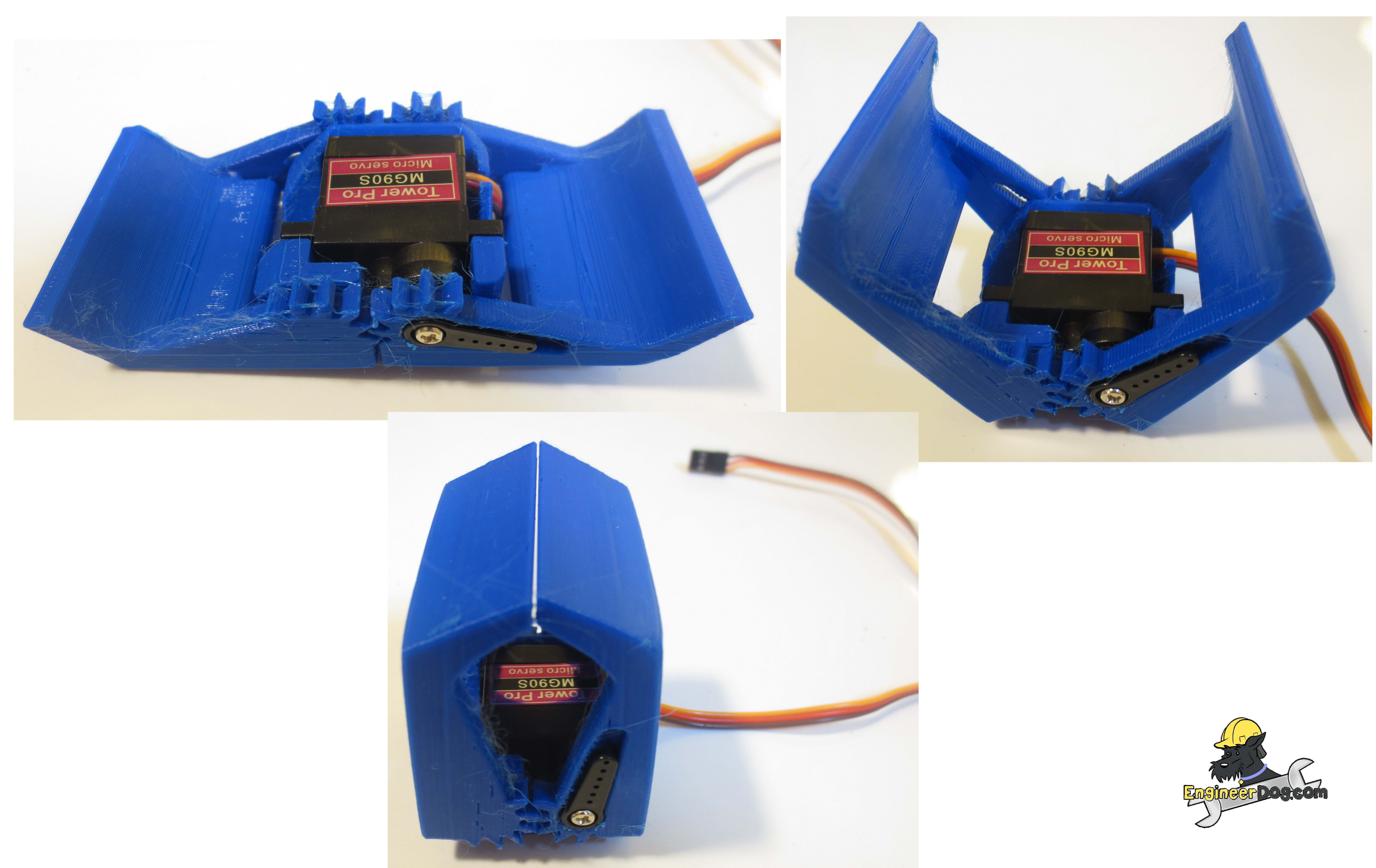

This is a modular hobby servo GRIPPER END EFFECTOR assembly. It is part of the Tiny_CNC_Collection of parts designed to facilitate entry into robot building fun!

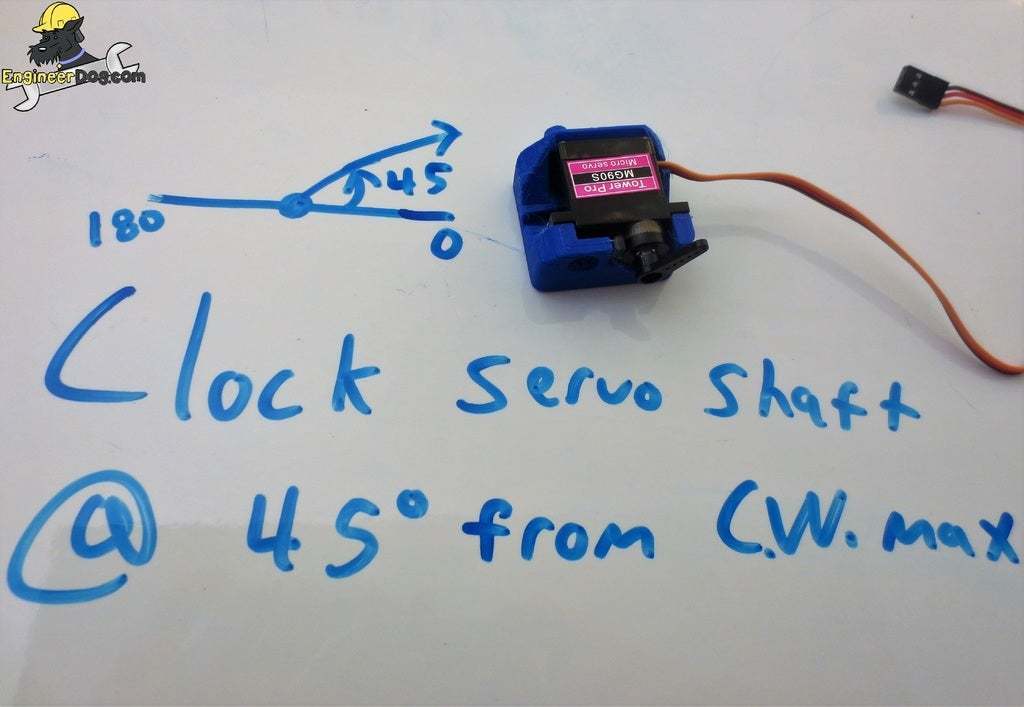

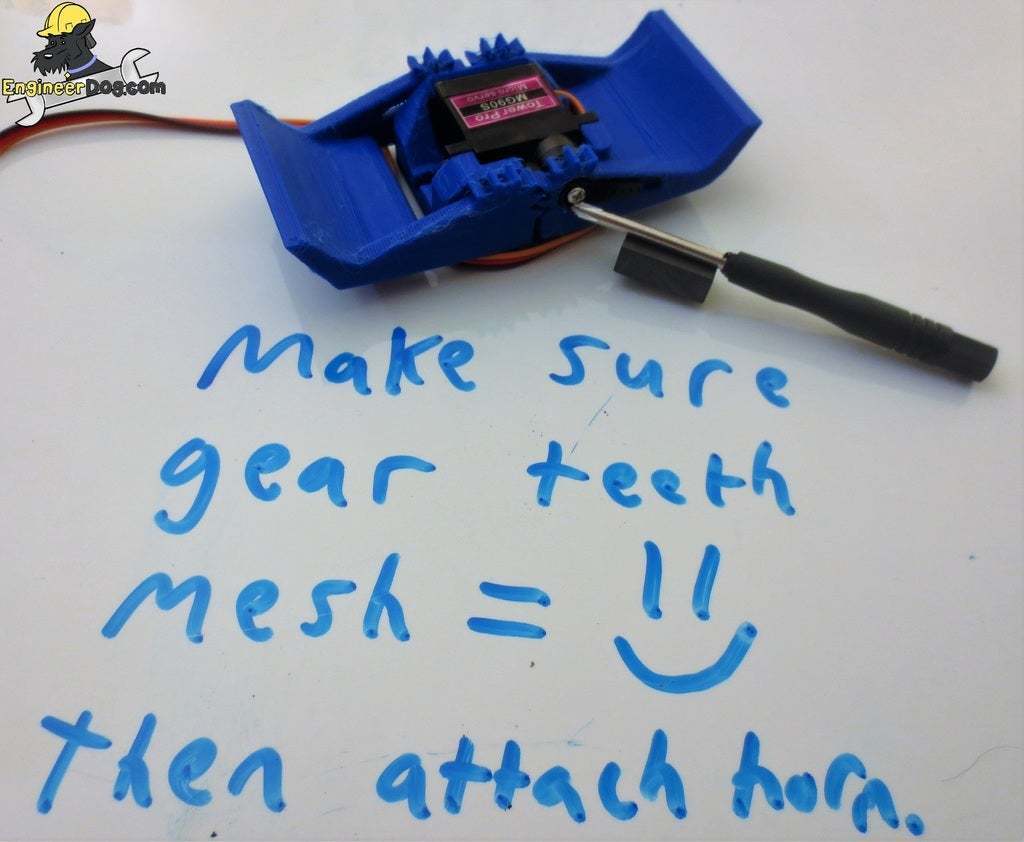

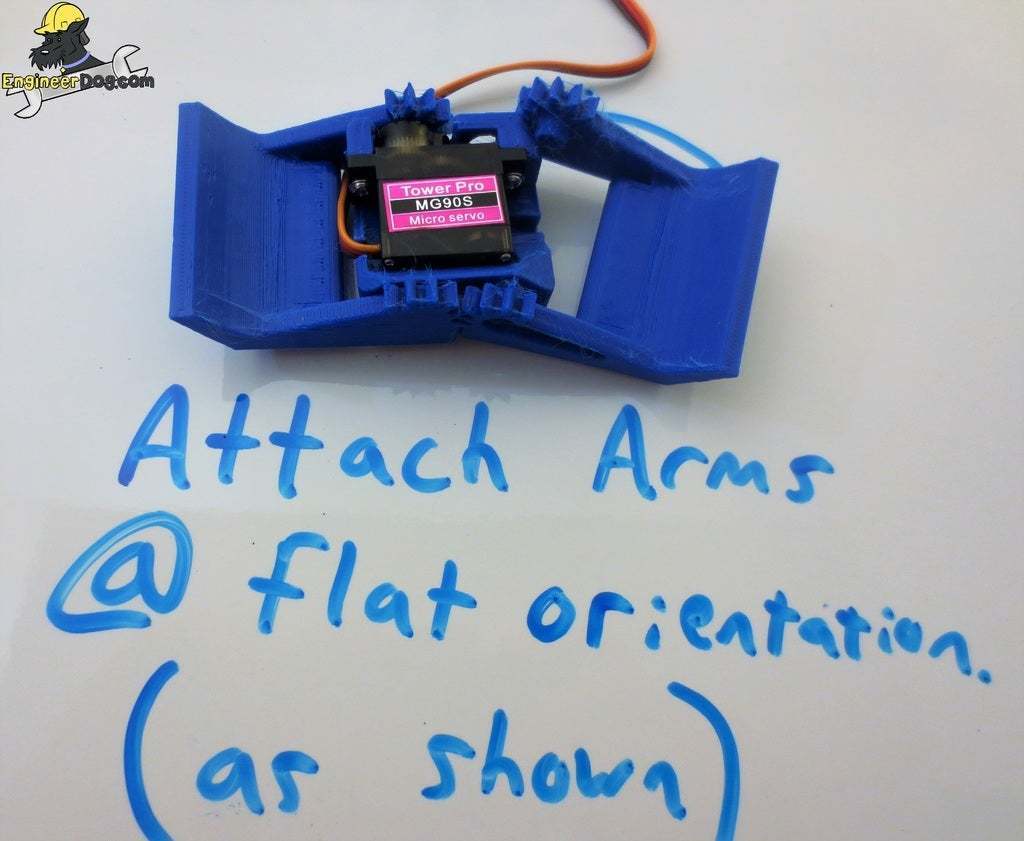

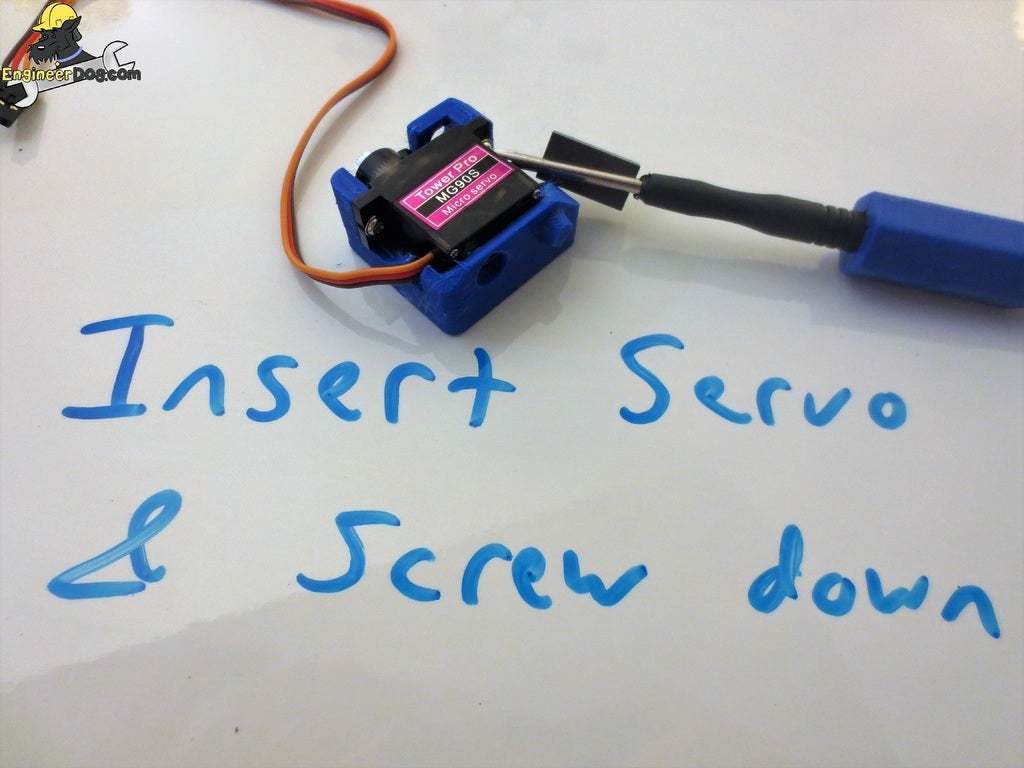

All parts print without supports or post processing! See Photos for assembly directions.

**All information regarding this project is on this page:
http://engineerdog.com/tinycnc
.

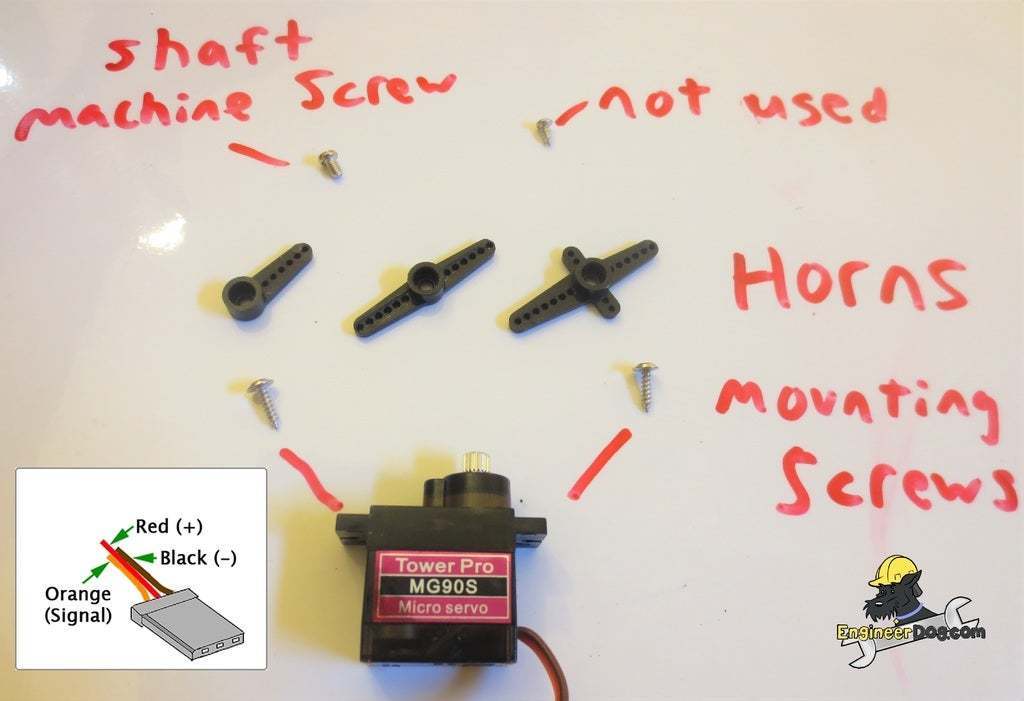

Required Hardware Servo: https://amzn.to/2ndSaVB
Recommended Material: https://amzn.to/2MmNOGA
*Can be printed in any material as long as all parts are the same material.
.
.
.
.
.

*Note 1: Included are STEP files so you can further modify these to your needs. Please enjoy these files and use them as you wish while respecting the attribution aspect of the sharing license.
**Note 2: If you print these out snap a pic and share your make! I'd love to see how these designs are put to use.
.
Video Demo @ 5min-36sec: https://youtu.be/EGnOKyPqEH8?list=PLxT-reigvGs1LH1x2Emq-B8s_OtdUZwxE&t=336

  • 3D file format: STL
  • Publication date: 2020/10/14 at 17:27

License

CC BY SA
