GRAMiPhone Fixed - iPhone 6 Gramophone Horn

?
Creation quality: 3.4/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is a very small remix of the GRAMiPhone - iPhone 6 Gramophone Horn. All I did was fix the orientation of the model in case people didn't know how to. All the credit goes to the original

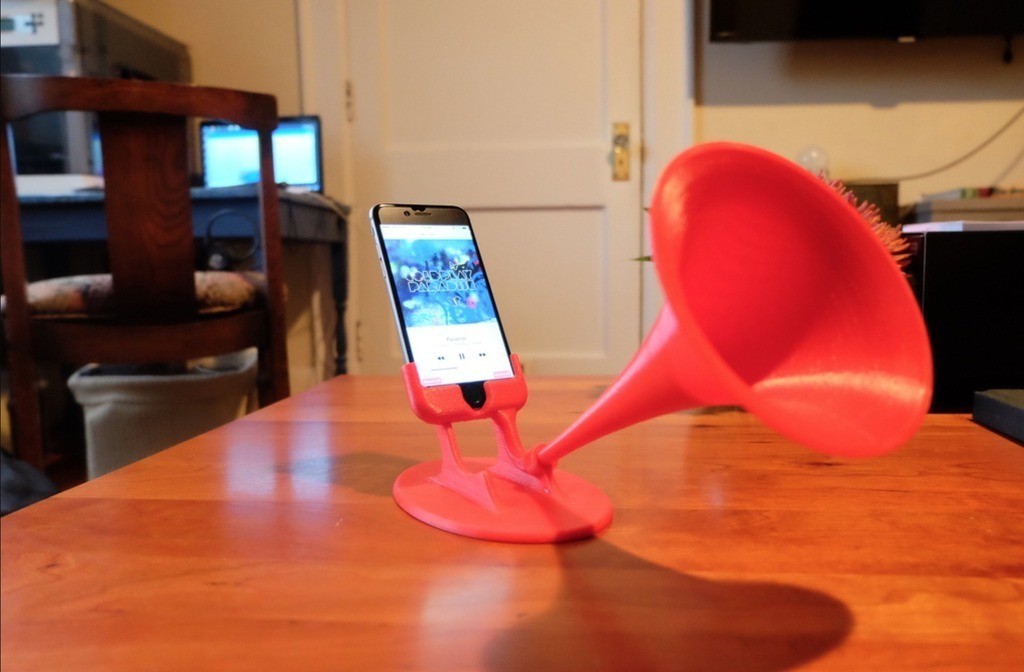

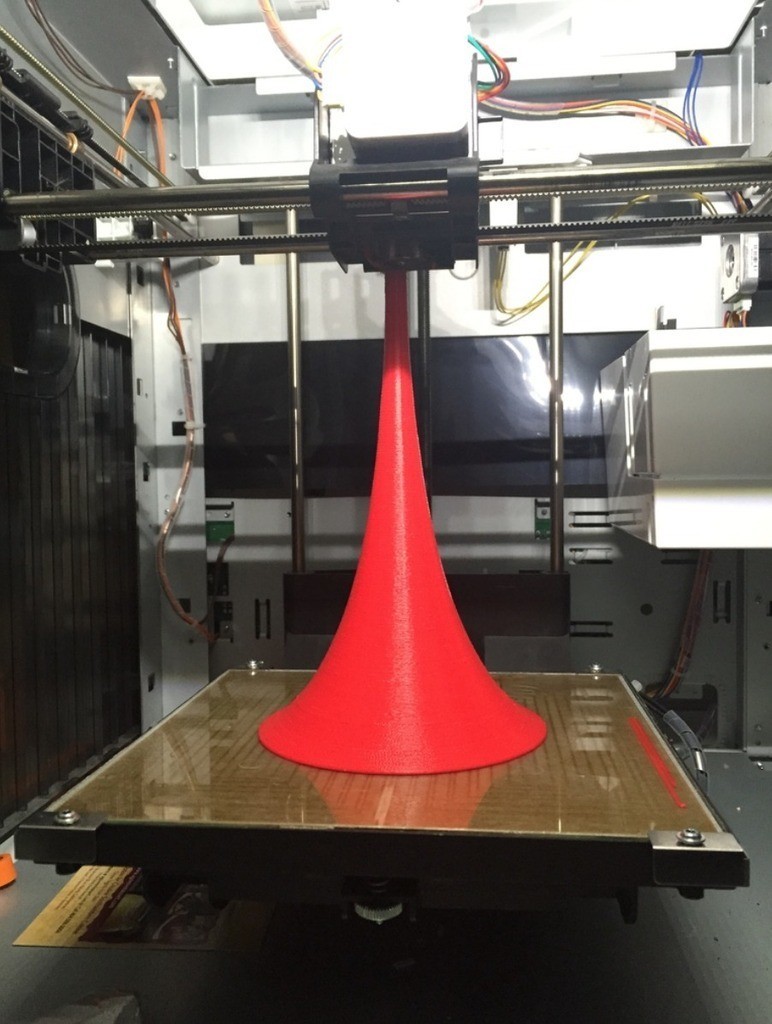

This passive amplifier horn will amplify your phone's speaker without power. The horn profile is based on a Western Electric exponential horn. The horn is 7.5" long and press fits into the base. I added 0.010 clearance for the phone but when it printed it was still a tight fit.
Update Jan 5, 2016: I've modified the base to be friendly to printing without supports. There is still a round tube inside that may give problems without support. This depends on your printer's ability to print overhang layers. I've also increased the clearance for the phone so it's not so tight. The new base file name is signified by REV 2. https://youtu.be/QZo0a7ev3IU?t=9m26s

3D printer file information

  • 3D design format: STL Folder details Close

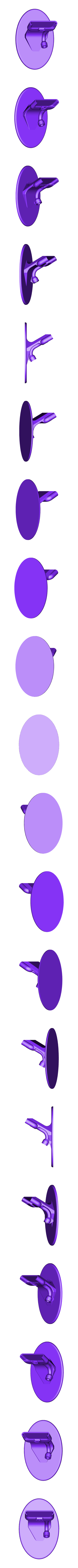

    • Base.stl
    • Base_2.0.stl

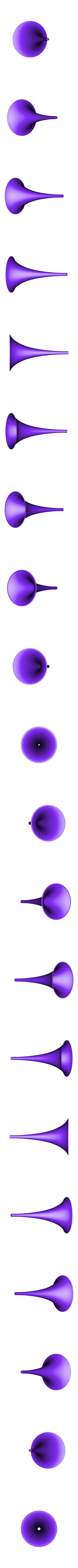

    • Horn.stl

    Learn more about the formats

  • Publication date: 2018-12-21 at 10:17

License

CC BY NC SA
