GorillaPod Shoulder Rig

3D model description

Designed in house for shooting interviews at CES this year. It uses a JOBY GorillaPod SLR Zoom as the base. https://www.amazon.com/GorillaPod-Flexible-Ballhead-Mirrorless-Cameras/dp/B002FGTWOC/ref=sr_1_1?ie=UTF8&qid=1485476313&sr=8-1&keywords=joby%2Bgorillapod&th=1
The holes for the bolts were drilled. The nylon straps may not be necessary depending on the weight of your camera. Since we had a DSLR camera and field monitor, it was causing the exposed joints to sag. We also added adhesive foam pads to make sure nothing was cutting in. Printed using 3D-Fuel composites.

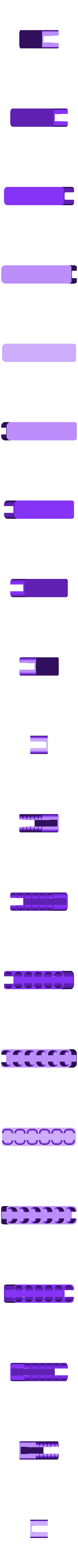

Print 3 braces for a whole set.

Feel free to make improvements and share pictures if you make one! (Inventor files in zip folder. Not sure which version as this file is from a few years ago)

3D printing settings

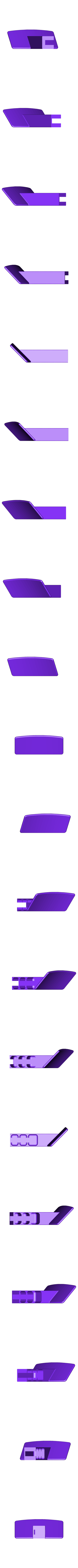

Supports needed for CamHarness2Lower. We printed ours at 30% infill, but lower would probably be fine for a lighter setup.

  • 3D model format: STL and ZIP
