GoPro SkiPole - Mount large
- 675 views
- 0 likes
- 2 downloads
3D model description
GoPro SkiPole Mount large. - To suit a pole circa 18mm dia
there is a tolerance to these, so they will fit similar SkiPole sizes, give or take a few mm.
Latest Revisions and Additions April 2014
Increase in size of the ziptie holes (now 4.5mm wide)
I had chance to have another look at these and revised them a little bit more.
I Have added my own temp. supports
(you may need to re orientate it on the bed, those circular discs are the temp supports and should be on the bottom, ie on the print bed, they break off easily once the print is complete).
I stripped some out some lengths and thicknesses, to save on print time and material etc,

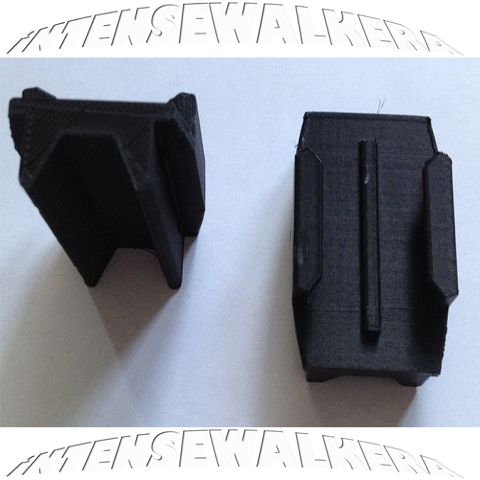

modified the circular grip / slot to a three point flat grip,
(should allow it to be used with a bigger variety of ski pole sizes),
made the ziptie holes thinner, added some radius to allow the zipties to grip better,
3D printing settings
I use Cura on my Ultimaker Original to prepare the print.
Free Download of Cura http://software.ultimaker.com/
I printed using cura with Flexible PLA
0.2 layer height
fill top and bottom 0.6
print temp 220
in expert settings i set infil overlap to 35%

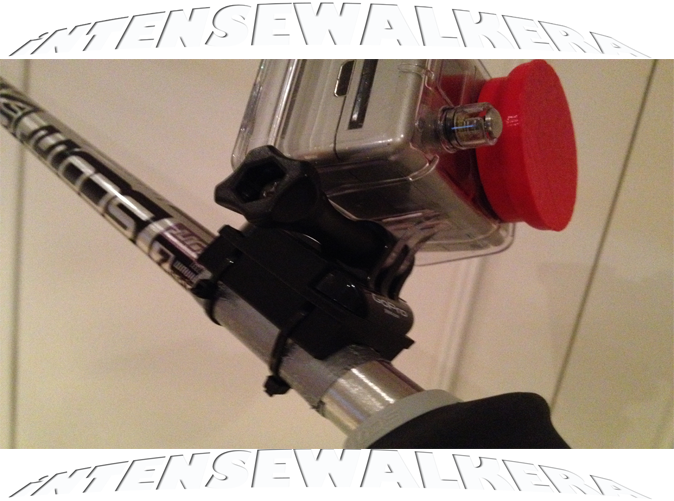

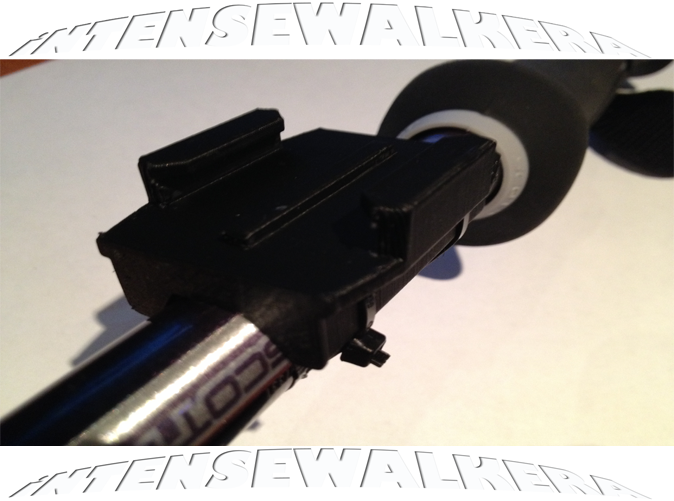

i used some heavy gauge tape on the pole as a base, then the mounts are cable tied to the pole, using a 2.5mmx200Lg cable tie.
I also have versions of these in PLA, which seem fine, but dont handle the cold conditions as well as the Flexible PLA versions
3D printer file information
3D design format: STL Folder details Close
- Publication date: 2014/12/09 at 16:15
