GoPro Hero3 mounting frame (Black Edition)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 1 like
  • 59 downloads

3D model description

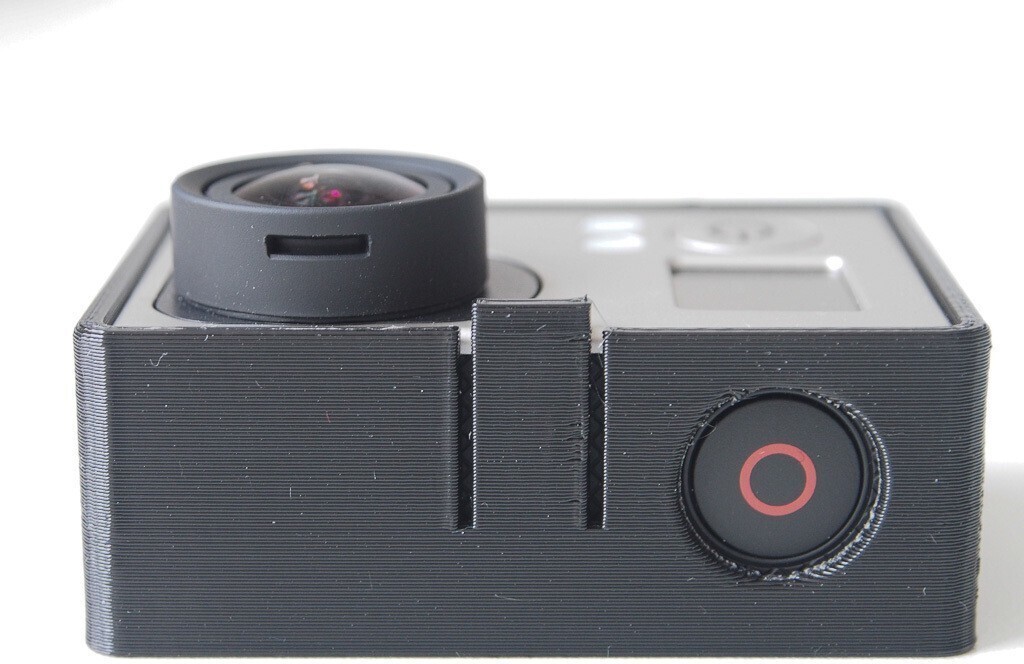

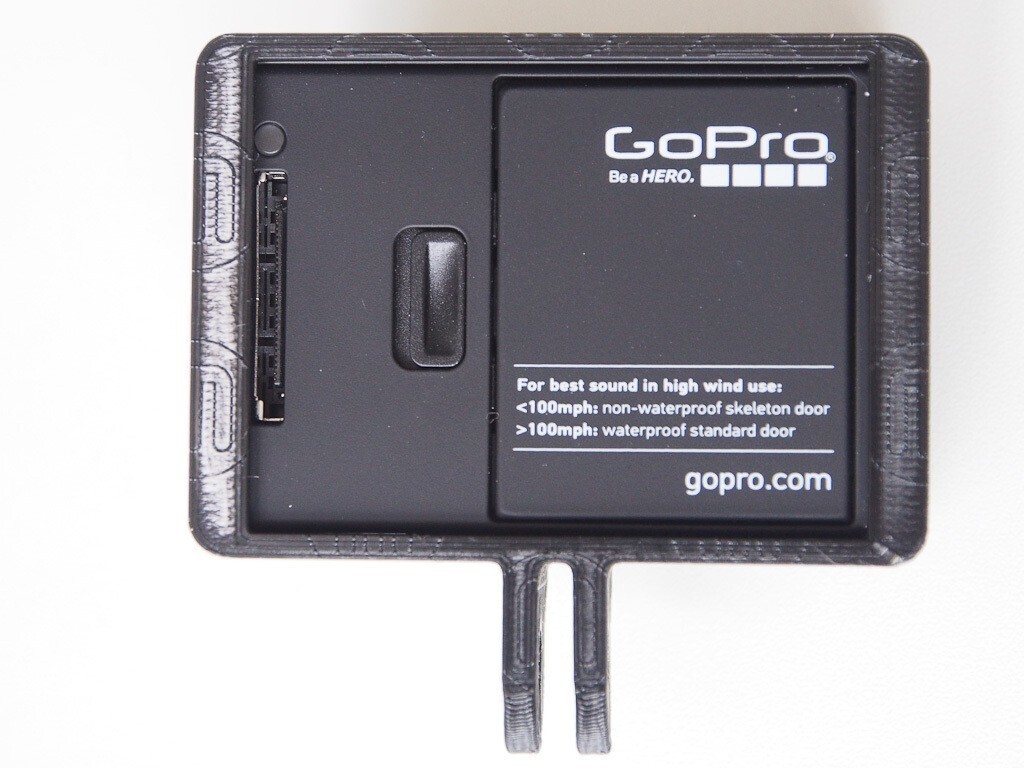

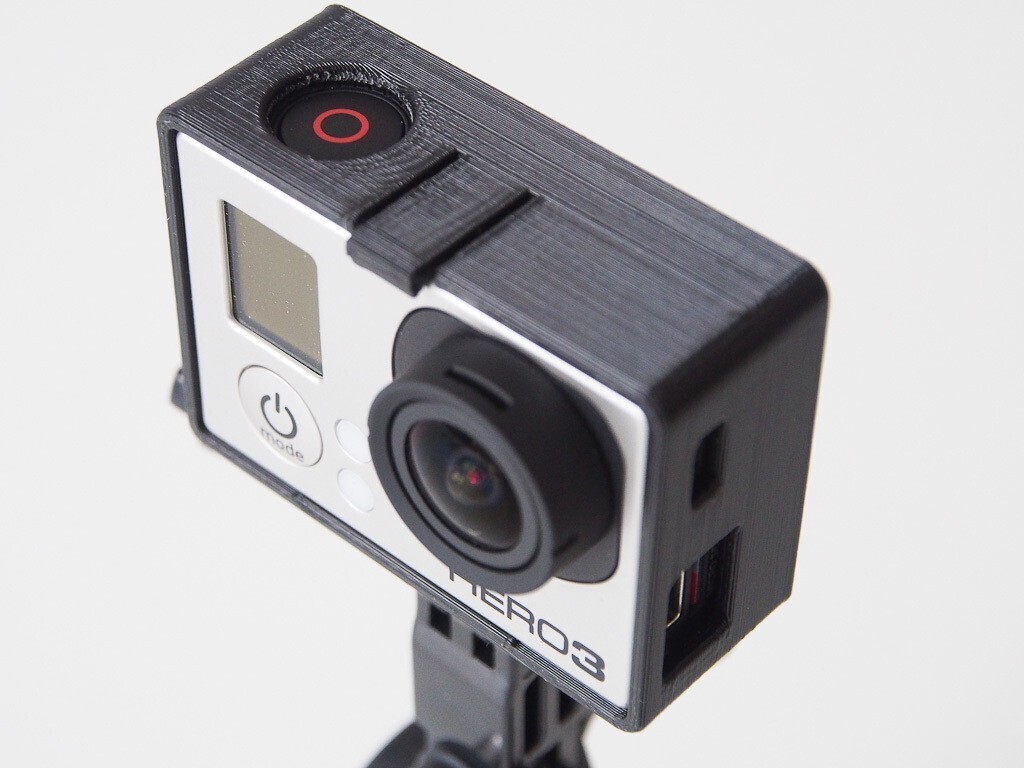

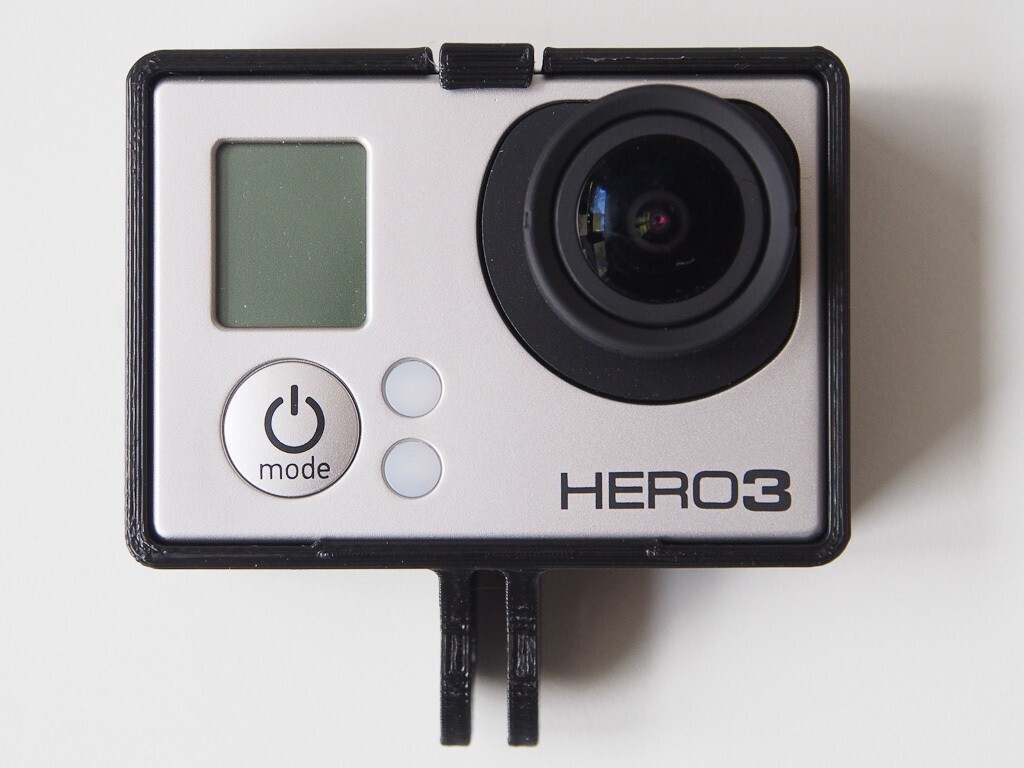

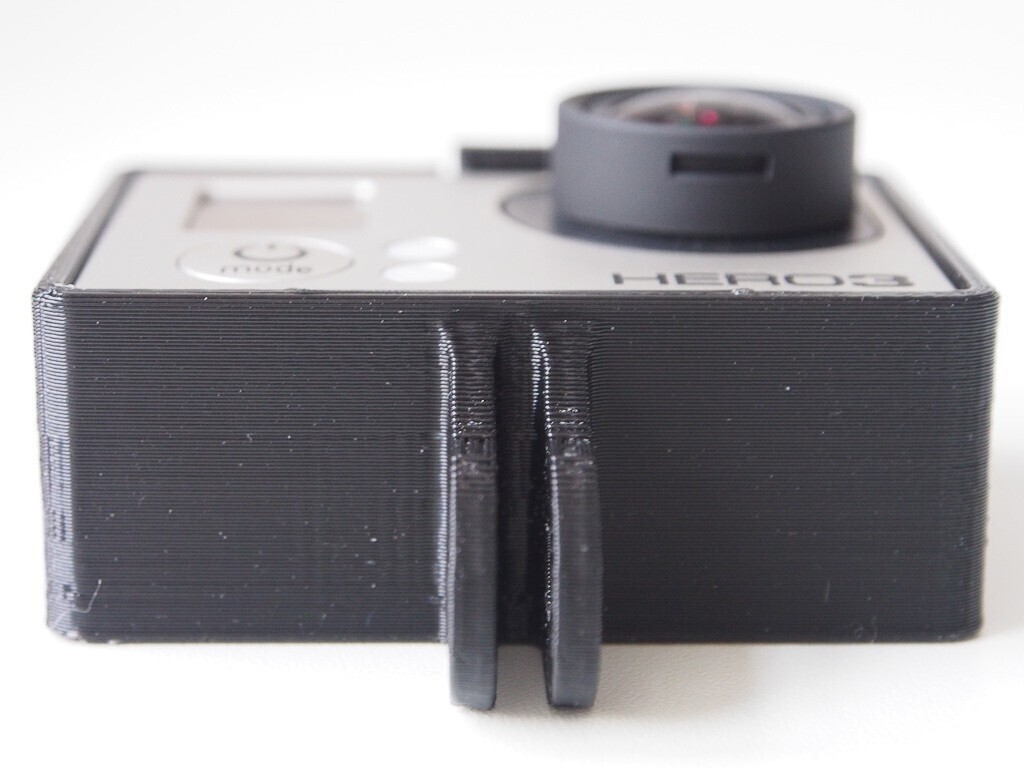

Frame holder for the GoPro Hero3 Black Edition camera. Openings for USB and SD card, both mics (Placement different between Black and Silver Editions!), shutter release and WiFi button. Battery is also accessible without putting the camera out of the frame. Easy fix with a flexible catch.

NEW VERSION 2.3:

I had the issue that the catch has broken. Also the WiFi button was often pressed when putting the camera in or out. The new version 2.3 has a stronger catch and a small gap avoiding pressing the WiFi button. Have fun...

One more thing: I got the hint, the Silver Edition has a different placement of the mics. I have the Black Edition and don't know if the frame will fit properly to the White and Silver Editions. Perhaps someone can comment their experience or make remixes for these models. Sorry for that...

09.30.2013: STEP file now also available for remakers...

3D printing settings

Printed with Makerbot Replicator 2 medium settings. I just set the layer height to 0.25 mm to get 4 layers per mm. The remaining settings are all the printer standards.

  • 3D file format: STL
  • Publication date: 2019/01/17 at 16:15

Tags

Creator

License

CC BY NC
