​150mm Filter Holder for the Tokina 16-28mm Lens - PLA

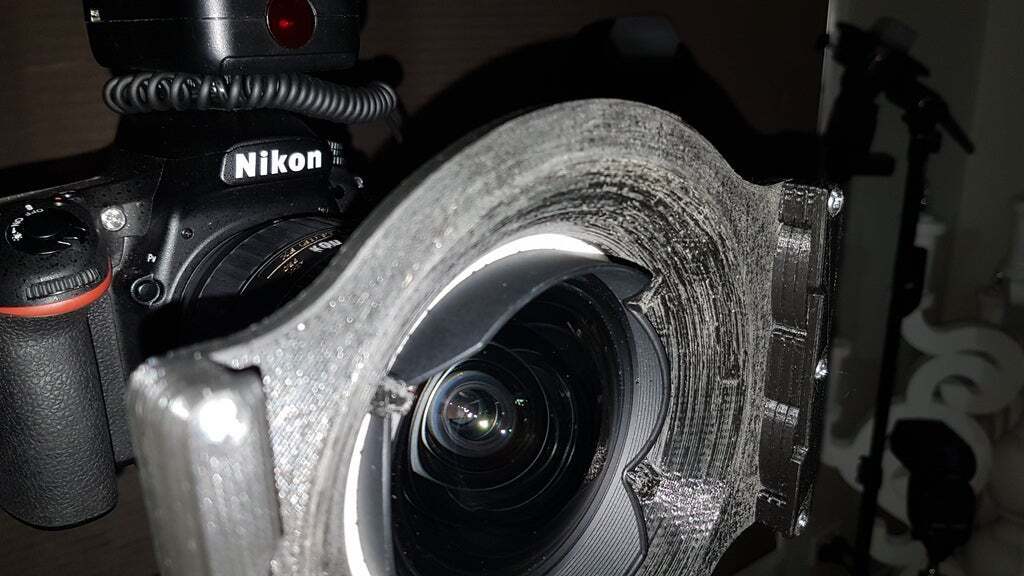

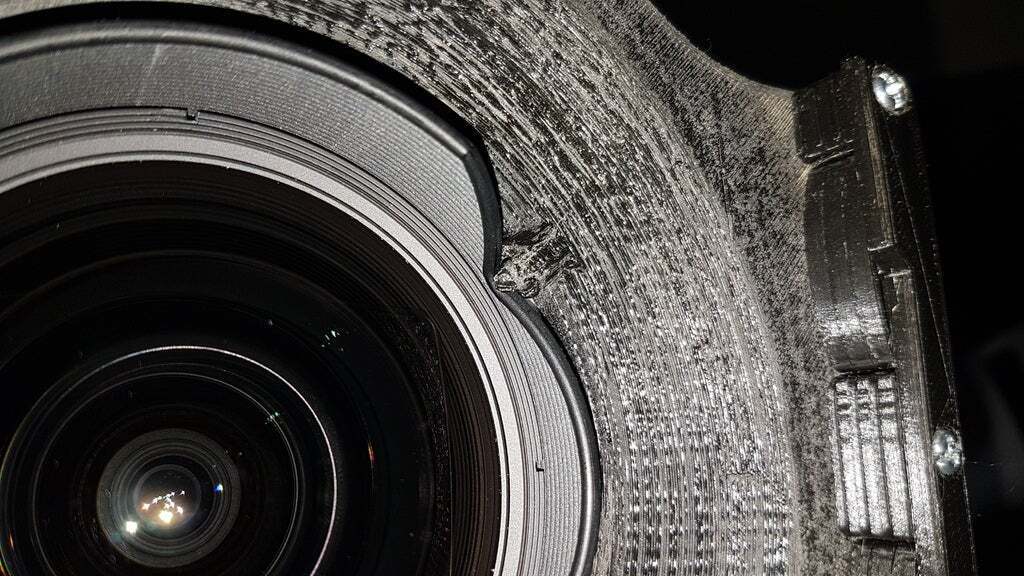

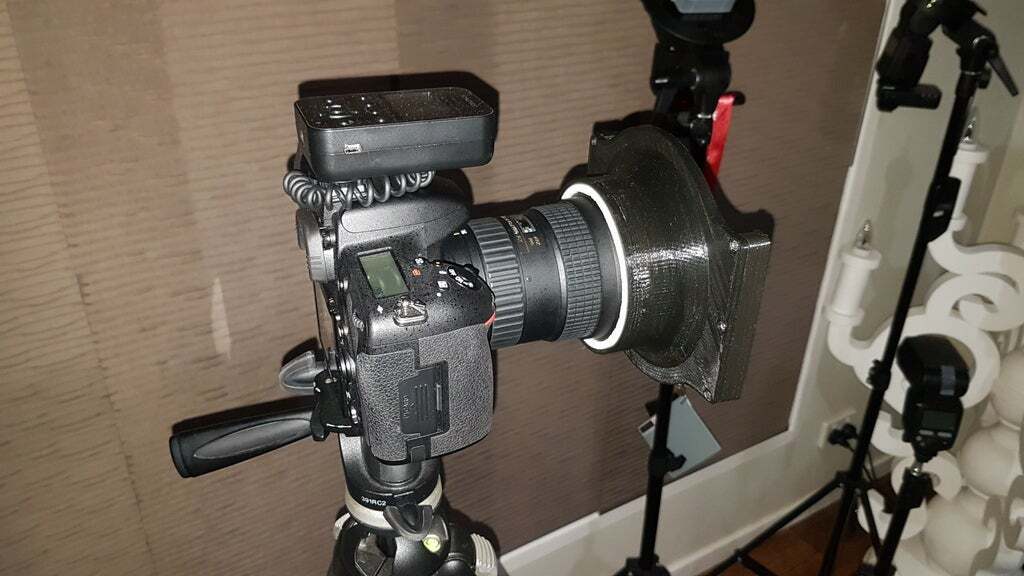

After 3 previous flaws in design (Too much vignetting at 16mm) I finalised with this one and based it on the 150mm glass. This design has NO vignetting at 16mm when testing

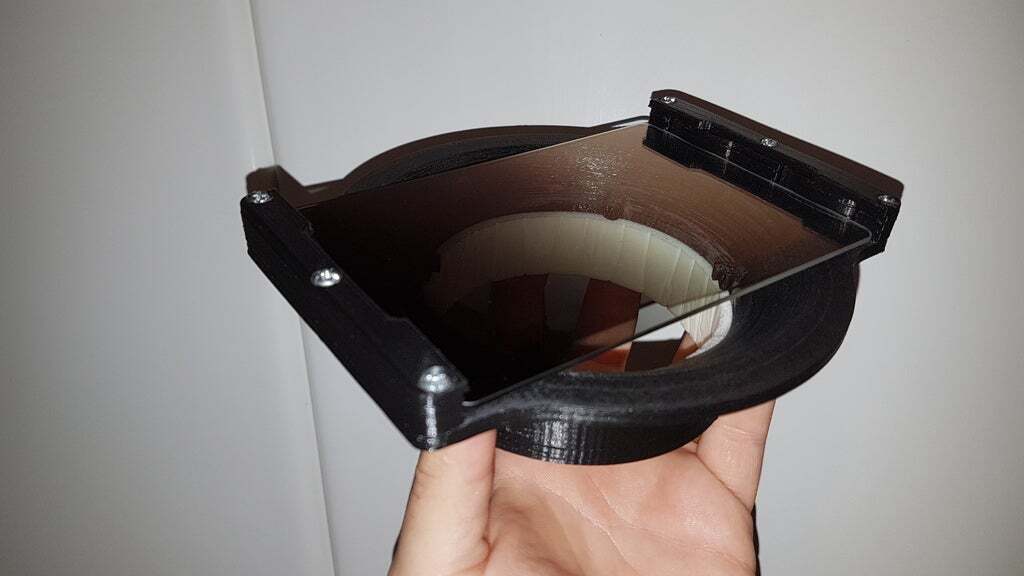

This design should be able to hold 3 x 150mm (2mm thick) glass for whatever combination you need to achieve.

The only extra things you need to buy is
6 x M3x15 countersunk screws (or like me you can just use standard heads!) to sandwich the springplates and topplate to the adapter
6 x M3 Nuts
1 x Self Adhesive Flexi-Seal 25mm wide by 4.5mm Thick - (From Bunnings https://www.bunnings.com.au/moroday-10m-flexi-seal-outdoor-seal-tape_p4114029) this is used as the cusioning between the printed surface and the lens fixed petal so you can easily slide the holder straight onto the lens but still making it a good tight fit.

****NOTE this type of seal has a very thin clear top layer almost like a clear tape which makes sliding the holder onto the lens very smooth without damaging the seal or the lens.

https://youtu.be/87lDF8LJGwk

3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

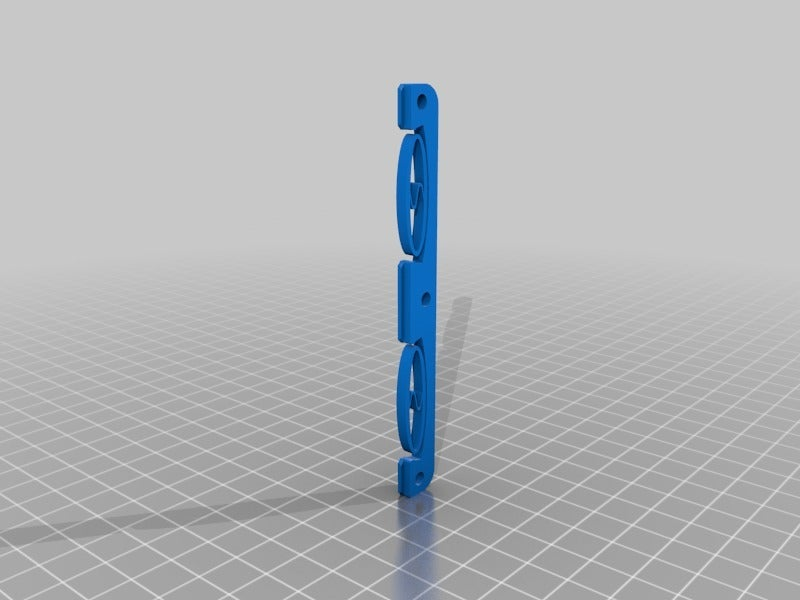

    • SPRING_PLATE_TOP_V2_-_LEFT.stl
    • SPRING_PLATE_TOP_V2_-_RIGHT.stl
    • SPRING_PLATE_V2_-_LEFT_FILTER_1.stl
    • SPRING_PLATE_V2_-_LEFT_FILTER_2.stl
    • SPRING_PLATE_V2_-_LEFT_FILTER_3.stl
    • SPRING_PLATE_V2_-_RIGHT_FILTER_1.stl
    • SPRING_PLATE_V2_-_RIGHT_FILTER_2.stl
    • SPRING_PLATE_V2_-_RIGHT_FILTER_3.stl
    • TOKINA_ADAPTER-150mm.stl

    Learn more about the formats
