Filament Auto Loader V2.0! Never Run out of Filament during a print again!
3D model description
All new re-designed automatic filament loader for 3D printers. This all new design brings the same function to your printer as the original design with many improvements . Shorter, smaller, Ability to mount in more locations, and most importantly, it can feed TPU and other flexible filaments. As this was a complete redesign and took many more engineering hours, I am listing it separately as version 1.0 still works fine for many applications. Adding new Extruder compatibility all the time. Currently It is compatible with the following style extruders:
Creality metal or plastic
Dual Gear (as shown in photos)
There are versions of the above mentioned specifically designed to mount on Ender style both for direct drive and Bowden tube configurations. There are many ways to mount it depending on your setup.

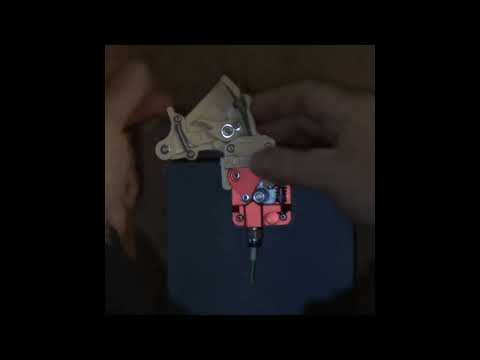

Follow these links to my YouTube channel to see the complete assembly of the unit and a video showing it working on an extruder hooked to one of my delta printers:
All My 3D Printing related videos playlist:
There is an exploded view showing all the parts together. Additionally, I will add variants to accommodate different extruders. currently, I have the one completed for use on a Dual gear extruder, and one that is reversed to accommodate mounting on an Ender with the stock bowden tube setup or one converted to direct drive with the Dual gear extruder.
I included 3 photos of the different models of extruders that are accommodated with these files. some STL's are duplicates as some parts are the same between extruders, but it was easier to just name them for the extruder they are compatible. Just download the ones you need.
There is also a combined .STL for each version, that you can just split up in your slicer if you only want to download one file. Refer to the photos of the extruders to see if one of these variants will work for you model.
Not sure if the exploded view gets included in the downloads, so here is the list of parts:
2- M3x20mm screws
2- M3x8mm Screws
3- 3Mx10mm Screws
1- M3x24mm Screw
2- M3x5mm Screws1- 7mmx13mm Compession spring approx 14-16oz resistance
1- 5mmx20mm(outer edge of rings)spring approx 20-30oz pull
2- 3mm Brass inserts
4- M3 nuts
3- M3 washers
1- small flat piece of brass apprx 20guage 4x6mm
2- 10mmx3mm rare earth magnets
2- short pieces of bowden tubing one approx 15-20mm and one approx 6-7mm
3D printing settings
Printed on FLSun Q5 with Polymaker PLA
210c Print head
80mm/per sec print speed
3D printer file information
- Design number: 1175883
3D design format: STL Folder details Close
- Loader 2.0 BMG all parts.stl
- Loader 2.0 BMG front guide.stl
- Loader 2.0 BMG main body.stl
- Loader 2.0 Creality Extruder direct drive Left Hand main body.stl
- Loader 2.0 Creality Bowden tube setup right hand combined STL file.stl
- Loader 2.0 Creality Ender Righ hand swing arm.stl
- Loader 2.0 Creality Ender Right Hand filament catch.stl
- Loader 2.0 Creality Ender Right Hand filament plunger.stl
- Loader 2.0 Creality Ender Right hand front guide.stl
- Loader 2.0 Creality Ender Right hand main body.stl
- Loader 2.0 Creality Extruder direct drive Left Hand swing arm.stl
- Loader 2.0 Creality Right hand with dual gear mount.stl
- Loader 2.0 Creality adapter plate with nut pockets.stl
- Loader 2.0 Creality direct drive Left Hand side clamp.stl
- Loader 2.0 Creality direct drive Left Hand filament catch.stl
- Loader 2.0 Creality direct drive Left Hand front guide.stl
- Loader 2.0 Creality direct drive Right Hand side clamp.stl
- Loader 2.0 Creality direct drive left hand setup combined STL file.stl
- Loader 2.0 Creality right hand front filament guide for dual gear Extruder.stl
- Loader 2.0 Dual Gear Extruder filament catch.stl
- Loader 2.0 Dual Gear Extruder side clamp.stl
- Loader 2.0 Dual Gear combined STL file.stl
- Loader 2.0 Dual gear Extruder bottom clamp.stl
- Loader 2.0 Dual gear Extruder front guide.stl
- Loader 2.0 Dual gear Extruder plunger.stl
- Loader 2.0 Dual gear Extruder swing arm.stl
- Loader 2.0 Dual gear extruder main body.stl
- Loader 2.0 Microswiss main body.stl
- Loader 2.0 microswiss swing arm.stl
- Loader 2.0 microswiss filament catch.stl
- Loader 2.0 microswiss front guide.stl
- Loader 2.0 microswiss plunger.stl
- Loader 2.0_BMG Extruder filament catch.stl
- Loader 2.0_BMG Extruder swing arm.stl
- Loader 2.0_BMG extruder plunger.stl
- Last update: 2023-04-30 at 07:32
- Publication date: 2023-04-19 at 05:10
